15-LED Light Kit

Build this LED Lamp Kit.

15-LED Light Kit

I have a range of new LED lighting kits and parts available. I have designed street lights / down lights / pool lights / commercial lighting kits as well.

"SPECIAL" Price $5.50 Complete Kit.

Shipping cost is extra.

Discount on bulk (email us)

Keep a lookout as I will be bringing out more LED lighting kits from my design range. Now you can build up your own LED lights, and if you what to learn about LEDs then my new LED kits should do the job! They are ideal for schools and clubs or someone who just wants to change to LED lighting in their home or business.

Whatever the case may be I am available any time to help out, so if you need a kit or LED parts then let me know by email (eyecatchu@yahoo.com.au) or by Mob: 0408458645.

Steps

Step #1: Check List.

Next
15-LED Light Kit

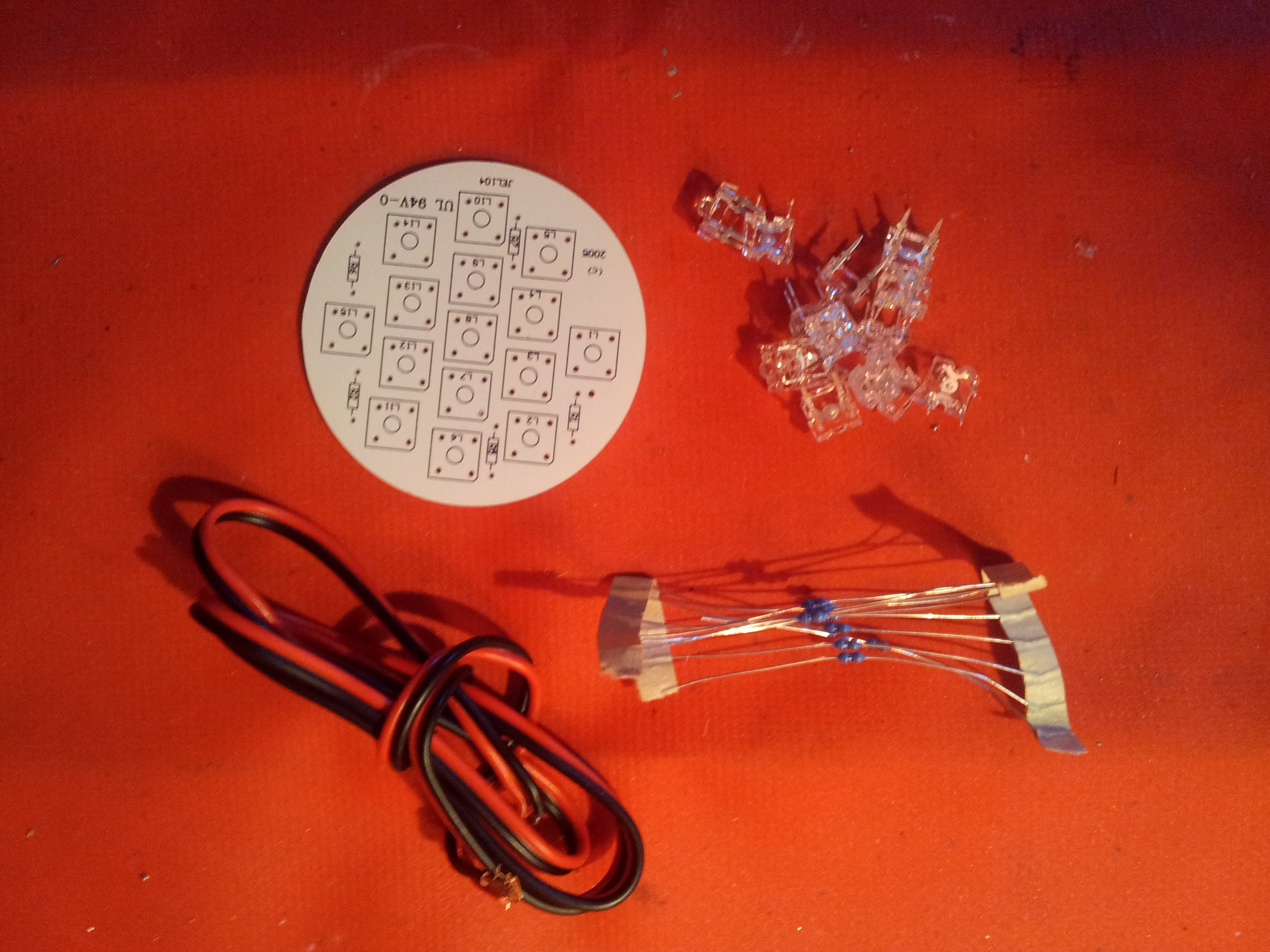

  • Check kit parts list. 1 x PCB / 15 x Superflux LEDs / Hook up wire / 5 x 470 ohms Resistors

Step #2: LEDs

Next
15-LED Light Kit

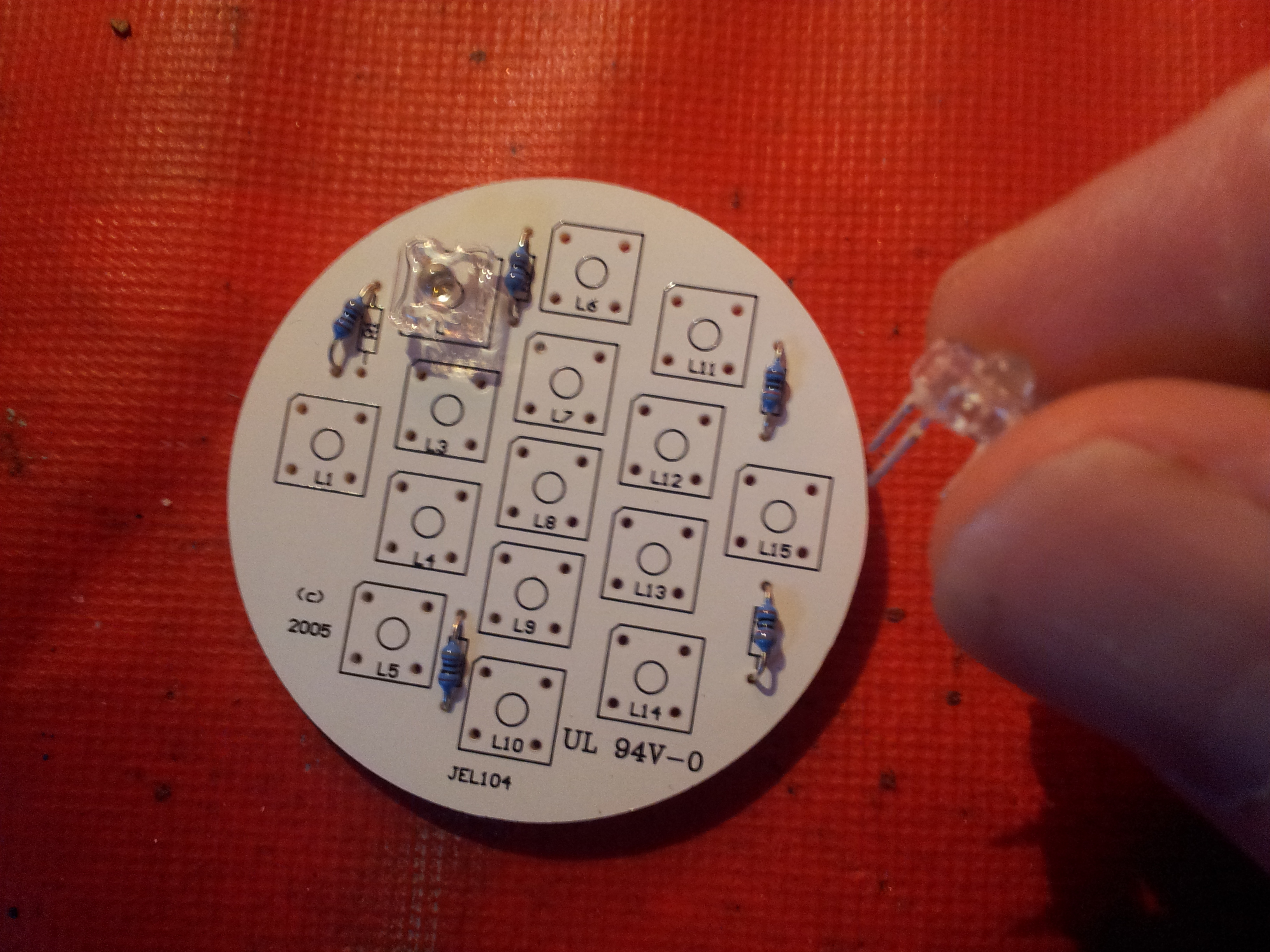

  • NOTE: Make sure the LED is soldered the correct way 'round on the PCB. If you look very closely at the LED you will see that one corner is angled. Align the LED with the image on the PCB.
  • WARNING: LEDs ARE STATIC-SENSITIVE SO YOU MUST WEAR A STATIC WRISTBAND WHICH IS CONNECTED TO EARTH.
  • (We can supply static mat kits.)

Step #3:

Next
15-LED Light Kit15-LED Light Kit15-LED Light Kit

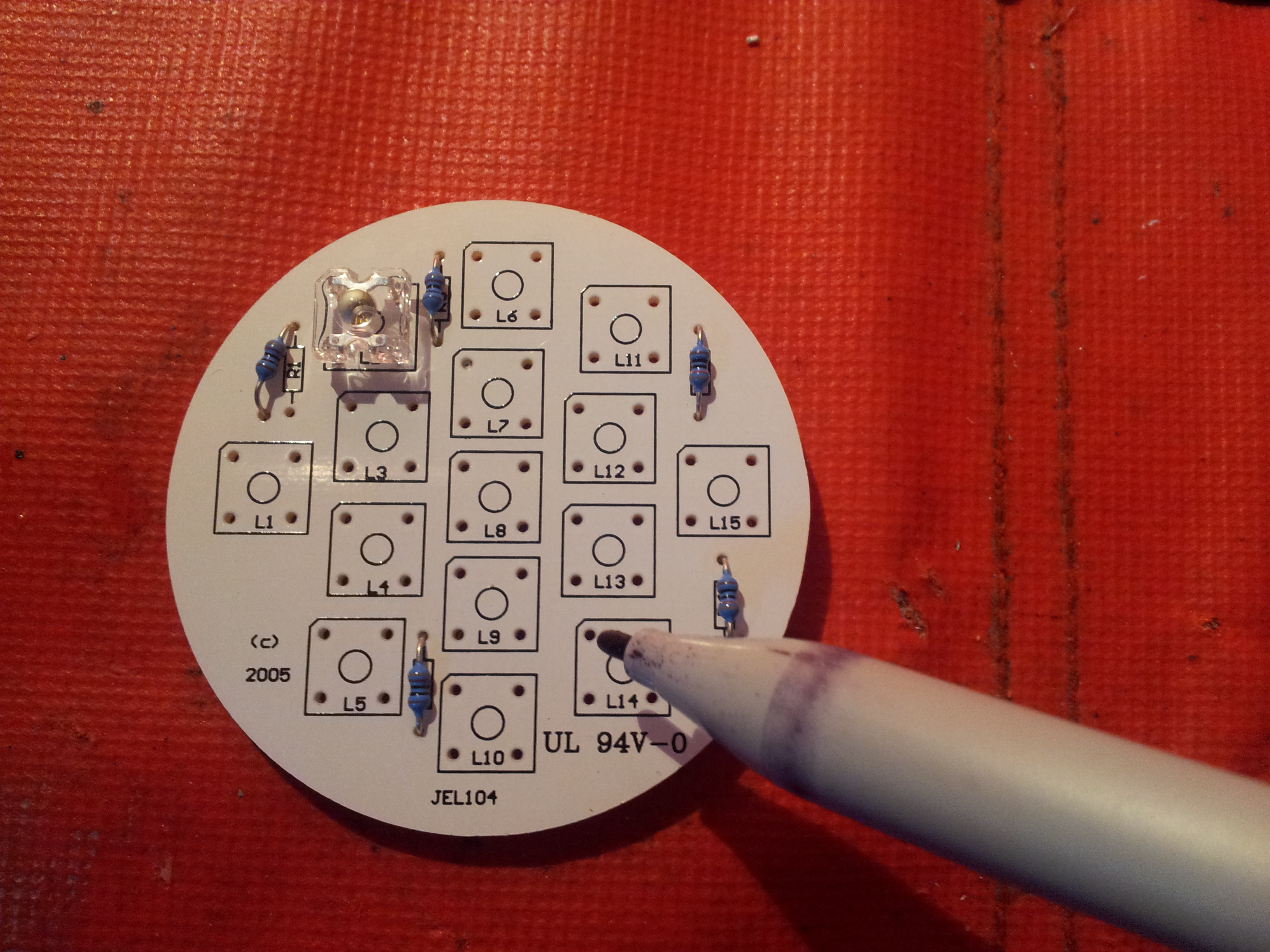

  • Solder LED's to PCB.

Step #4:

Next
15-LED Light Kit15-LED Light Kit15-LED Light Kit

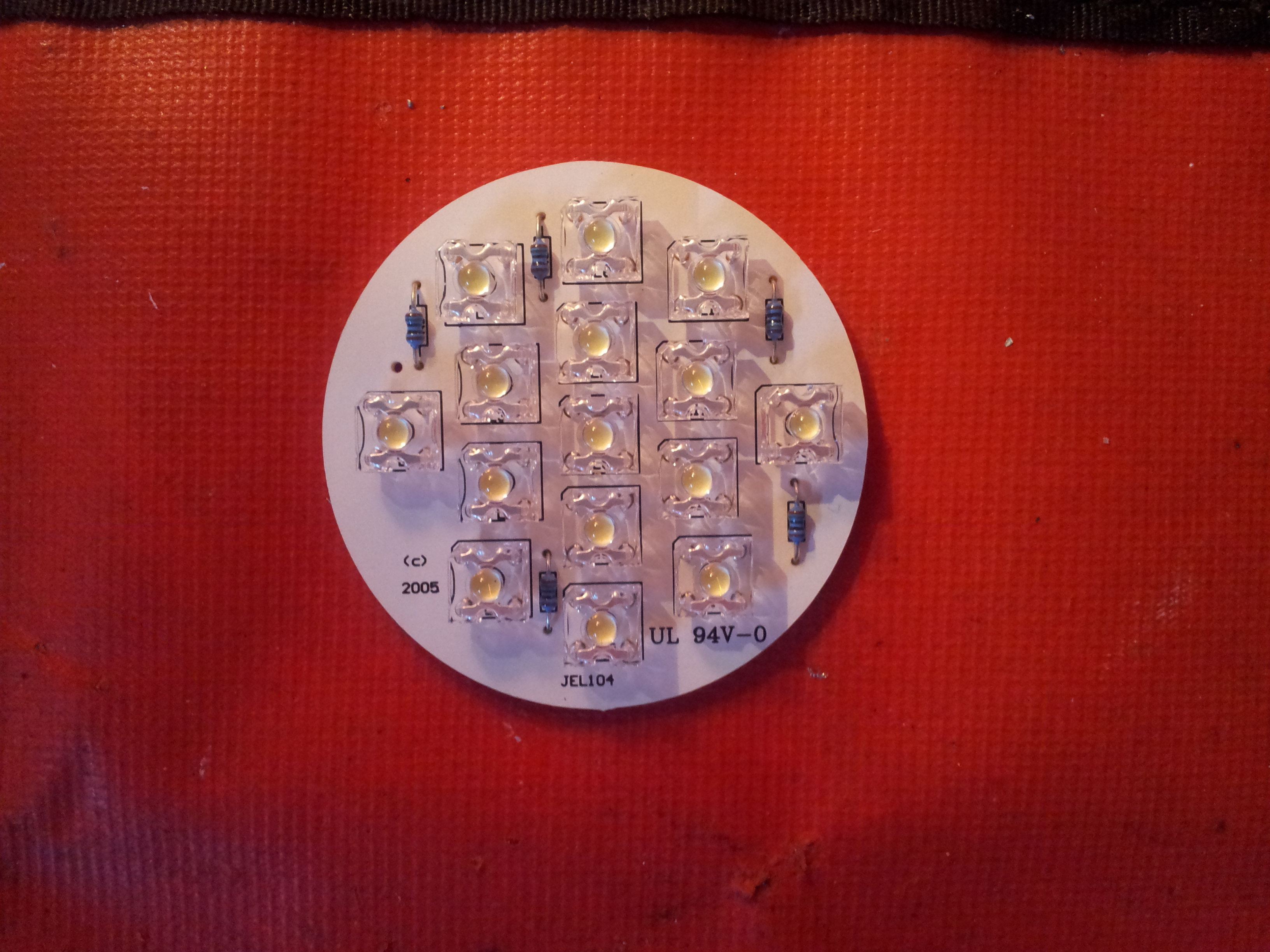

  • Finished PCB.

Step #5: Power lead

Next
15-LED Light Kit

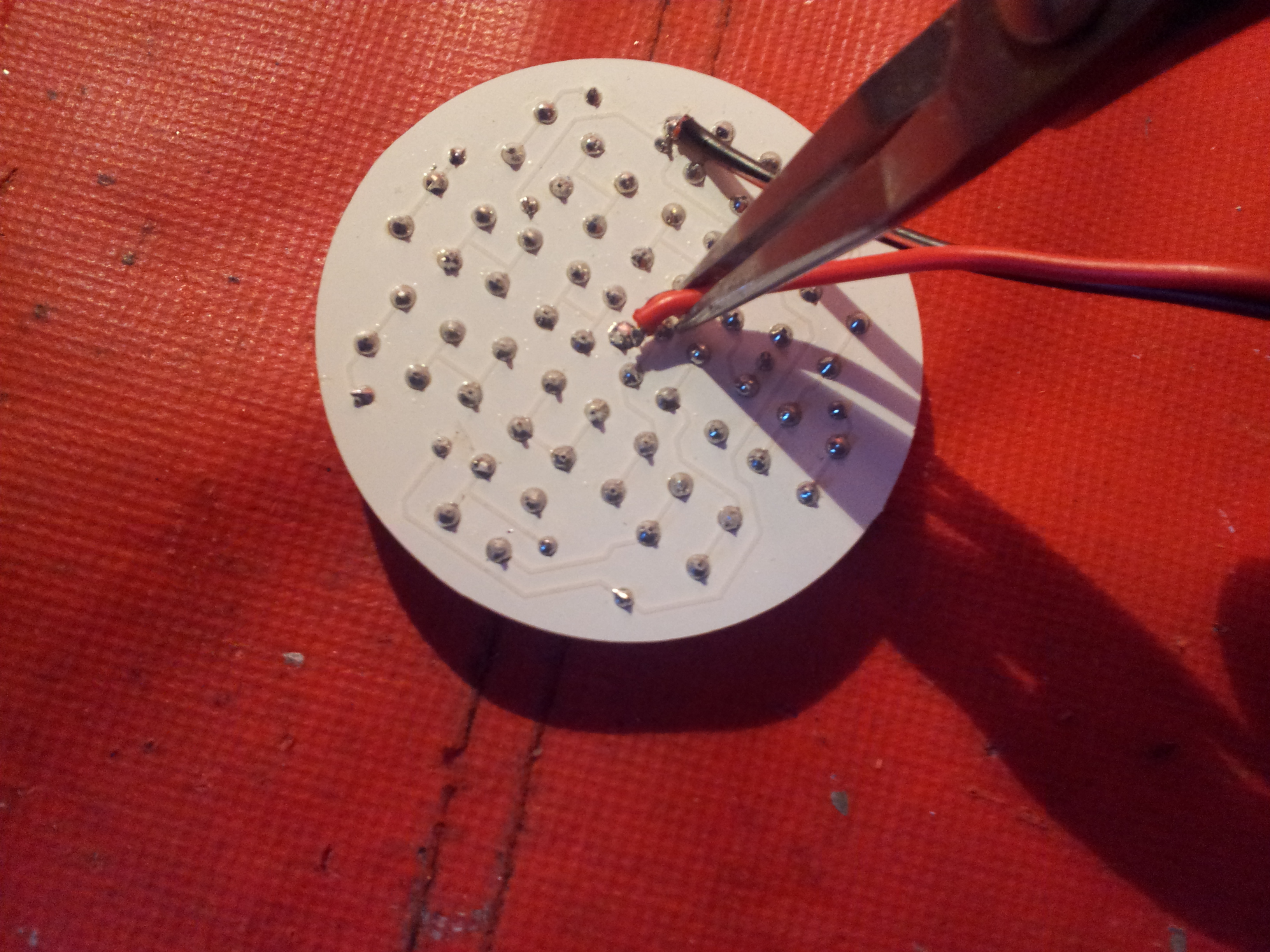

  • Next solder the hook-up wire leads to the PCB. The red wire goes in the centre.

Step #6: Power Supply

Next
15-LED Light Kit

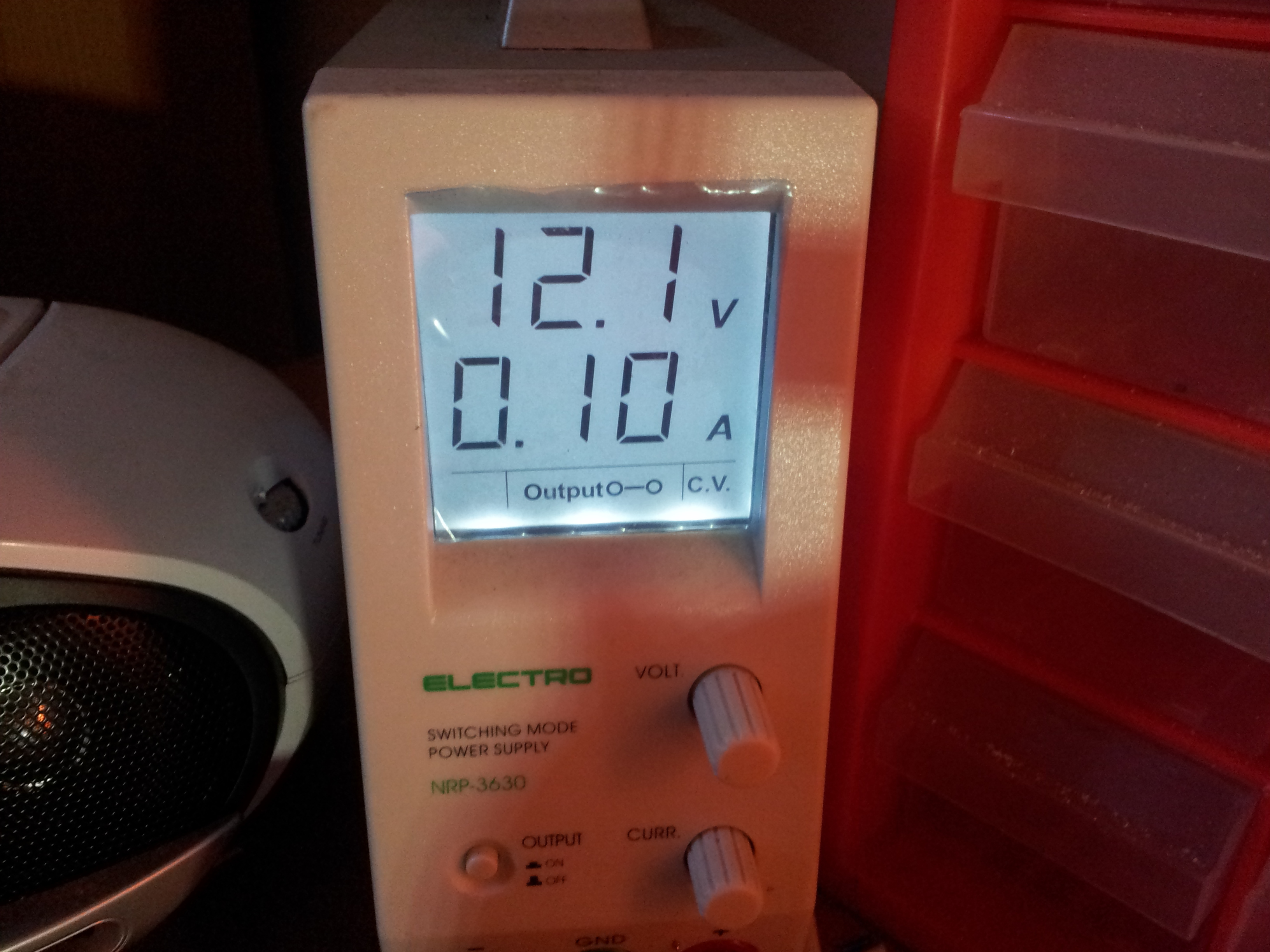

  • Next connect up a 12V DC power supply unit to lamp.

Step #7:

15-LED Light Kit

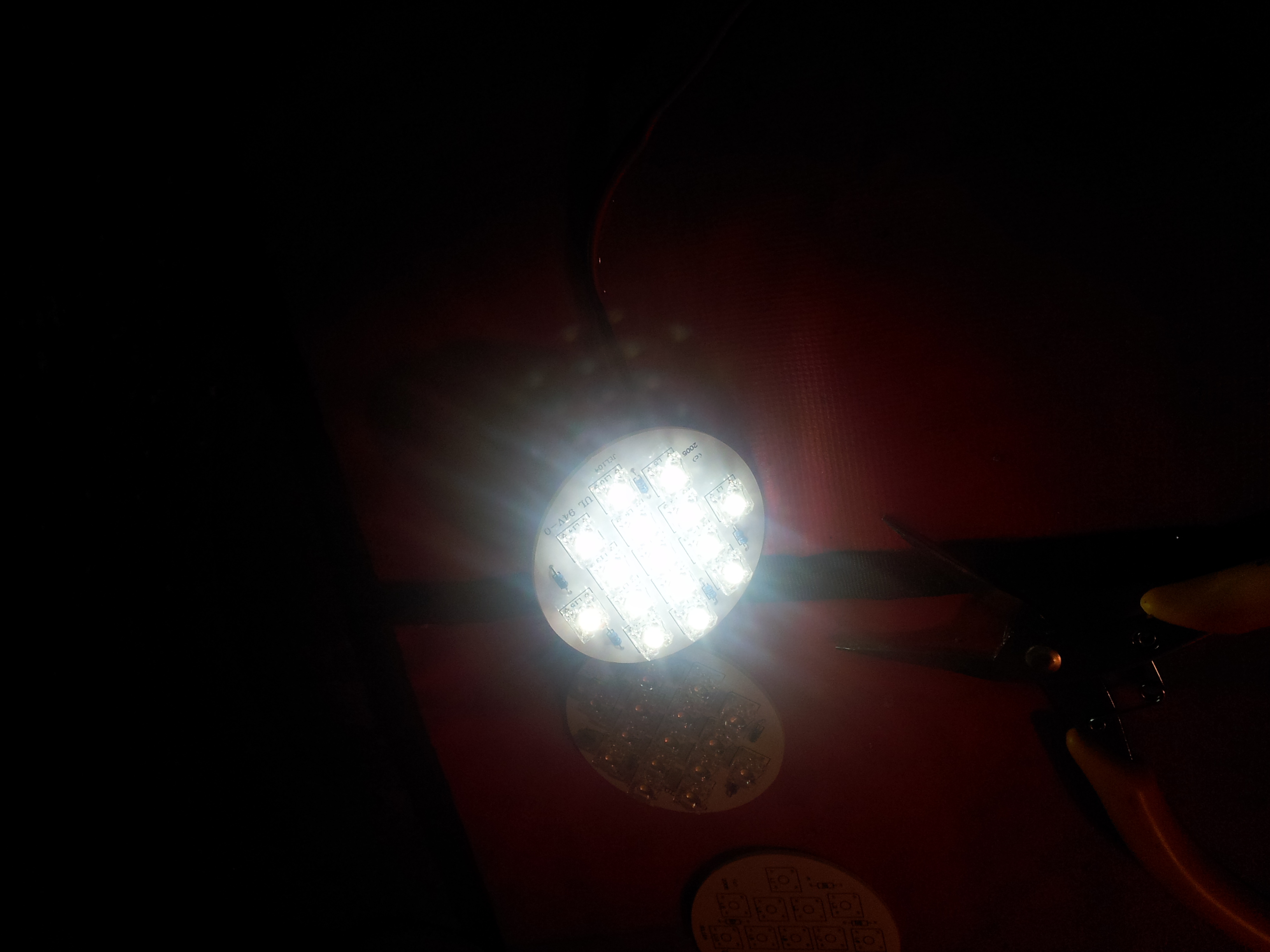

  • Lamp on
