20ft-tall, 40ft-long, Fire-Breathing Dragon!

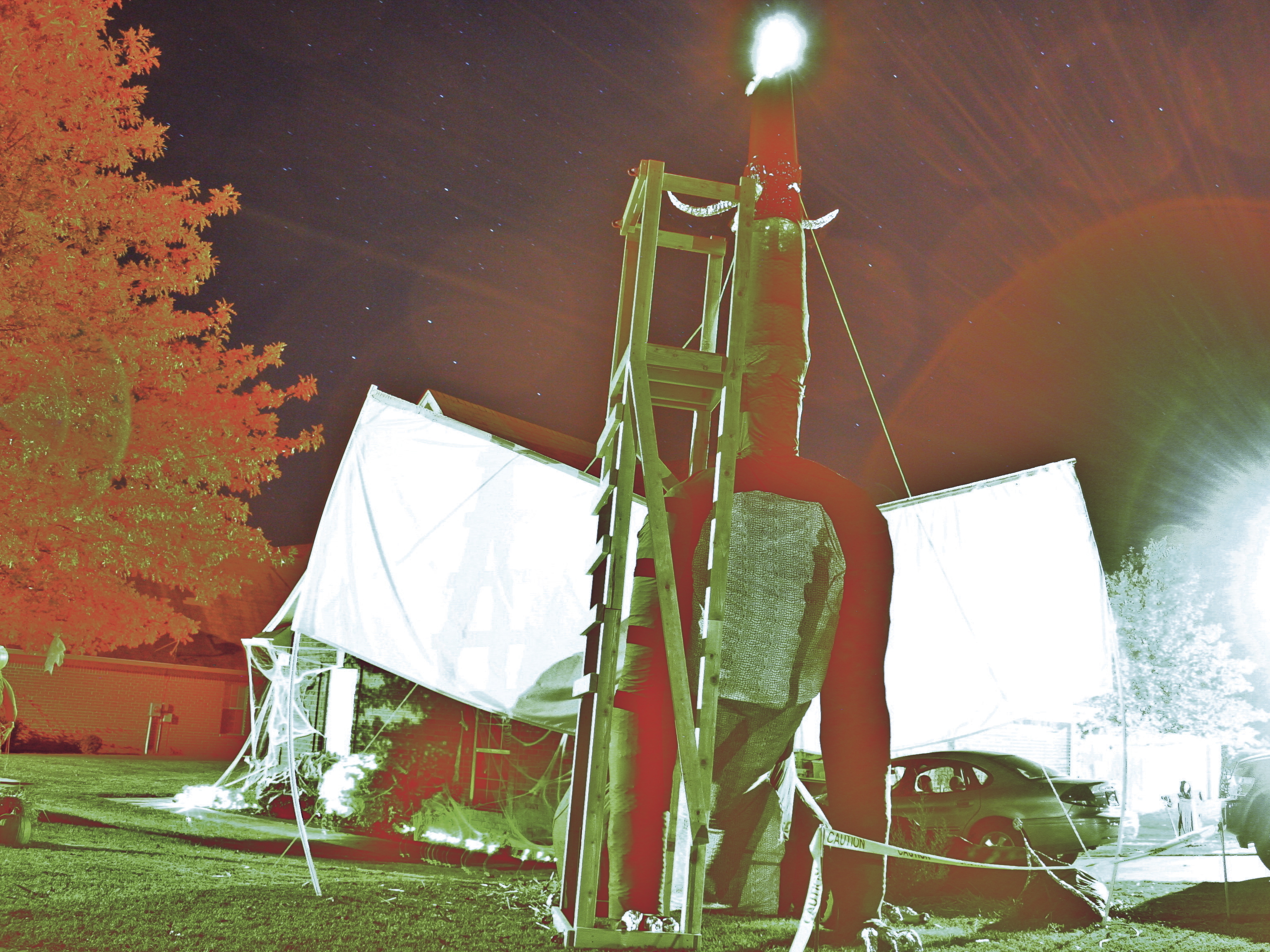

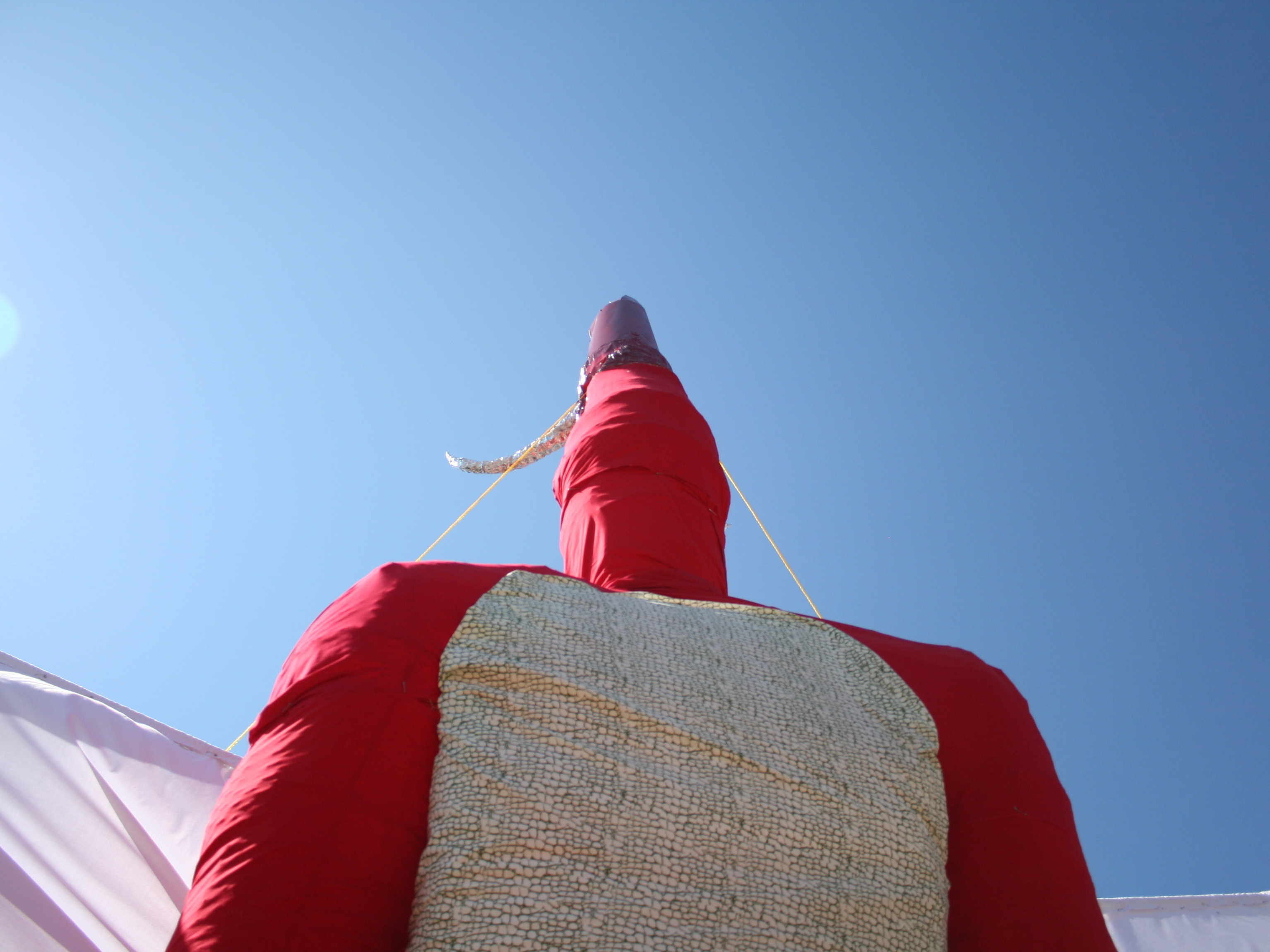

These are the steps I took to create a ginormous fire-breathing dragon to go on my front lawn for Halloween 2011. Many mistakes were made, and poor techniques chosen, but ultimately it was a success.
Have you ever wanted to have a gigantic lawn prop for Halloween? Perhaps something that the neighbors wonder about as it’s coming up, and is so challenging, you wonder if you’ll be able to finish it? This is the project for you. Unfortunately, I did not write this and track everything carefully as I went, as I was not expecting to enter this contest, but the techniques are really what’s important here, not precise details.

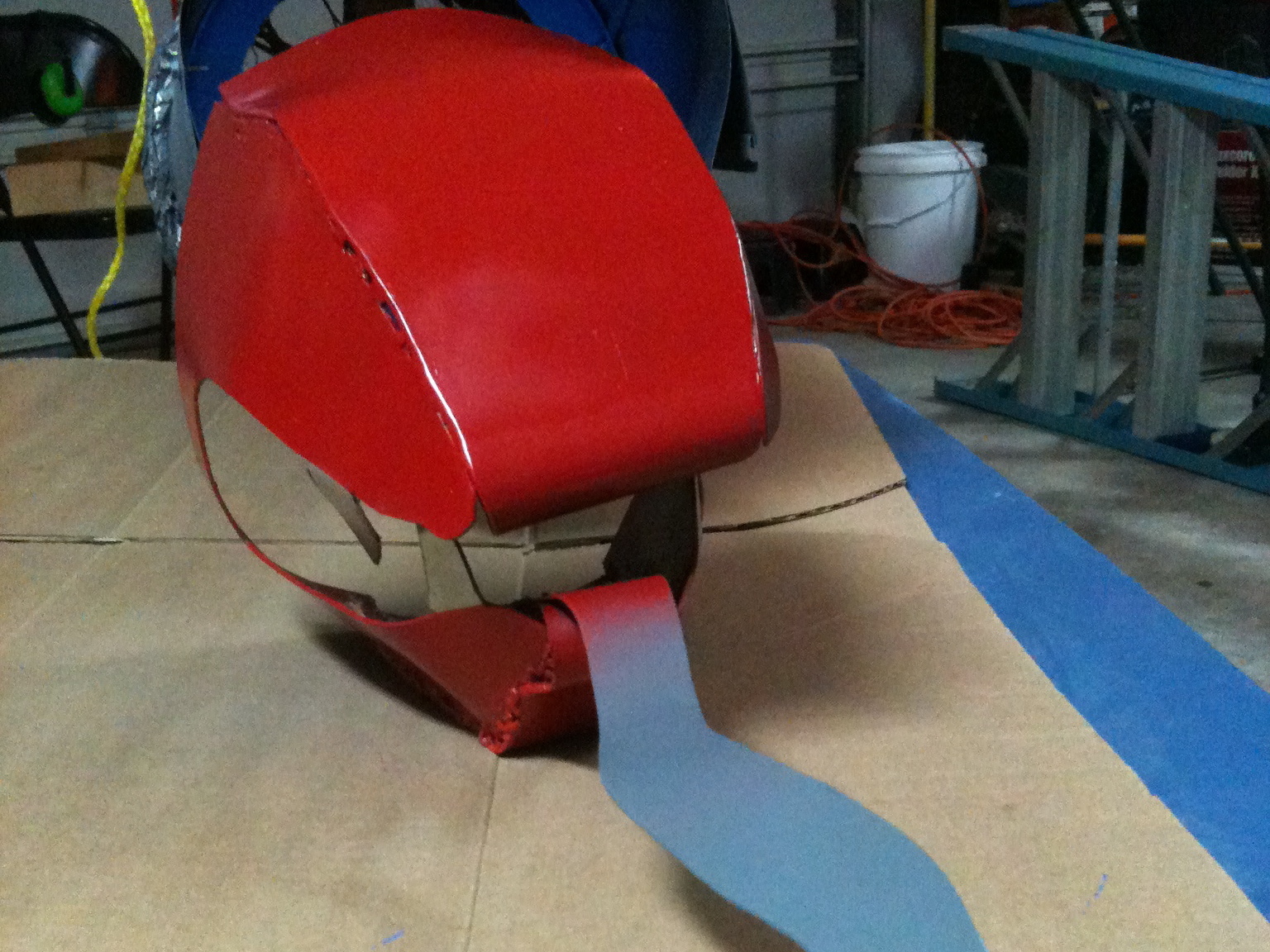

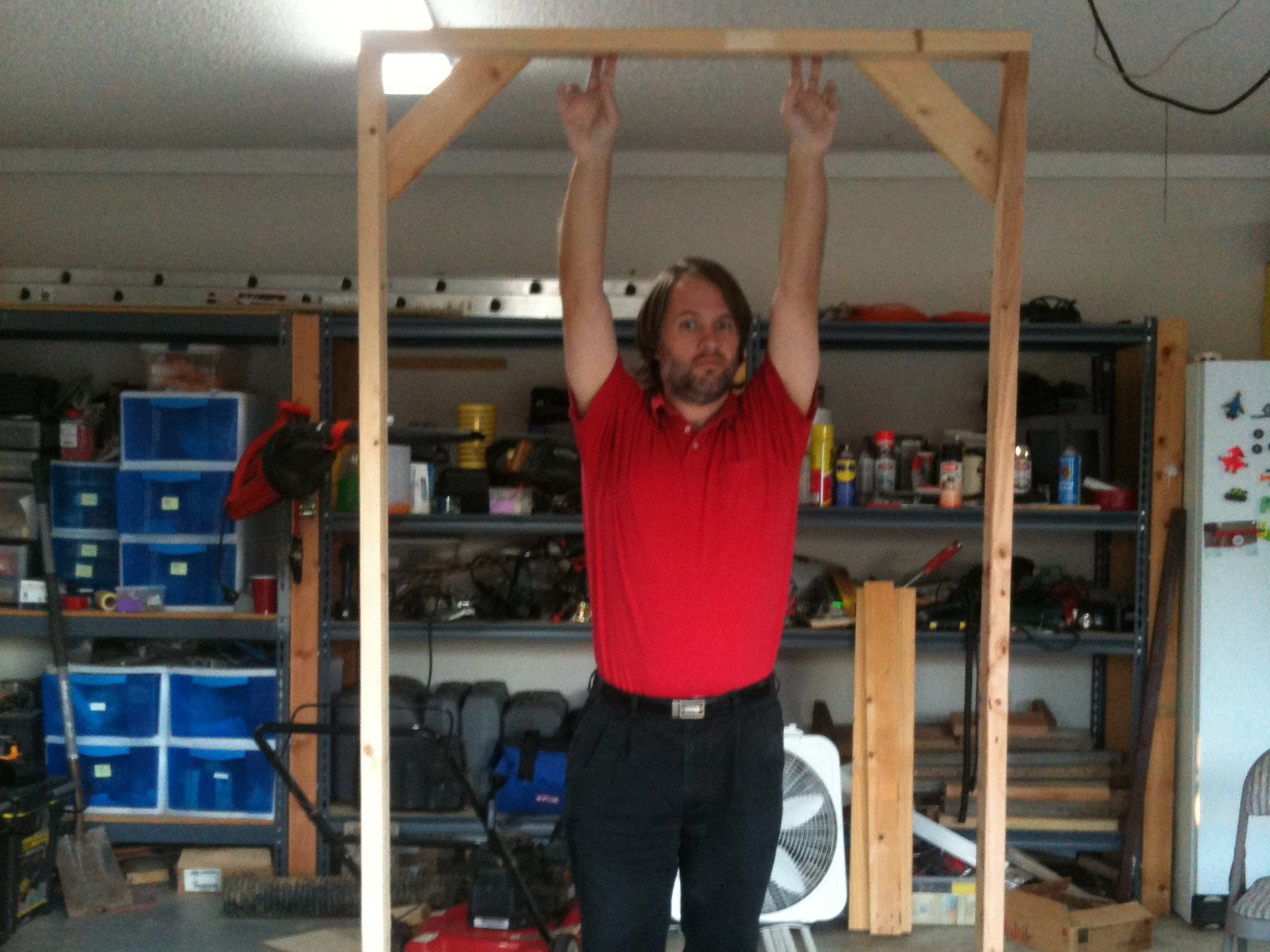

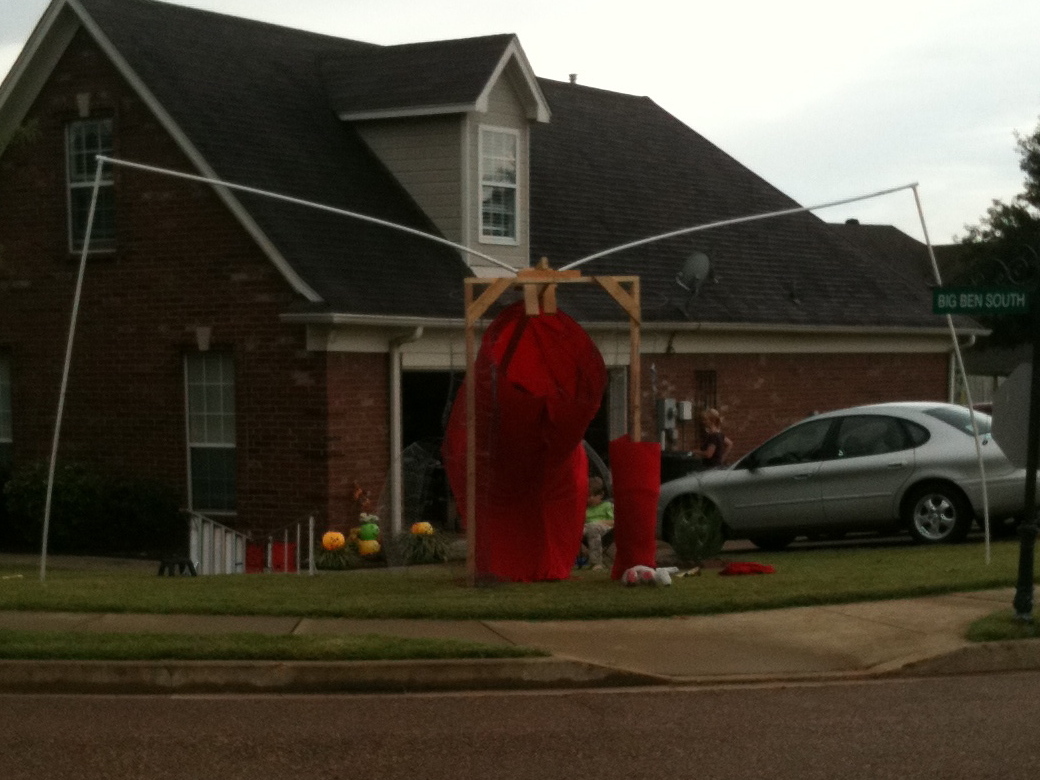

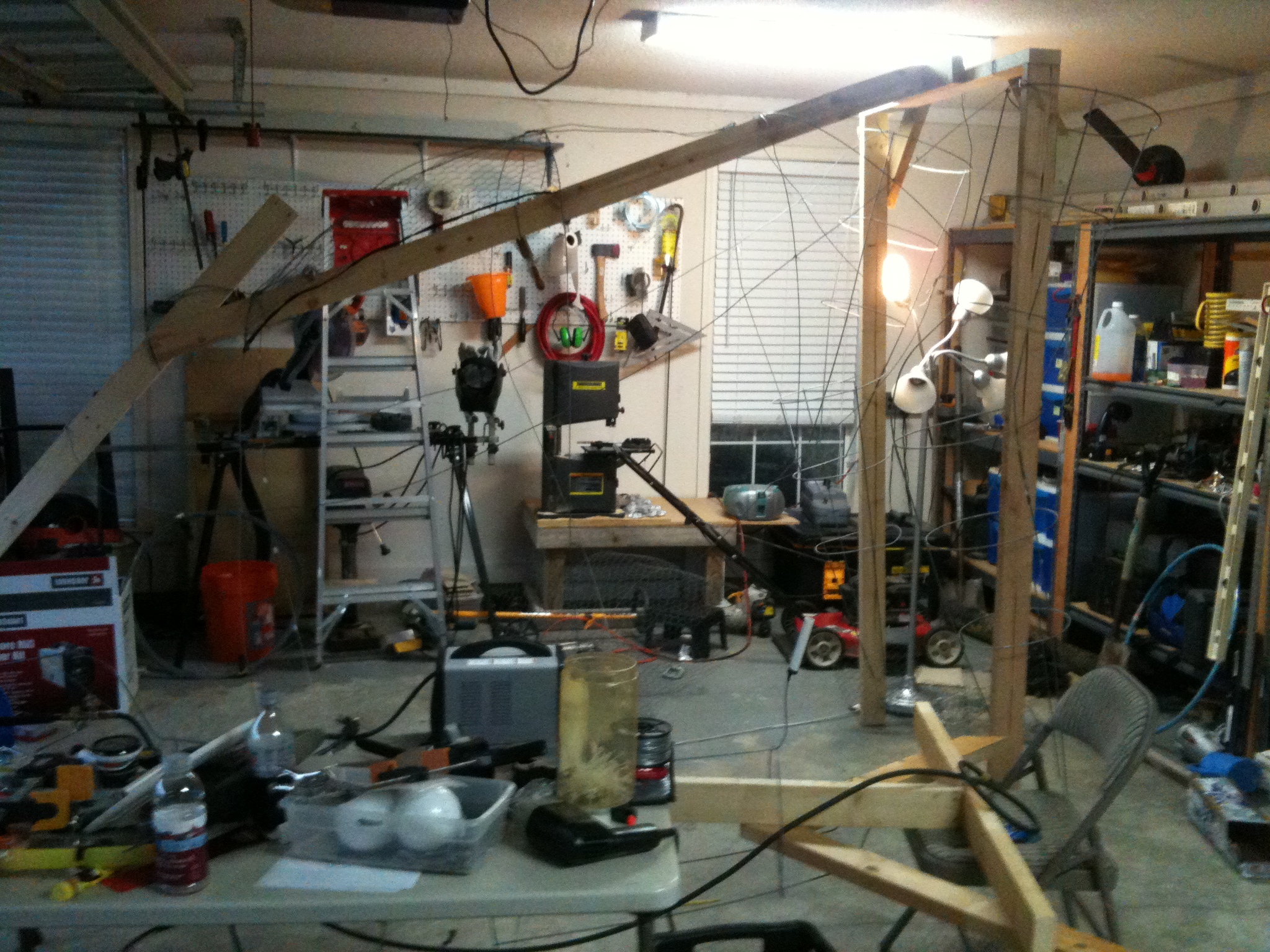

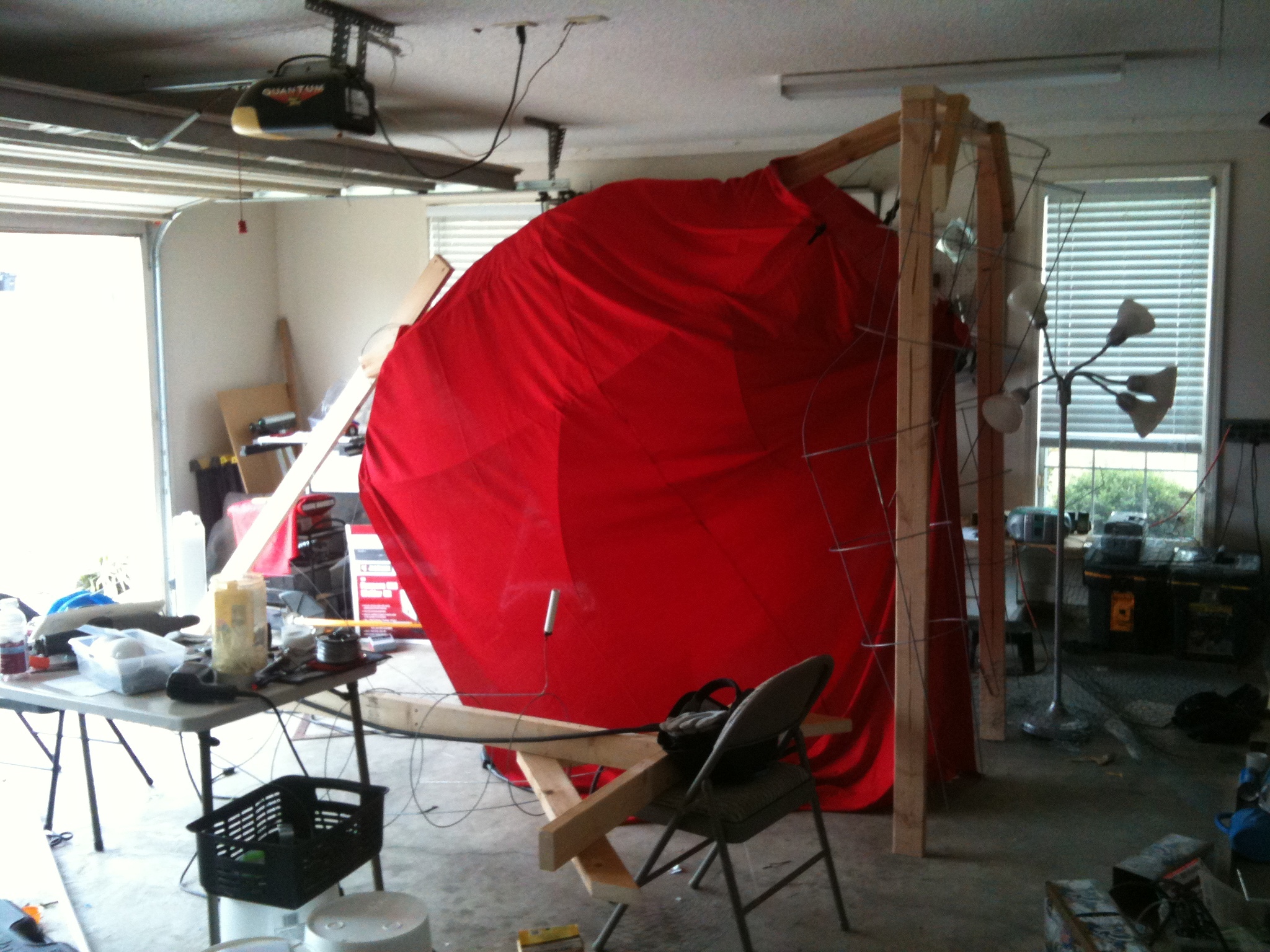

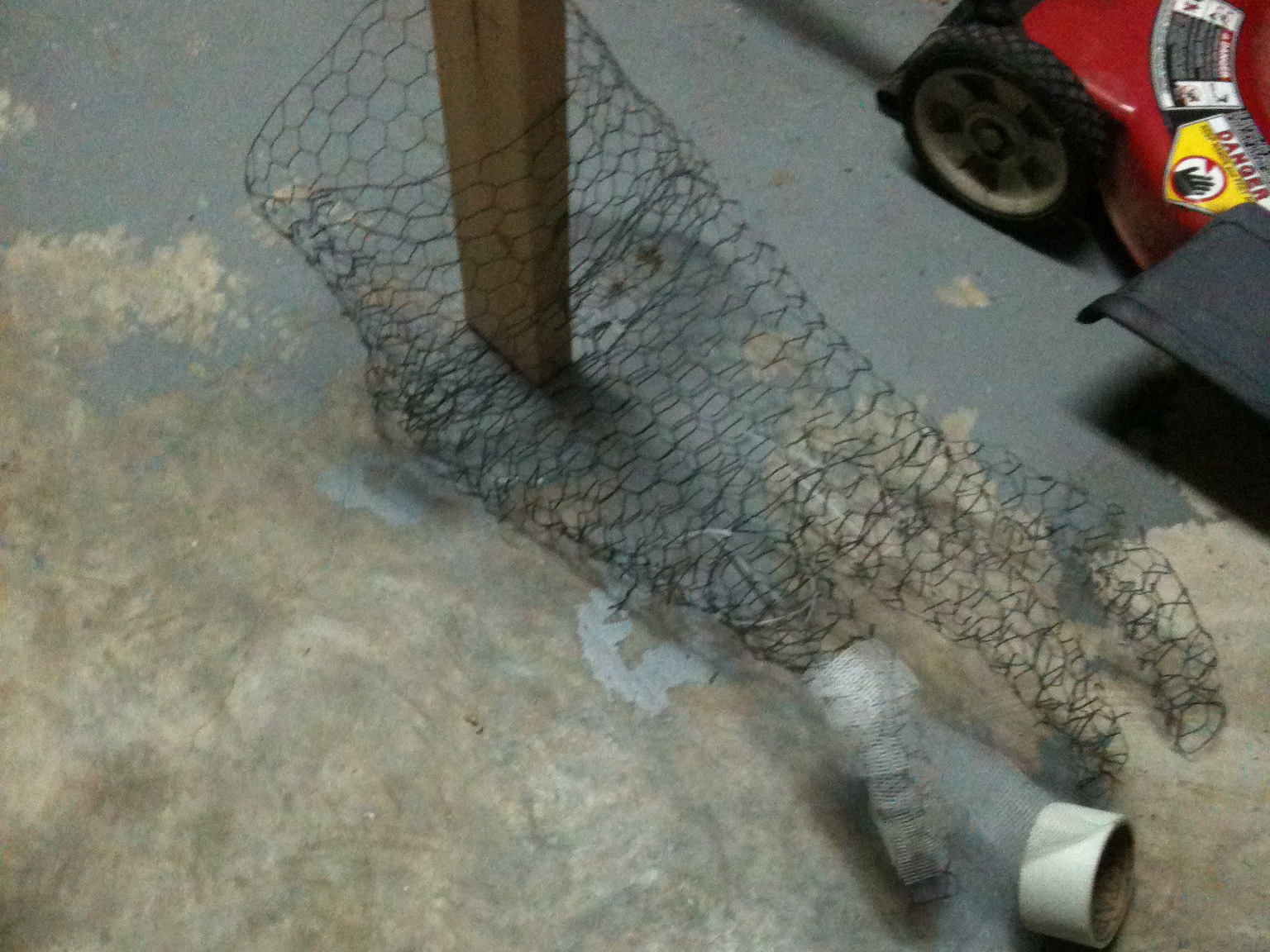

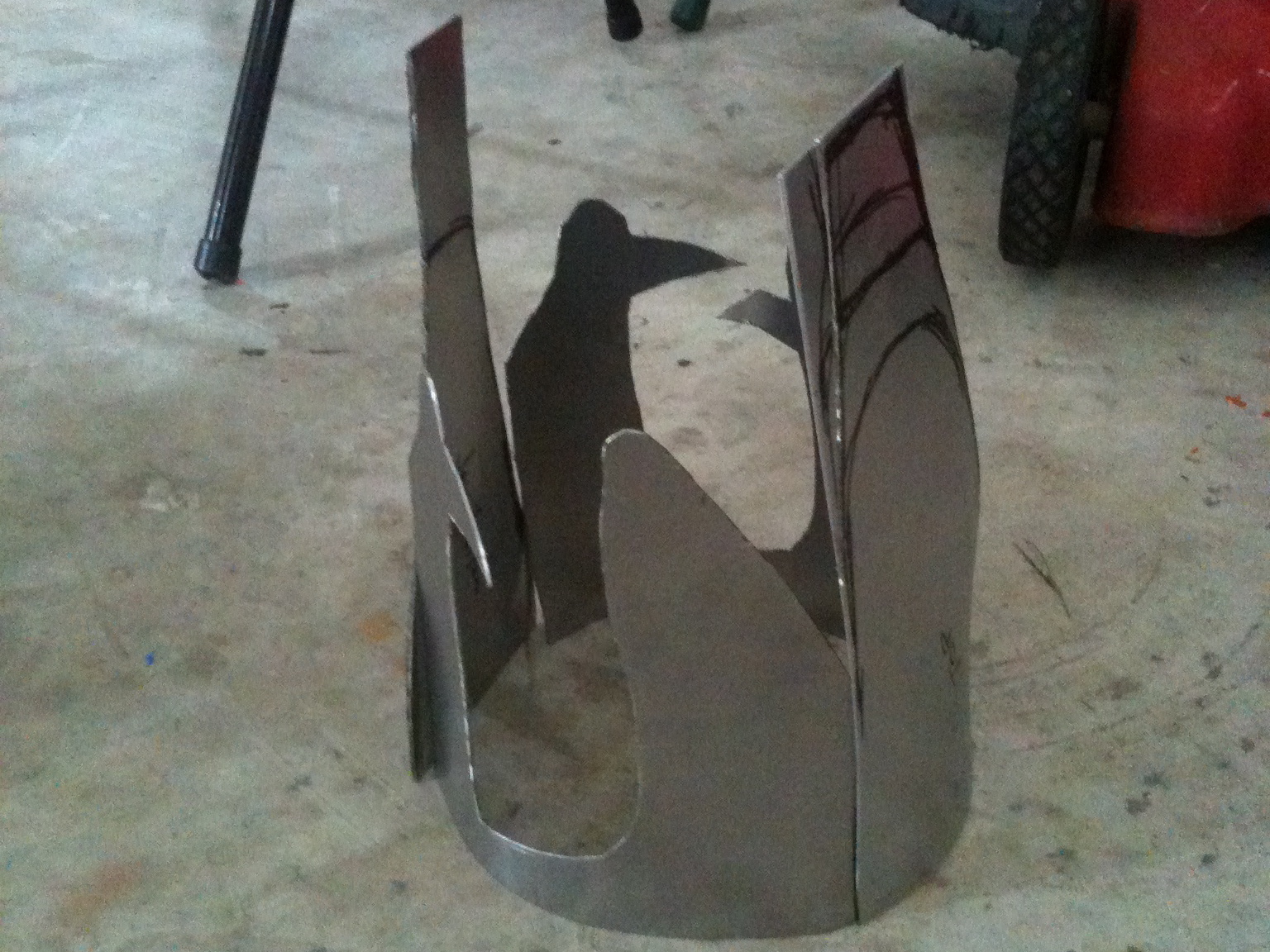

The basic approach we took is to make a very simple skeleton out of 2×4′s, and then use electric fencing and chicken wire to create a wire frame to wrap fabric around. I constructed the head from a 5-gallon bucket, a lawn torch, some air-conditioning duct work, and 14-gauge steel plate welded into the shape of a snout.
As far as budget goes, I lost count. The materials list looks something like this:
2×4′s: 6-8 ft
Red Cotton: 40 yards +-
Scaly Cotton: 5 yards +-
Electric Fence Wire: 80-100 ft
Chicken Wire: 24"x??? (‘way more than I expected, and I lost count of the rolls purchased.)
14-Gauge Steel plate: 1 8×14" sheet (if I recall).
1 5-gallon bucket
1 roll aluminum foil
1 10"-diameter, 2-part AC duct
Steps
Step #1:
Next



- At this stage, the design was very experimental. We decided to try mounting a propane lawn torch to a 5-gallon bucket using some U-Bolts as shown, and to remove the bottom of the bucket so the torch could stick through. We did a test burn to verify that the heat from the torch would not melt or burn the bucket.
