Arduino Mega PIR Alarm

Make an Arduino Mega PIR alarm.

  • By Ethan Flubacher
  • Category: Arduino
  • Time Required: 5 Minutes
  • Difficulty: Easy
Arduino Mega PIR Alarm

Here’s how to make a simple Arduino Mega PIR alarm.

Steps

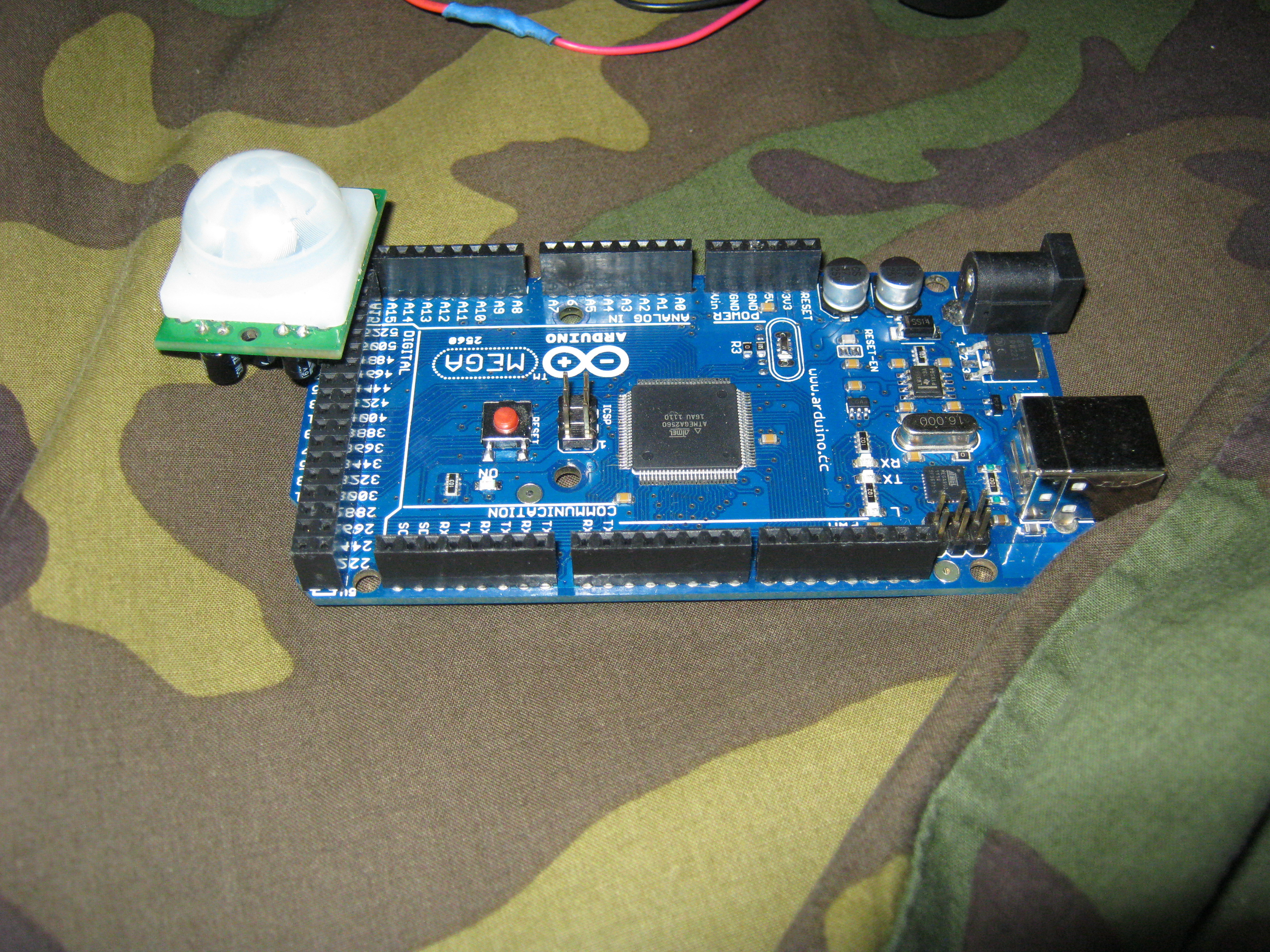

Step #1: Connect PIR sensor

NextArduino Mega PIR Alarm
  • GND to ground, V+ to pin 53, OUT to pin 51.

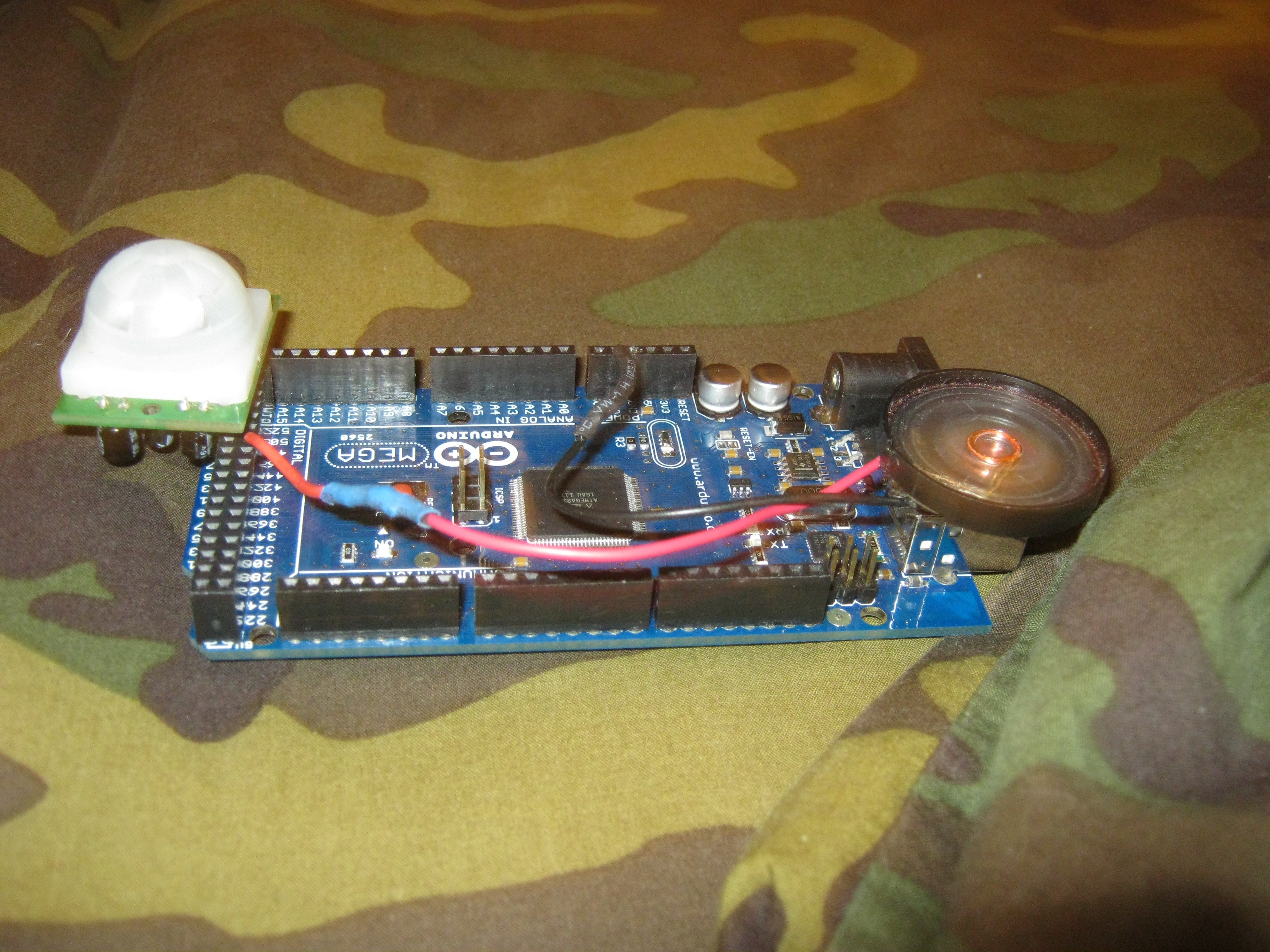

Step #2: Connect speaker

NextArduino Mega PIR Alarm
  • Connect speaker to pin 41 and ground.
