Most people are familiar with the common ball chain “straight coupling” that lets you join one end of a chain to another.
There’s also a less-familiar “eye” coupling, however, that lets you join the end of a ball chain to the middle of another. You crimp the terminating chain’s last ball into the coupling and pass the continuous chain through the eye, the opening of which is just large enough to pass the spherical links. It is not, however, large enough to pass the diameter of a straight coupling. So if you sandwich an eye coupling between two straight couplings, you can make a fixed three-way joint. And believe me, the fixed joints are necessary if you’re going to make complex constructions. If you leave them free to slide, things rapidly become very tangled.

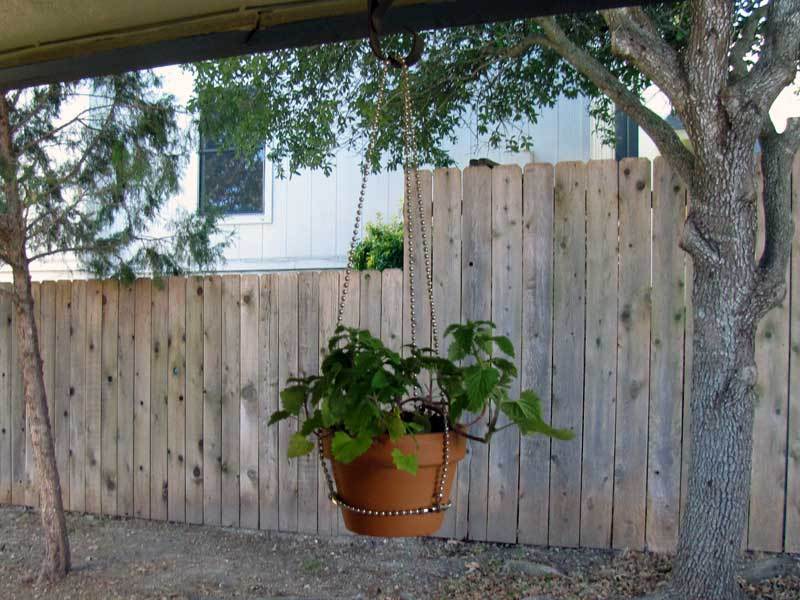

A simple three-way joint constructed from ball-chain fittings is the core of the project. It opens up the possibility for pretty much any netted ball-chain webbing you can imagine. This project just covers the most basic, utilitarian design of a simple plant hanger, but once you know how to make these joints, you can pretty much make a ball-chain webbing to fit any object.
Steps
Step #1: Construct joints
Next

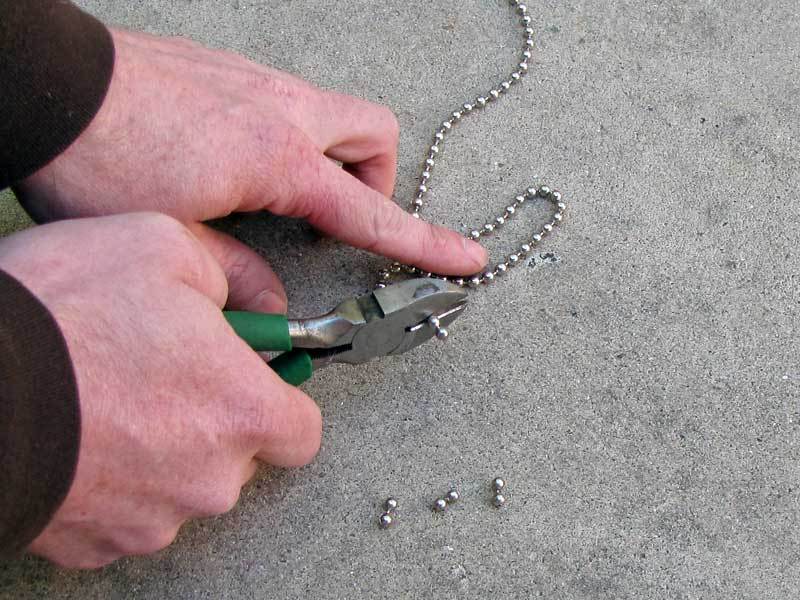

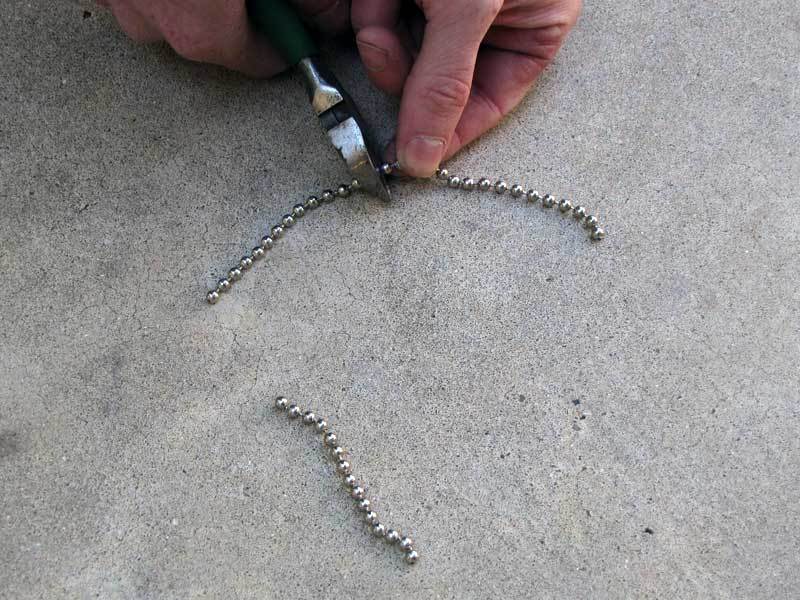

- Use side-cutting pliers to cut four two-ball lengths of chain.

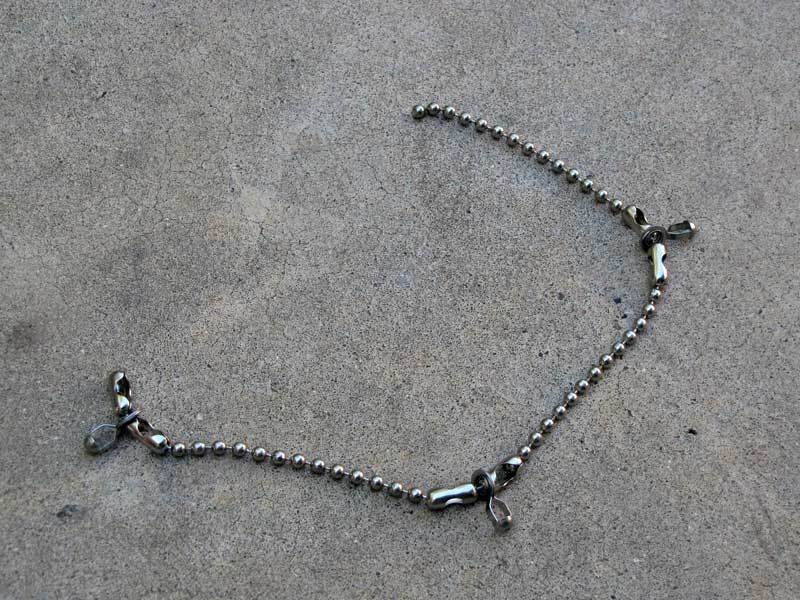

- Build four three-way joints as follows:
- Attach a straight coupling to one link of a two-ball chain.
- Slip the eye of an eye coupling over the free ball until it butts up against the straight coupling.
- Attach another straight coupling to the free ball. This will trap the eye coupling between the two straight couplings.
Conclusion
A large number of multi-way joints are possible. This page illustrates those that I've come up with so far.
Once you know how to make fixed multi-way joints in ball chain, the possible uses for it expand dramatically. Plant hangers are just an easy example.
Ballchain.com carries all kinds of ball chain and fittings, including some exotic types in unusual colors and materials.
