Additional Materials Required:
- Shaker Mount
- Shaker Motor
- Shaker Hammer and coupler
- 1" Pillow Block Bearings(2)
- 1/4"x2" Bolt (1)
- 3/8"x2" Bolts (4)
- 1/2"x2" Bolts (2)
- 3/8" Lock Nuts (4)
- 1/2" Lock Nuts (2)
- 3/8" Washers (8)
- 3/8" Lock Washers (4)
- 1/2" Washers (4)
- 1/2" Lock Washers (4)
Steps
Step #1:
Next

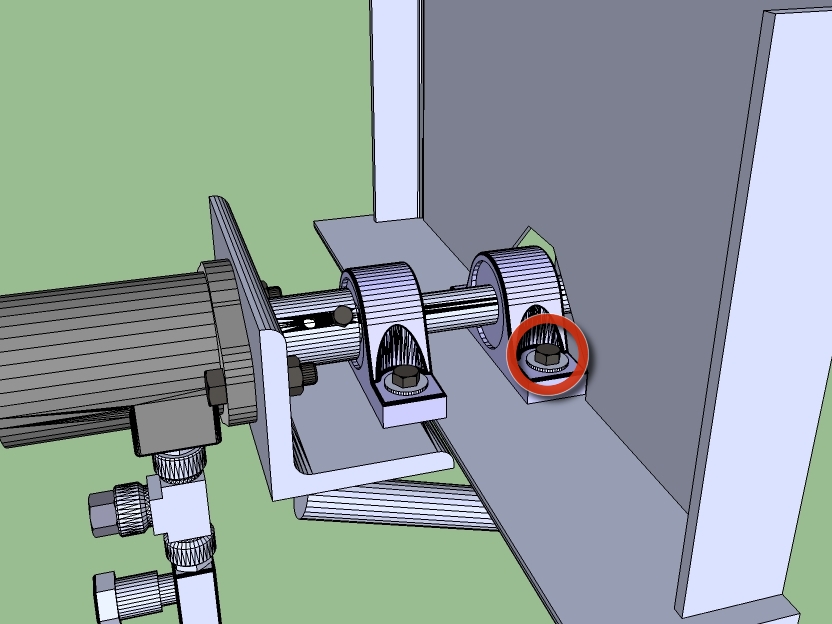

- Loosely bolt the assembled motor to the mount, as shown, using washers on both sides, and a lock washer touching the nut.

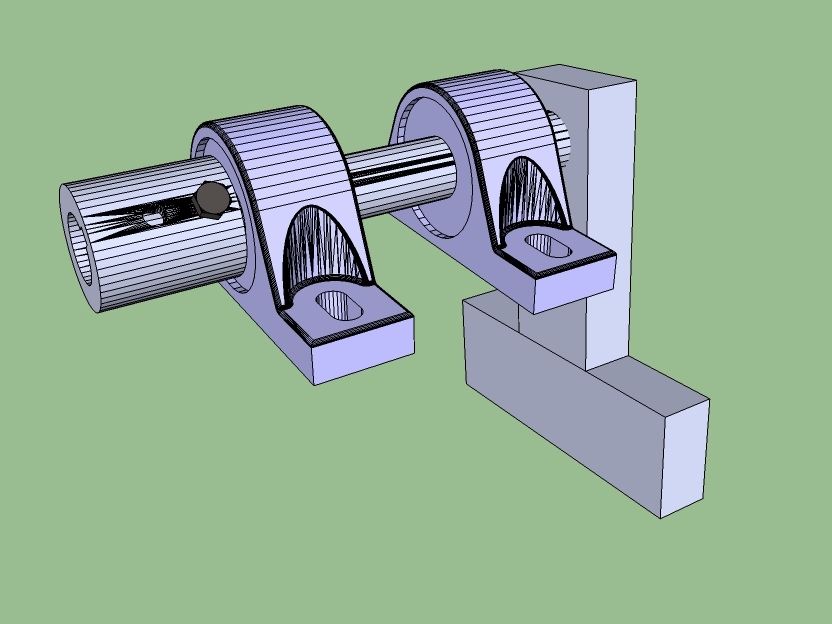

- Put the bearings onto the shaft, insuring the eccentric side is facing inwards.
- Remember to put the eccentrics in between the two bearings.
- The eccentrics are little collars with lopsided circles inside of them. This makes it so it can lock into the bearings.
- Insure both collars are facing the right direction (So it will lock onto the lip) and so are the bearings.
