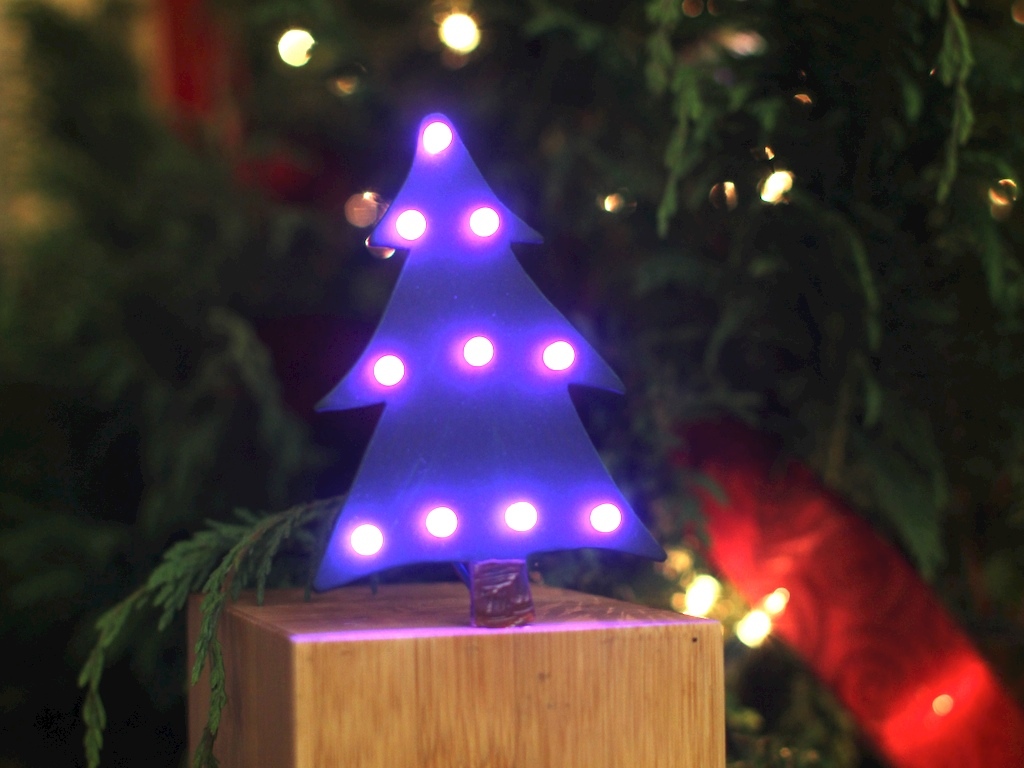

This tree is nothing more than 10 RGB (red/green/blue) LEDs connected in parallel to an Arduino with an Ethernet Shield running a modified version of the cheerlights sketch.
Step #1: Next

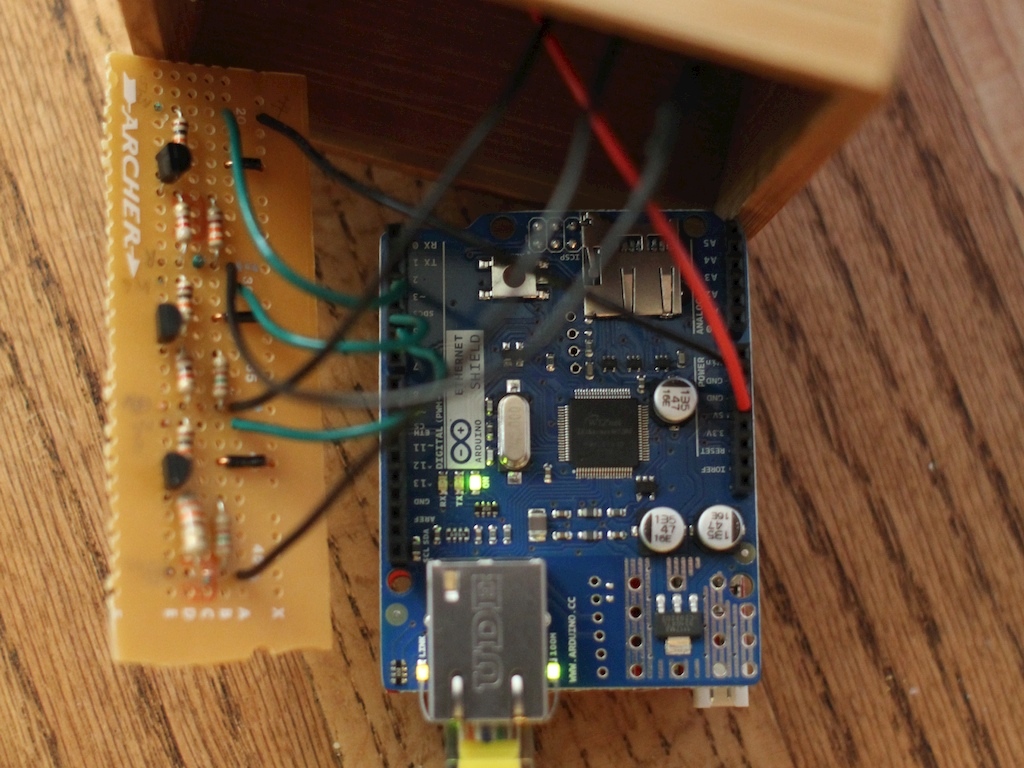

- While I was waiting for my shipment of RGB LEDs to arrive, I went ahead and did a test run with the Arduino and a single LED. Then, wanting to make sure I didn't overload the Arduino's outputs, I whipped up a little board with NPN transistors to take the load off. Turns out I probably didn't need it, but left it in anyway. Astute readers will notice that I have 3 extra resistors. Turns out that the LED with which I did my original testing (acquired at Radio Shack) needed different resistor values than the twenty I got from Sparkfun.
- Good instructions for connecting an RGB LED to an Arduino can be found at http://www.instructables.com/id/RGB-LED-...
- I downloaded the code from https://github.com/iobridge/CheerLights/... and replaced the GE Color Effects code bits with code from the aforementioned Instructables article to drive RGB LEDs. I had to invert the color values (replace 255 with 0 and vice versa) to reflect the wiring.
- My final code can be found at https://github.com/BabyWrassler/Desktop-...
Step #2: Next

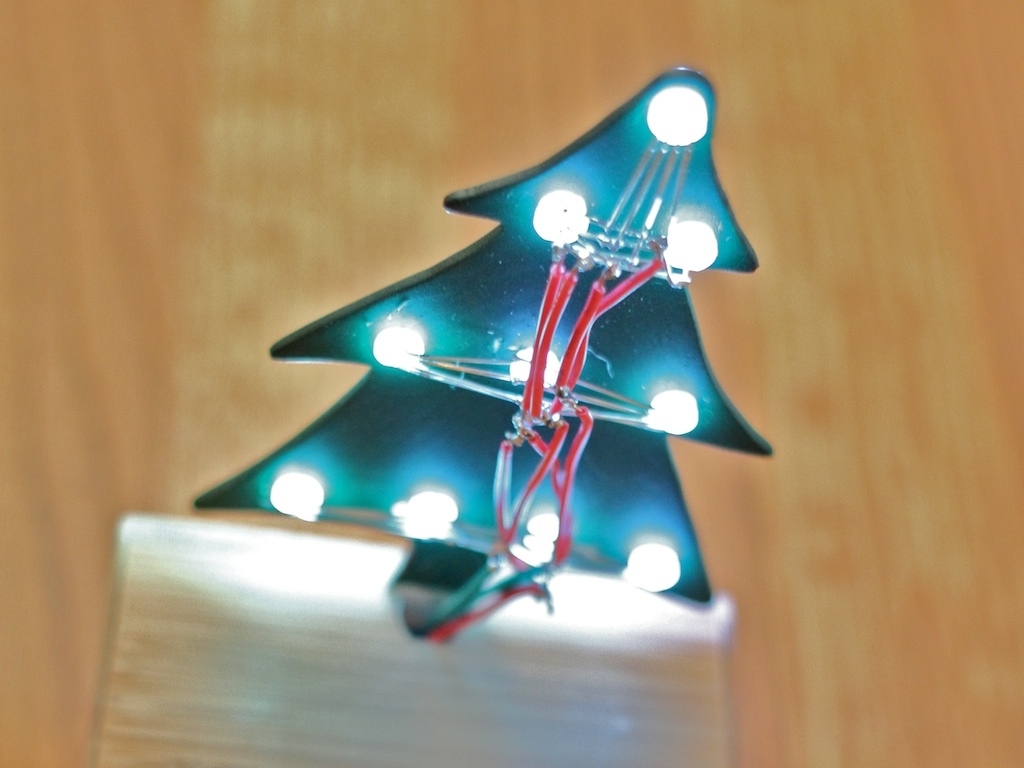

- After testing the LEDs on the breadboard, I soldered 'em up into a tree. I thought this would be the hardest part, but it wasn't so tricky.
Step #3: Next

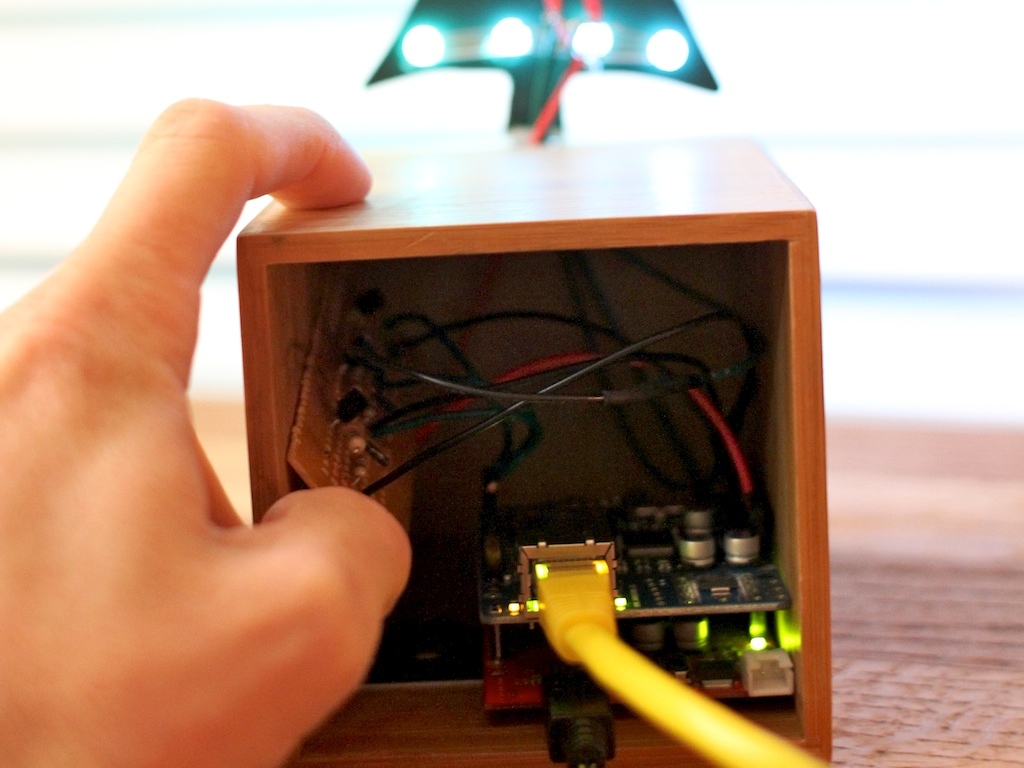

- With the tree mounted to the box (a bamboo kitchen utensil holder), I connected the Arduino setup.
- Dialing in each color is what actually took the longest, staring into bright lights and trying to conjure a perfect white.
