I’ve used quite a variety of sound-isolating personal audio gear; around-ear cans, in-ear buds, as well as active noise-canceling models. All of them posed problems for me in one way or another. Most often, it came down to issues with comfort and how well each design could maintain a good seal on my noggin.
I was excited to find out that there are custom-fit headphone services out there, but my enthusiasm withered upon learning the price for such a thing.
Luckily there are simple DIY custom-mold earplug kits available for relatively cheap, so I dug out my old pair of quality earbuds, ordered a kit, and well, put together a very simple but satisfyingly effective project.

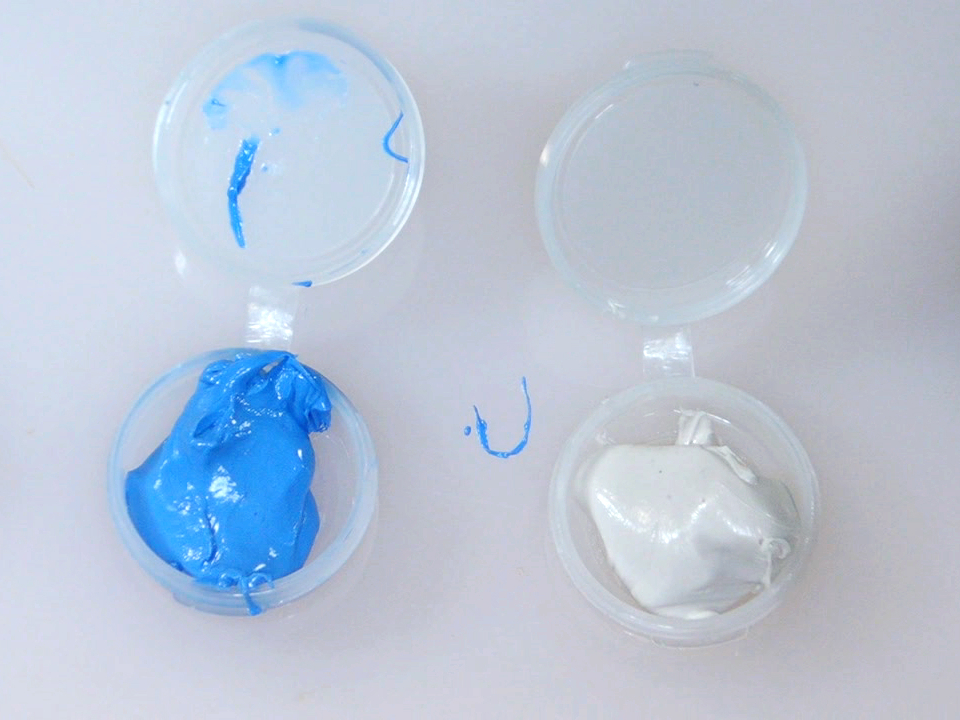

Mix the two separate putties included with the earplug kit.
The earbuds I'm using are quite bulky, so I decided to use only half the amount specified by the kit's instructions (in other words, 1/4 of the total material for each ear). This leaves me enough to make another pair if need be.
Before proceeding with this, take into account the following considerations. If you are going to DIY instead of getting a professional (such as an audiologist) to make your custom devices then at least follow the follow steps
DO NOT ATTEMPT if you have ever had a mastoidectomy or any ear surgery or the putty will end up in a very bad place and will require surgery. Meningitis = VERY BAD.
Wait until the putty is definitely set; if it isn't then it may be left behind in your ear, setting yourself up for a visit to the emergency room.
When removing the mold from your ear, VERY SLOWLY release the seal around the top part of your ear and VERY SLOWLY twist the mold forwards and outwards. If you just pull it out then the suction can burst your eardrum, causing immense pain, possible loss in hearing, perhaps requiring EXPENSIVE surgery and a trip to the emergency room. Plus, you won't be able to get your ears wet until the perforation has healed or risk massive pain and infection.
Wait at least 10 minutes as the mixtures cure and solidify.

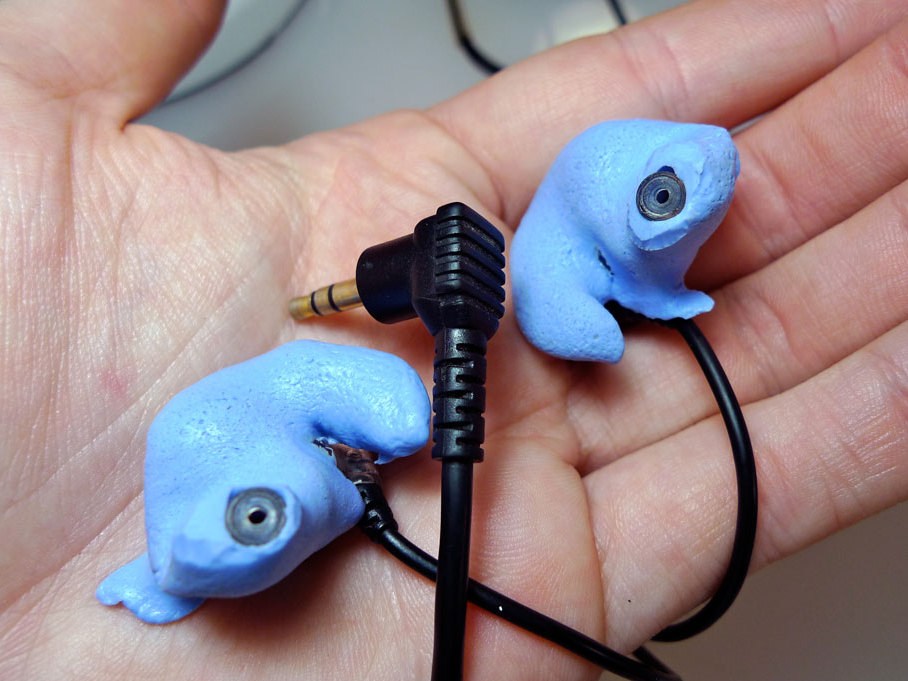

Once they are fully cured, you should be able to remove the molds and earbuds together as one piece - though it's not a problem if they come out separately.
Yes, I noticed that the earbud got putty on it before the putty had cured. I would suggest doing this in 2 steps; 1 make ear plugs, 2 fit phones to plugs.
Huh – wasn’t a problem with the shure E2Cs I used. Perhaps some designs have considerably larger openings than others. Also, I spent around 30secs or so pressing/molding the putty into my ears before inserting the sleeveless earbuds.
Yeah I had a similar problem. My earbuds (Lenntek Sonix) have pretty stubby sound pipes so without the rubber they didn’t go very far into the earplug material. They work great but the isolation aspect is a bit less since I had to cut off quite a bit of earplug. As for blocking out putty, I just cut round pieces of masking tape to cover them (mine have a screen and not an open tube so I knew the putty would stick)
I had the same problem with my Shure SE115s I just couldn’t get the sound pipes centered at my ear canal. I was actually off so much I had to scrap the plugs. Least the kits are cheap, I’m going to order a couple more kits tonight and try drilling them out after curing instead.
that’s what I’m thinking of too – the liquidy material would just flow into the earbud, blocking the sound.
yup, one of mine got putty in it, the other did not. Now I’m sitting here trying to get the solid putty out…
Yes, I noticed that the earbud got putty on it before the putty had cured. I would suggest doing this in 2 steps; 1 make ear plugs, 2 fit phones to plugs.
Huh – wasn’t a problem with the shure E2Cs I used. Perhaps some designs have considerably larger openings than others. Also, I spent around 30secs or so pressing/molding the putty into my ears before inserting the sleeveless earbuds.
Yeah I had a similar problem. My earbuds (Lenntek Sonix) have pretty stubby sound pipes so without the rubber they didn’t go very far into the earplug material. They work great but the isolation aspect is a bit less since I had to cut off quite a bit of earplug. As for blocking out putty, I just cut round pieces of masking tape to cover them (mine have a screen and not an open tube so I knew the putty would stick)
I had the same problem with my Shure SE115s I just couldn’t get the sound pipes centered at my ear canal. I was actually off so much I had to scrap the plugs. Least the kits are cheap, I’m going to order a couple more kits tonight and try drilling them out after curing instead.
