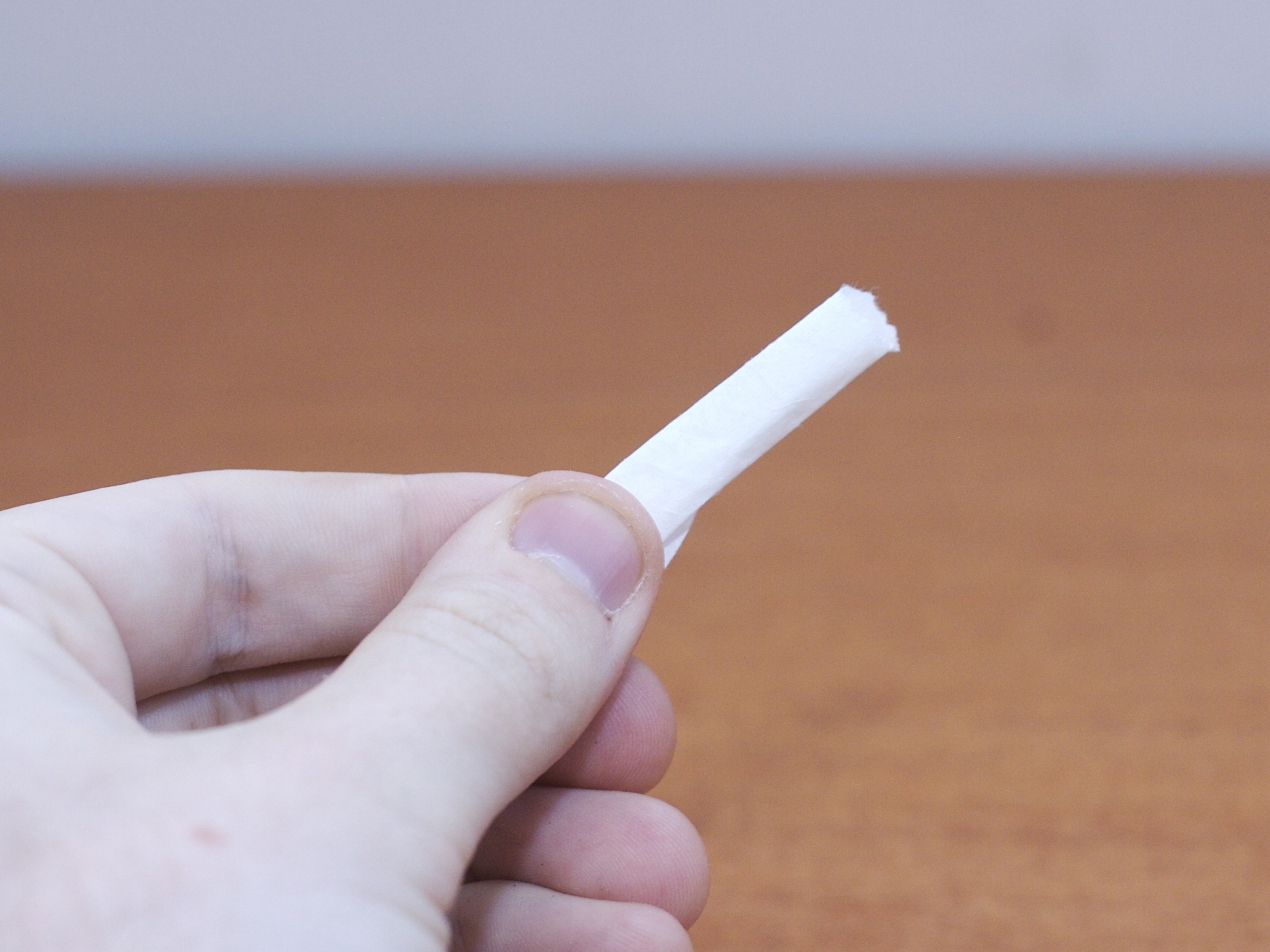

A stalwart of close-quarter magicians for years, the electronic flash gun is a simple device: a battery-powered, hand-held ignitor that uses a “glo-plug” to light a bit of flash paper and cotton, shooting a fireball a few feet into the air.
You can buy one from most magic shops for around $50, but if you build one on your own, you’ll not only save a few bucks, you’ll also learn how easy it is to add fire effects to almost any electronics project. (And what gadget couldn’t stand a little more spurting flame?)
I call my variant “Orpheus Shooters,” after the booming voice I use before blasting a fireball into the air, cribbed without shame from The Venture Bros.’ Doctor Byron Orpheus, my current favorite cartoon necromancer.
I’m absolutely horrible at DIY — I’d solder my fingers to my face if it were possible — so if I can cook up something like this, you should be able to take this simple design and improve it immeasurably.

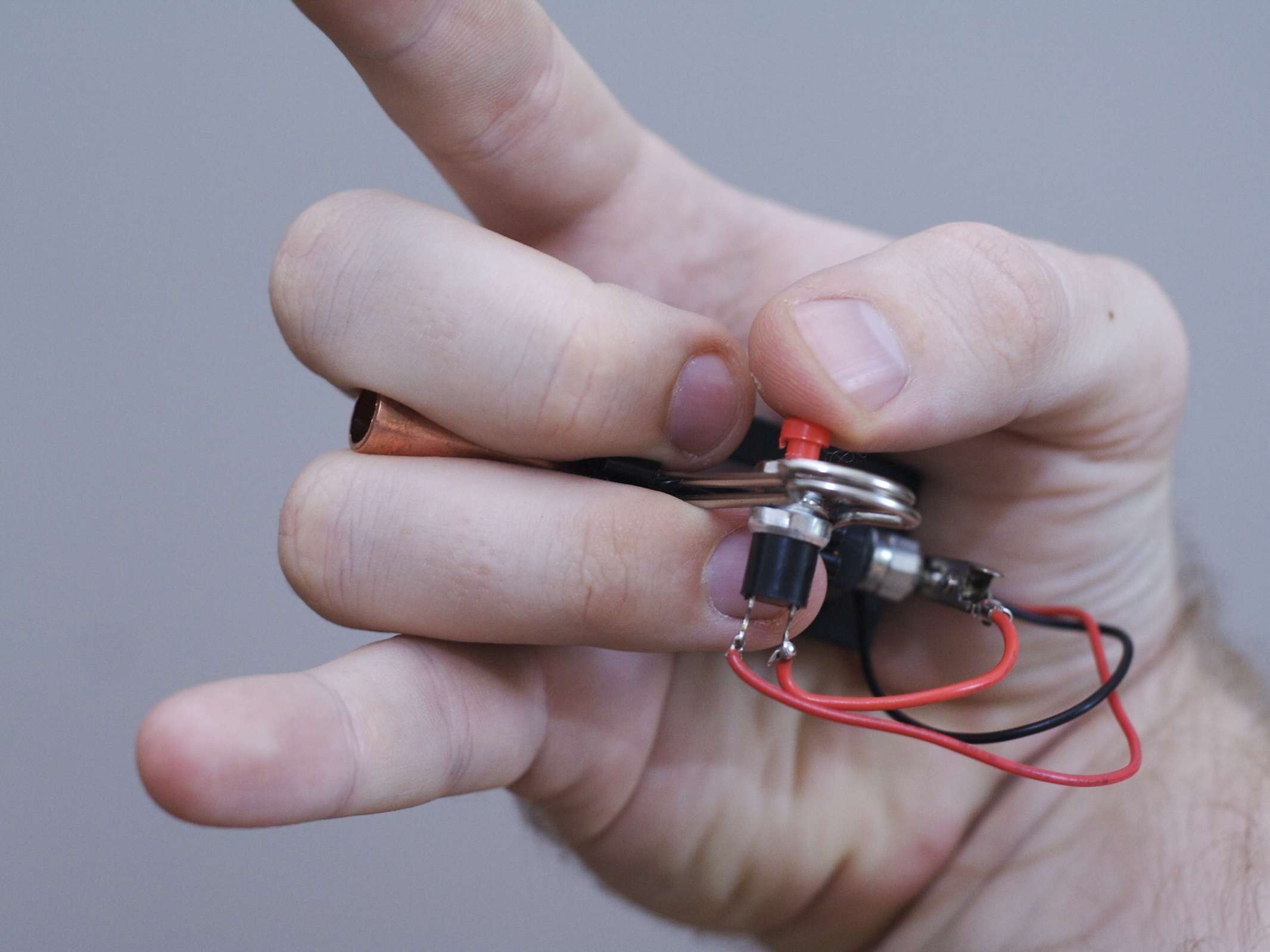

My model uses a minimum of parts and is nearly concealable in my fairly large hands, but don’t be afraid to tinker with the battery layout for maximum concealability. My grasp of the principles of electricity ends around “don’t lick a light socket,” so there may be smarter ways to rig this unit than the one I have chosen.
And of course, remember your fire safety fundamentals: it may be hilarious to shoot fireballs at your sleeping cat, but she’ll have the last caterwaul when you set your bed aflame.
Become a Licensed Pyromancer
A glo-plug, with its platinum heating element, is a disposable part in your Orpheus Shooter, or in any commercial flash gun. Glo-plugs are usually rated for about 50 ignitions, although mine have lasted at least twice that long. While ordering glo-plugs through the mail doesn’t require any special registration, ordering ignitables like flash paper does.
It’s worth buying online instead of at your local magic store. My local store charged over $10 a plug, while an online shop (http://starlight.com) charged just $3. The savings were worth the hassle of faxing in a copy of my driver’s license.
Glo-plugs (similar to those used in model rocketry, I’m told) come in two flavors: 1.5V and 3V. One isn’t better than another for our purposes, but you’ll want to match your plug to your power source, so just be sure to remember which one you bought.
Steps
Step #1: Build the shooter body.
Next


- Cut a length of pipe with a tubing cutter, about 3" long, depending on the size of your hand. The length, width, and composition of your pipe isn’t so important — so long as you’re not using, say, magnesium — but anything wider than ½" will probably be less a “shooter” and more a “whoomfer.”

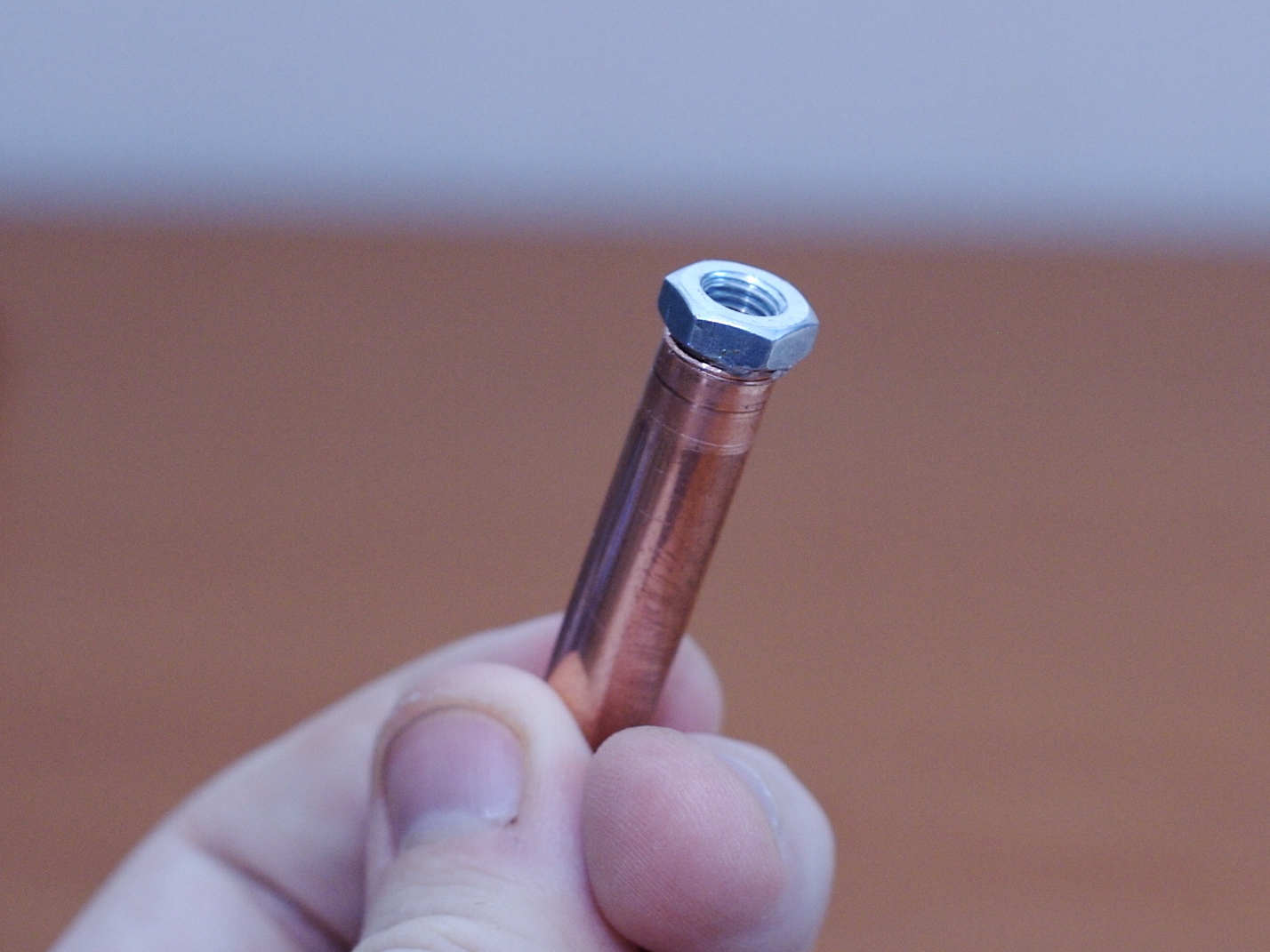

- Hot-glue your nut to the bottom of the pipe. This is one of two things holding the nut to the pipe, and as long as the glue isn’t obstructing the threads on the inside, it’s fine.
- Cut a length of heat-shrink tubing, about ¾" long. Place the heat-shrink tubing around the end of the nut, leaving about 1/8" over the end, so that it curls back around the nut when heated.
- Hit the tubing with a hair dryer or other heat source until it holds tightly around the end, creating a small lip that’s pushed in when you screw in a glo-plug. This doesn’t really do anything, but it looks nice.
Conclusion
Improvement Ideas
Commercially available flash guns sometimes have 2 barrels and 2 separate triggers. If you make the first Orpheus Six-Shooter, please send me video (and I’ll send you a soothing hand salve in return).

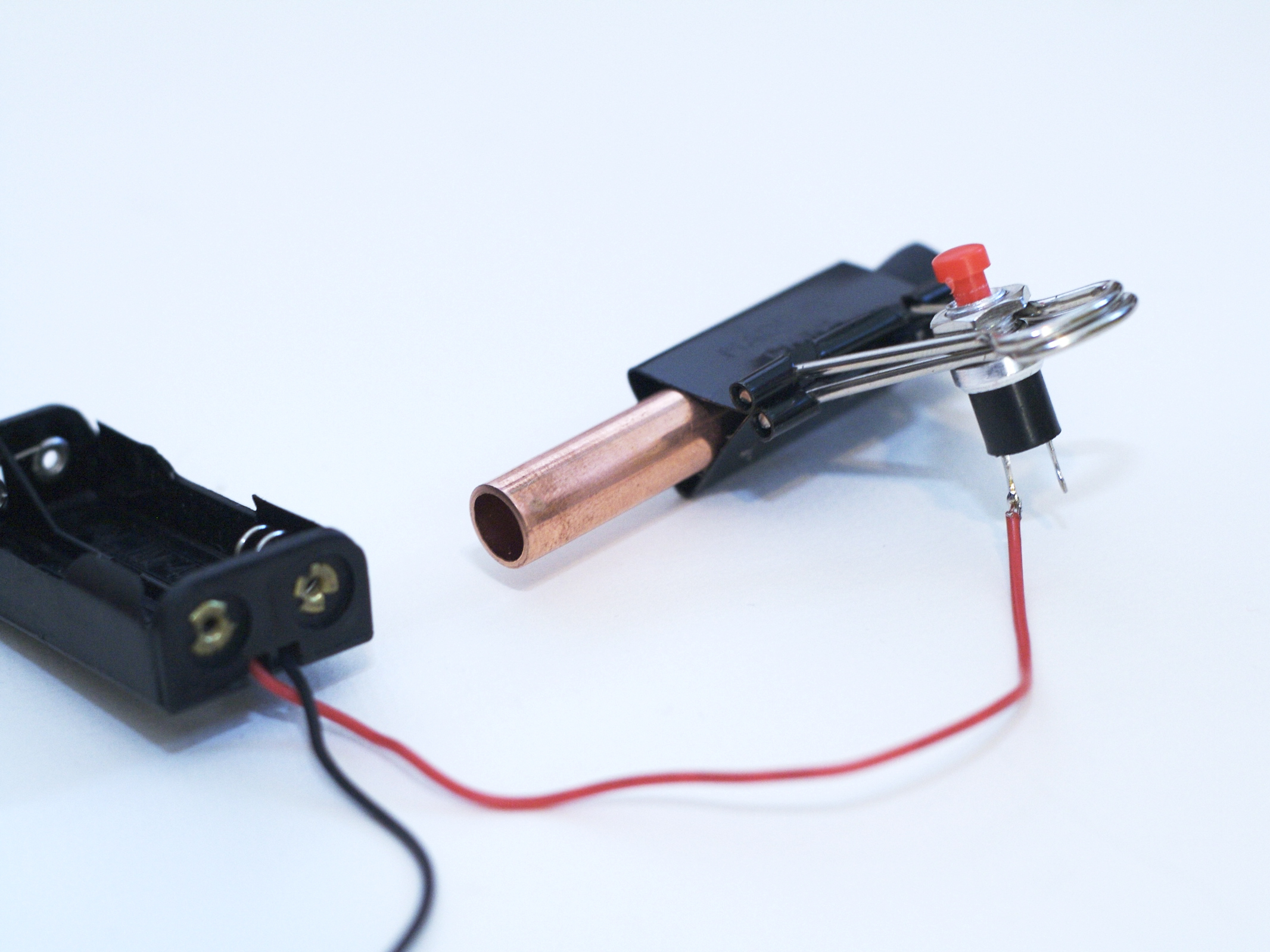

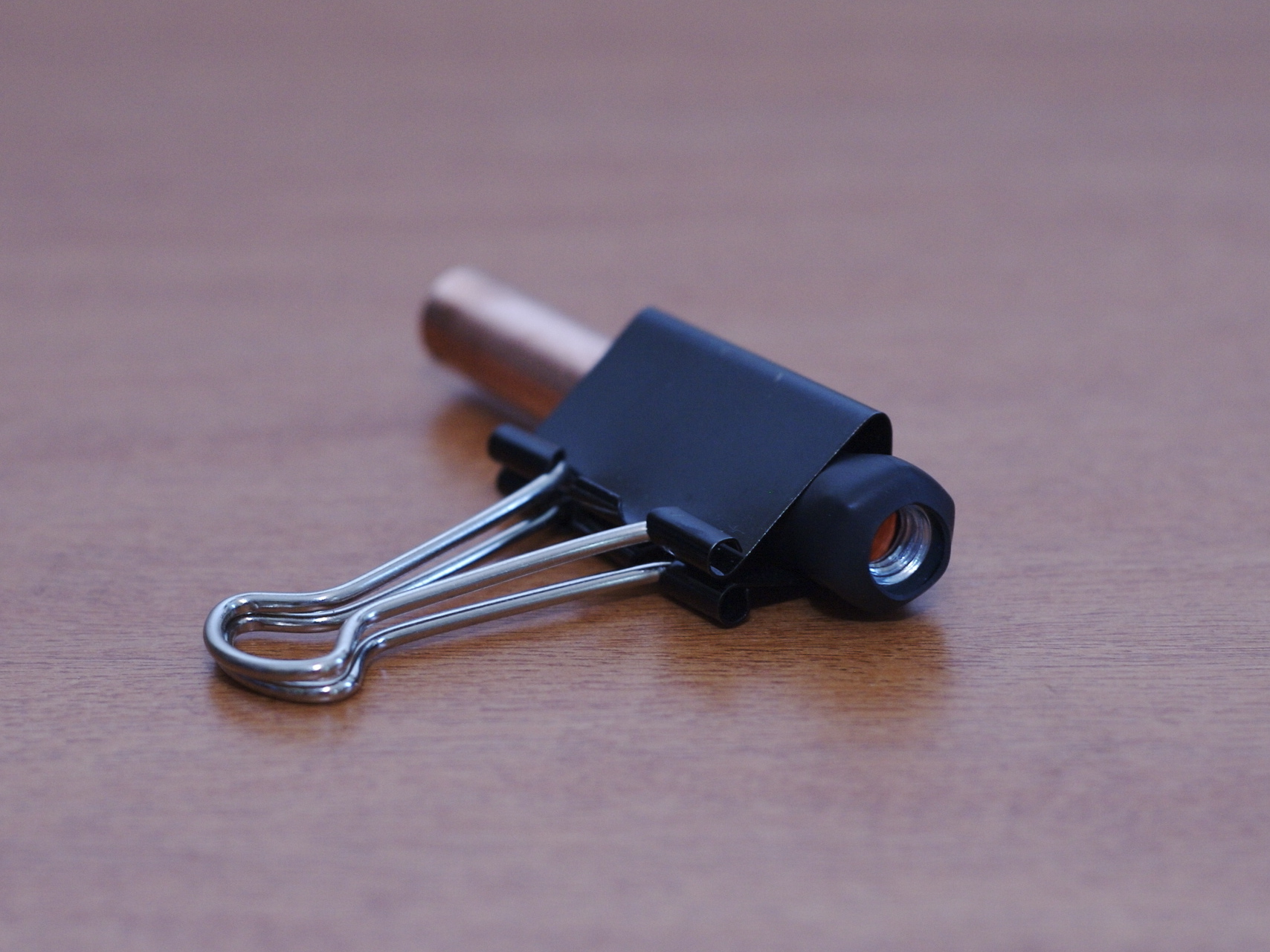

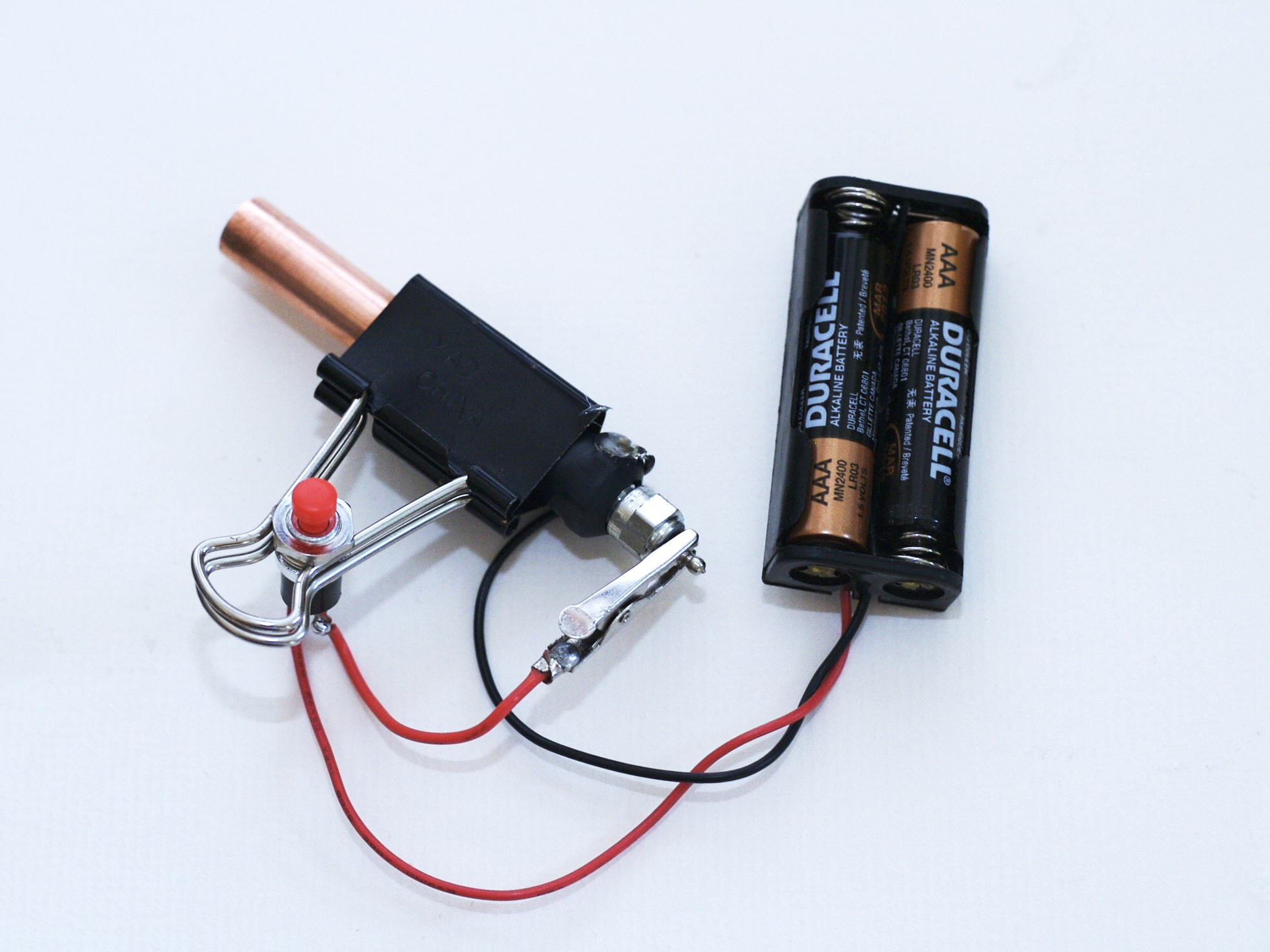

My body design is simple, made from parts you hopefully have around the house, but the professional flash guns use a metal body that holds the battery and barrel both, making them much more easily concealed. Pro shooters also use a press-on clip instead of an alligator clip to attach power to the glo-plug. Either improvement could be rigged easily by a maker more clever than me.
The Orpheus Shooter is just begging to be integrated into a leather glove or cane, as well.
My next project for the Shooter: wiring it into a HobbyTron R/C Apache helicopter for remote firing. Why bang on your ceiling to quiet the upstairs neighbors when you can fly a chopper into their window and set them aflame?
This project first appeared in MAKE Volume 13, page 88.
