Make: Projects

Green Lantern Lantern and Ring

This project diagrams the build of a Green Lantern lantern which will charge a matching ring when the ring is put inside, much like the original.

Green Lantern Lantern and Ring

One of my friends is a fan of the Green Lantern, and he thought it would be cool to have a glowing ring that charges when put inside a lamp. I realized that I already had something similar in my Upgraded Indestructible LED Lantern project, so I decided to build it.

  • Glue (must work with plastic)
  • knife, drill, or hacksaw
  • Paintbrush
  • Soldering Iron and rosin core solder.
  • Wire cutter/stripper

Steps

Step #1:

NextGreen Lantern Lantern and RingGreen Lantern Lantern and RingGreen Lantern Lantern and RingGreen Lantern Lantern and Ring

Step #2:

NextGreen Lantern Lantern and RingGreen Lantern Lantern and RingGreen Lantern Lantern and RingGreen Lantern Lantern and Ring
  • Now, build the receiver following this schematic.
  • Glue the indicator LED and switch to the side of the battery.
  • The coil is going to be the ring, so have the inside diameter a little larger than a normal ring, and wrap it in electrical tape.
  • Print out a Green Lantern symbol and glue it on top. Wrap the rest of the ring except the switch and LED in electrical tape.
  • Yes, I am aware that my ring looks terrible and is in no way accurate. The ring pictured was thrown together after I had already given the real one to my friend and realized that I had not taken any pictures of it for this guide. The one I gave him was made from molded plastic and frosted glass, and looks more like the real thing.

Step #3:

NextGreen Lantern Lantern and RingGreen Lantern Lantern and RingGreen Lantern Lantern and Ring
  • Now glue the 2" coupling to the center of the 1½" tee, threaded side out.
  • After it dries, sand the outside of both pieces.
  • Apply a coat of primer to the outside, then black paint. I suggest multiple coats.

Step #4:

Green Lantern Lantern and Ring

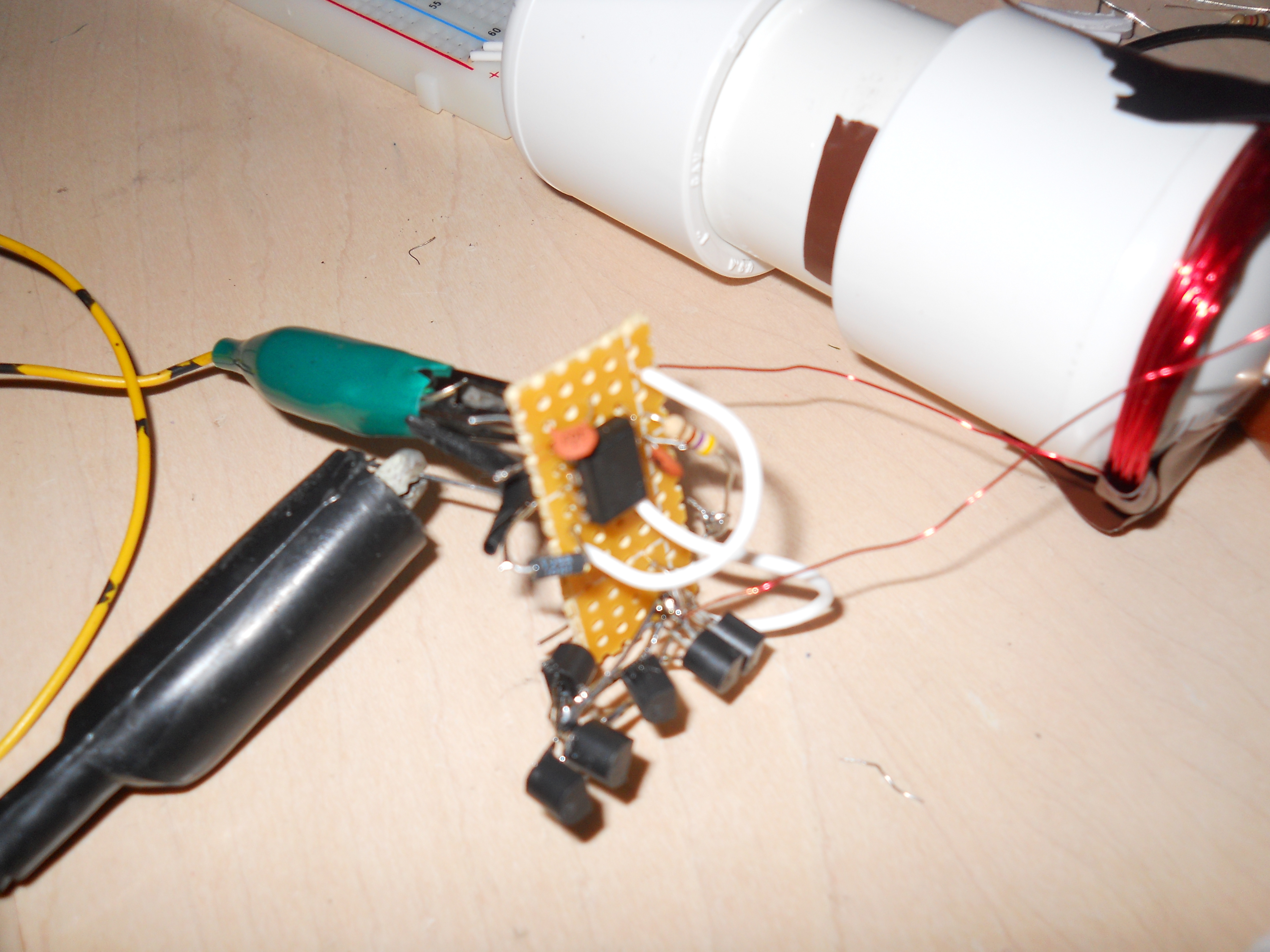

  • Place the wireless sender inside the tee, so that the coil lies flat in the center.
  • Cut or drill a small hole or notch in the bottom of the tee, and run the power supply to the sender out of it.
  • Drain the battery in the ring, then flip the switch off and place it inside the lantern. The indicator LED should light up
  • After about 15 minutes, pull it out and turn the switch on, the high-brightness green LED should light up.
  • If it does, you're done! If not, flip the ring over and put it back. If that doesn't work, check your wiring.
  • *Optional* Drill two holes near the top of the lantern on opposite sides and run a large loop of black wire from one to the other to make a handle.

Conclusion

Unless you modified an accurate ring, I wouldn't take this to a convention, but it is a cool little thing to have.
