Make: Projects
Home Mycology Lab
Use an off-the-shelf home air purifier to culture and grow mushrooms.
Agriculturalists have long considered mushroom growing a challenge, largely because you need a space that’s as hygienic as a hospital or a chip-fab clean room. Laboratories create these spaces with a piece of benchtop equipment known as a laminar flow hood, but these are prohibitively expensive. This project explains how you can make your own “hood” out of a household air purifier and use basic kitchen techniques to culture and grow mushrooms.
The crucial component in the purifier is its High Efficiency Particulate Air (HEPA) filter. Originally developed for the Manhattan Project during World War II, these filters later became standard in hospital and computer manufacturing facilities. Now, cheap HEPA filters are built into vacuum cleaners and other mass-market consumer appliances, and their trickle-down availability lets amateur biologists run procedures that were previously reserved for large corporations, universities, and research institutions.
Mushroom Growing Tips
Clean the room and all of your equipment so that you could literally eat off of any surface.
» If there are cobwebs in the room, there are probably microorganism-carrying spiders and insects. Get rid of them or try another location.
» Choose a work area that’s isolated from open windows, drafts, plants, pets, and other people.
» Use dedicated equipment — things you’re not also using for cooking or other activities.
» Work on a smooth surface that can be bleached down. For a good smooth surface, you can tape down plastic sheeting or an opened garbage bag.
» Follow strict personal hygiene before doing any lab work: shower, brush your teeth, pull back long hair, and clip your nails. When washing your hands, scrub up to your elbows and rake your fingertips across a bar of soap to clean under the nails. After drying off, follow up with isopropyl alcohol. (Once you are familiar with culturing techniques, you can be a bit less orthodox about cleanliness.)
» Don’t touch anything unnecessary: your face, phone, doorknobs. Remove watches and jewelry.
» To supply nutrients, try adding a pinch of 20-20-20 plant food or crushed multivitamin into your cellulose, or put a piece of dry cat food into your agar.
» If any of your agar or mushrooms are contaminated with mold, discard them immediately. These will infect the other things you are trying to grow.
» Join a local mycological society. These are great places to learn about mushroom growing, as well as wild mushroom identification.
» Only eat mushrooms that you can identify confidently.
Steps
Step #1: Cut the hole.
Next

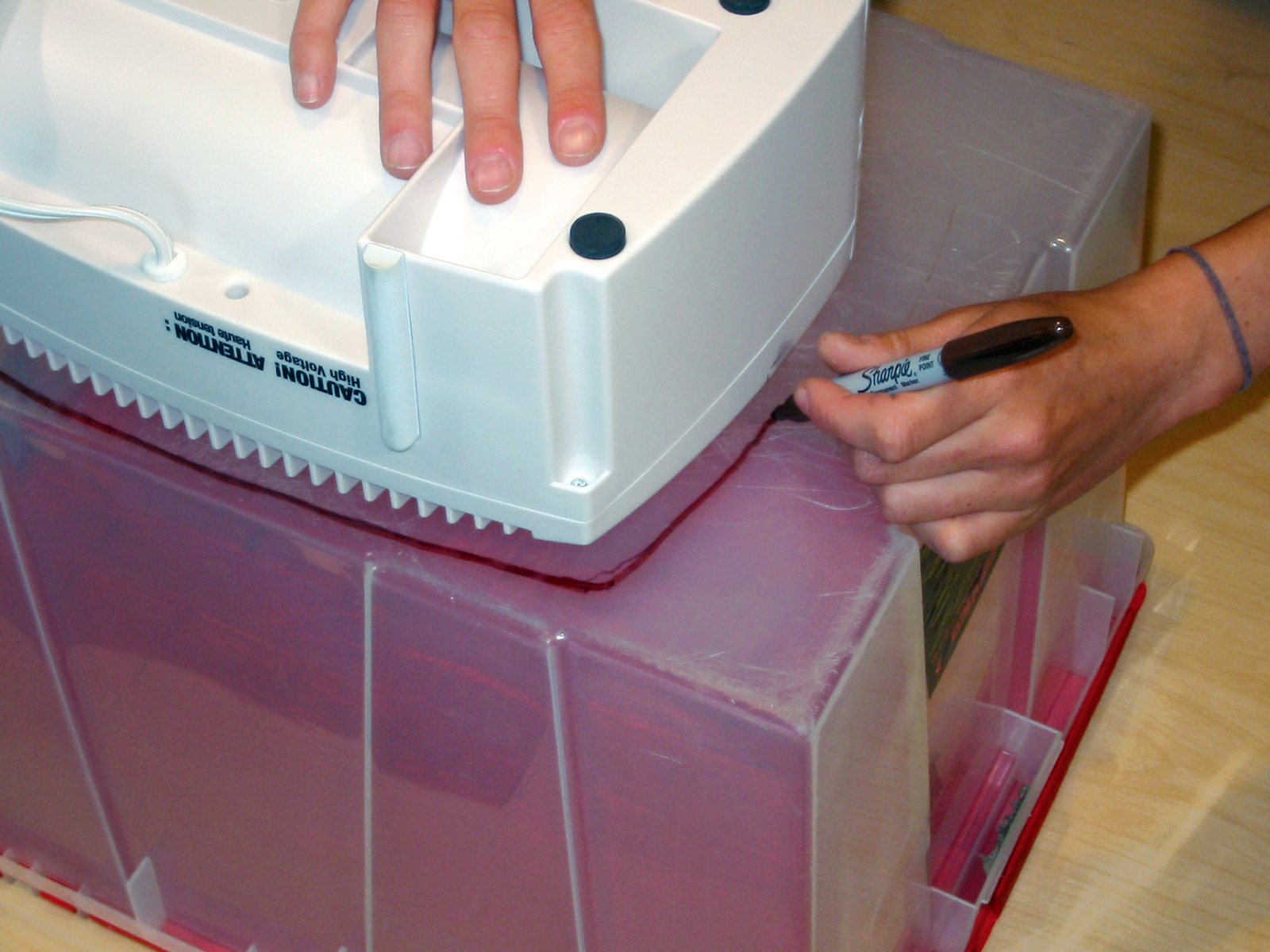

- Find the output side of the air purifier, and trace it on the bottom of the plastic box.
- Drill pilot holes at the corners of the traced outline.
- Use a keyhole saw or jigsaw at the highest speed to cut out the entire hole.
Conclusion
This project first appeared in MAKE Volume 07, page 102.























just as a follow up, i did try this improvised hood. I would not recommend it. As a test, prepared several petris by pouring them then sterilizing for 45min @ 15psi. I left five petris uncovered inside the box for 10 minutes. One was covered after only five. All but one petri were showing contamination after three days, the last eventually became contaminated. The two control dishs that I made never showed any contamination. Ive done lots of ‘sterile’ work in still air box with great success. Thanks for the idea, but I would pass on this design.
it is a good hood Mushroom projects really are not that hard using a pressure cooker to sterilize your sub instead of just steaming it (steaming works ok if your using PF style Brown Rice Flour cakes but is worthless for grains)if your just starting off you prolly would want to start with a good clean Liquid culture/spore syringe from a established supplier so you can skip the agar steps until you have a little more experience/confidence also finding a good forum like shroomotopia.net is invaluable to anyone trying to get started in this rewarding hobby
Ready to harvest the mushrooms! Fixed. Thanks!
