L7580 is a great multifunction printer from HP. Here we will discover what’s inside the printer and remove its sensors and DC motors.
Like this:
Like Loading...

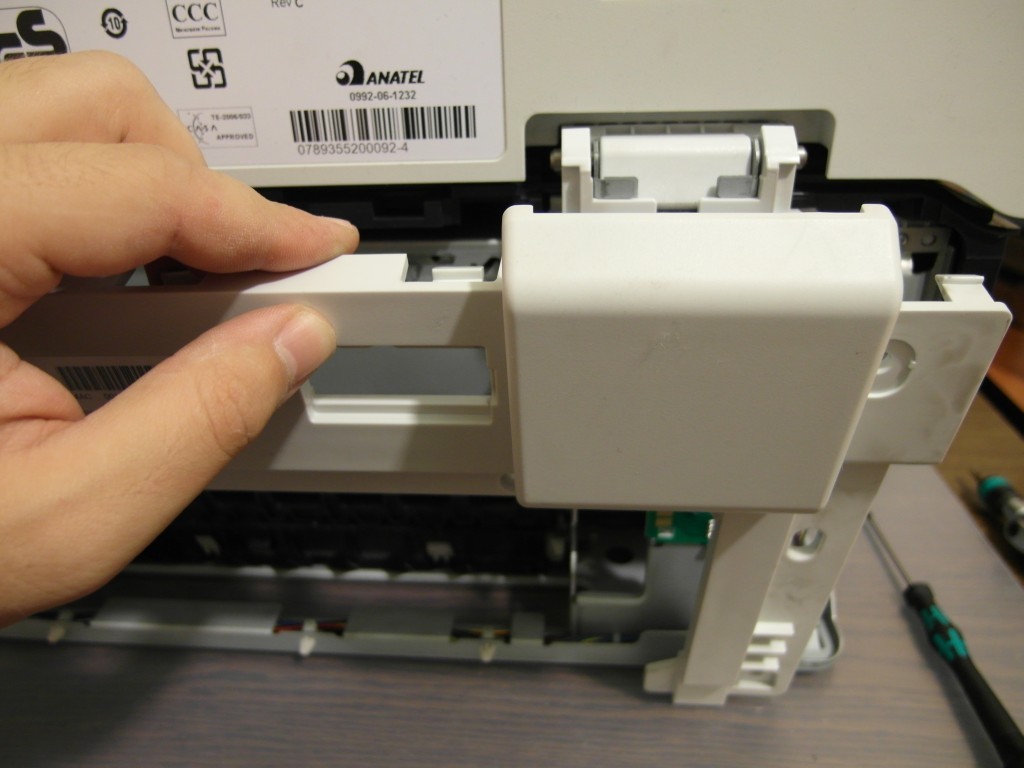

Step #1: Removing the automatic document feeder.
Next

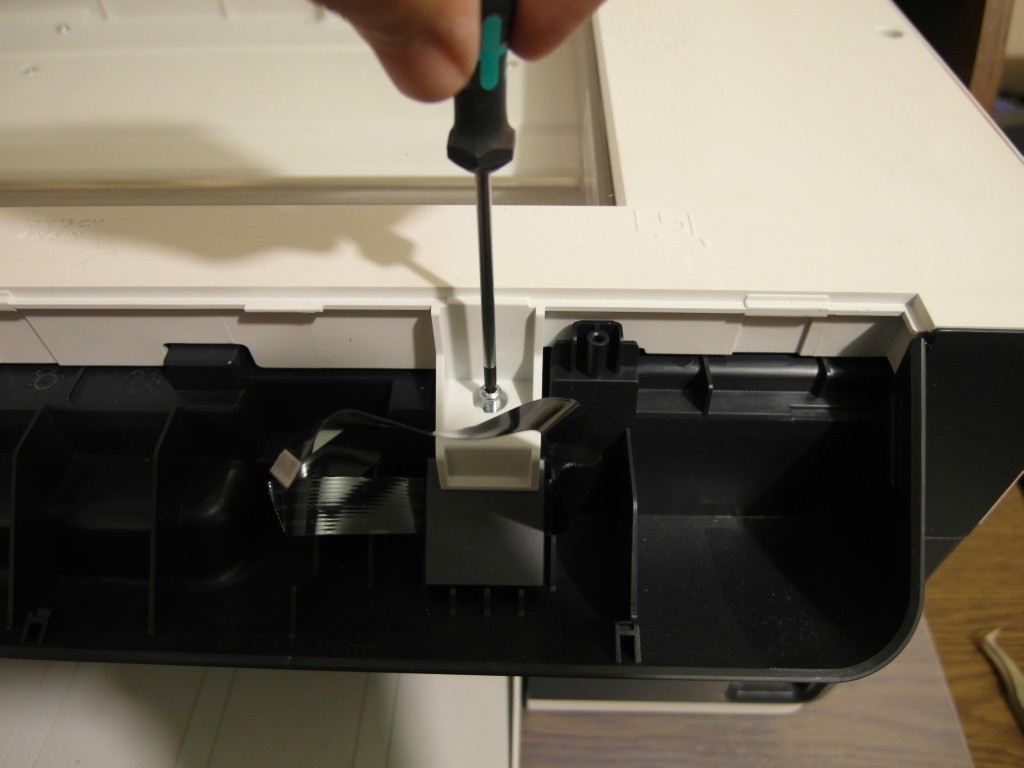

- Remove the three T8 Torx screws from the paper feeder.
- Lift the white surface to reveal the two notches.

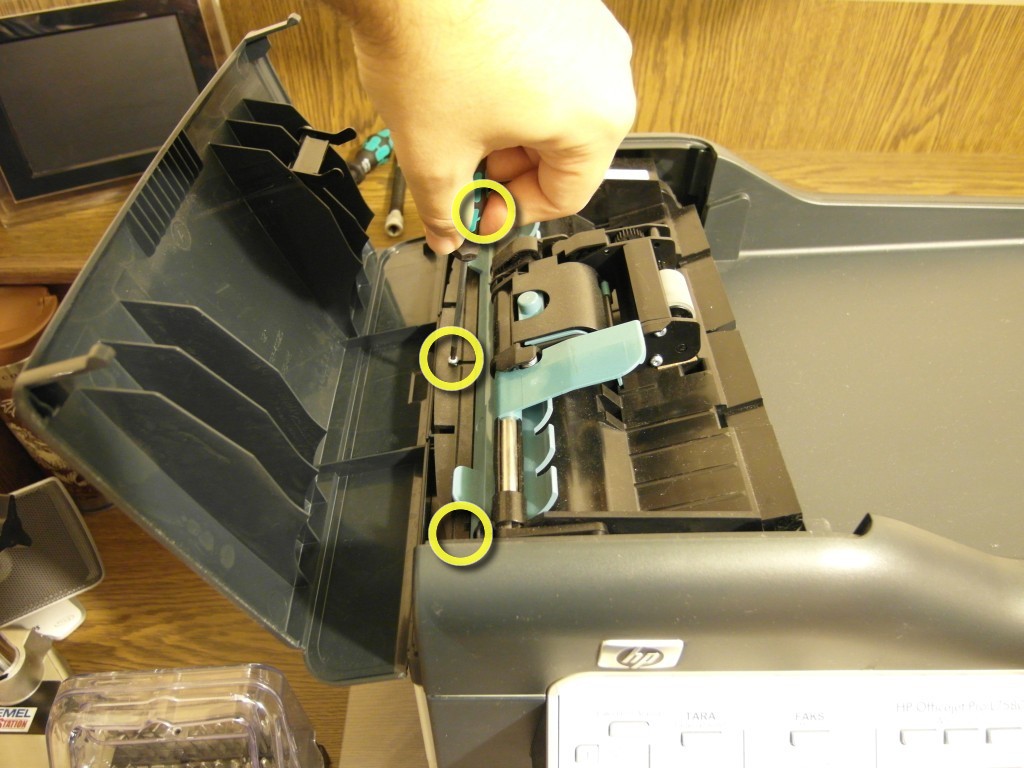

- Push the notches to detach the paper feeder mechanism.
Step #2:
Next

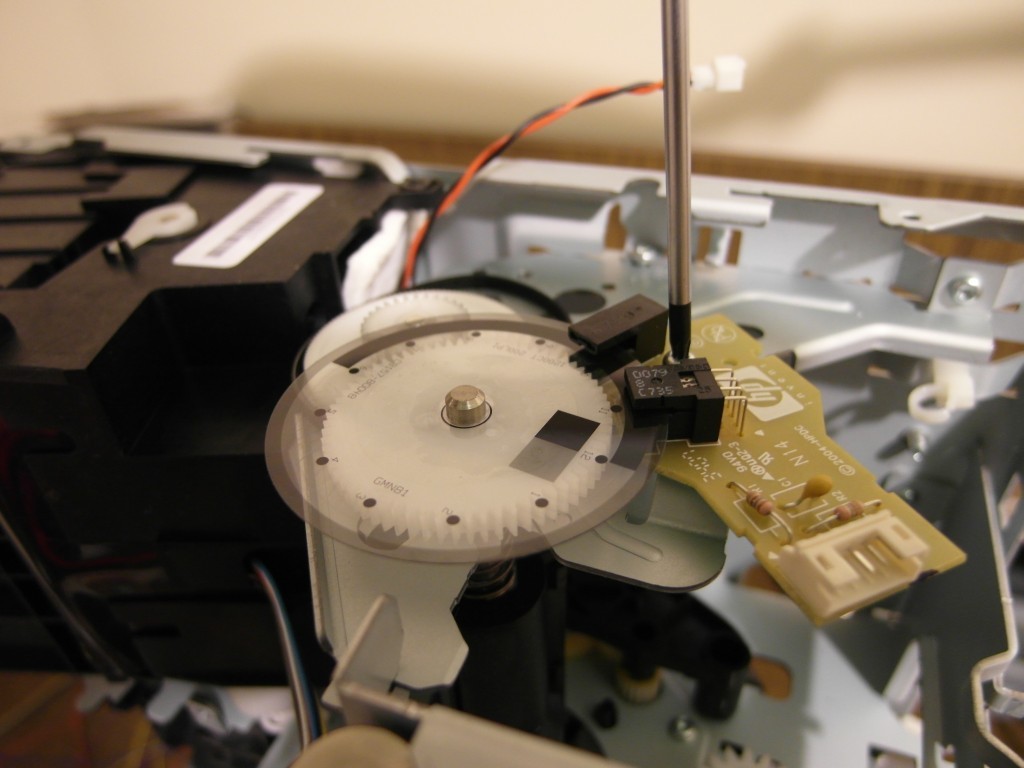

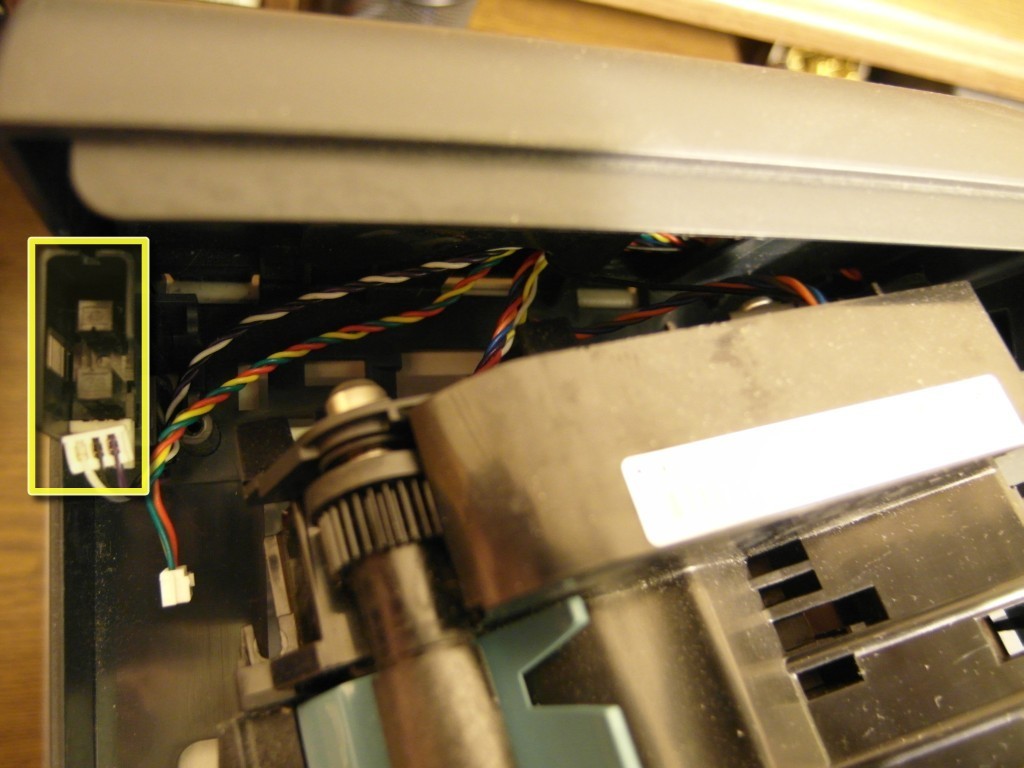

- After removing the paper feeder, you will notice the slotted opto switch.
- Remove the back cover to demount cable jacks.
- Pull and detach the paper feeder mechanism.
Step #3:
Next

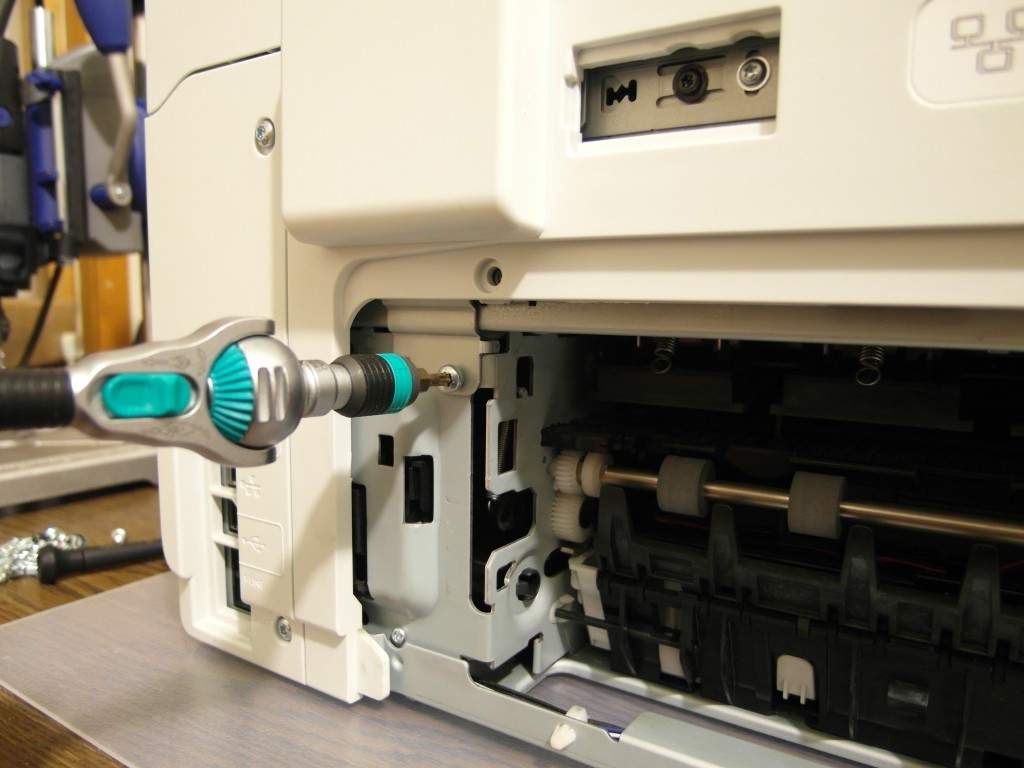

- Remove the T8 Torx screws from the right cover.
- You will see the feeder's mechanics after removing the cover.

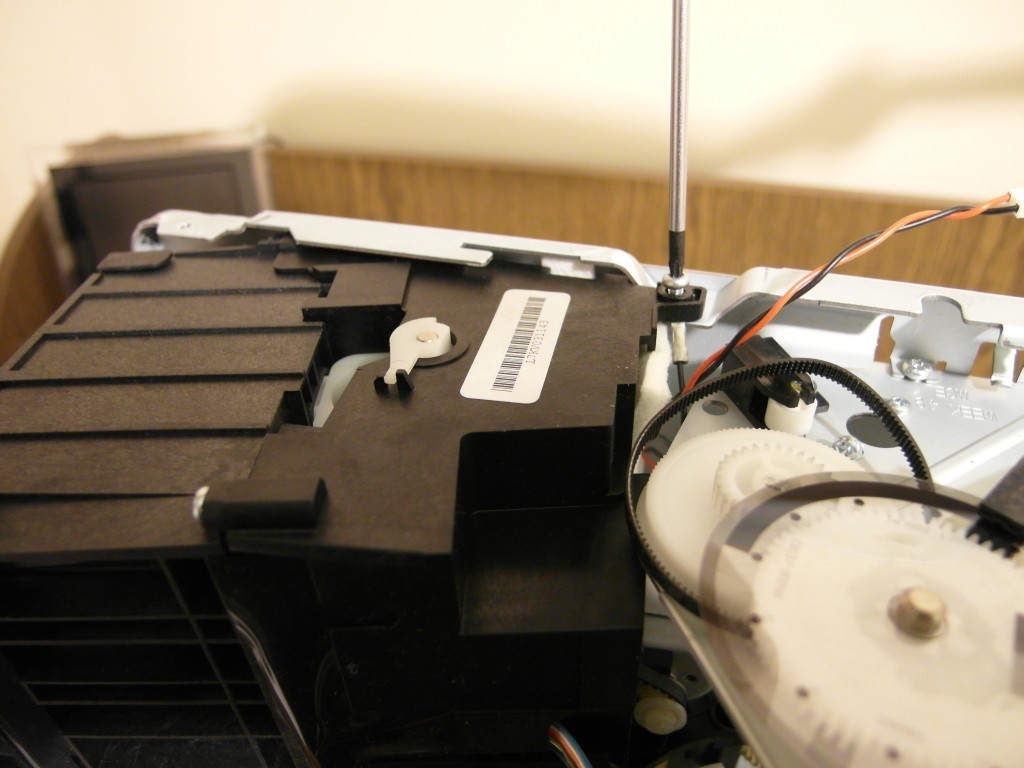

- Remove the top cover, and here is the first DC motor and its encoder.
Step #4: Removing the top cover
Next



- Pull the scanner cover up to detach it from the main body. Then, remove the T8 Torx screws around the scanner window.
- Remove the control panel by pulling it.
- Finally, remove the inner layer of the control panel by forcing the notches.
Step #5:
Next

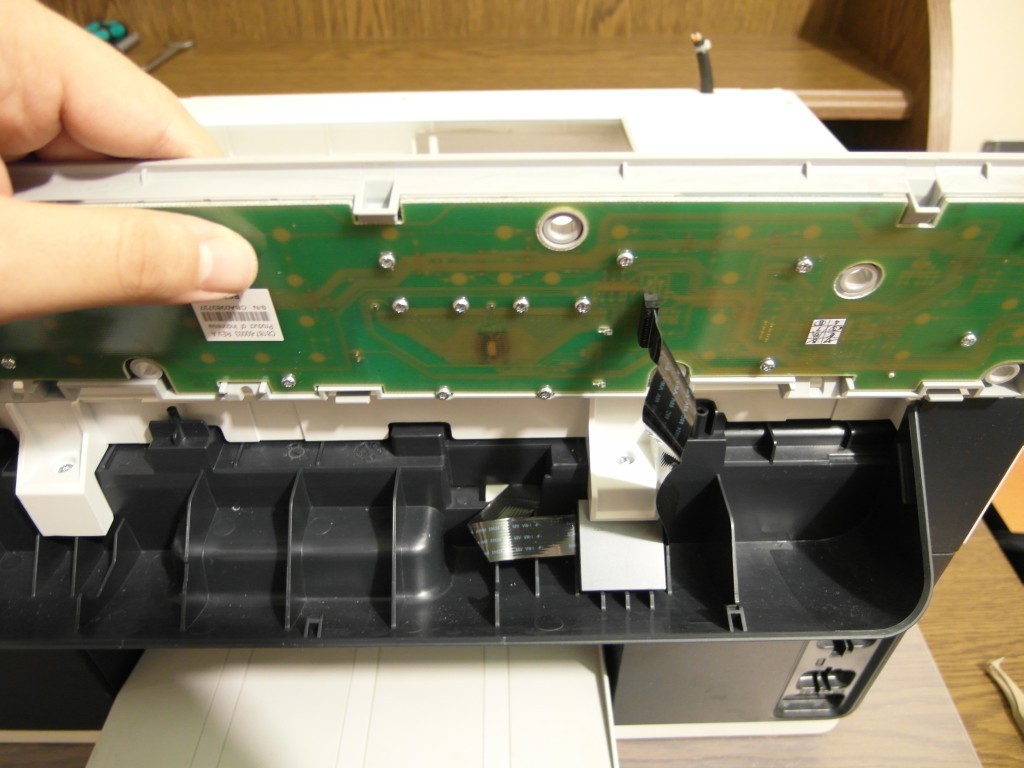

- Remove the flat cable from the control panel.
- Remove the T8 Torx screws to see what's inside the control panel.
- Then, we will see the 4 layers of the control panel.
Step #6: The scanner mechanism
Next

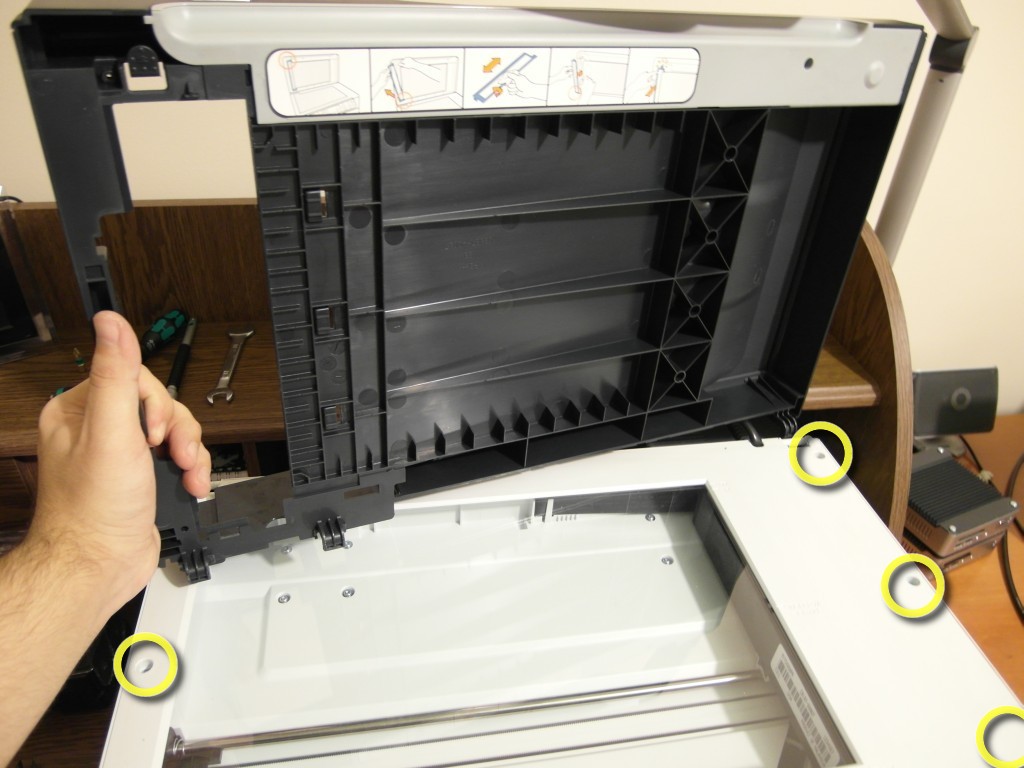

- Remove the two T8 screws to detach the scanner cover.
- Lift the cover up to reveal the scanner mechanism.
- And we have our second DC motor and encoder. Plus, a carrier mechanism.
Step #7: Scanning head and sensor
Next

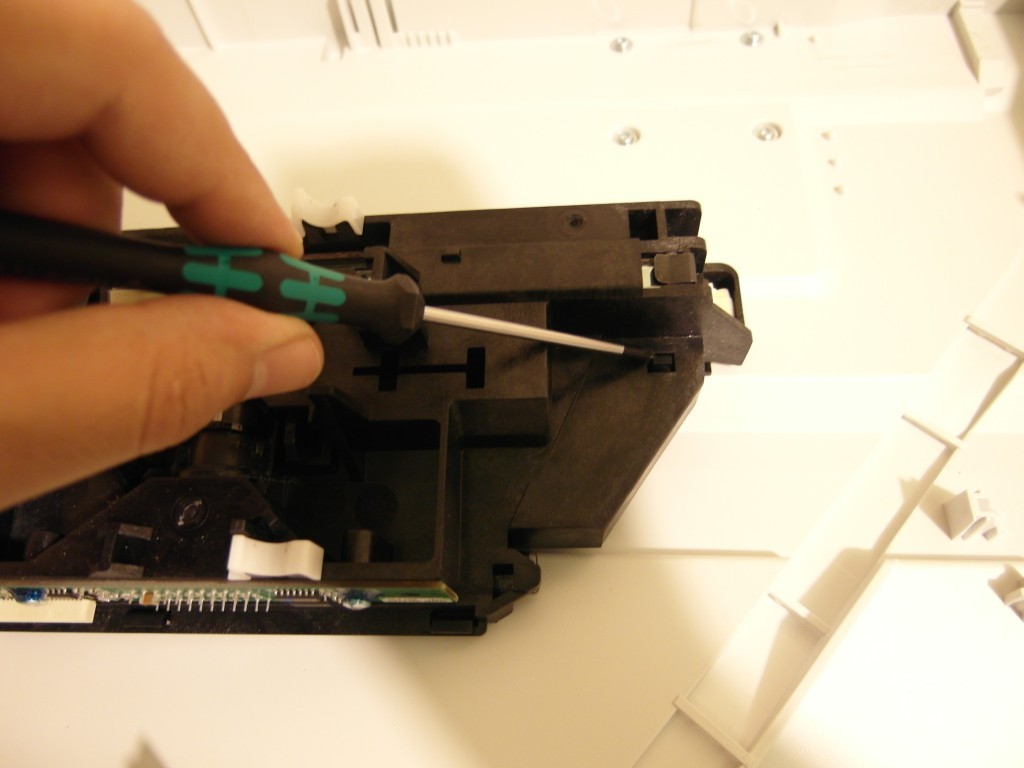

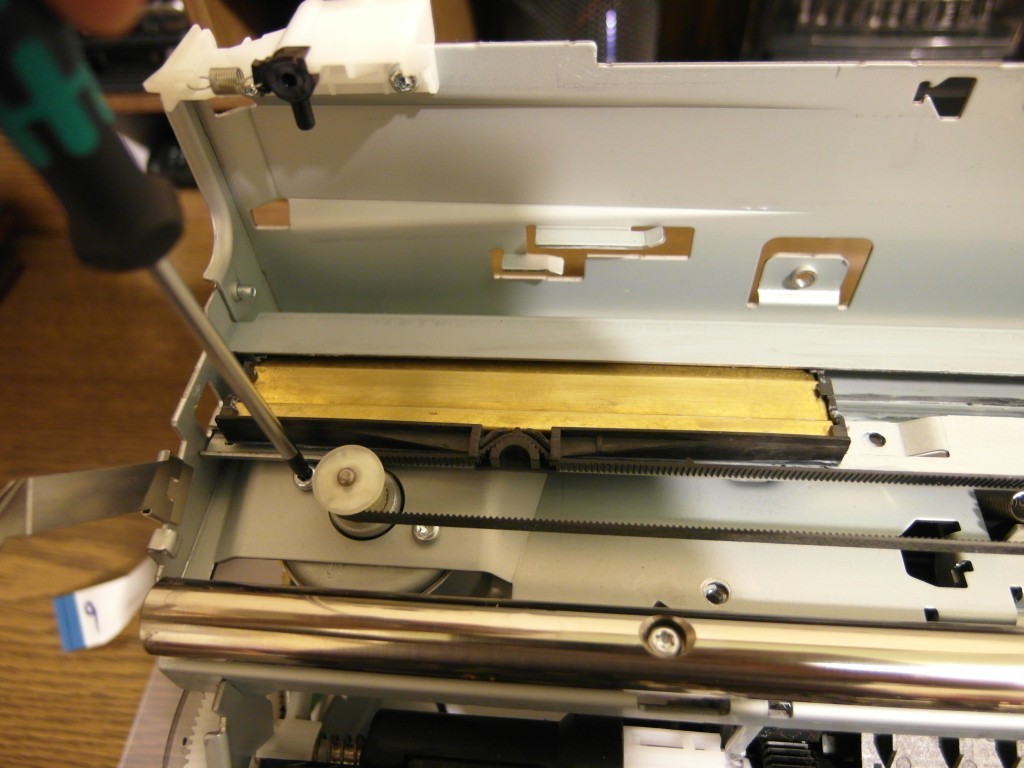

- Remove the scan head's top cover by pressing the two notches on the back.
- Remove the T8 screws of the circuit board.
- Here is the scanner sensor and the objective.
Step #8:
Next

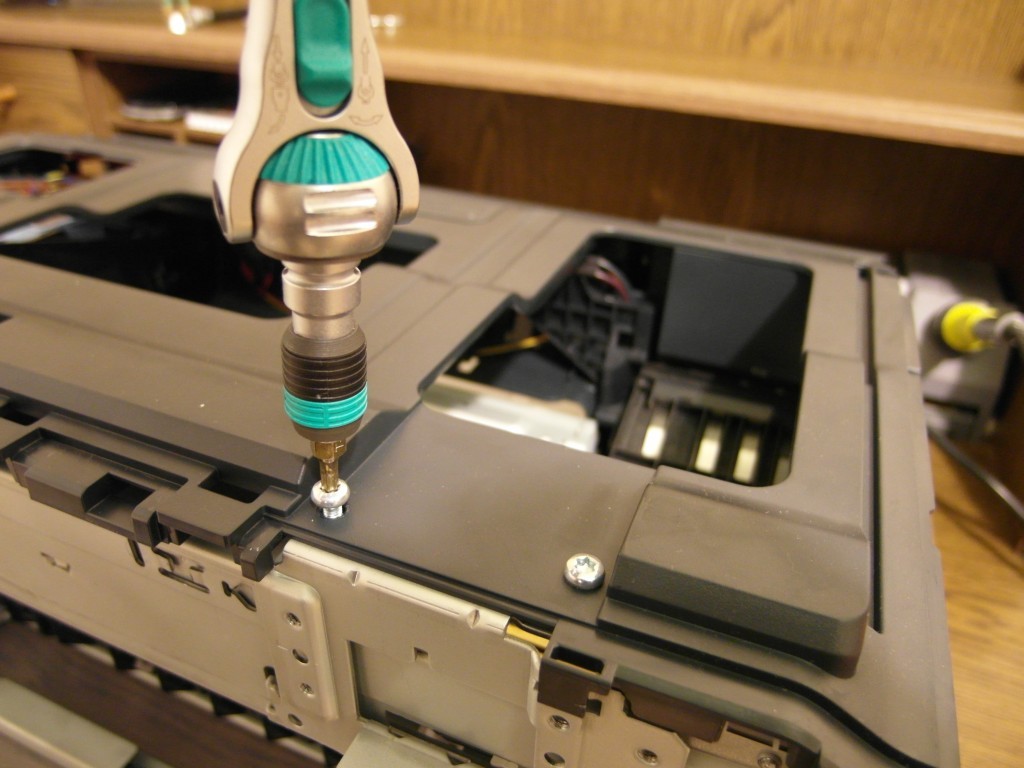

- Remove all the screws from the back, including the ones inside the 3 covers.
- Remove the two screws from the top of the cartridge-change cover.
- Detach the two side covers by pulling them.
Step #9: Detaching the scanner section
Next



- Detach the back cover.
- Remove the 4 screws from the both hinges.
- The hinges can pop up suddenly, so be careful.
- Then, remove the scanner cover to reveal the printing mechanism.
Step #10:
Next



- Remove the screws on the cover.
- You will notice the speaker below the cover.
- Remove the screws holding the cartridge door. There is another slotted opto switch here.
Step #11:
Next

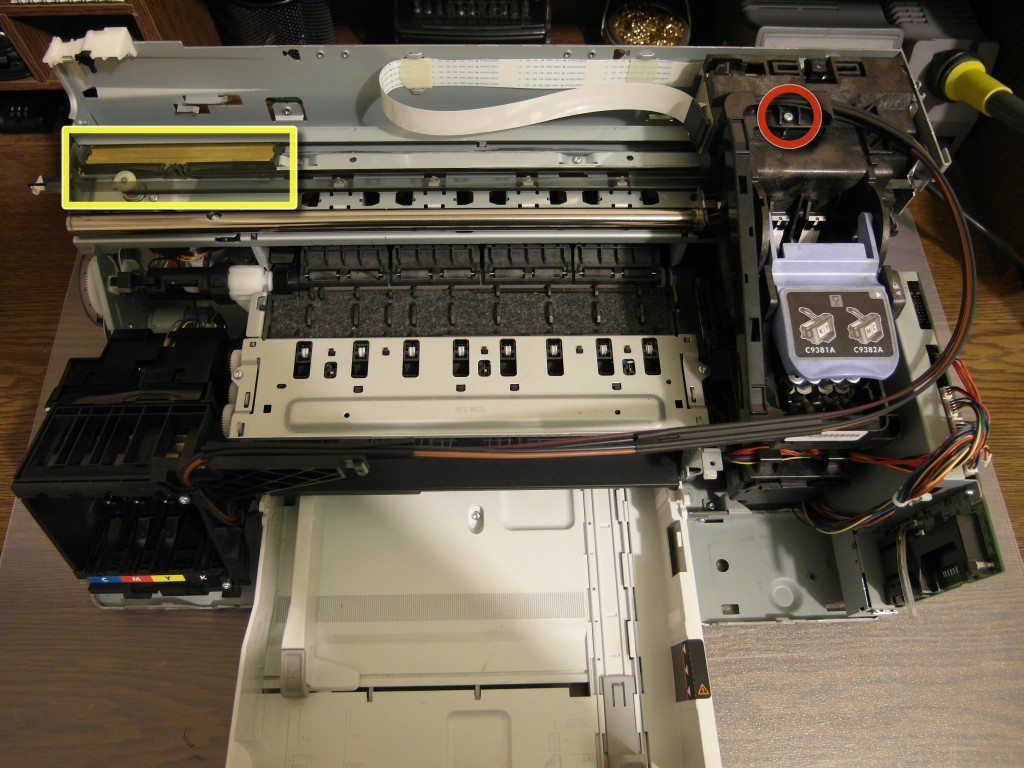

- There is an extra weight block on the print mechanism to prevent vibration.
- Remove the red marked screw to detach the ink hose.
- Remove the green marked screw to detach the ink cartridge slot.
- Finally, we have the ink hose and the nozzles.
Step #12: The mainboard
Next

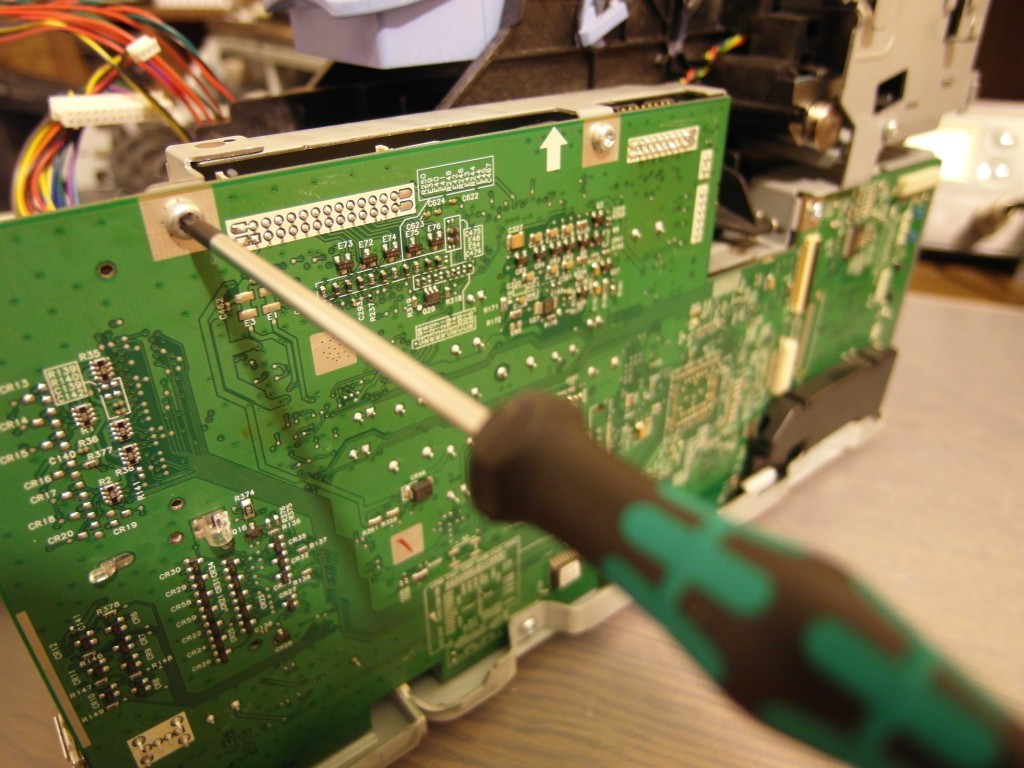

- Remove the screws to detach the mainboard of the printer.
- The board has a power input, an Ethernet connector, a USB device port, phone line input and outputs, memory card slots, a USB host port, various internal connectors and a CR2032 RTC battery.
Step #13:
Next

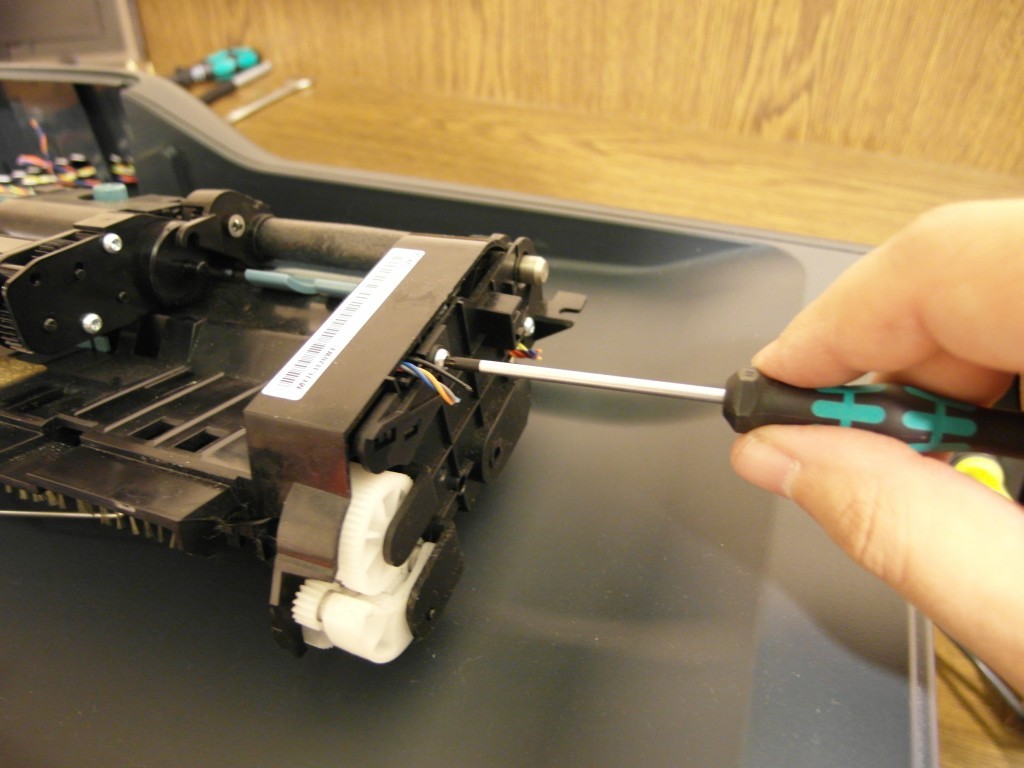

- Remove the screws holding the print head's motor.
- And we have a DC motor here.
Step #14:
Next

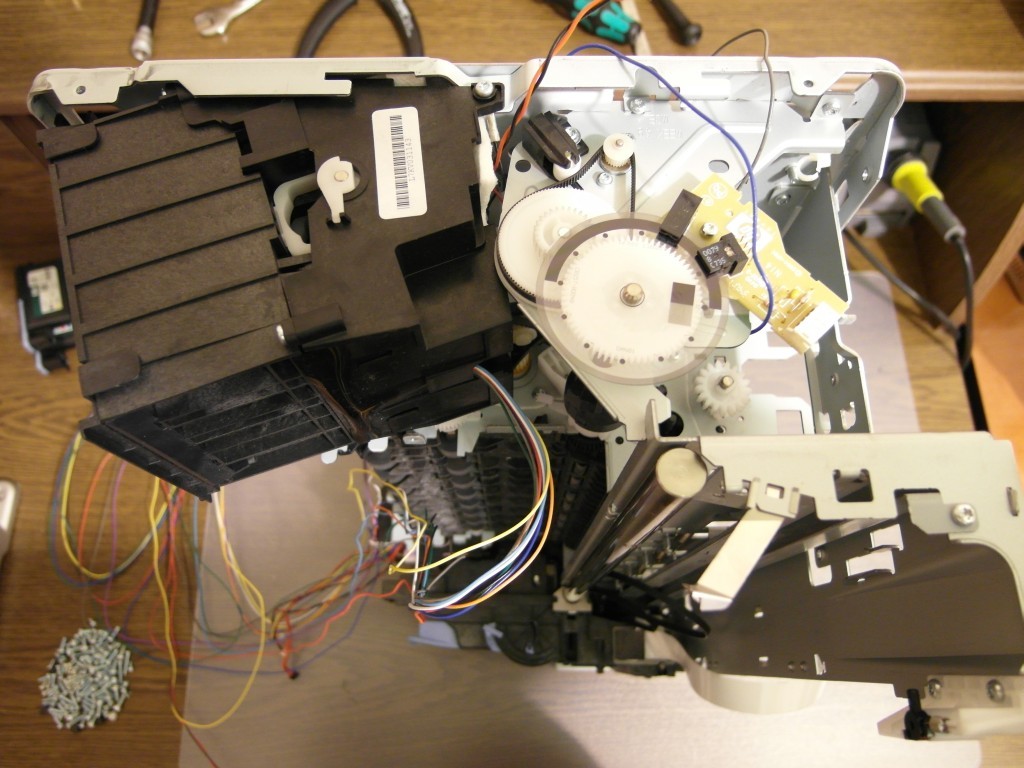

- Rotate the printer right to reach the other DC motor.
- Remove the two screws connecting the motor to the body.
- We will have another DC Motor.
Step #15:
Next


- Remove the screw to get the slotted opto switches.
Step #16:
Next



- The L7580 has a lot of DC motors inside. Detach the ink cartridge slots by removing the screws to discover another DC motor.
Step #17: Ink cartridge mechanism
Next

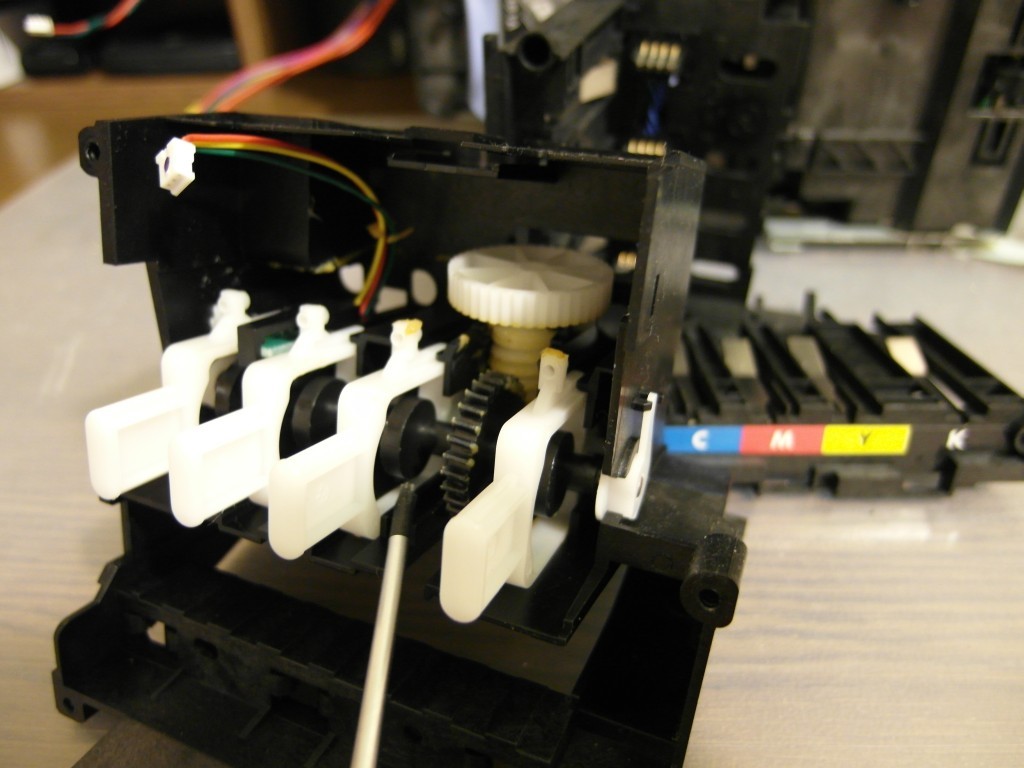

- This is the ink cartridge pumping mechanism. The last DC motor we detached controls this mechanism.
- The opto switch reports the mechanism's position.
- Communication between the board and cartridges is being established by serial data line as I guess.
Step #18: Master print head
Next



- Then, we see here the print head cleaning mechanism.

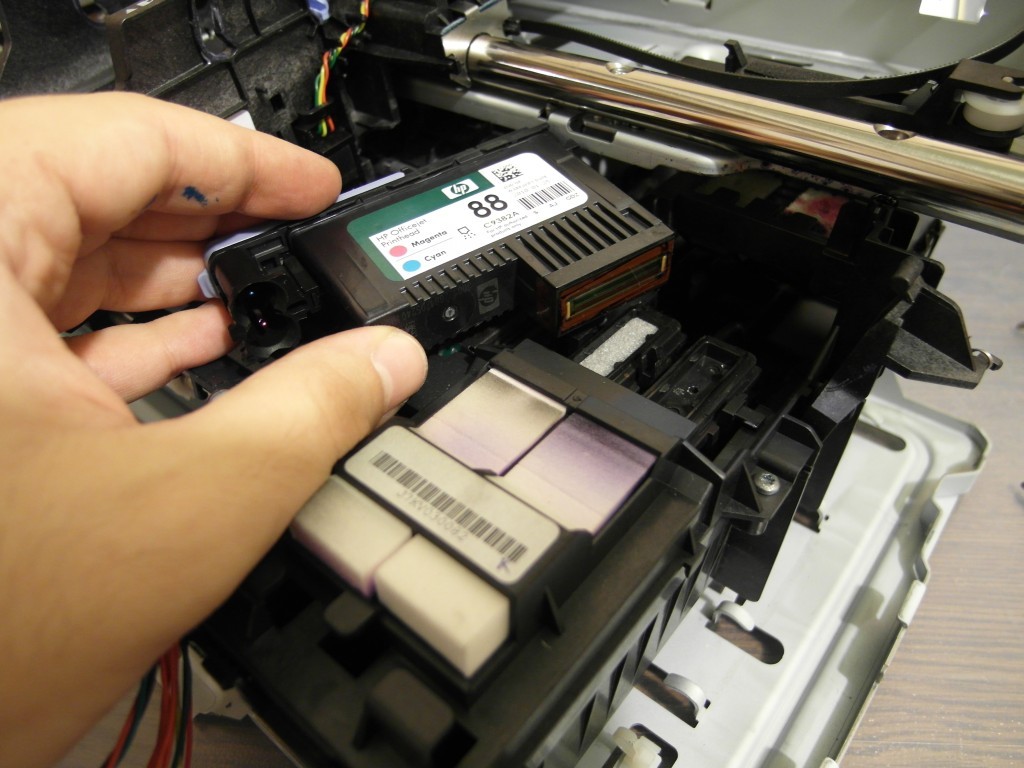

- The master print head (which includes two removable heads) has a circuit board inside.
- And this is the paper type detector. It has been compacted a bit when comparing to previous versions.
Step #19:
Next

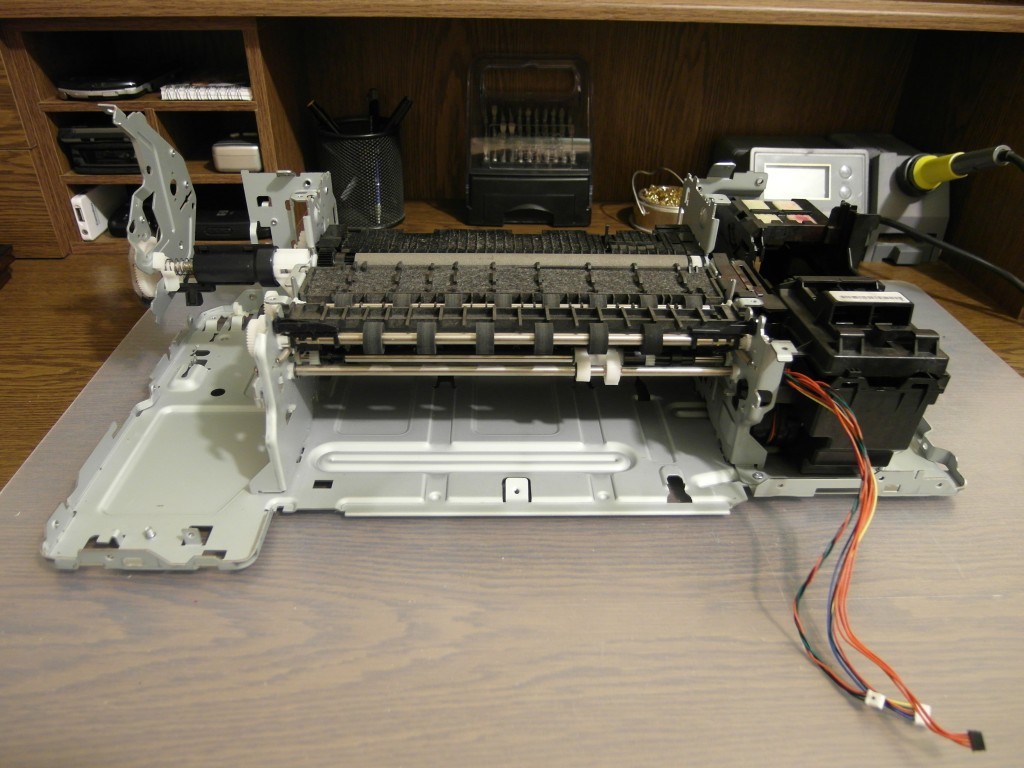

- Reaching to the bottom layer, this is the paper feeding mechanism.
- By removing the top cover, we discover the sixth and the last DC motor with its encoder.

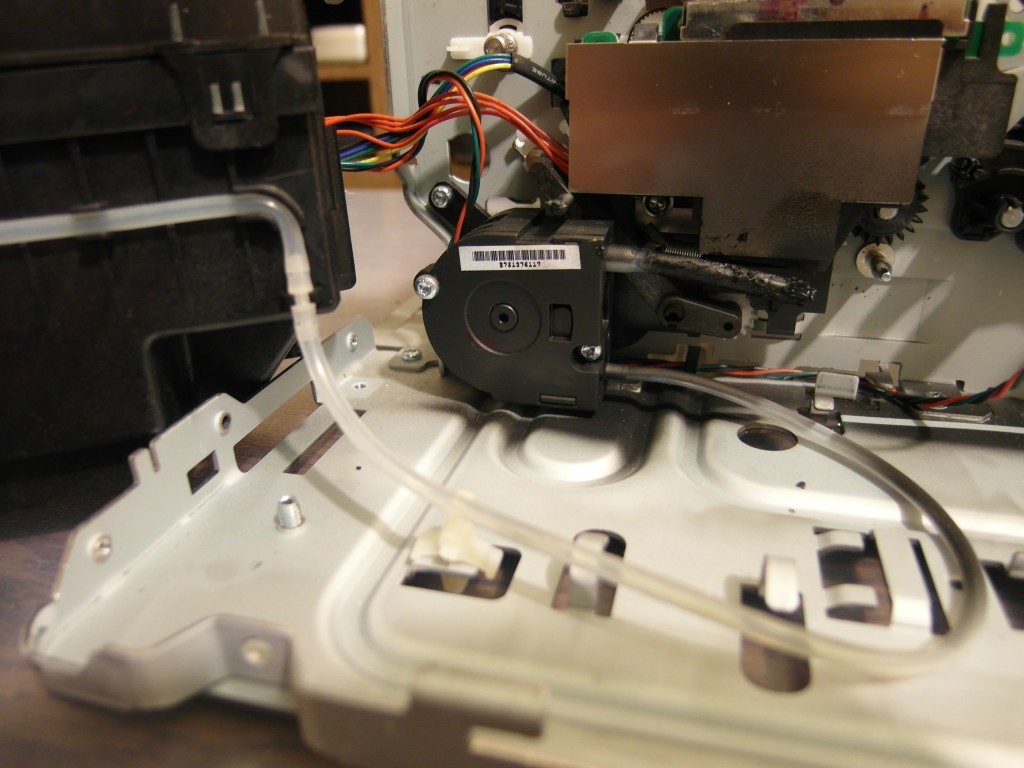

Step #20: The air pump




- At the final step, we discover an air pump for the print head cleaning mechanism. It's surprising!
