60 x 5mm LED Light Kit.
Price AUD $29.30 Complete Kit.
Shipping cost is extra.
Discount on bulk (email us).
Step #1: Check ListNext

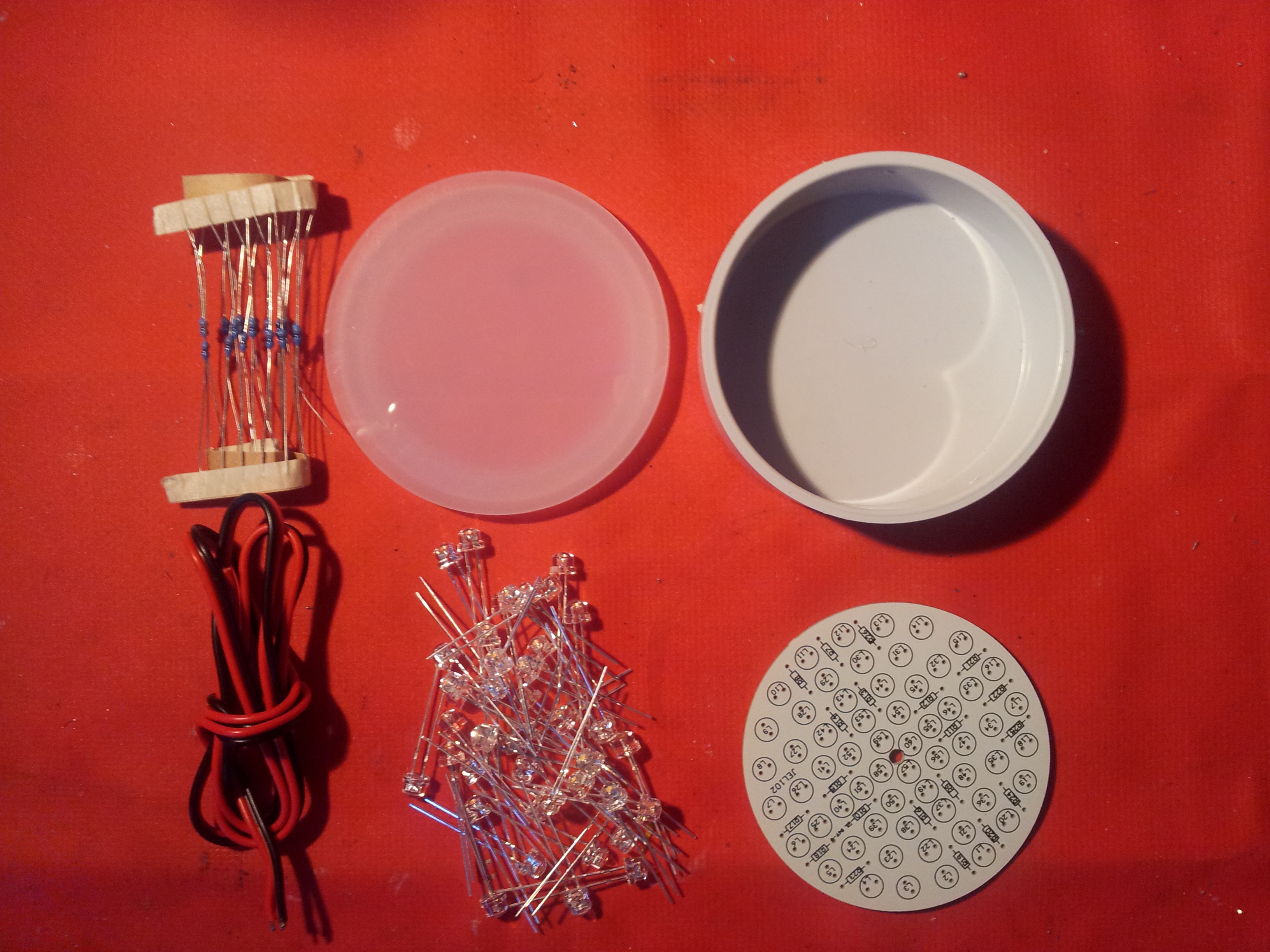

- Check kit parts list. 1 x PCB / 60 x 5mm LEDs / Hook up wire / 20 x 470 ohms Resistors / 1 x Plastic case and lens cover

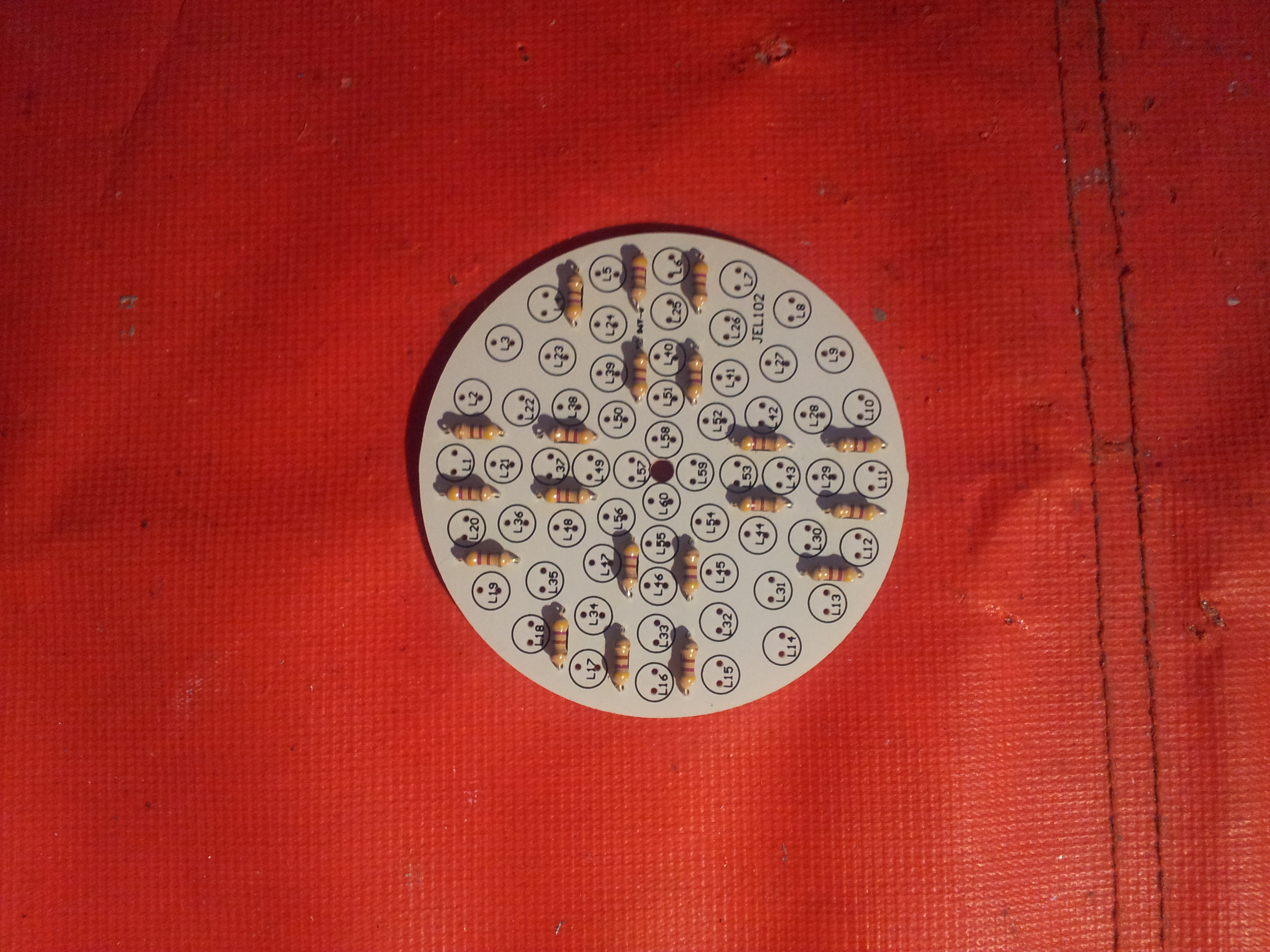

Step #2: Install ResistorsNext
Step #3: LEDsNext

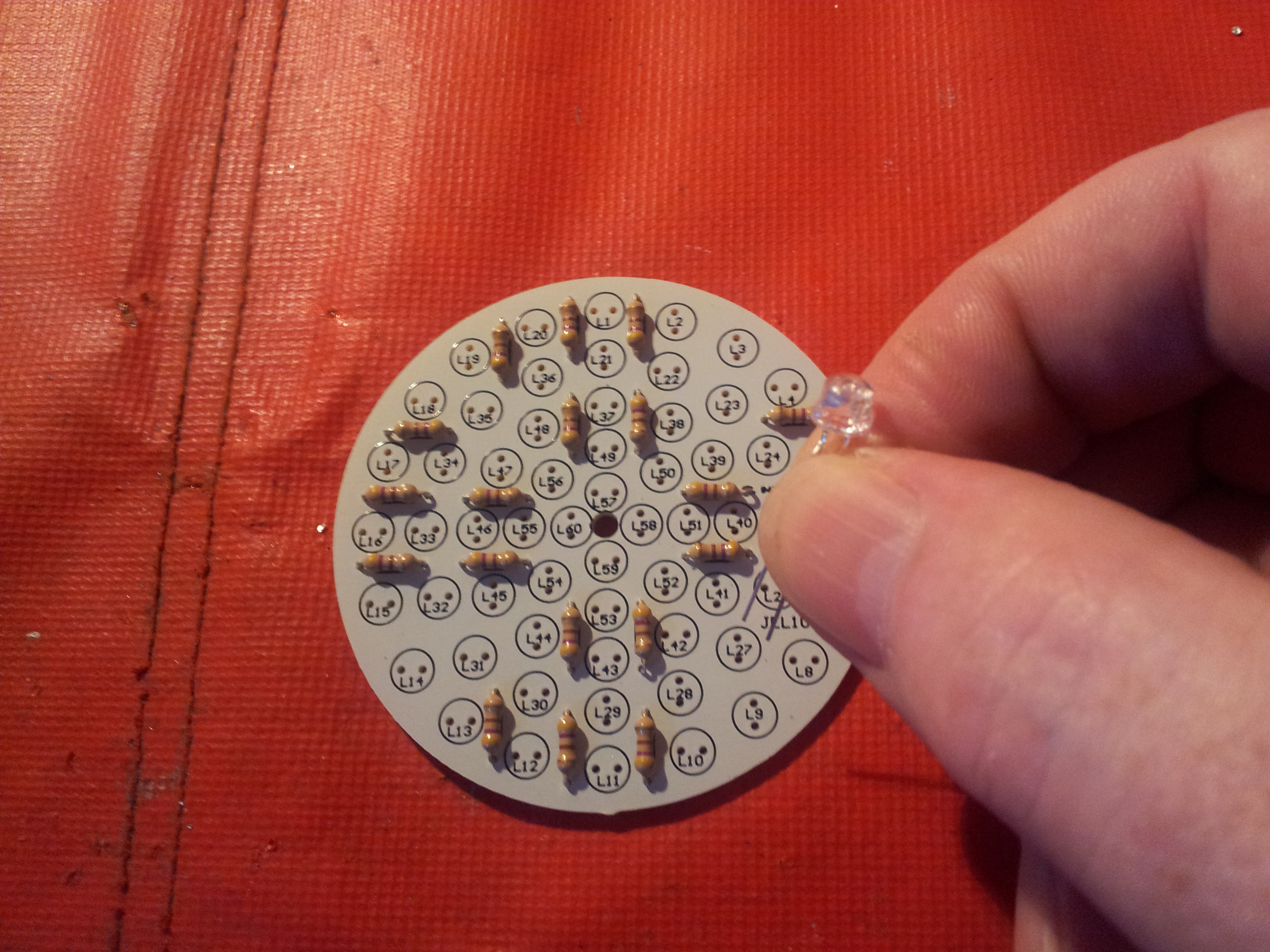

- Solder the LEDs onto the PCB.
- NOTE: Make sure the LEDs are soldered the correct way 'round on the PCB. If you look very closely at the LED you will see that it has a short leg and a long leg. The long leg is the positive (+) end.
- WARNING: LEDs ARE STATIC-SENSITIVE SO YOU MUST WEAR AN ANTI-STATIC WRISTBAND WHICH IS CONNECTED TO EARTH.
- NOTE: We can supply static mat kits.
Step #4: Power LeadNext

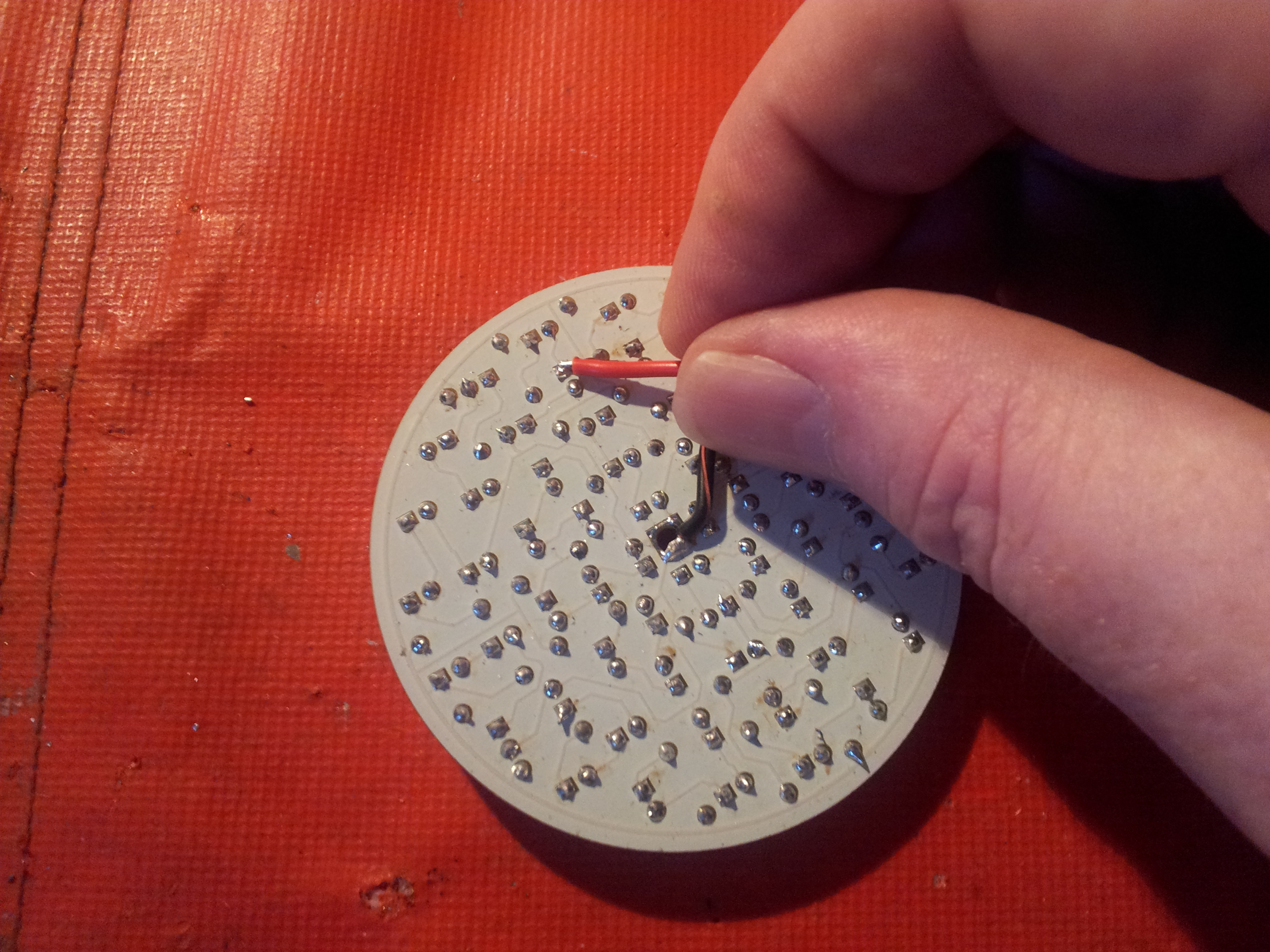

- Next, solder the hook-up wire leads to the PCB. The black wire goes in the centre.
Step #5: Next

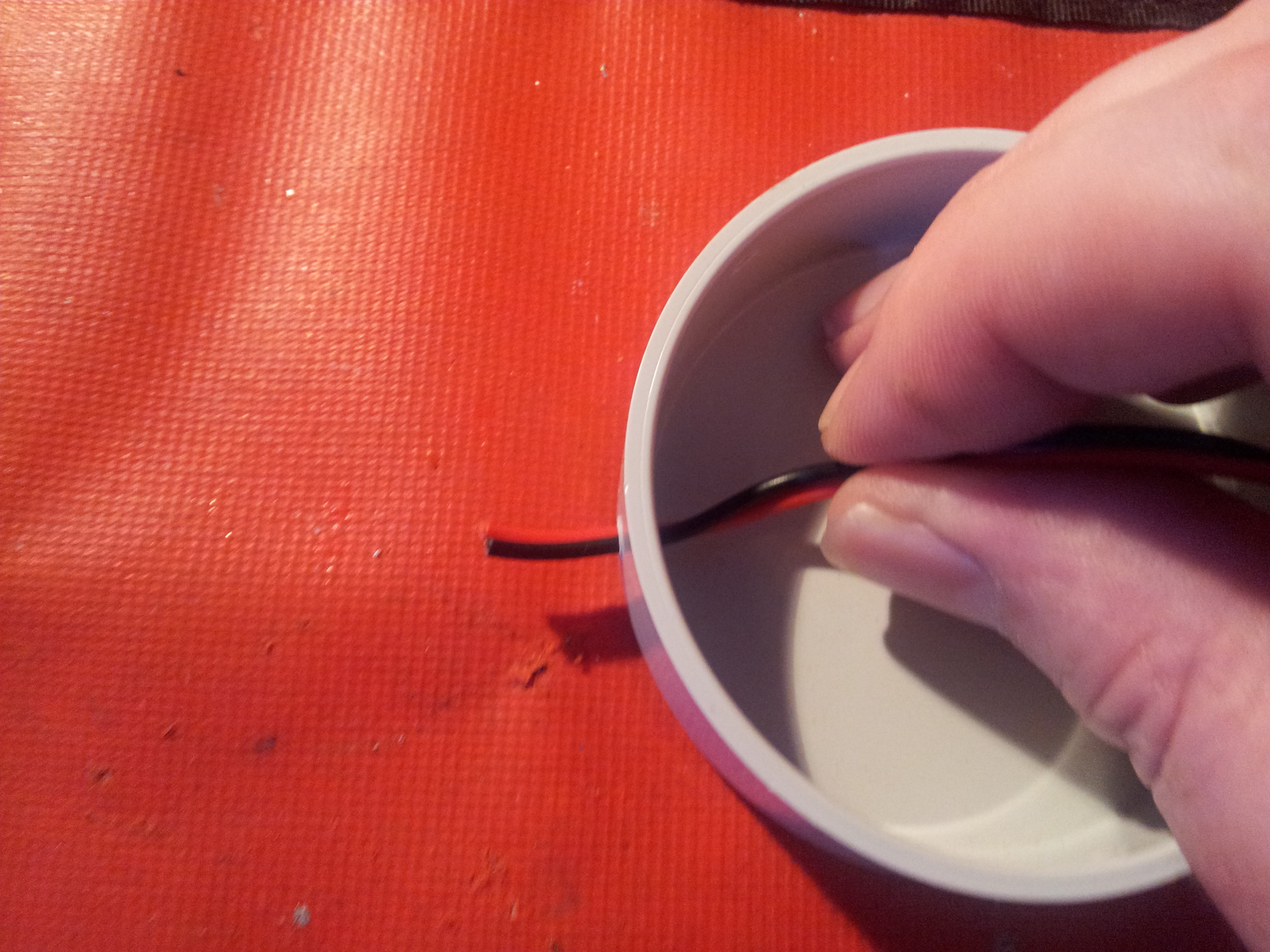

- Insert power wires through the side hole of casing.
Step #6: Next

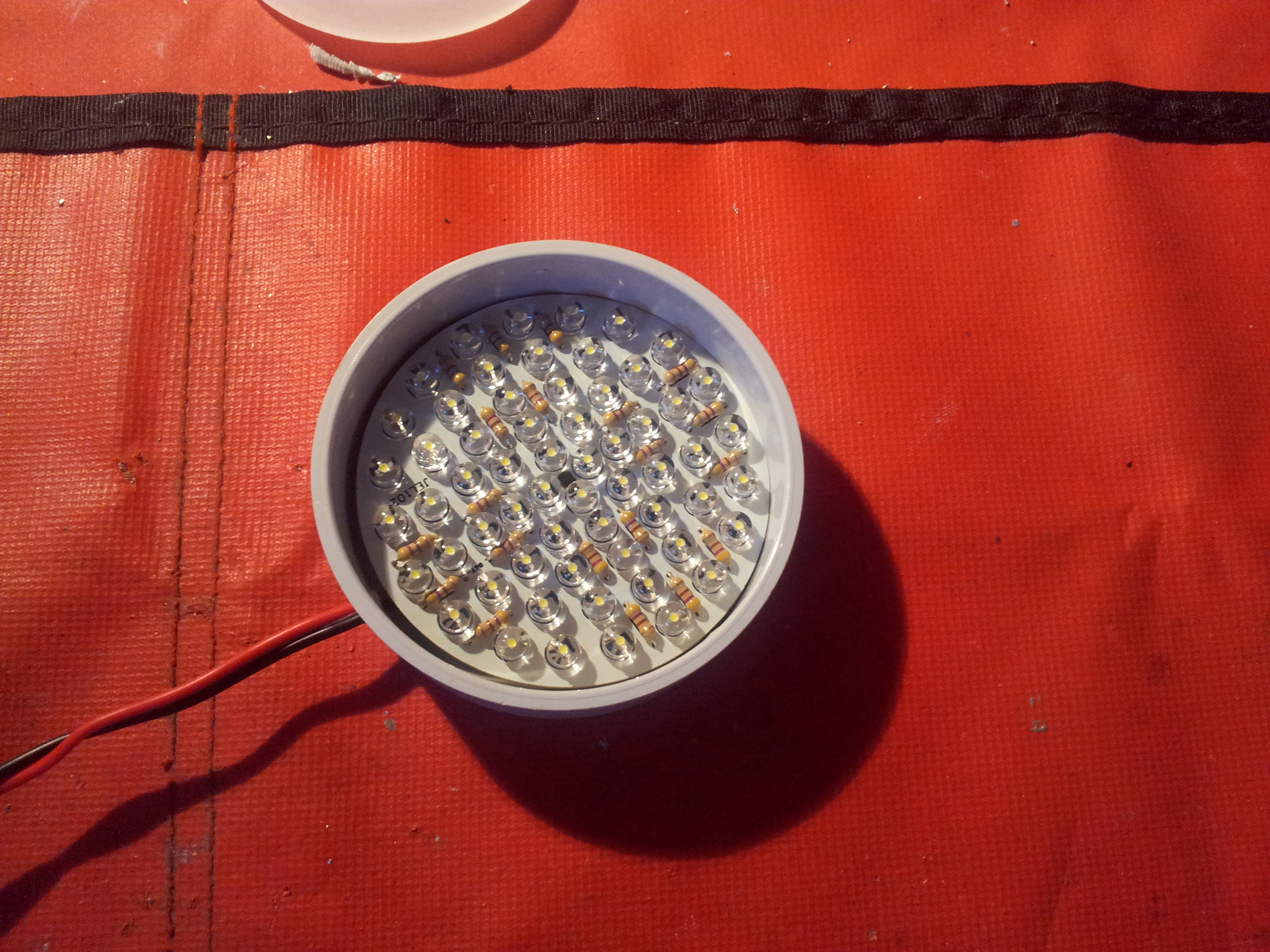

- Insert PCB into case and place. You can glue the PCB or use double sided tape.
- NOTE: You can apply resin to the PCB inside case to make it waterproof.

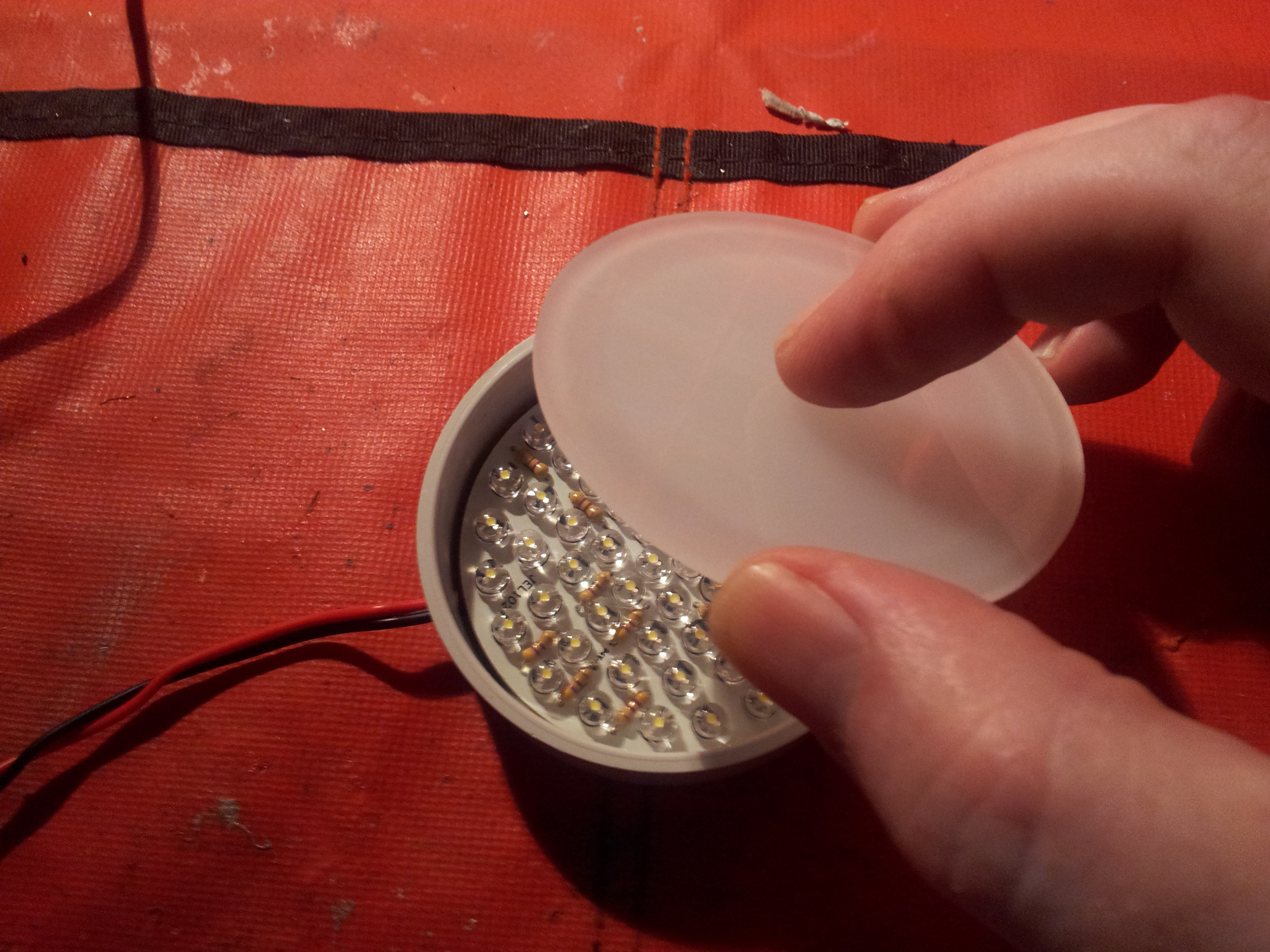

Step #7: Attach lens cover.Next

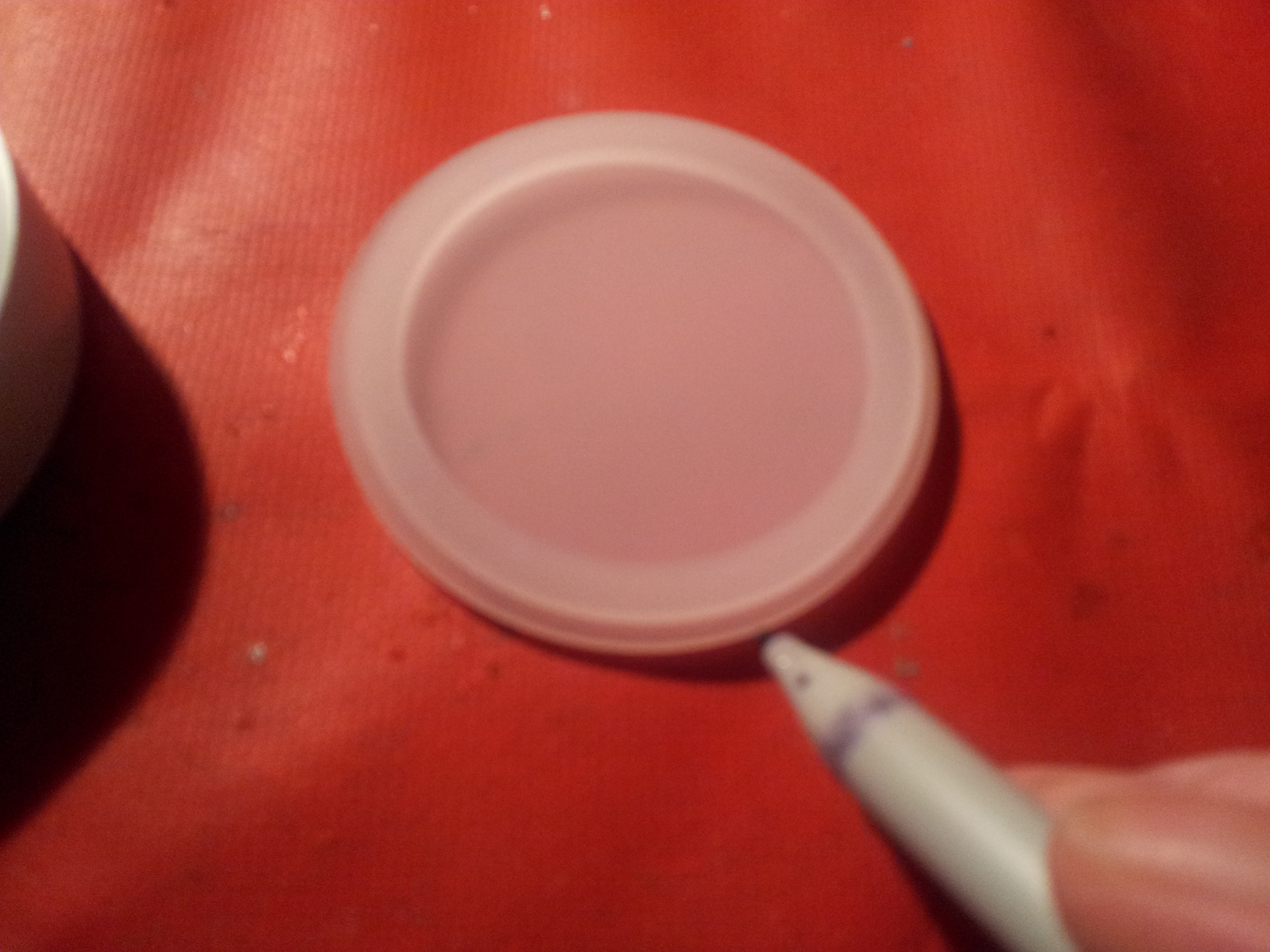

- Place a small amount of glue on the cover edges only, but not too much.
- NOTE: Be careful not to get glue on the lens front or back.
Step #8: Next
- Place the cover on top of casing and press down.
Step #9: Testing
- Now connect up a 12V DC power supply.
