Low-Fume Plastic Bag Forging

Forge HDPE bags into workable sheets of solid plastic using a double-boiler.

  • By Michael Colombo
  • Category: Home
  • Difficulty: Moderate
Low-Fume Plastic Bag Forging

Using a double-boiler method, HDPE bags are forged into workable sheets of solid plastic. This improves on a previous iteration by not using vegetable oil impregnated into the material.

Steps

Step #1:

Next
Low-Fume Plastic Bag Forging
  • A bath of canola oil is ideal for keeping the plastic bags at a temperature where they will become tacky and malleable, but not completely melt and produce fumes.

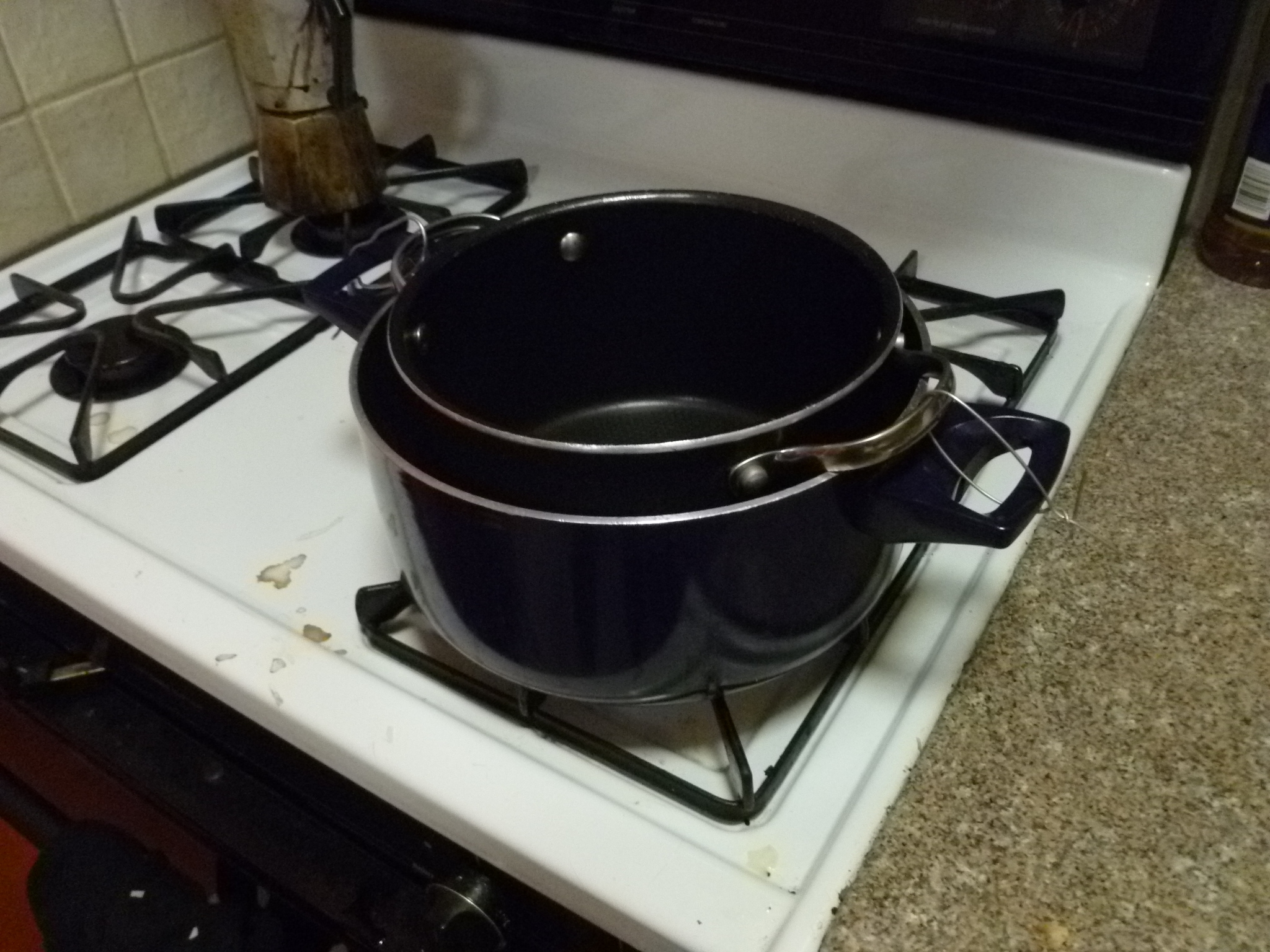

  • Create a double-boiler by nesting one non-stick pot inside a larger pot, and filling the space between them about 2/3 of the way with canola or corn oil. Since the smaller pot will float in the oil, you'll want to secure it. I used stainless steel wire attached snugly to each pair of handles.

Step #2:

Next
Low-Fume Plastic Bag Forging
  • For a uniform finish, use bags that are the same type of plastic. I used #2 HDPE (high density polyethylene). This is the material used in the majority of disposable supermarket bags, though sometimes you'll find #2 LDPE (low density polyethylene). Either one will do; just make sure you don't mix the different types.

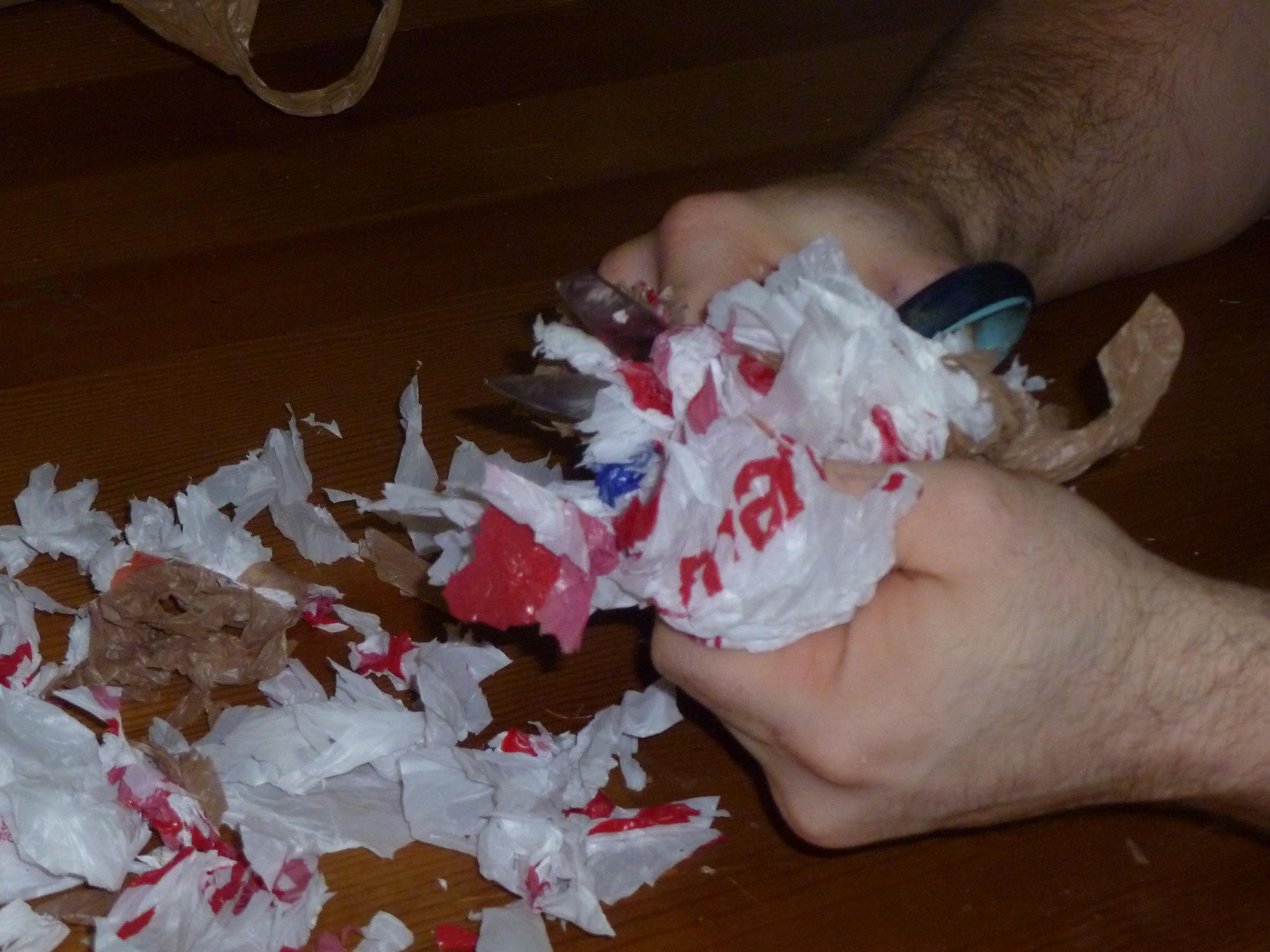

  • Ball up a bunch of bags in your hand and cut them with a pair of scissors. The pieces don't have to be super-small, just enough so they don't get tangled up with each other during the heating process.

Step #3:

Next
Low-Fume Plastic Bag Forging

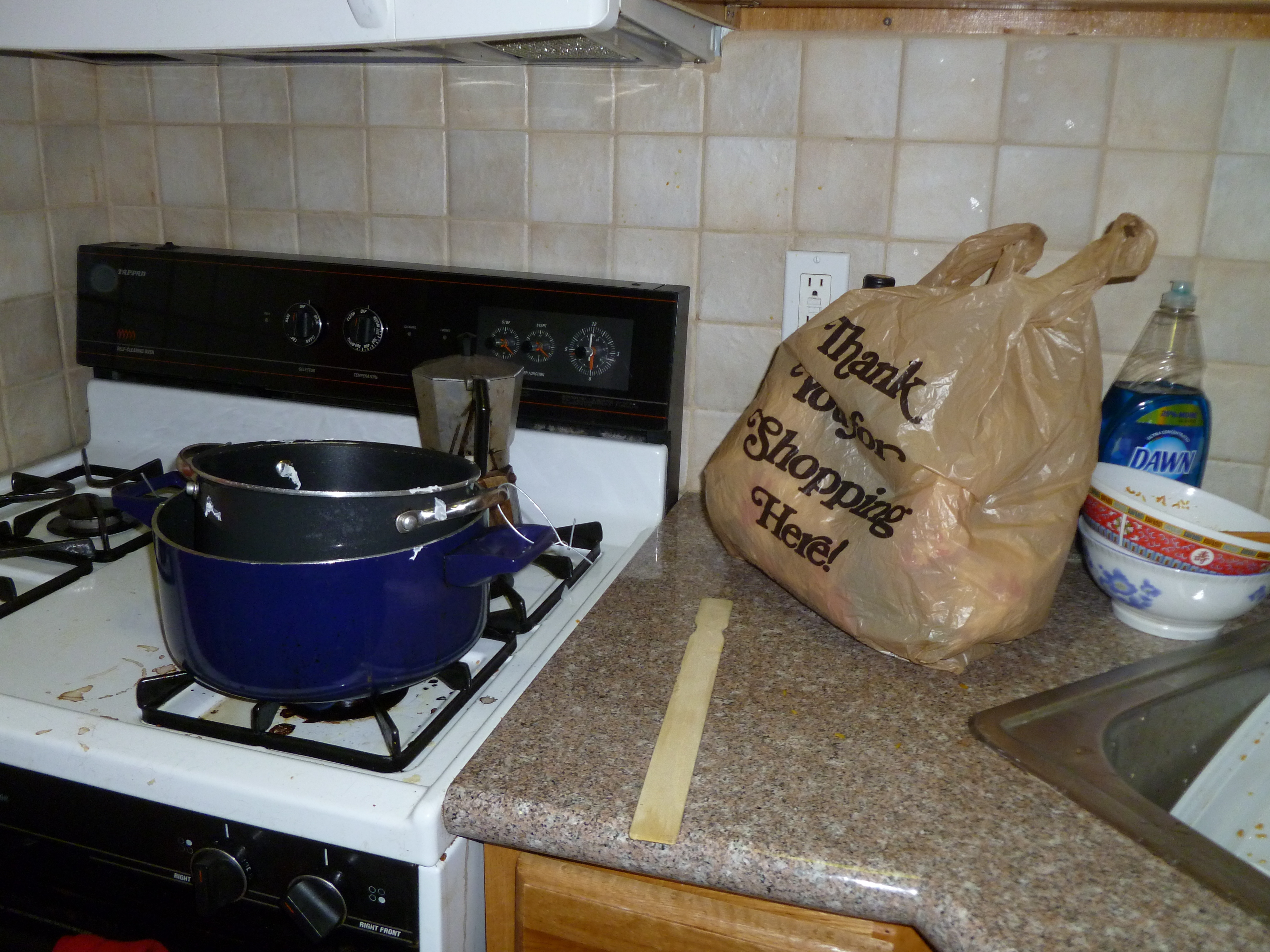

  • Heat the oil bath and ready your materials. I used a plastic bag full of shredded plastic bags, and used a paint mixing stick to stir. I recommend using a wooden implement as metal may become too hot and stick too much to the plastic.

Step #4:

Next
Low-Fume Plastic Bag Forging

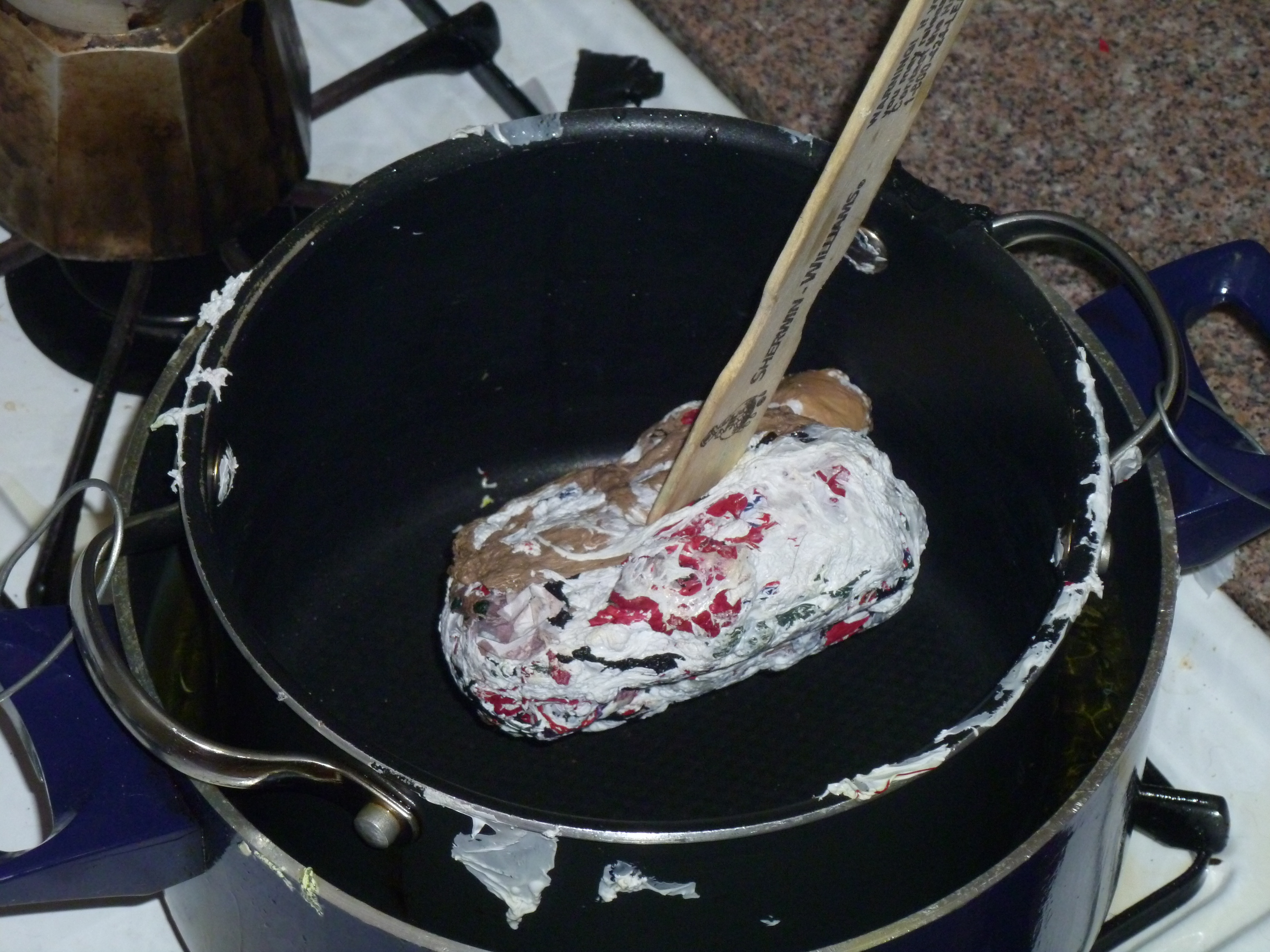

  • FIll the pot with plastic pieces and stir continuously. You'll find that the plastic will quickly shrivel and form into a ball. Periodically spread out and break up the ball to encourage even heat distribution.

Step #5:

Next
Low-Fume Plastic Bag Forging

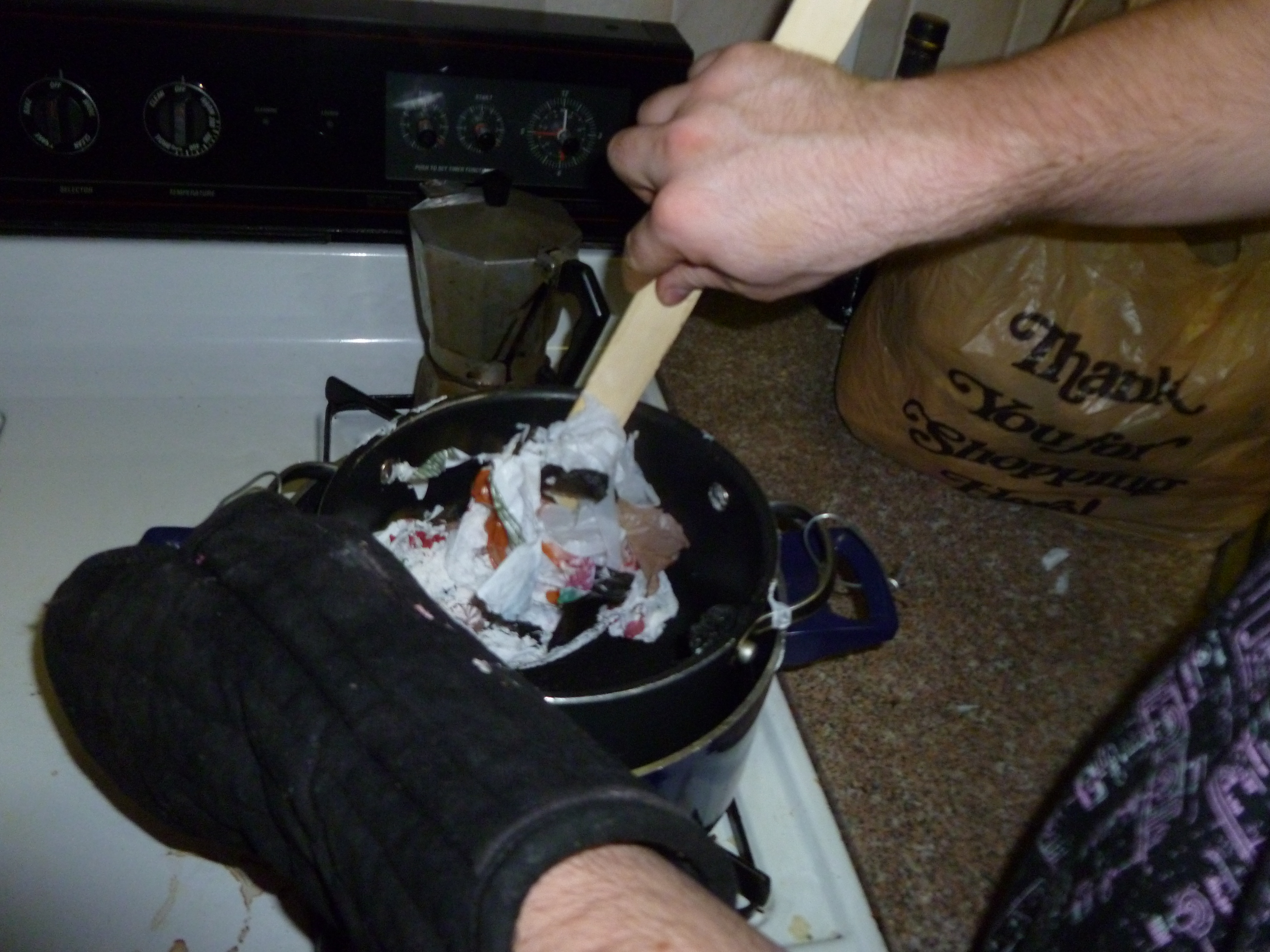

  • Keep adding more plastic as you go, and make sure to keep stirring so you don't scorch the plastic and release fumes.
  • Secure the double-boiler with your free hand using an oven mitt. Be careful! The oil is very hot.

Step #6:

Next
Low-Fume Plastic Bag Forging

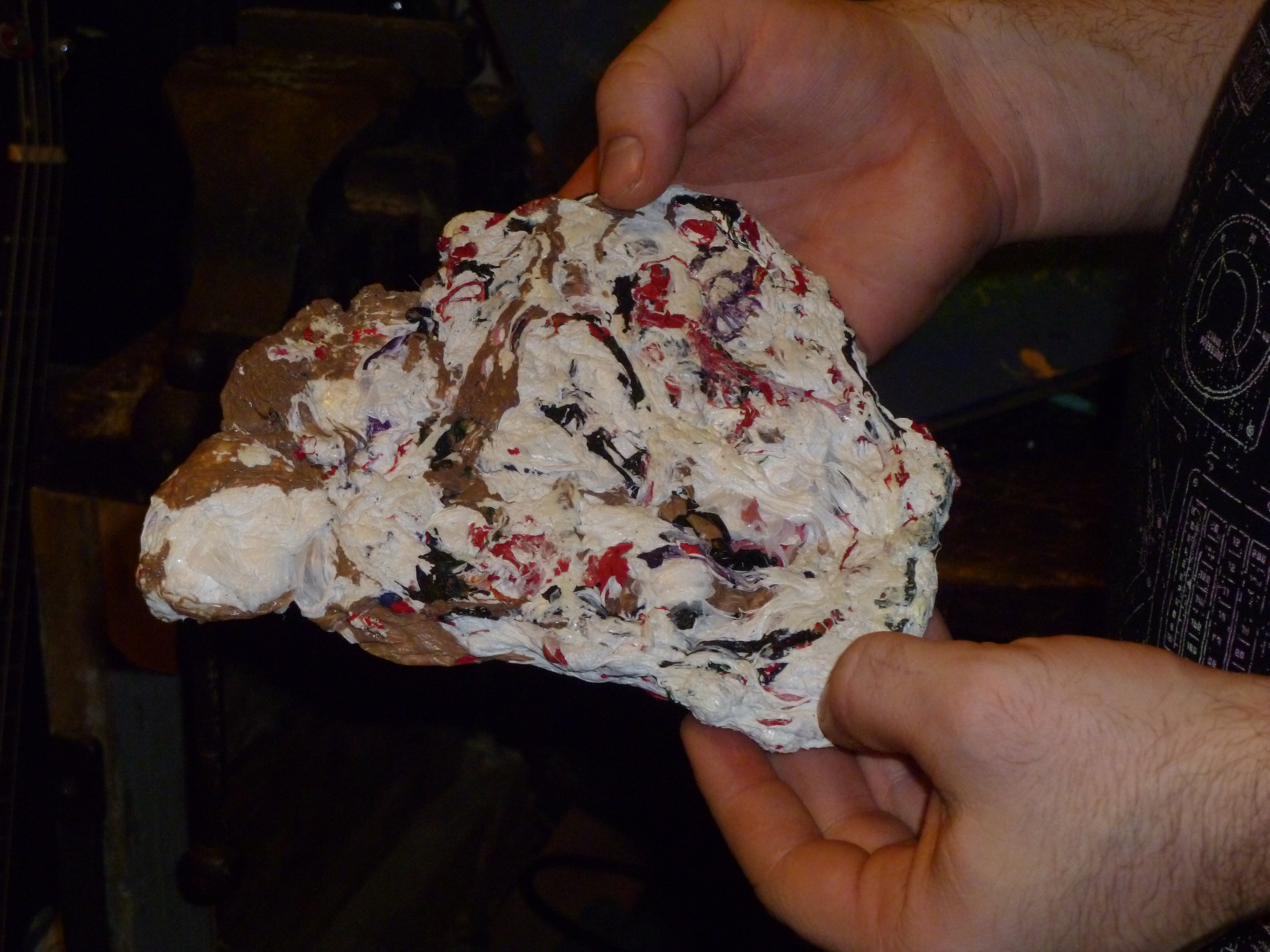

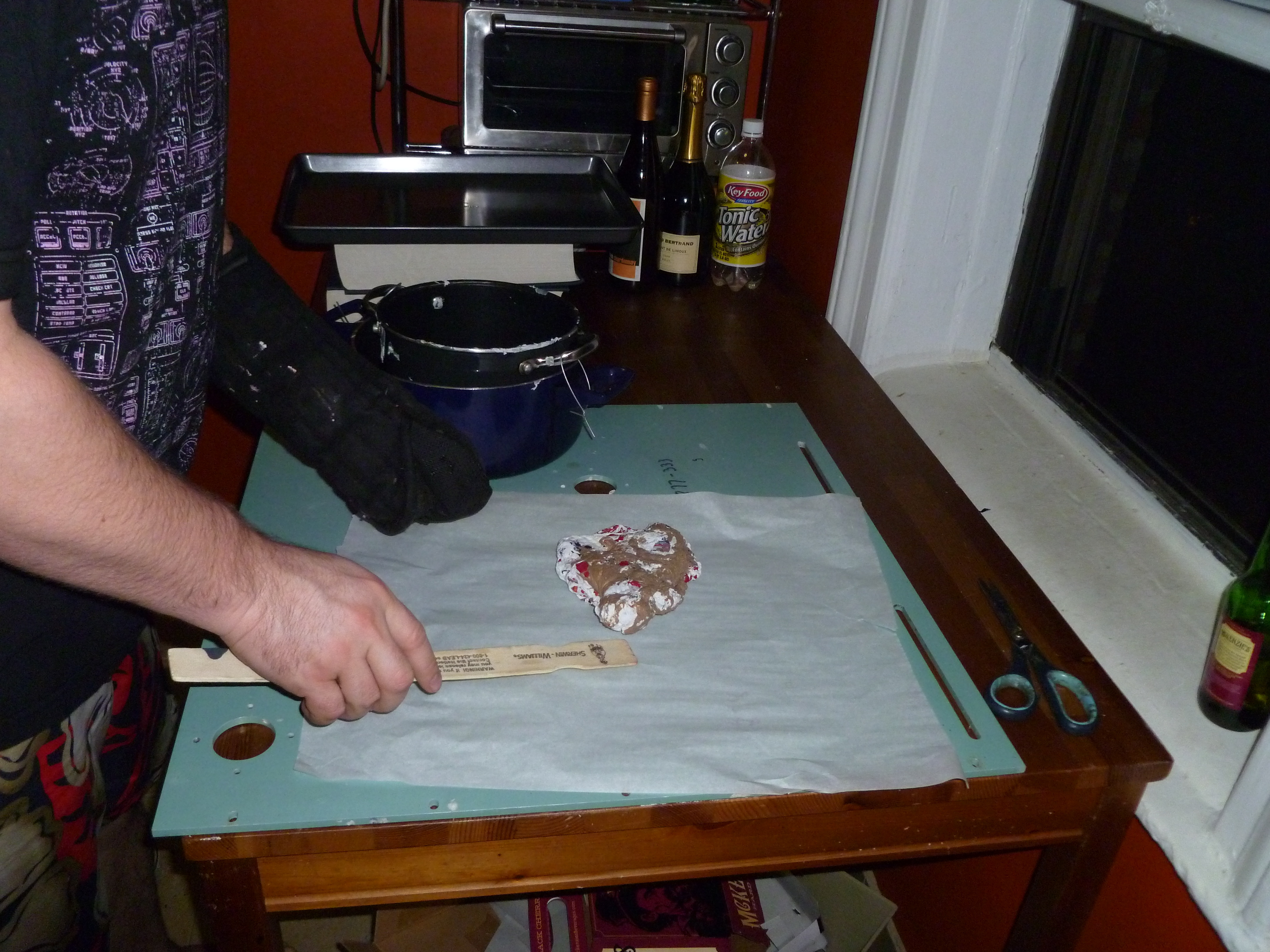

  • After a few minutes, when the plastic has been sufficiently heated and congealed, lay it out onto a piece of silicone parchment paper.

Step #7:

Next
Low-Fume Plastic Bag Forging

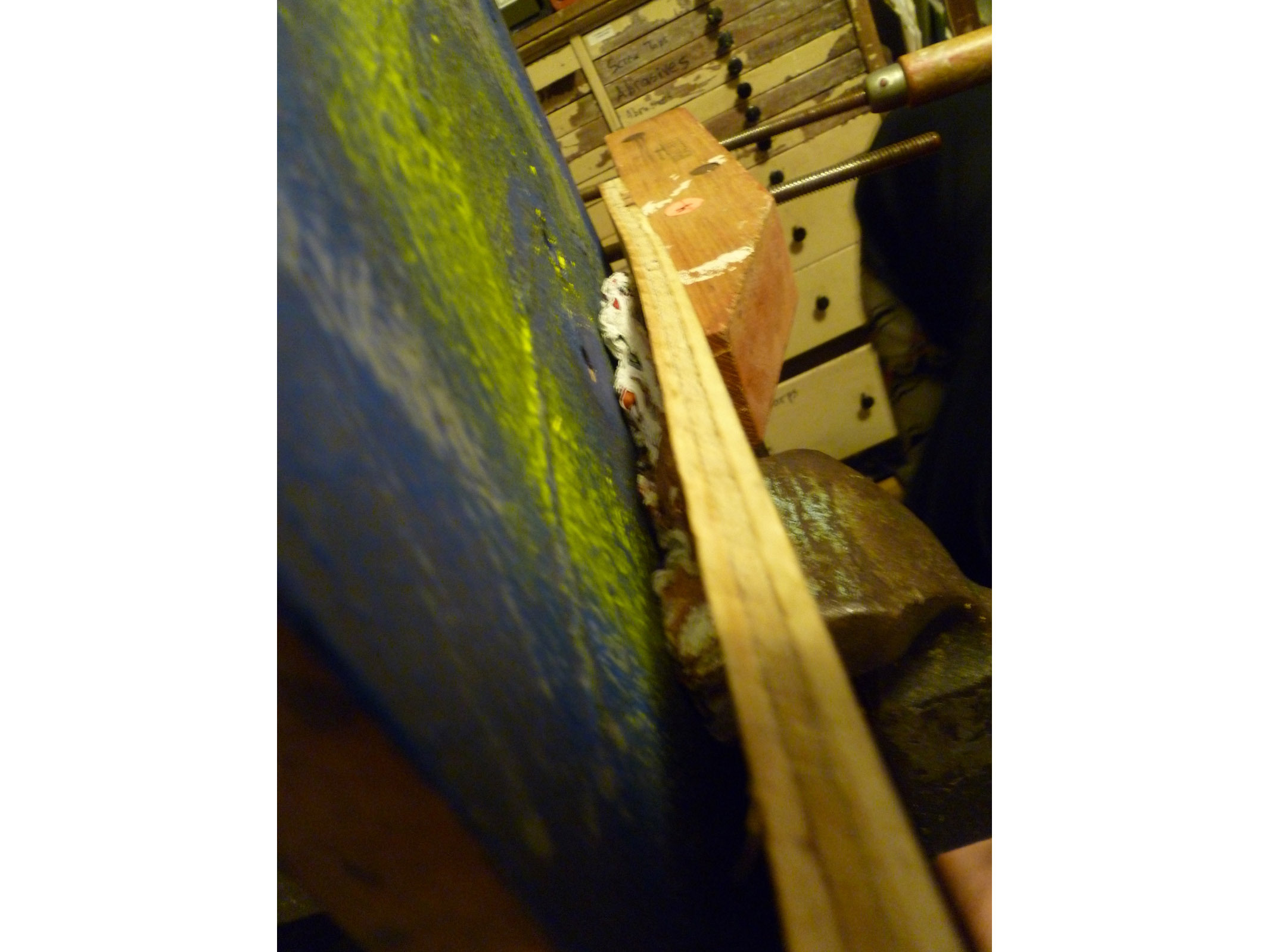

  • Insert the plastic between two rigid pieces of wood or metal, while keeping each side covered with parchment paper so it won't stick.

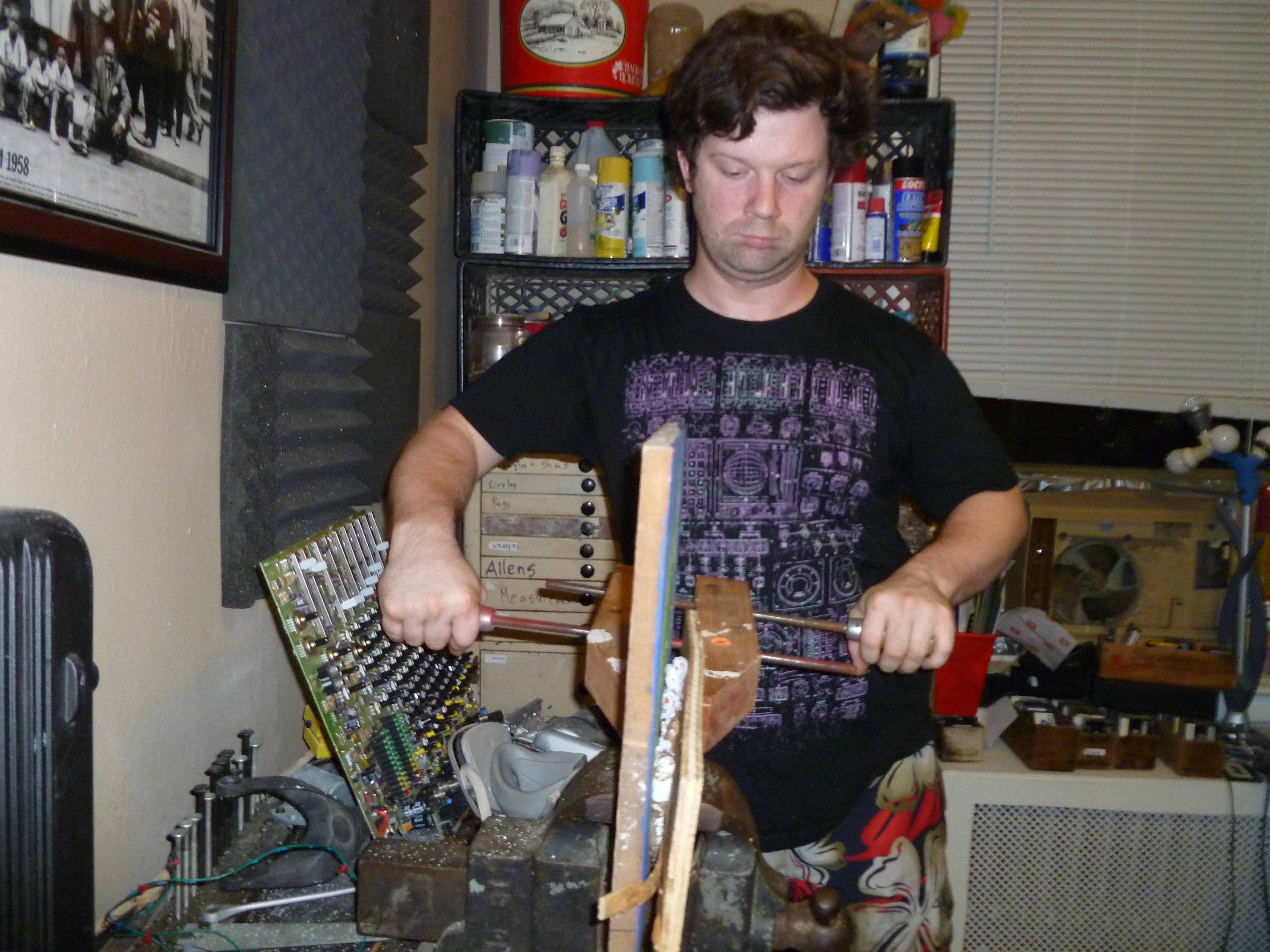

  • Press the plastic in a vise, with the edges held with whatever clamps you have on hand. If I had access to better tools I would have used a hydraulic press for this step.

Step #8:

Next
Low-Fume Plastic Bag Forging
  • Keep the plastic at tension for at least 15 minutes until it cools.

Step #9:

Low-Fume Plastic Bag Forging
  • Congratulations! You now have a point-of-use recycled piece of plastic stock with which to fabricate DIY projects. The advantage of this over the old "stewing" method is that you no longer have to worry about constant greasy residue, and the natural marbling of the plastic bags can make for interesting textures in your designs. Good luck!
