Make: Projects
Oil Lamp from the Cave Dwellers of Lascaux
What your iPhone is to you, the oil lamp may well have been to the cave dweller.
In Africa, Europe, and China, field scientists have uncovered the fossilized remains of campfire-charred bones so old that they likely predate Homo sapiens. The archeological evidence suggests that our humanoid ancestors began taming fire perhaps as long as 1 million years ago.
While these creatures most likely lacked the wherewithal to kindle fire, they did, it seems, have the mental capacity to capture naturally occurring fire, tend it, and preserve it for long periods. For ancient hominids, campfires were important not only for warmth and cooking, but also for light.
About 15,000 to 30,000 years ago, in the Late Stone Age (or Upper Paleolithic), humans painted elaborate images deep within several caves in western Europe, the best-known being those of Lascaux in southwestern France. Narrow and deep, the caves are impenetrable to daylight, making it impossible for the artists to have painted without some sustained source of artificial light.
Experts postulate that these primitive Rembrandts placed a few lumps of animal fat on a stone with a small manmade depression, then lit the fat with a burning faggot from the always-tended campfire not far away. The evidence indicates that in order to produce the hundreds of artworks now considered some of the world’s oldest, the painters must have manufactured some of the world’s first lamps as well.
As human culture progressed, so did lamp construction. Lamps were made from shells, bone, stone, and chalk, and were fueled by whatever naturally burning, organic substance was locally available. In the far north, it was whale blubber. In parts of the Middle East, lamps were fueled by petroleum products such as liquid asphalt and naphtha, collected from seeps in the ground.
Today the ancient lamps most frequently depicted are those formed from fired clay that burned olive oil. African and Levantine lamps had open tops and were often hung on chains from the ceiling.
Later, great numbers of Roman lamps were manufactured using molds instead of hand-forming techniques. They’re among the earliest examples of mass-produced housewares. Roman lamps had covers and sometimes multiple spouts and wicks that provided considerable light. It was in the orange-red glow of burning oil lamps that people like Aristophanes wrote, Socrates philosophized, and Archimedes invented.
Designing and fabricating a simple olive oil lamp is easy and fun, and quite possibly, useful. But best of all, when you do it you form a connection with the technology of the past, of the earliest times of human civilization. What your iPhone is to you, the oil lamp may well have been to the cave dweller.
Steps

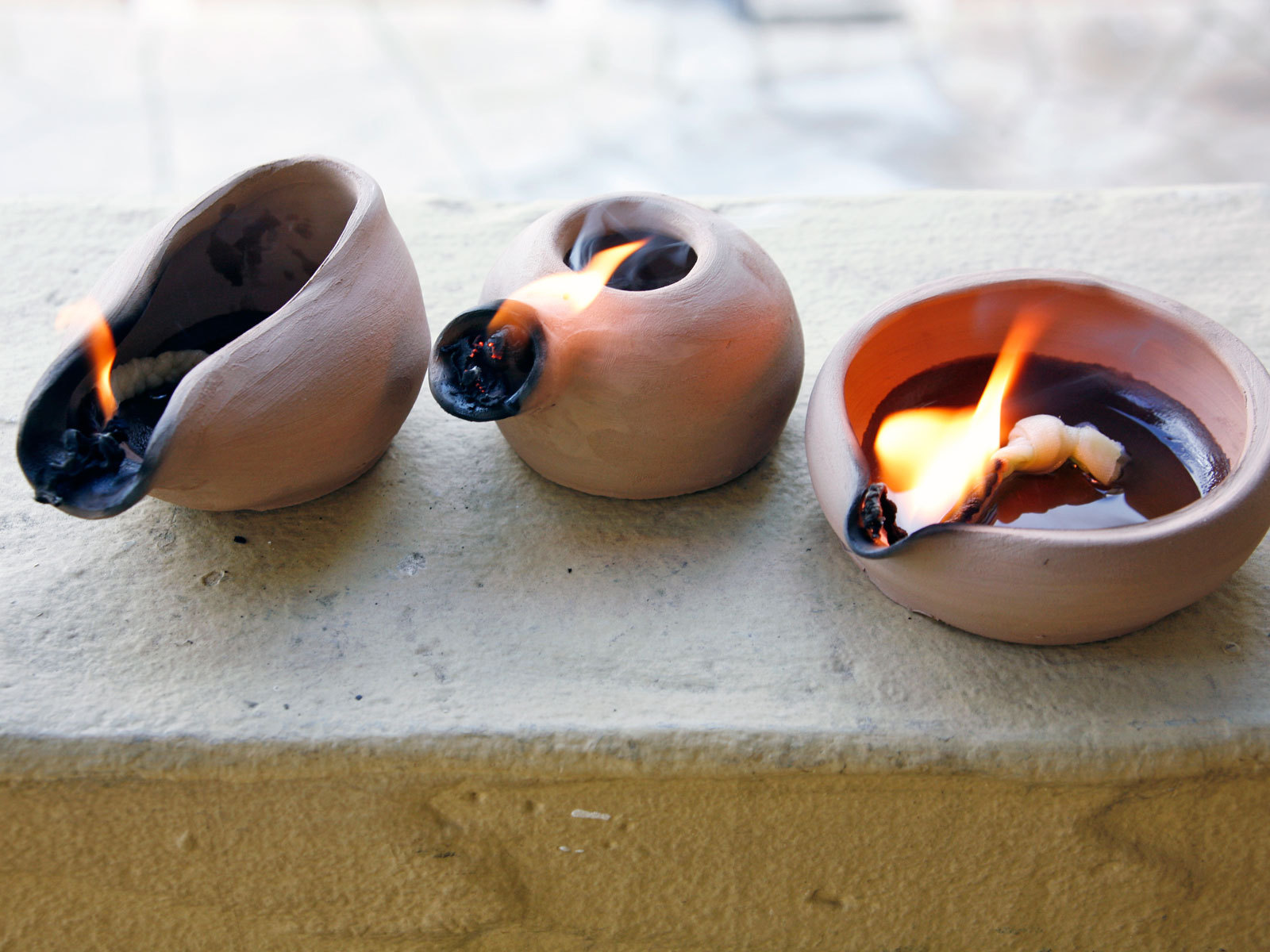

Step #1: Making an olive oil lamp.
Next
- Most clay or terra cotta oil lamps work the same way. The fiber skein or string that holds the flame is called the wick. Hydrocarbon compounds in the oil are wicked to the flame through the fibers via a phenomenon called capillary action. The upward-drawing motion of capillary action results from surface tension, or the attraction of molecules to molecules of similar kind. The oil molecules follow one another up the wick where they burn, or put a bit more scientifically, oxidize in a high-temperature, self-sustaining exothermic reaction.

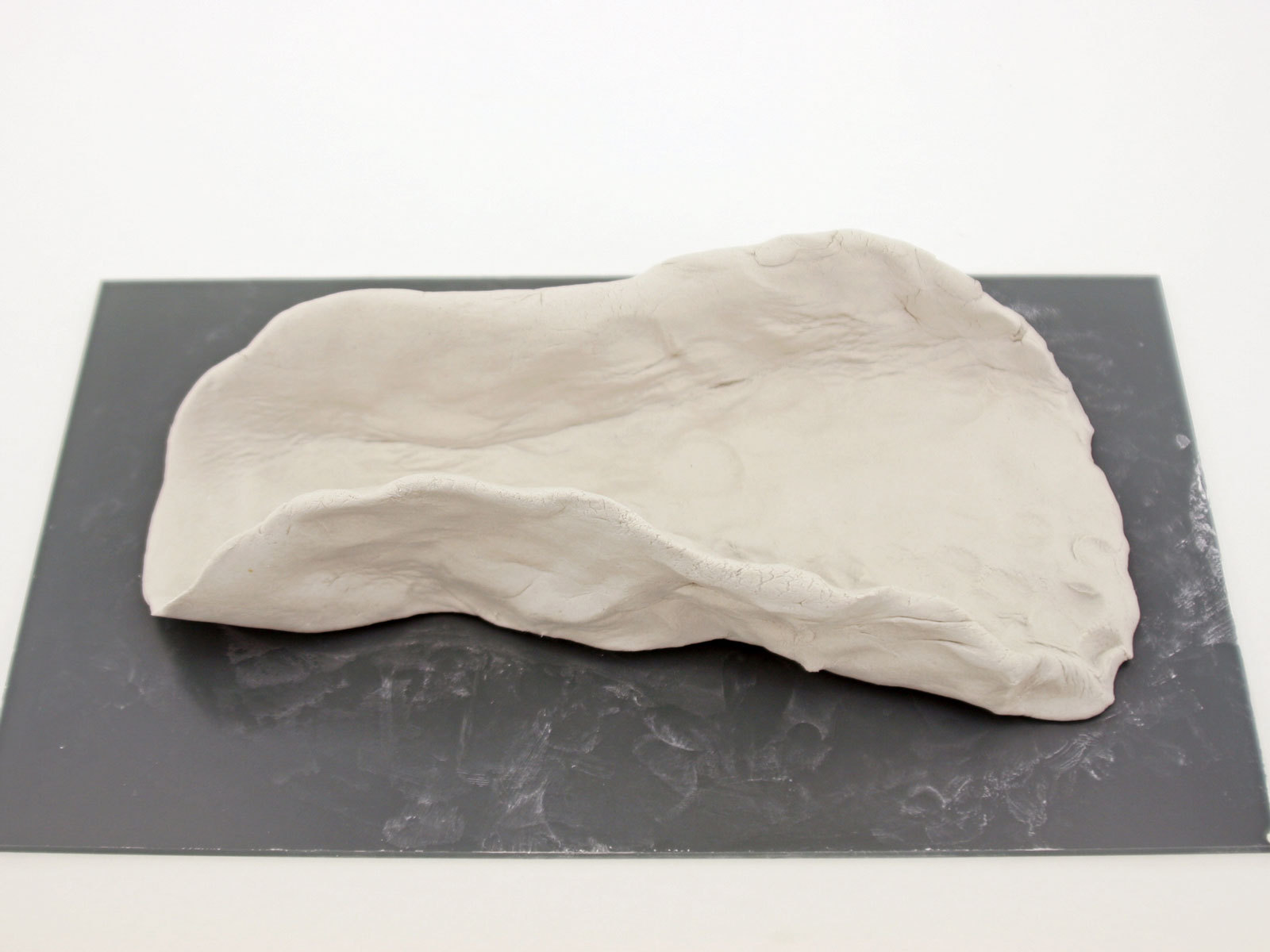

- An oil lamp is basically a reservoir for oil with a support to hold the wick upright. In practical terms this becomes a clay pot with a spout for a wick and a separate hole for adding the oil. Making a lamp on a potter’s wheel is a simple task, as you need only throw a simple bowl, then pinch the wet clay to form a spout for the wick. You can even make a decent lamp with just your hands.
