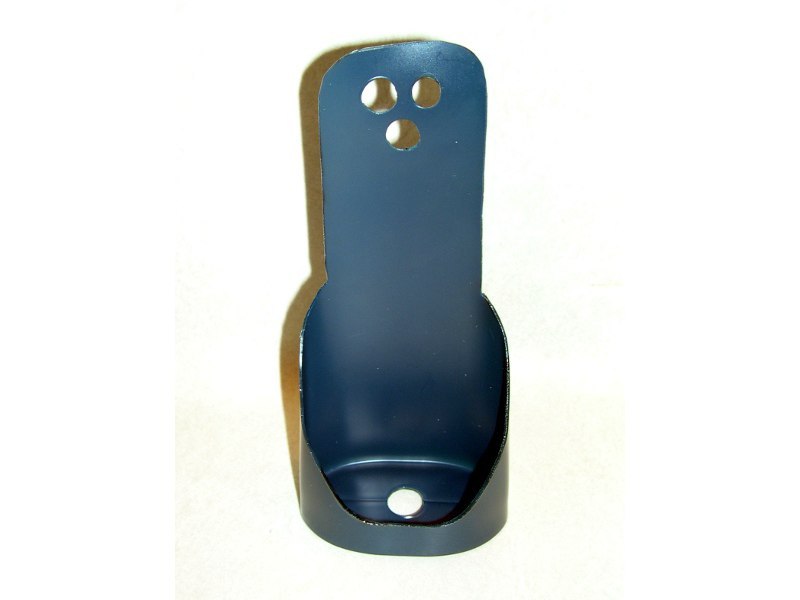

Most cellphones are provided with a very basic wall-wart charger, and you usually have to pay extra for a proper charging dock. The bundled charger is often unsightly in use, being just a transformer with a cord strung out to an end table or someplace where the cellphone rests. If you have a cat who likes to chew through cords, as I do, this can be more than just inelegant — it can be totally impractical. It’s also a good project if you just hate, for aesthetic reasons, loose power cords strung out across the furniture.
A similar product is for sale at ThinkGeek, and that’s where I got the idea. The nice thing about my version is that it requires no tools to mount or demount, being suspended by the plug on the charger itself. So you can quickly move it around to whatever outlet you want or take it with you when you travel. Plus it costs all of nothing to build.
Step #1: Select a suitable bottleNext

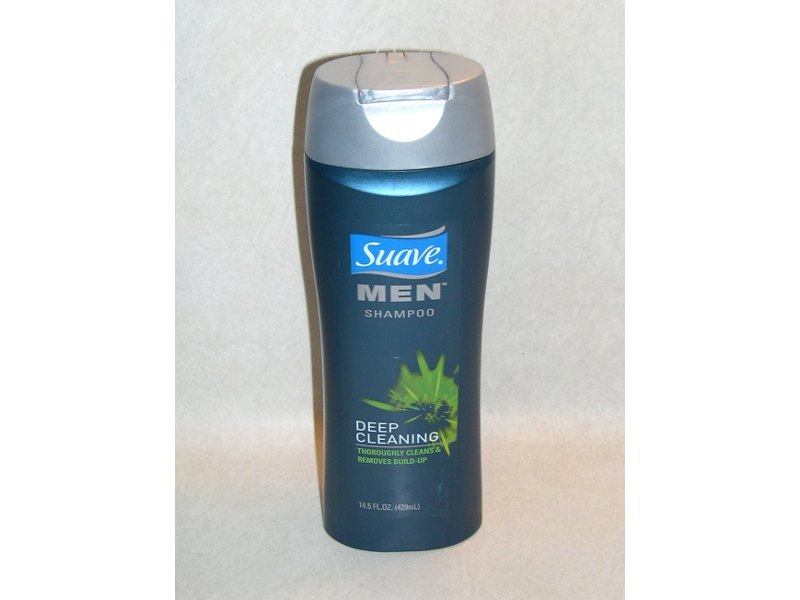

- Obviously, the bottle needs to be plastic or other nonconductive material. If you try this with a metal bottle, you'll destroy everything and probably injure yourself shorting out the wall socket.
- The bottle should have a flat back, more or less, so that it easily fits between the charger and the outlet. It needs to be thick and wide enough to hold your device, of course, and long enough to provide clearance below the wall-wart when inserting or removing said device.
- The one I made is 6" long and works well for my phone and charger, but your own equipment may of course vary.
- Finally, the bottle musn't be too thick, otherwise the force on the plug might obtain a significant "outward" component, which is probably ungood. As long as the force is mainly "down," the limited weight of the phone, pouch, and charger should be easy for the plug to bear.
Step #2: Next
- Clean up the bottle

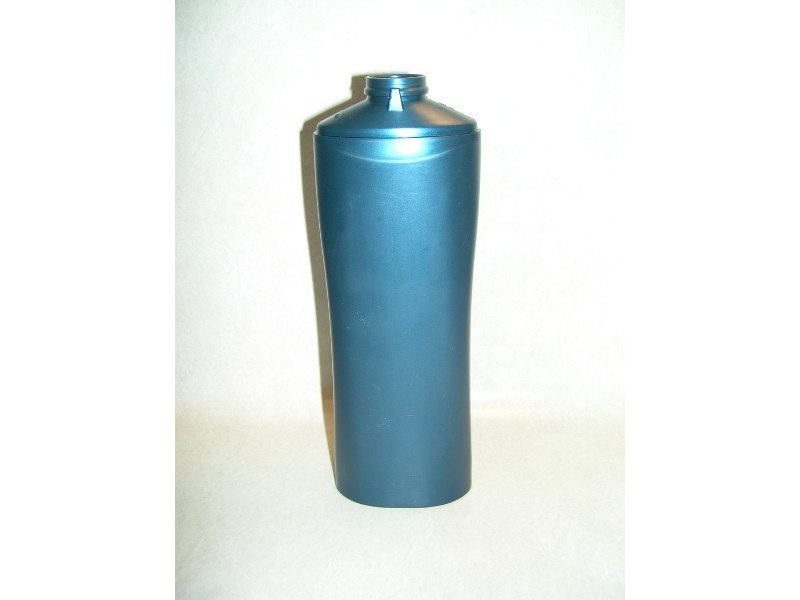

- Peel off any labels on the bottle and remove any residual adhesive with an appropriate solvent.
- I love Goo-gone for this purpose--it cleans up gunk like nothing else I've ever used outside of a chemistry laboratory.
- After I used it, I gave the surface a final wipe-down with isopropyl alcohol.
Step #3: Cut off bottle topNext

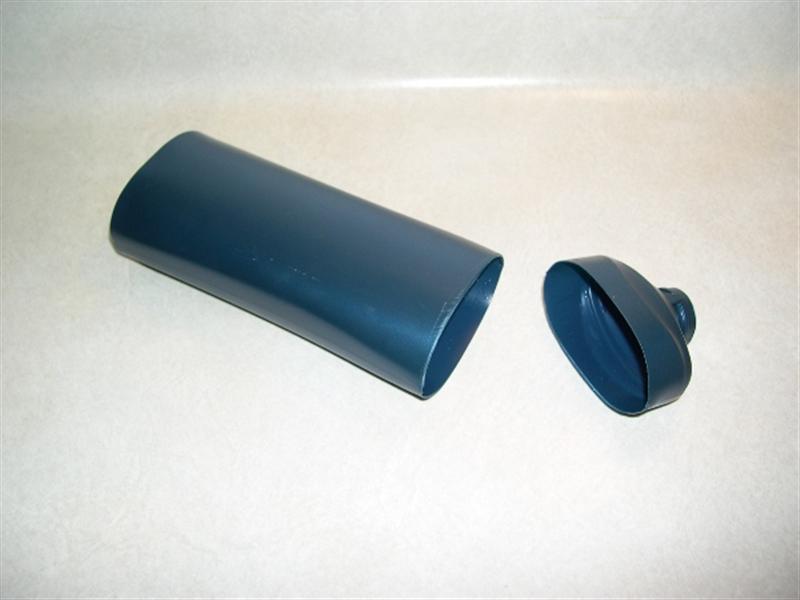

- I used my trusty swing-arm paper cutter for this, but scissors or a razor should work fine, too.
- I cut 6" up from the bottom, which turned out to be the final, finished length of the pouch.
Step #4: Cut out the tabNext

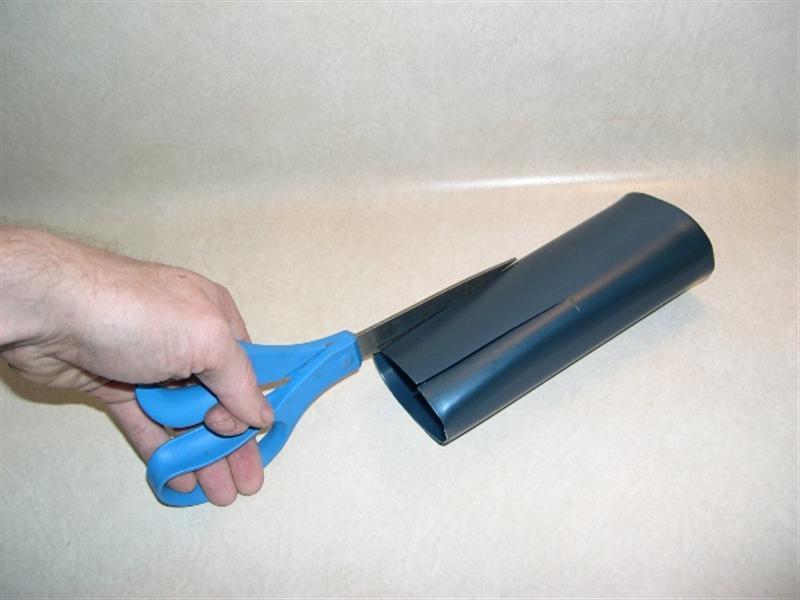

- Use scissors to cut two slits at least 3" long at either edge of the bottle's back surface.
- These cuts form the sides of the vertical "tab" that goes between the outlet and the transformer.
- Round off the corners of the tab to about 1/2" radius.
Step #5: Draw cutting guidelineNext

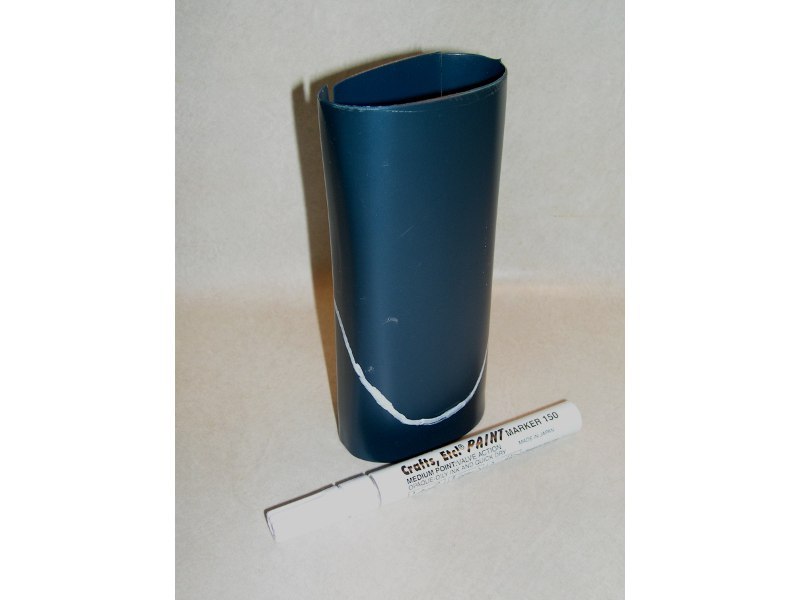

- Beginning at the lower ends of the slits you just cut, draw a downward-sloping line around the bottle, which levels out about 1" from the bottom of the bottle in the center of the front panel. Use a paint-pen or sharpie.
- Draw the mirror image of the line up the other side.
- If you can, draw the line such that cutting it completely away will give the shape you want, so you don't have to clean anything off the part you're going to keep.
Step #6: Cut sides and front of pocketNext

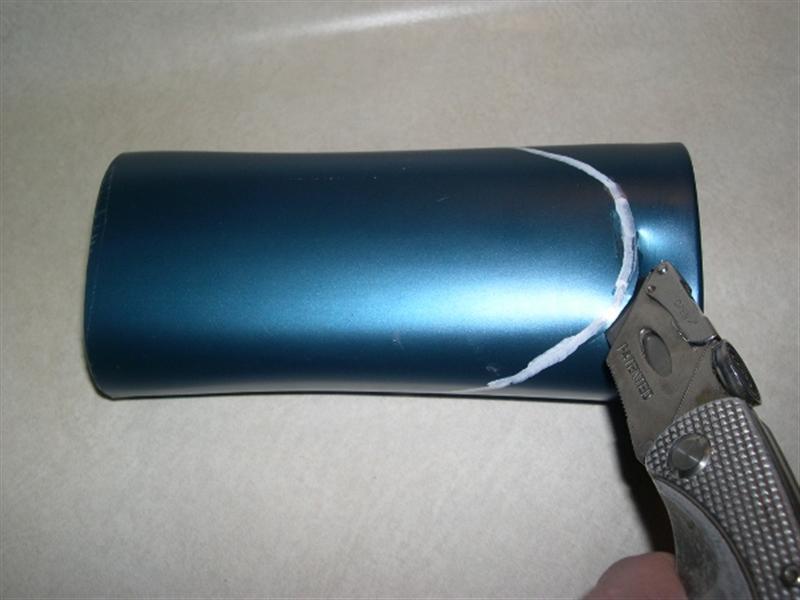

- Using a sharp utility knife, cut out the front and side profiles of the pocket.
- Clean up the edges by scraping with the edge of the blade.
- Once you've got the shape you want, you can "fire polish" the edges by running the flame of a lighter or candle over them briefly. This will melt away any loose frizz and round over the cut edges in a pleasing way.
Step #7: Next
- Drill holes for plug

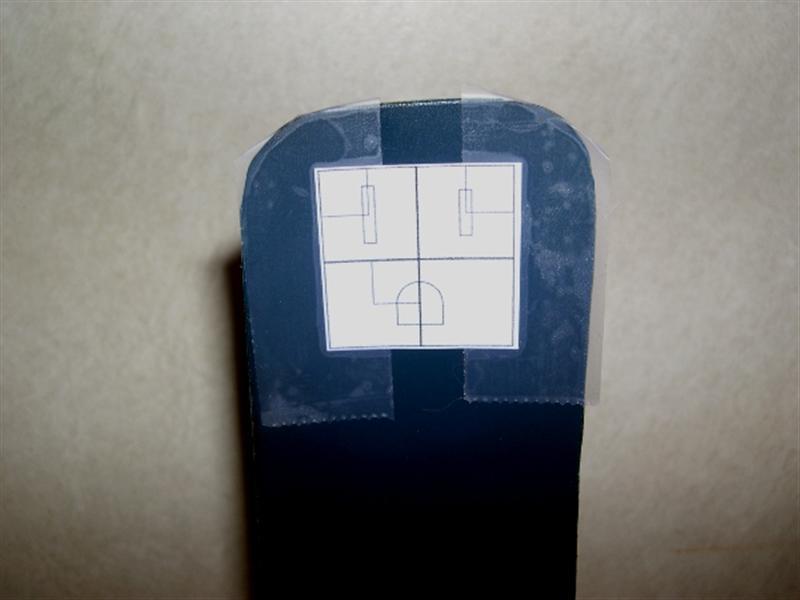

- Print out the attached drilling template. It should come out 1" square. Cut it out and tape it in place about 1/2" from the top of the tab as shown.
- Drill three holes in the template as indicated, and then one more hole in the exact center of the bottle's bottom to pass the charging cord.
- The diameter of the cord hole may vary; 1/2" was necessary to clear the "micro-USB" connector used on my phone. To ensure accurate placement, step drill the holes, starting at 1/8" or so and then drilling to full size in a second operation.
- Clean up and use
- Remove the template and "fire polish" the edges of the drilled holes as before.
Instead of drilling a hole in the bottom of the bottle, you might try cutting a slit with a razor just long enough to slip the power connector through. The sides of the slit will grip the cord a bit, and should prevent it falling out when you don't want it to. I haven't had any problems with this, but I've also got an unusually bulky connector on my phone.
Also, if it bothers you, you could splice the cord on your charger way down to eliminate the big hanging coil when the phone is in place. Cover the joint in the cable with black heat-shrink tubing to make an attractive splice, or take the transformer casing apart, make the splice inside, and put it back together. It'll still have to be insulated, of course, but it won't matter so much if it's neat.
