This is a ridiculously easy way to build a parabolic microphone using dollar store items. You’ll attract lots of attention walking around in public with this rig. I usually welcome the inquiries, and let people listen to what I’m doing. Kids especially love it.
Like this:
Like Loading...
Step #1: Make the dish
Next

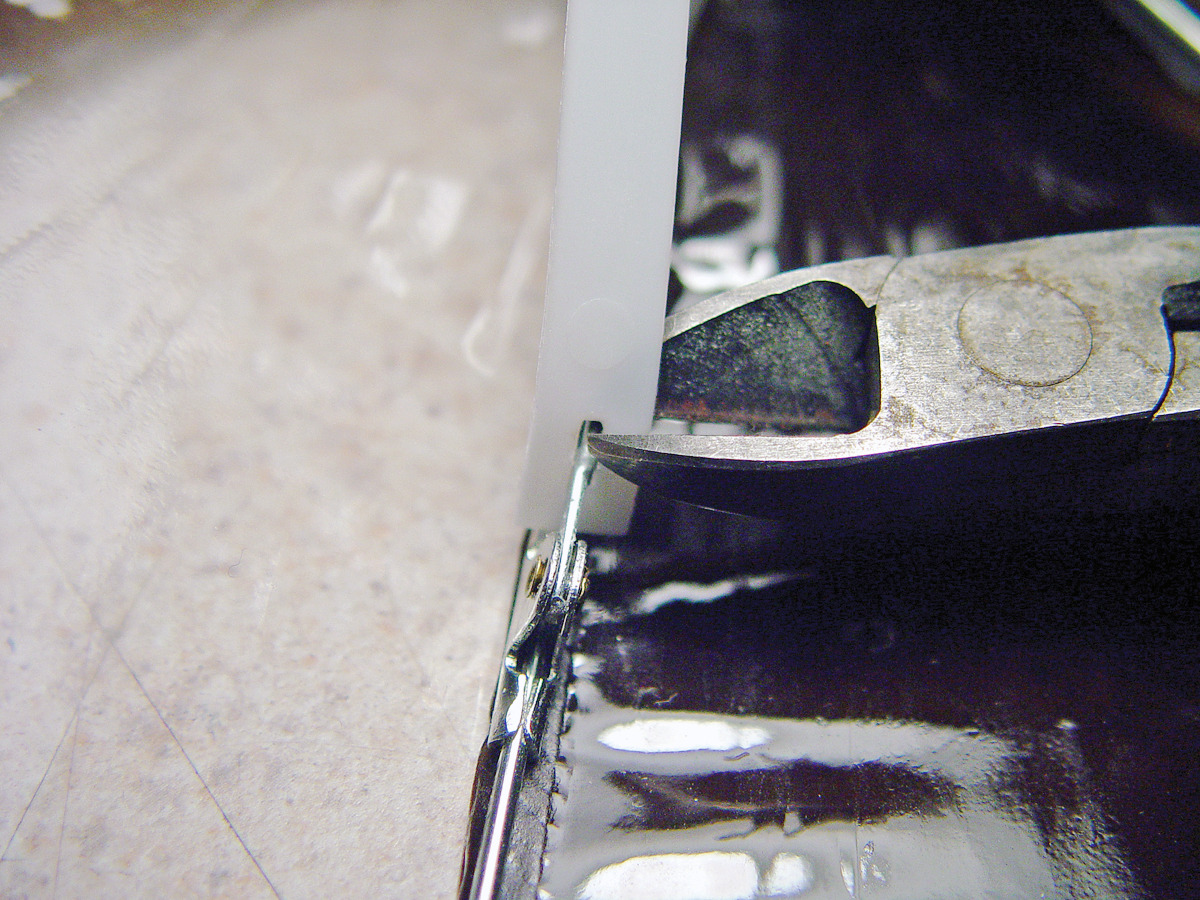

- Use wire cutters to snip away the 4 plastic holders that connect the hat’s umbrella to its headband.
Step #2:
Next

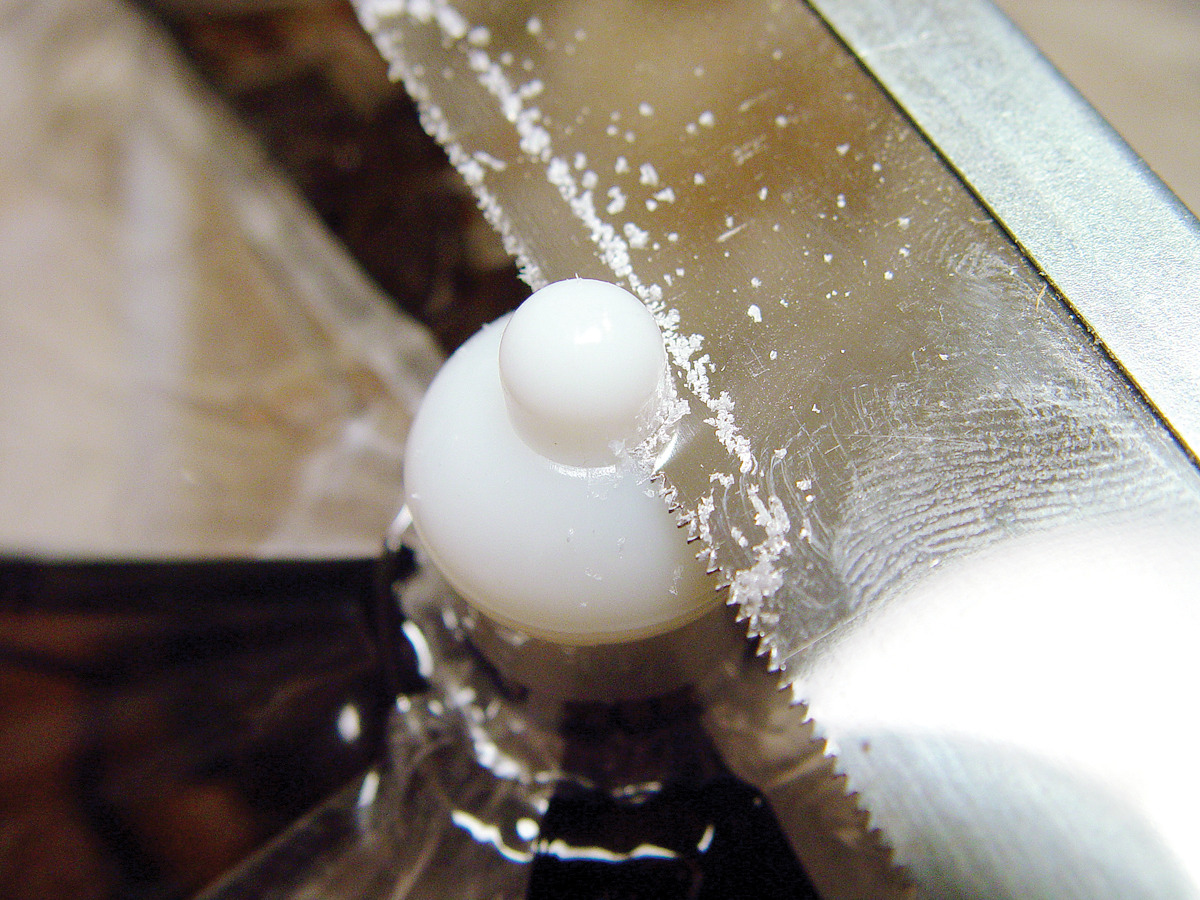

- Slice the top of the plastic knob off the top of the umbrella, and clean up the hole with a knife or reamer.
Step #3:
Next

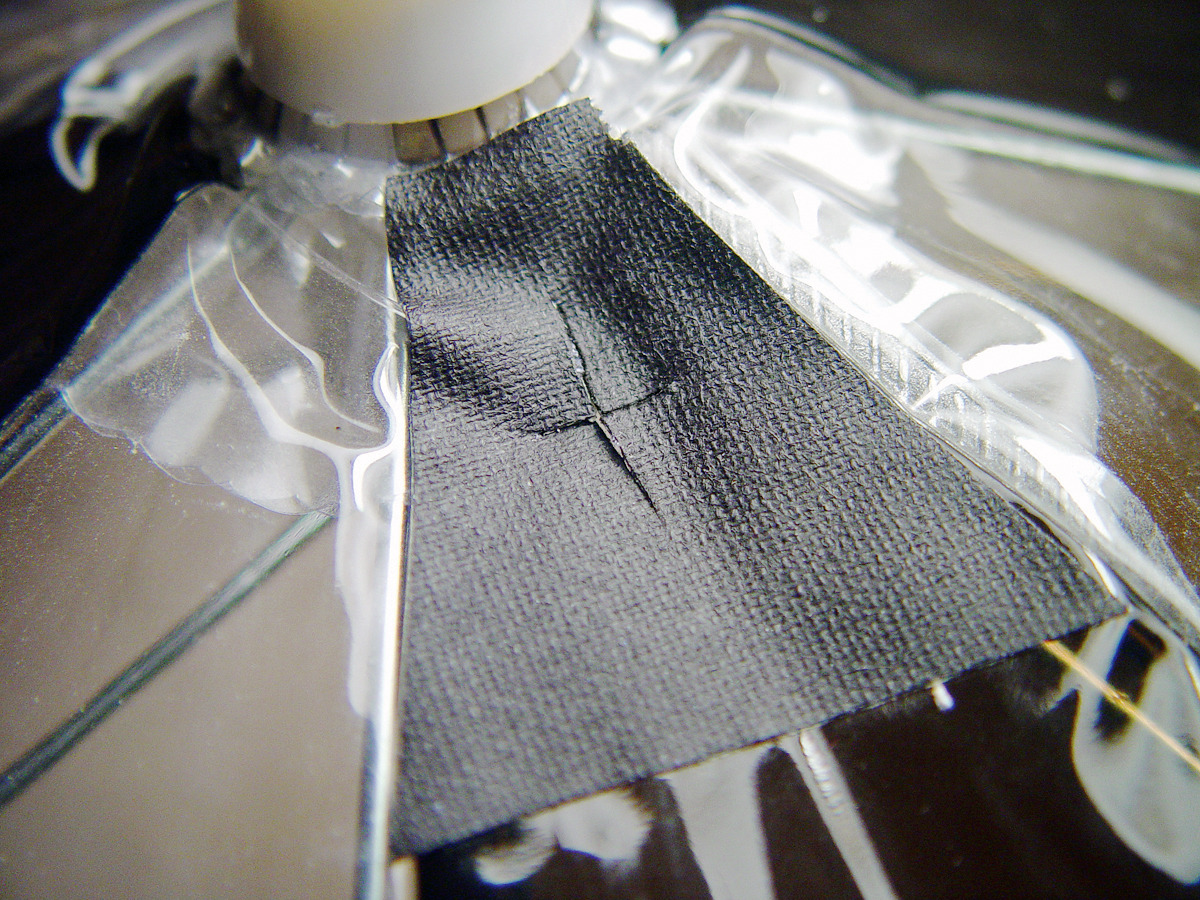

- Cover 1 gore of the umbrella near the center with a trapezoidal piece of the gaffer’s tape. Cut a small X-shaped incision through the tape and umbrella; this will be the reinforced hole that the microphone wire will pass through.
Step #4: Attach the handle
Next

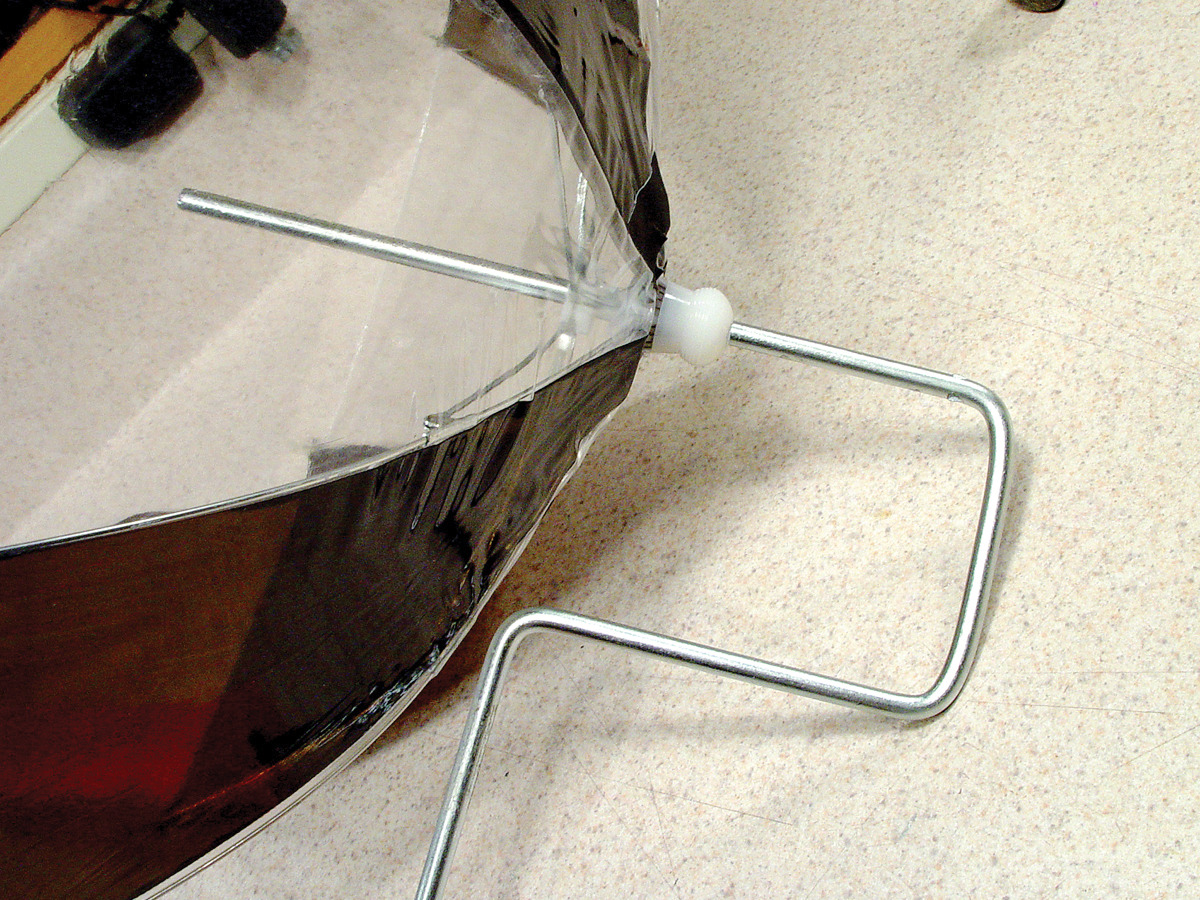

- Remove the paint roller’s plastic caps and wire frame. Push the shaft through the hole in the top of the umbrella, so that it protrudes 6" underneath. Leave ½" of clearance between the outer surface of the umbrella and the bend of the handle.
Step #5:
Next- Just above the umbrella’s top knob, wrap a length of tape around the shaft and ring it with a cable tie pulled tight. Wrap the the shaft with more tape, to provide a gripping surface for the microphone.
Step #6: Install the microphone
Next

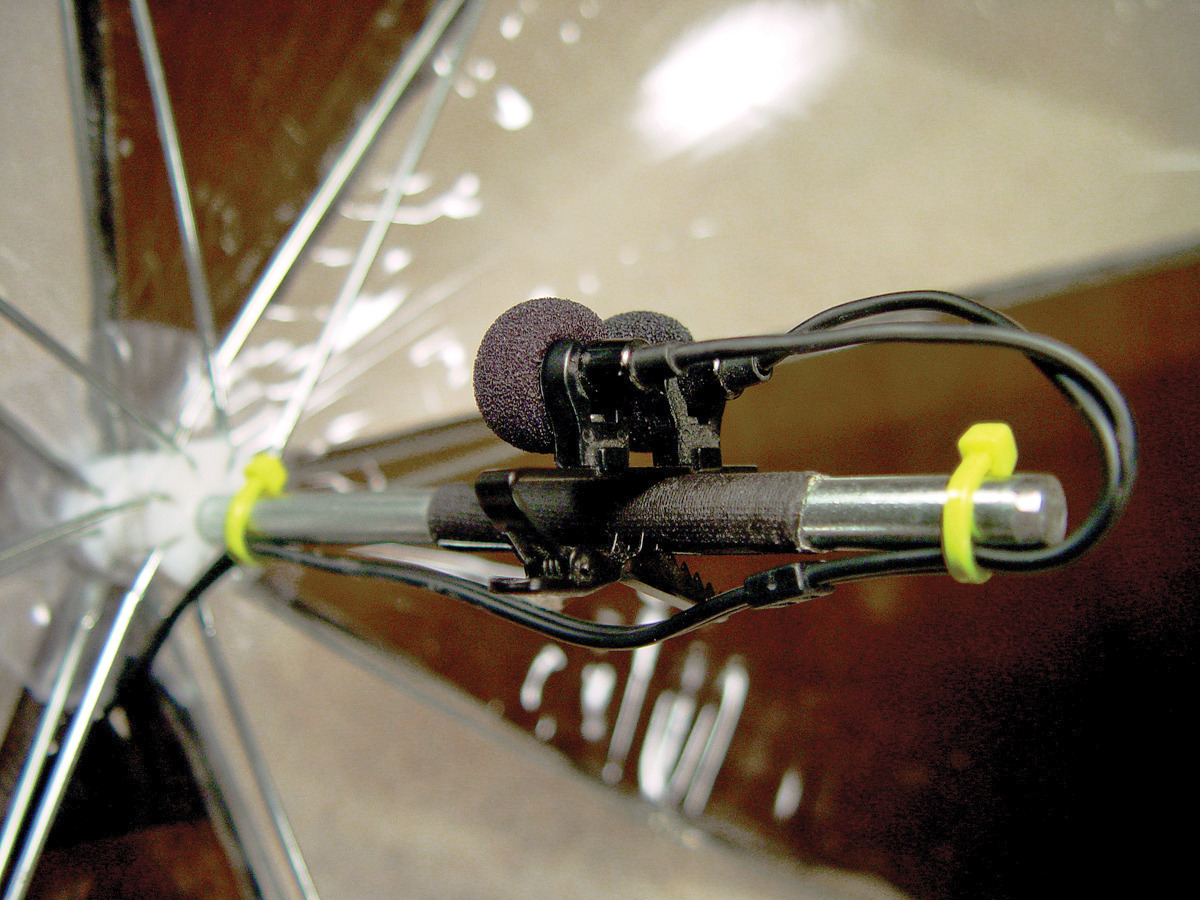

- Clip the mic to the shaft and thread the cable through the X hole. Secure the cable with cable ties.
Step #7:
Next- You want to place the microphone at the focal point of the reflector, but realize that this is a plastic umbrella, not a perfect parabola. So this “point” will be more of a semifocal blur. Here are 3 ways to position the mic, in decreasing order of complexity:
- Point a laser at different points on the inside of the umbrella from a distance of about 20 feet directly in front of the unit. Mark where it reflects onto the shaft to find the general region of focus.
- Plug the mic into a recording device, put on some headphones, and point it toward a ticking clock some distance away. Move the microphone along the shaft until you get the loudest sound.
- Just take my word for it, and position the mic about 3" from the inside surface of the umbrella.

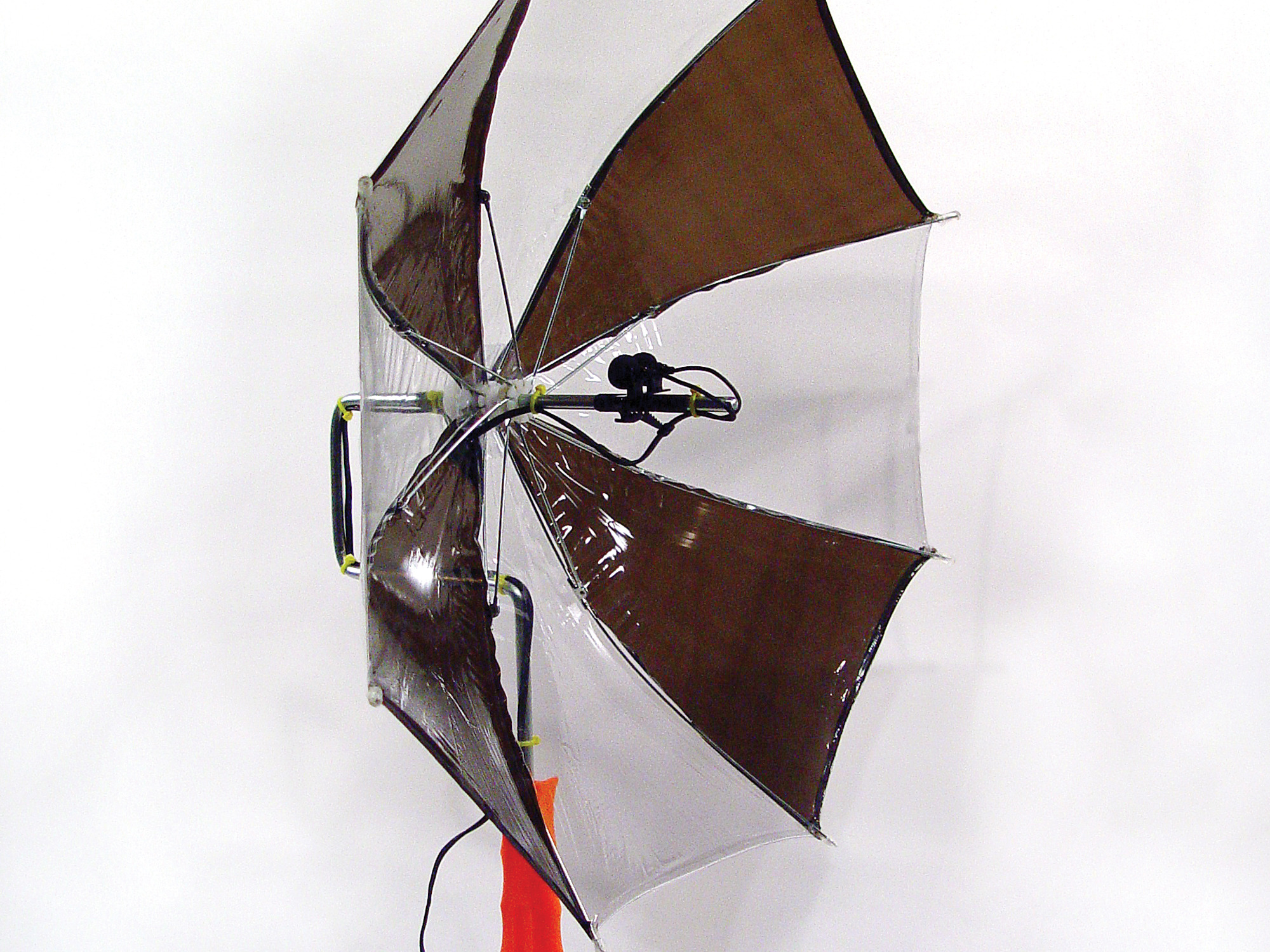

Step #8: Take it for a test ride
- Plug your new parabolic mic into a recorder. Use headphones to monitor your work. Then point it at something interesting. You’re in for a pleasant surprise!
- Now try recording the same sound without the parabolic setup — forget it.
- Hear field recordings of a squirrel and a cardinal made with the Dollar Store Parabolic Mic at http://makezine.com/14/diyspy_mic.
I was talking about the earbuds themselves. Most earbuds will function as microphones, albeit poor ones, if you plug them into a mic input. Try it with any inexpensive recorder. I only made the suggestion in case somebody wanted to build the parabolic mic entirely from dollar store components just for kicks. Don’t expect optimum results if you go that route.
