This guide will cover the basic concept of the Ping))) sensor by making a fun project.

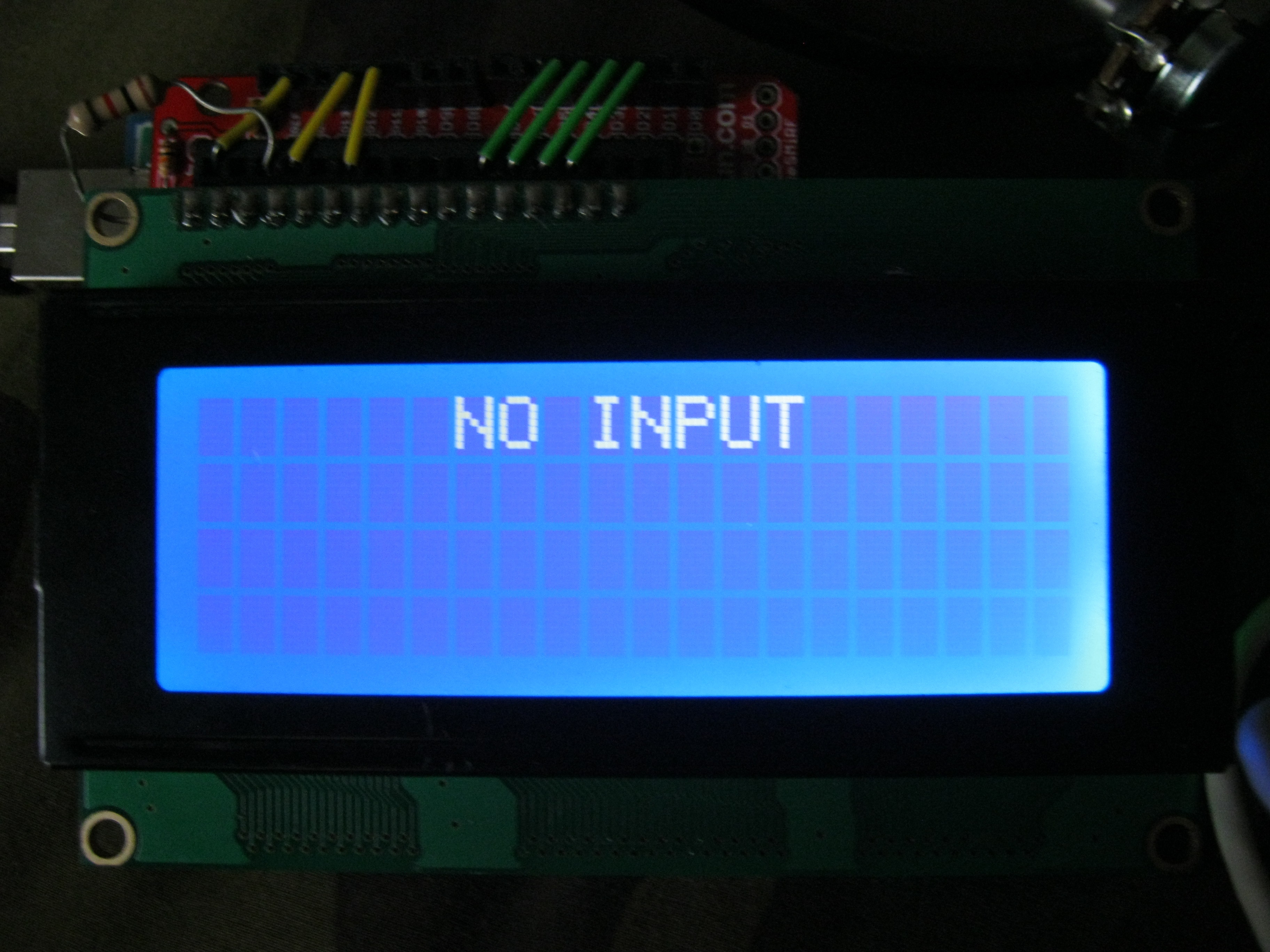

Step #1: Wire LCD backlight/logic circuitsNext

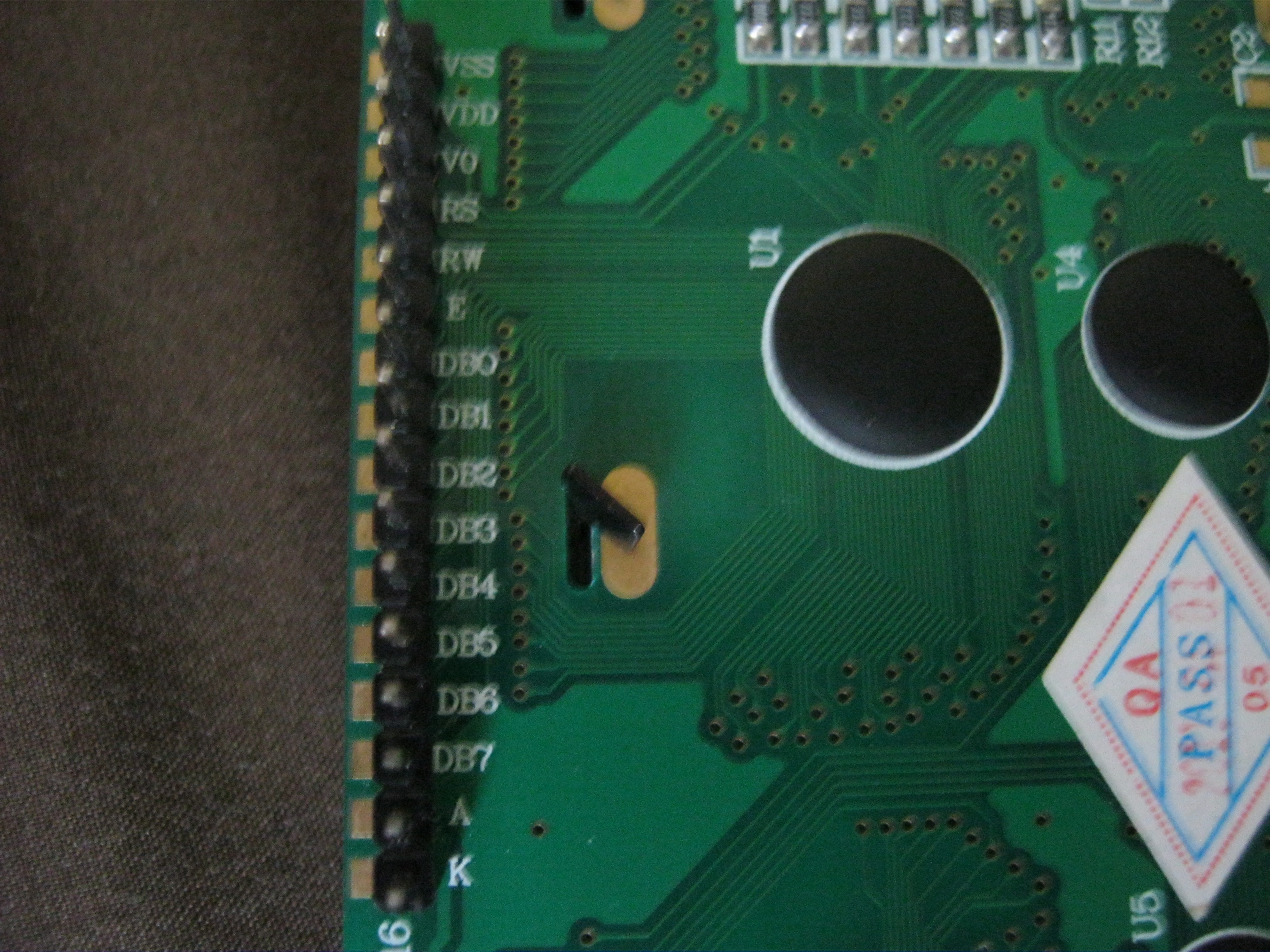

- Wire backlight according to pins on LCD. Same for logic circuits. Pot wiper goes to Vo (contrast), one outer pin of the pot goes to ground, the other to 5v.
- Make sure polarities are correct.
- Use pot to control contrast to your needs.
Step #2: Wire the digital pinsNext
- * LCD RS pin to digital pin 12 * LCD Enable pin to digital pin 11 * LCD D4 pin to digital pin 5 * LCD D5 pin to digital pin 4 * LCD D6 pin to digital pin 3 * LCD D7 pin to digital pin 2 * LCD R/W to ground
- I used a 1K resistor instead of a 10K pot.
- Use the 10K pot to control the contrast.

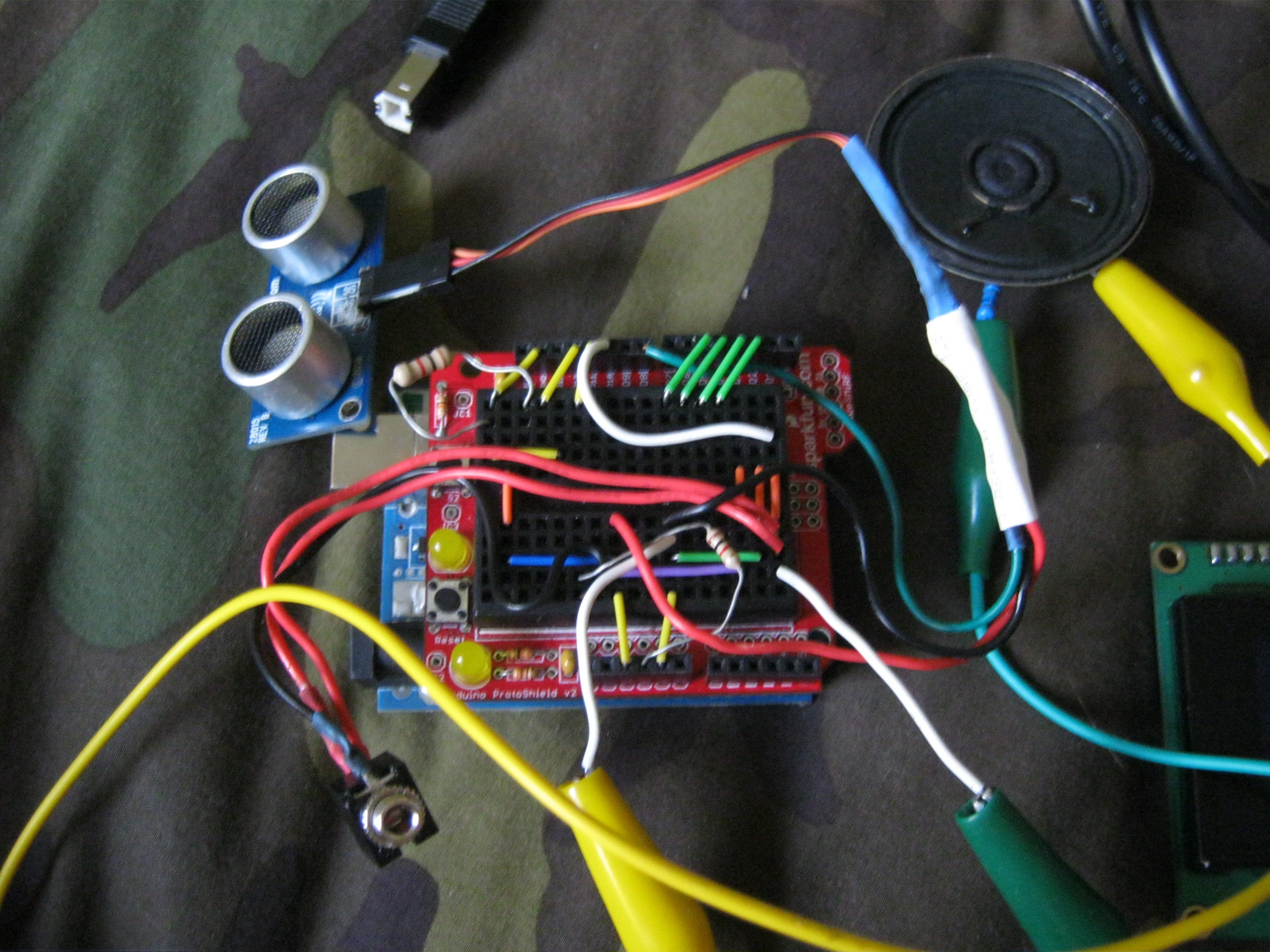

Step #3: Wire Ping))) and audioNext
- Sound is on pin 10 and ping is on pin 7. 1kΩ resistor on headphone ground.

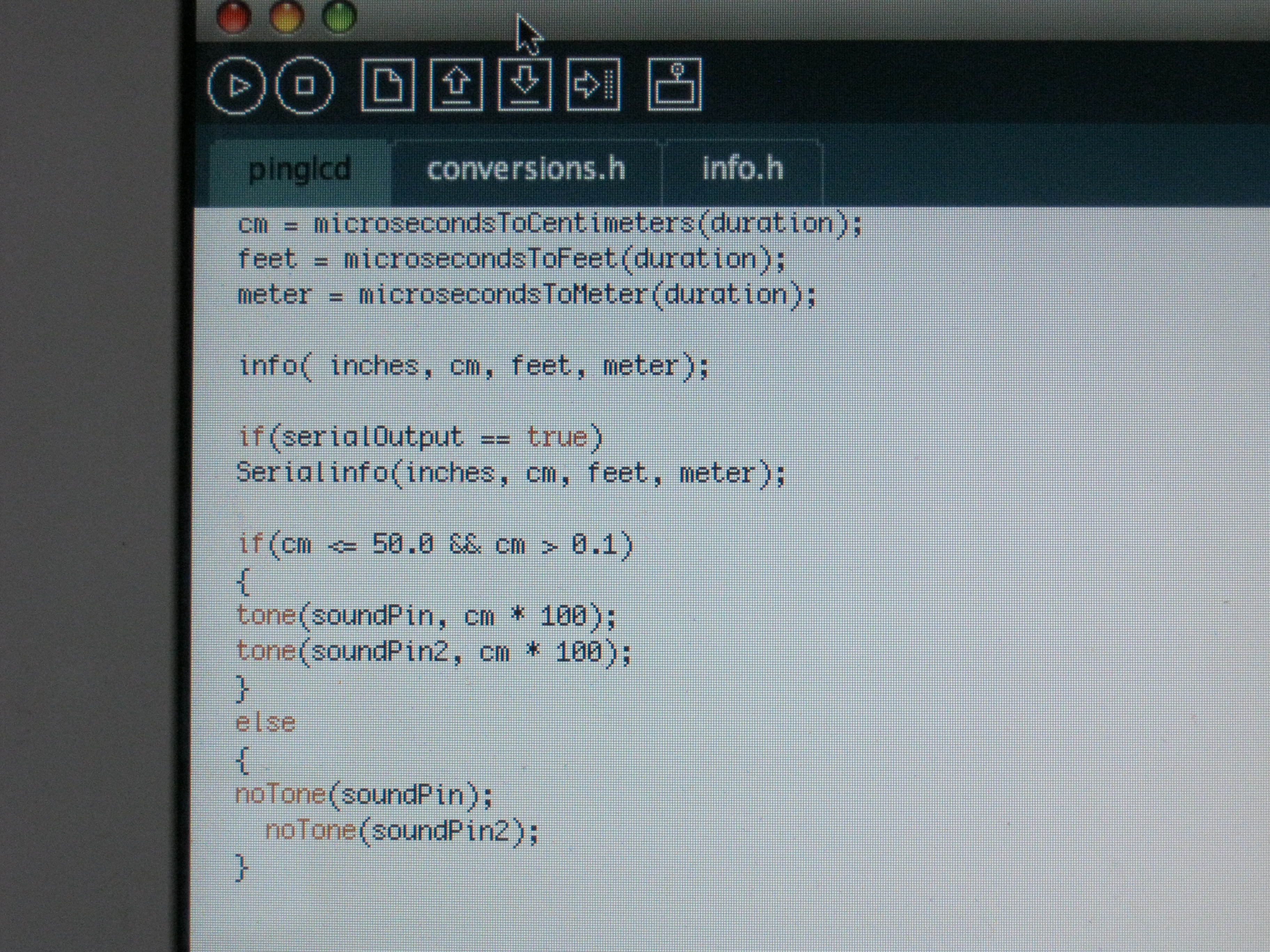

Step #4: Upload code
- Code can be found here.
- Copy and paste code to Arduino IDE and click "Upload".
