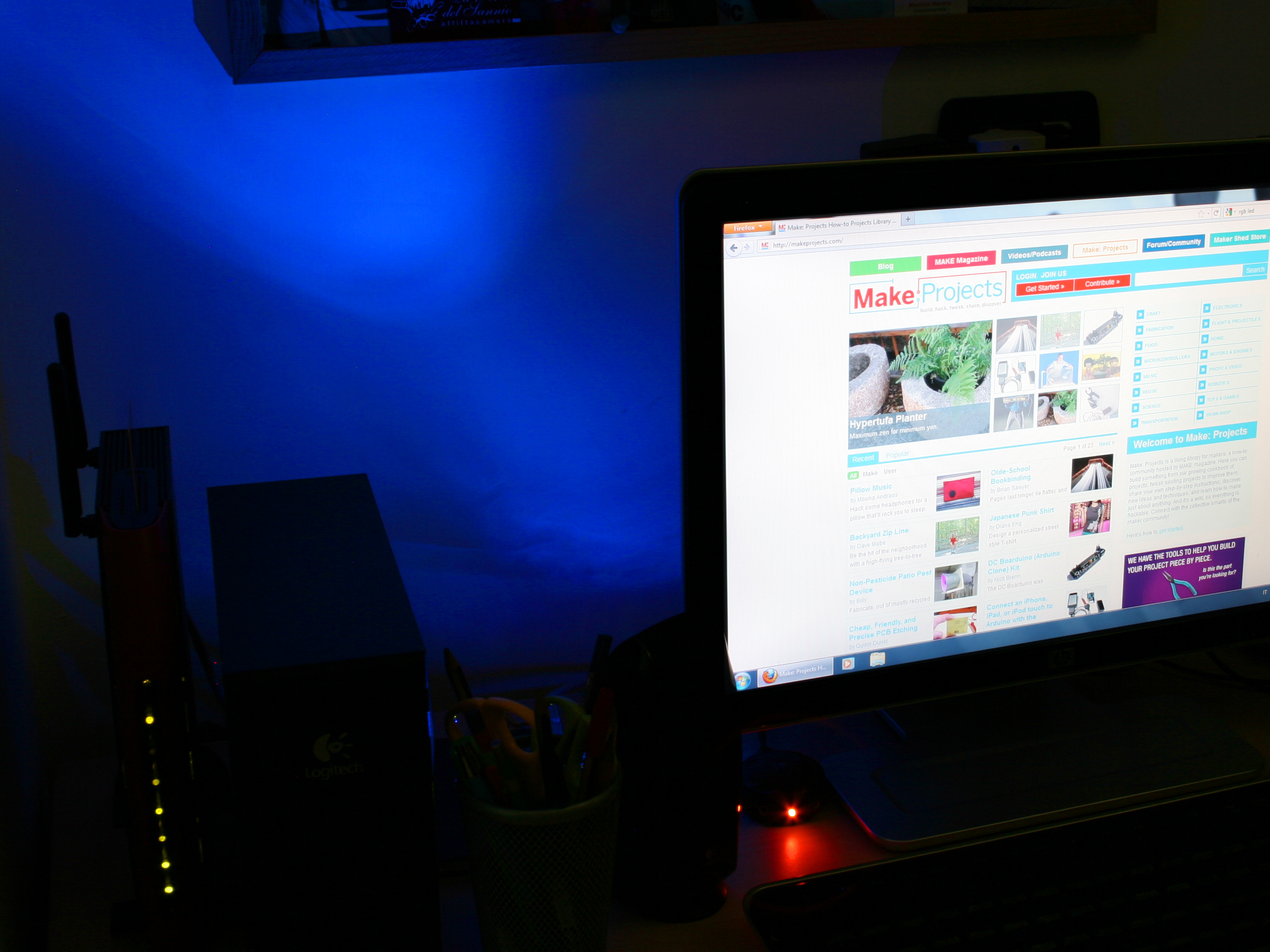

A simple project using an Arduino that will allow you to create an RGB LED lamp.
All that you need for this project is an Arduino and an RGB LED.
Here you can download the code for the Arduino: Arduino code
Steps

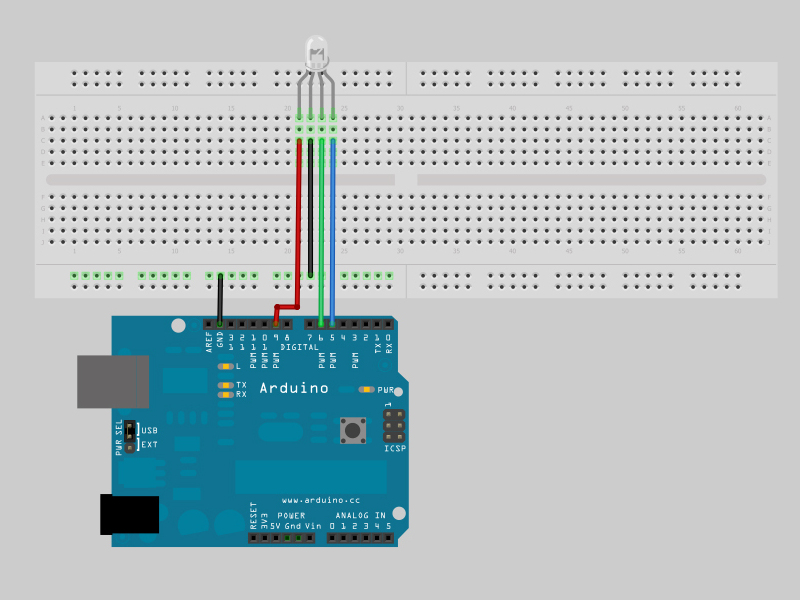

Step #1: Electronic Sketch.
Next

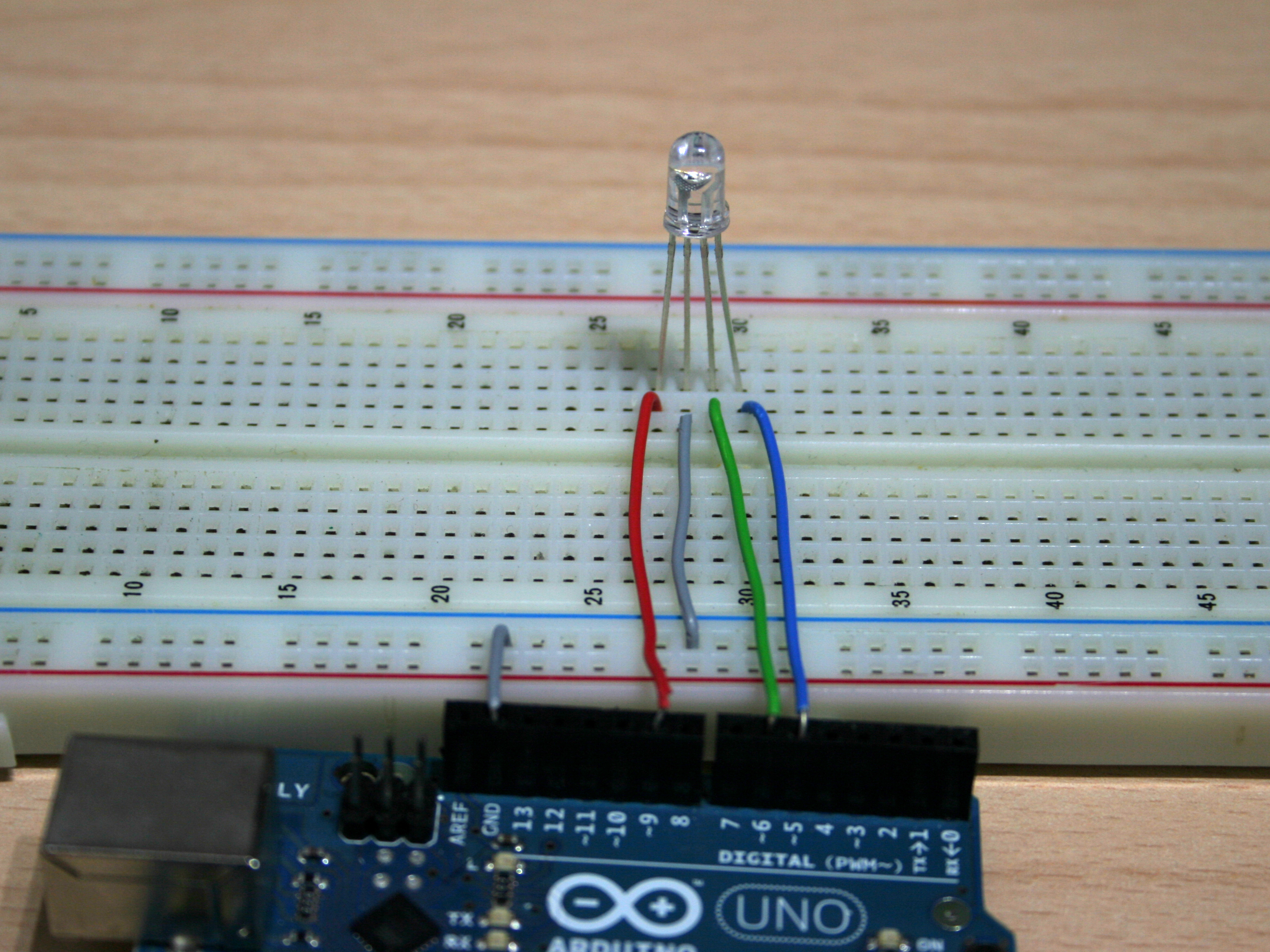

- The RED pin is attached to pin 9
- The GREEN pin is attached to pin 6
- The BLUE pin is attached to pin 5
- The BLACK pin is atteched to GND
Me too!
Whoa, what language was the app in???
-Re3d
Yea, I bought the ultimate kit from make. They ship common anode, not cathode… only fried one RGB LED to figure that out…
@Kevin, there’s a technical reason why red isnt a bright. If you use a ‘smaller’ resistor, it should be brighter. I’m using 220 on blue & green, 100 on red and it’s working better.
You should be less critical, for something so basic it goes without saying that you have to “salt to taste” . Not all RGB LED s Will use the same voltage & current.
