Solar Hybrid Hot Tub

By Eric Muhs
Category: Energy, Fun & Games
Difficulty: Moderate

Back when I lived in California, I heated the water for my house and hot tub using some 1970s “energy crunch”-era solar thermal collectors that I found at a junkyard. They were a nice design from Israel, with a large plexiglass collection surface and an insulated horizontal tank with its outlet up top, where the hottest water rises.

Those restored units were all the water heating we needed for about 9 months of the year, and I installed them on a hillside rather than the roof for easier maintenance. (Alternative energy means lots of repairs; if you’re harvesting energy from the environment, your equipment will be, well, out in the environment.)

Then I moved to a newer house in Seattle with a fancy automatic hot tub on the rooftop deck. But I was appalled when I saw that it cost up to $40 in electricity each month to heat this mass of water and leave it covered outside overnight.

So I came up with this simple and inexpensive solar system that adds heat to the hot tub during the day so that the main electric heater doesn’t have to work as hard after the sun goes down.

Steps

Step #1: Solar collectors.

The system heats the water by running it through coils of black vinyl hose inside 2 solar collector boxes. A small solar-powered pump draws water out of the tub, runs it through the coils, then dumps it back in. The tub’s original heater and thermostat are not altered, but the heater switches on less.
For the solar collectors, I built 2 open 3'x3' boxes out of plywood reinforced with blocks of scrap wood in the corners (I had just 1 box originally, but expanded the system later). I put the boxes together using 1 1/4" wood screws and glue, then caulked the cracks and painted them matte black inside and out. For the vinyl hose inlet and outlet, I drilled a hole in the side of each box near the bottom.

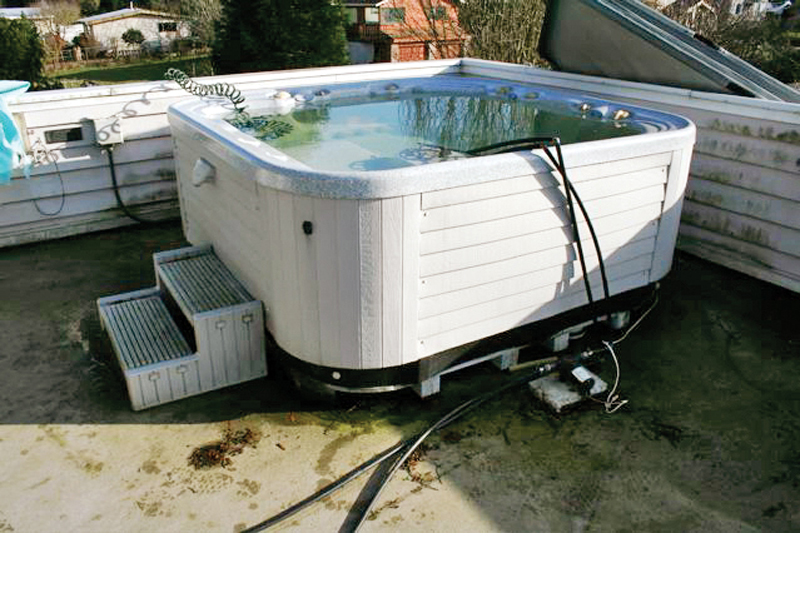

I tucked the pump under one side of the hot tub, and used hose barb fittings to connect each end to black vinyl hose. Then I connected the rest of the hose together, coiled it inside both boxes, and dropped each end into the tub, separated slightly. The pump sits on the inlet side of the hose, but I don’t think it matters..
I fitted plexiglass tops onto the boxes with ¾" screws, washers, and more caulk, and tilted the boxes up on the deck across from the hot tub, to lean south for more sunlight.
The vinyl hose is inexpensive and easy to repair in case of freezes: just cut out the broken part and insert a barbed connector.
TIP: Dipping the hose into very hot water for 15 seconds makes it easier to slip a fitting inside.
