Use a Soldering Iron

This guide will show you how to use a soldering iron.

  • By Brandon Bates
  • Category: Tools
  • Time Required: varies
  • Difficulty: Easy
Use a Soldering Iron
  • Soldering Iron and rosin core solder.

Steps

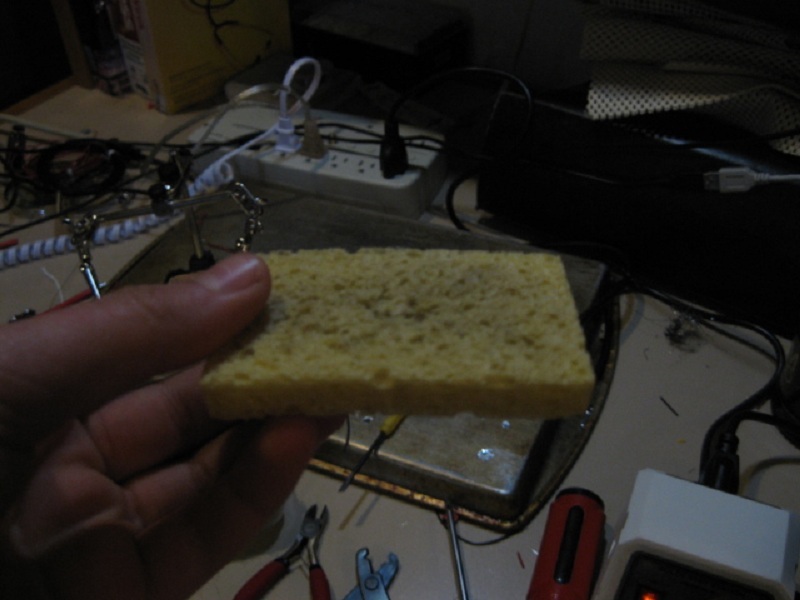

Step #1:

NextUse a Soldering Iron
  • Wet the sponge
  • This will allow you to clean it off when you get a lot of burnt solder on it

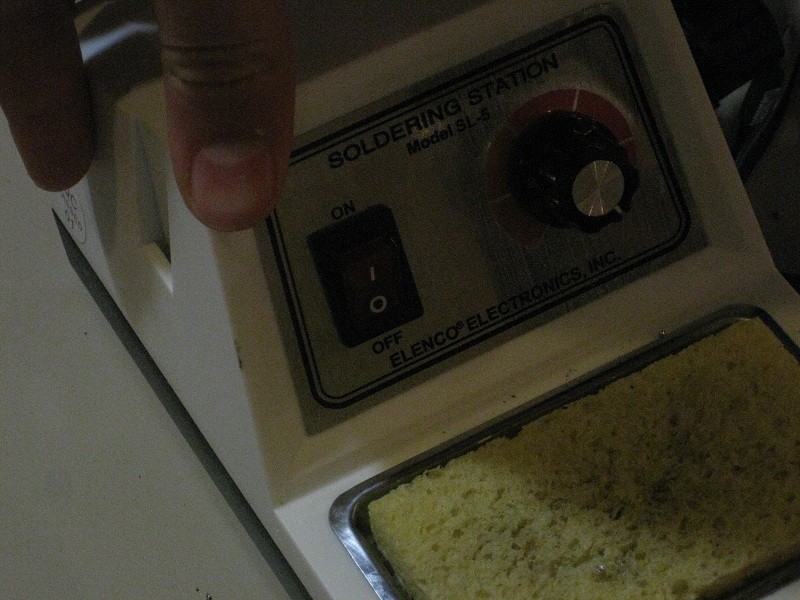

Step #2:

NextUse a Soldering IronUse a Soldering IronUse a Soldering Iron
  • Turn on the Iron
  • This will just help you, well, melt the solder

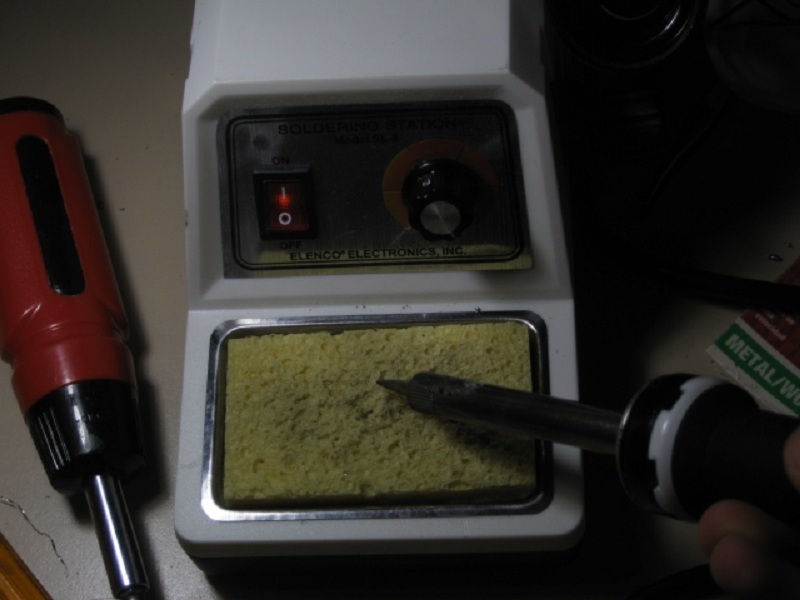

Step #3:

NextUse a Soldering Iron
  • Clean Clean Clean!!
  • I cannot stress how important it is to clean the iron, or it will corrode and be useless, clean it up!

Step #4:

NextUse a Soldering Iron
  • Tin the Tip
  • This is where you put solder on the iron for better heat flow and a cleaner tip

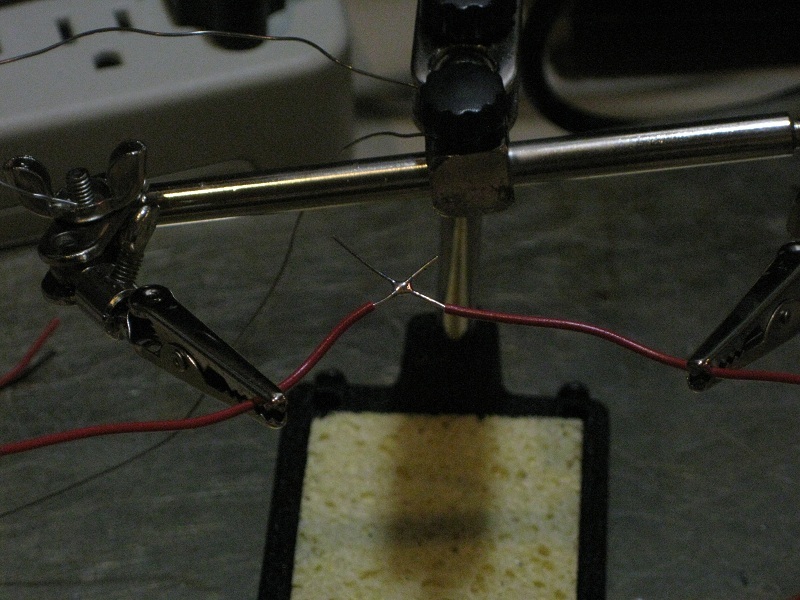

Step #5:

NextUse a Soldering Iron
  • Now for the soldering
  • Put the wires together or parts in the board, and solder the two together

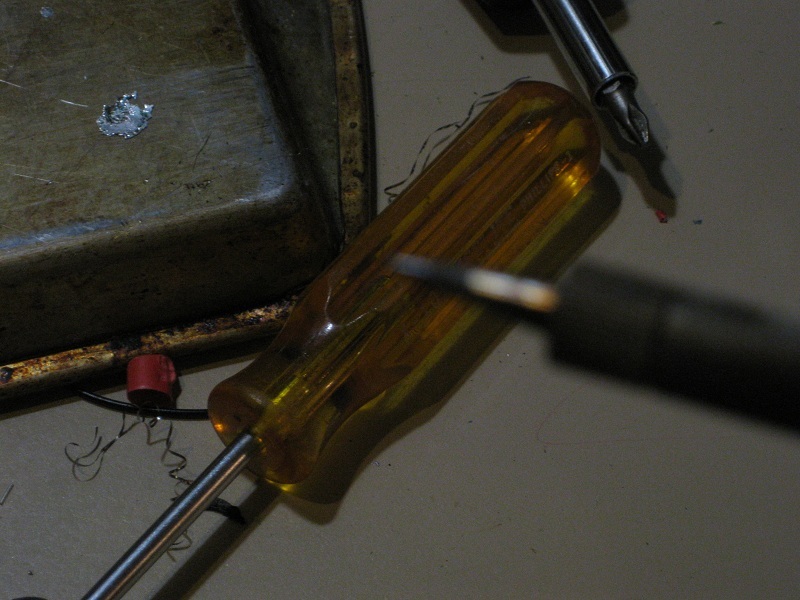

Step #6:

NextUse a Soldering IronUse a Soldering IronUse a Soldering Iron
  • Clip the leads
  • This will allow for the next step to be easier

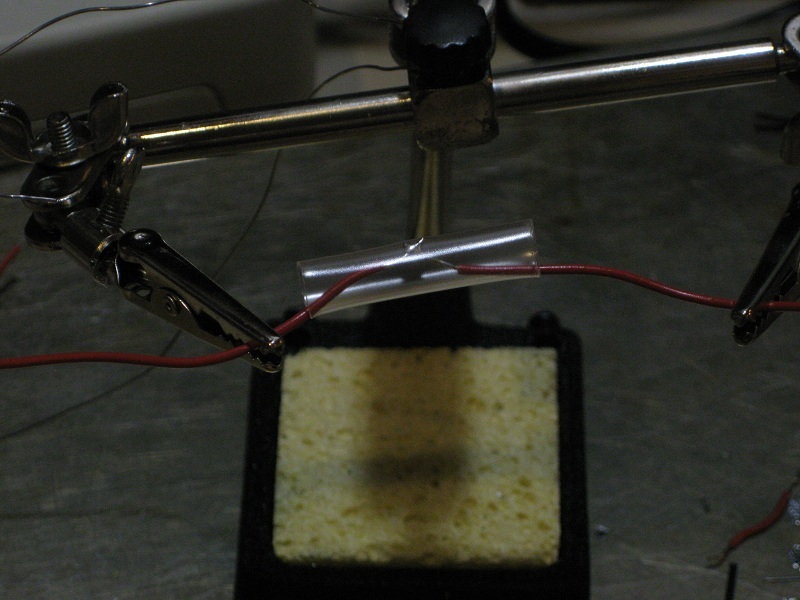

Step #7:

NextUse a Soldering IronUse a Soldering IronUse a Soldering Iron
  • Heat shrink
  • This is the fun part. But be careful, the flame is hot and you can burn yourself!

Step #8:

Use a Soldering Iron
  • Turn off the iron.
  • This will keep it from burning itself out.
