Sous Vide Immersion Heater for $50

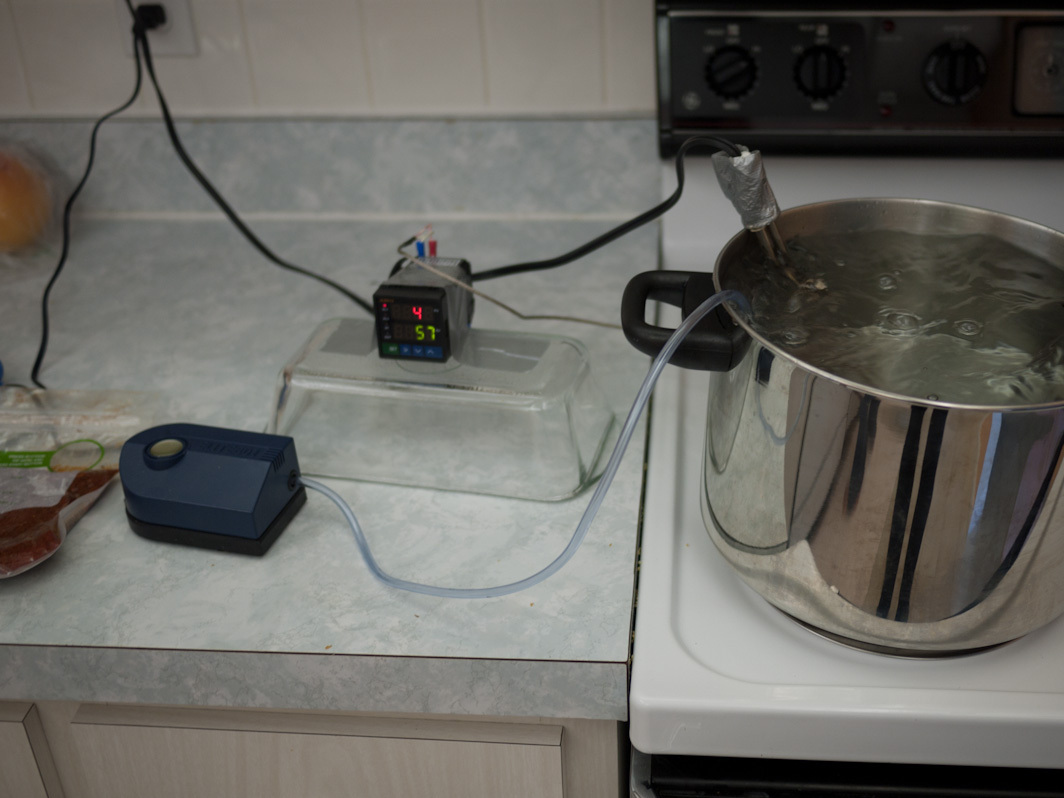

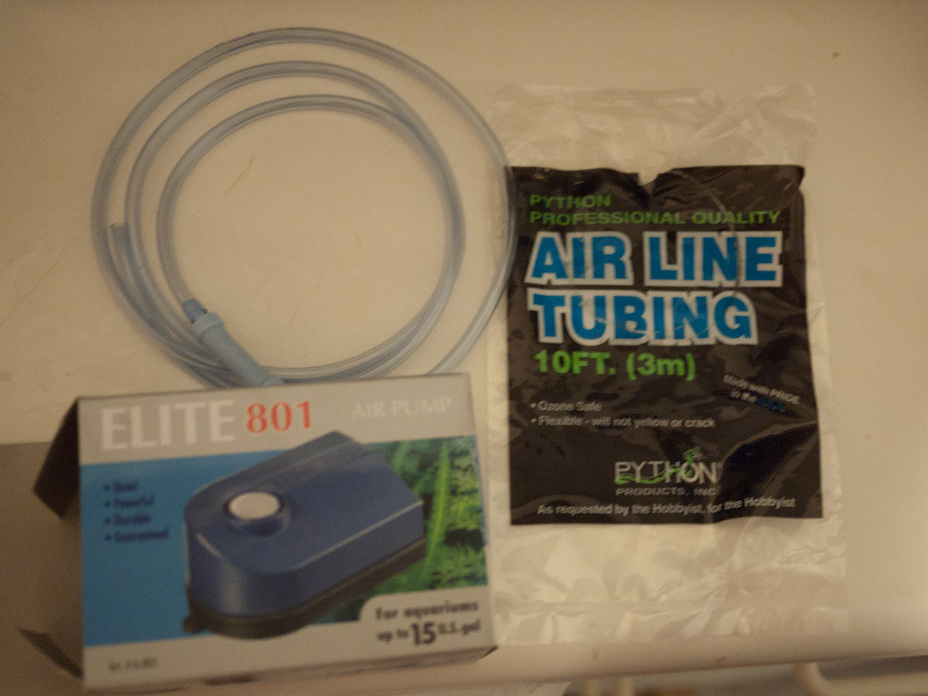

Use a heating element, PID controller and air pump to make a sous vide machine for $50. No soldering required.
See the original article on our blog.
A sous vide device shouldn’t be just a popular trend in restaurants and foodie kitchens. It can be a practical and essential addition to any home. In fact, it’s not so unlike a convection oven; the only difference is that it uses water to conduct heat and it is more precisely controlled.
Oh, right, and that a sous vide could run you a few thousand dollars… and who can fit one in their apartment? Our design can be tucked away in a grocery bag after use.
Although sous vide is incredibly useful, many cooks are still unfamiliar with it because it is cost-prohibitive. But, why should such a simple machine be so expensive? The parts can be easily acquired and connected by anyone with an hour or so to spare.
We’ve put one together and are thrilled with the consistent, perfectly-cooked, and outer-worldly results (that are impossible to achieve by any other method)! Once you’ve "sous vided" a meal, we’re pretty sure you’ll be so inspired by the deliciousness of it all that you’ll incorporate vidin’ in your everyday cooking routine.
Steps
Step #1:
Next

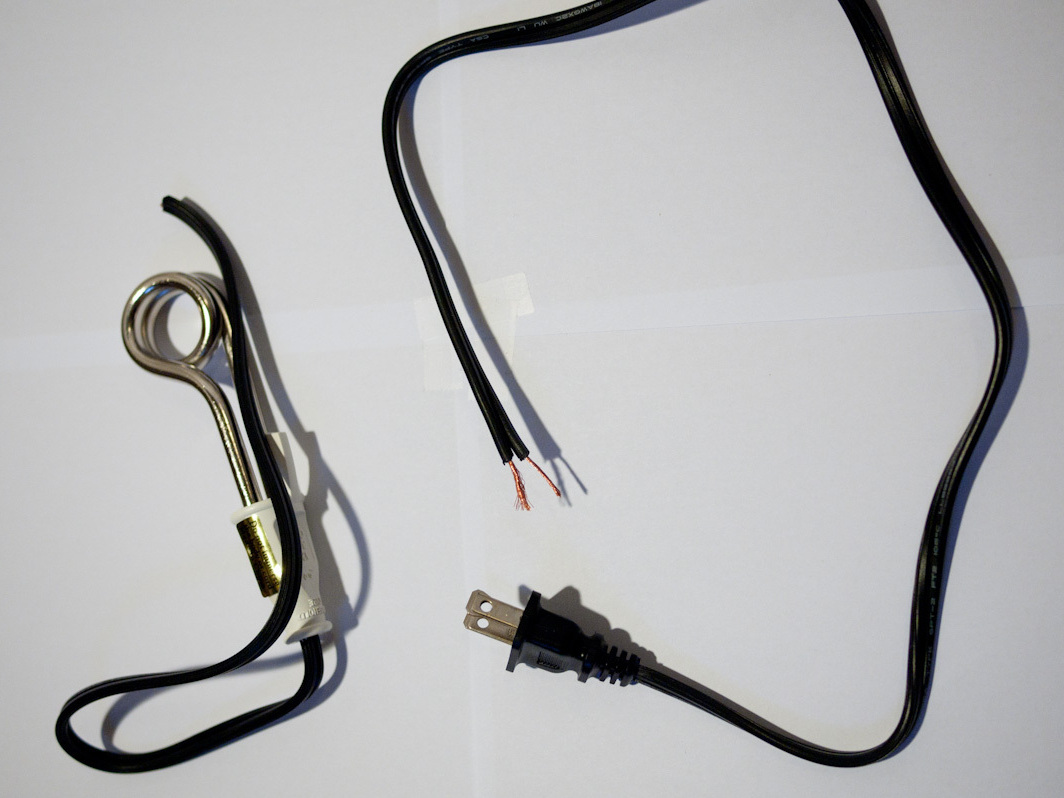

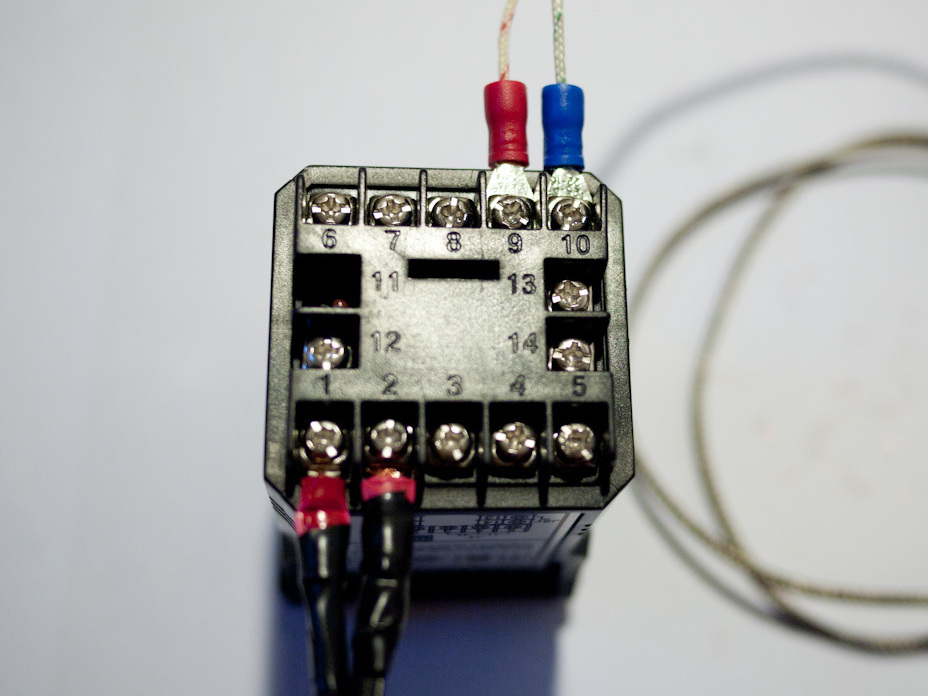

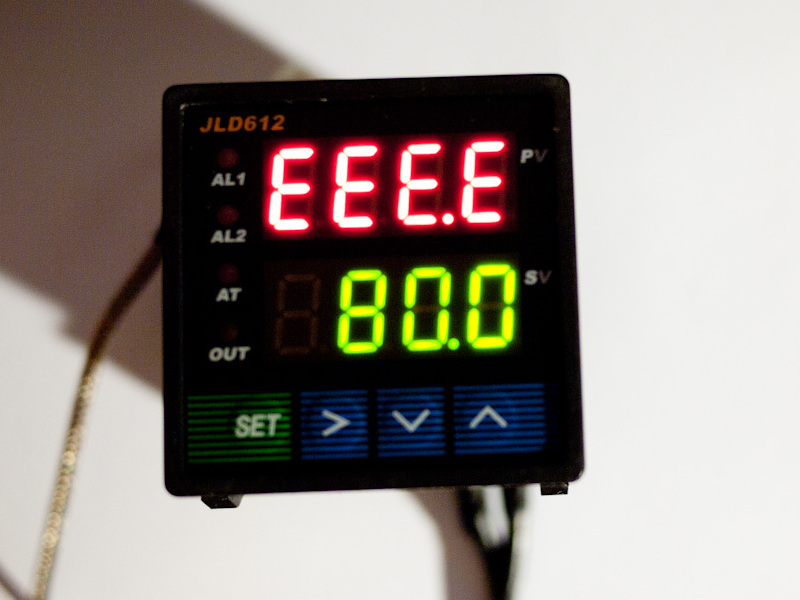

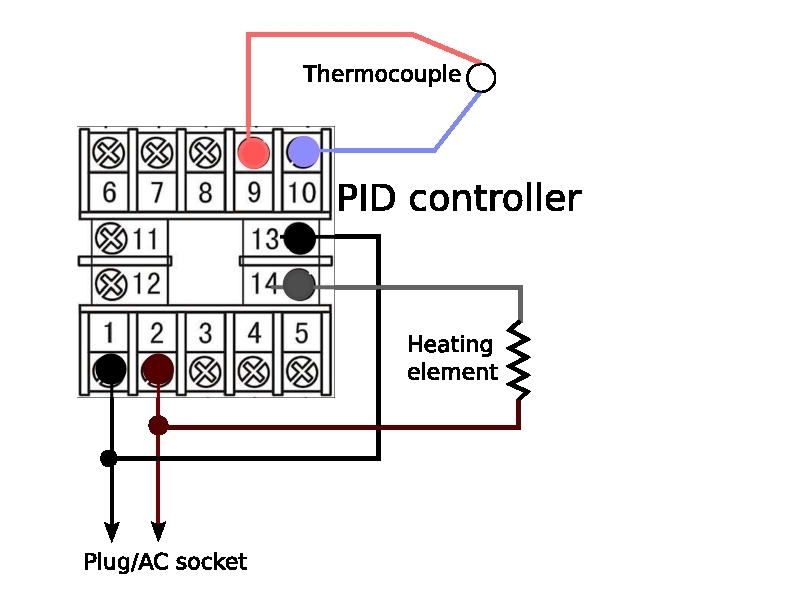

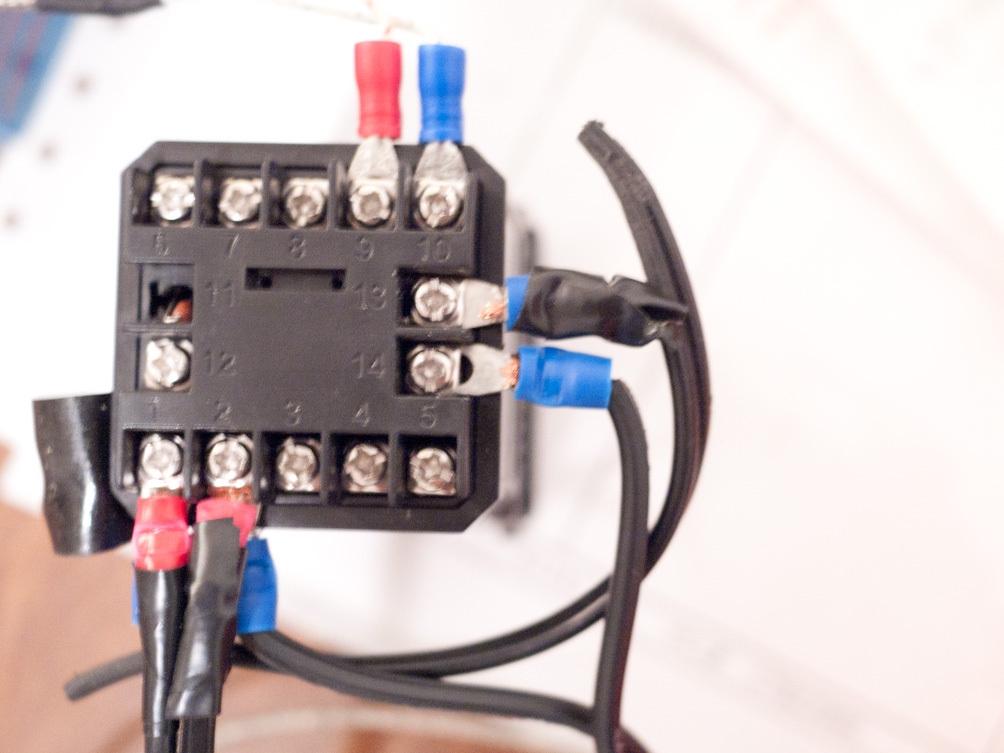

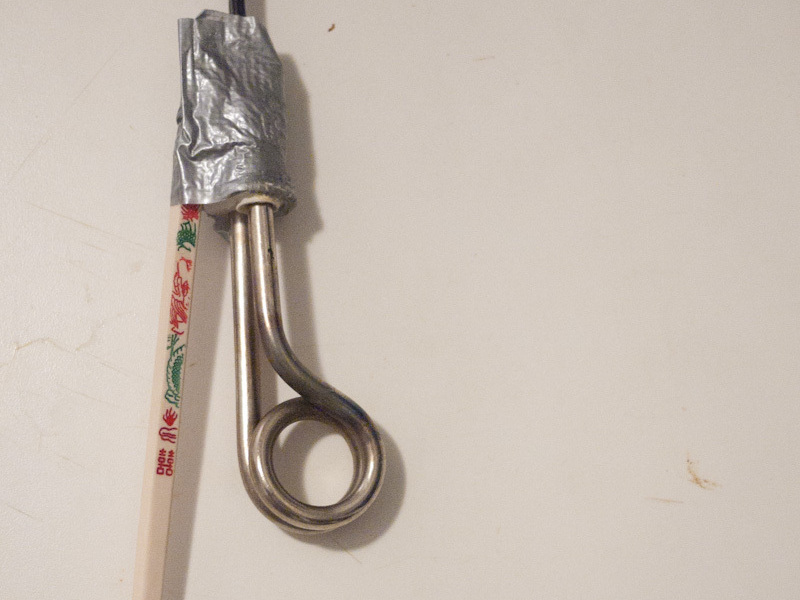

- The PID will act as a switch for the immersion heater. In order to attach the heating element to the PID we need to cut the cable for the heater in half crosswise about 12″ from the heating element. Now we have two separate cables. The plug cable should be 24″ long.

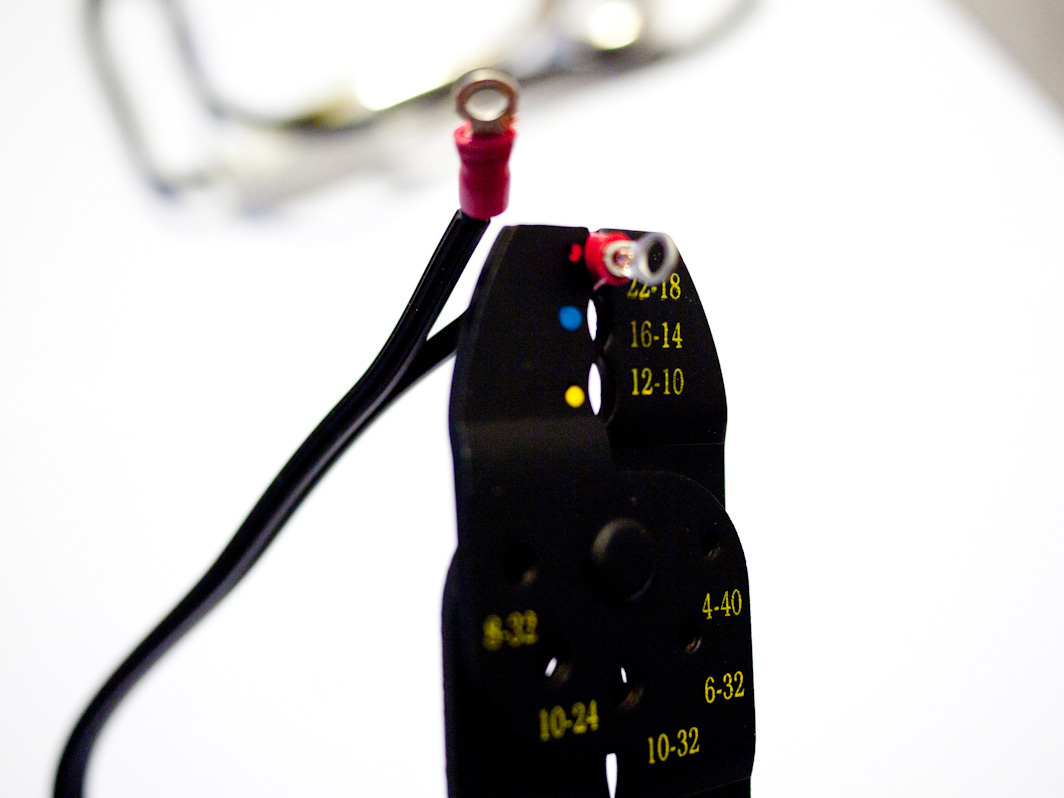

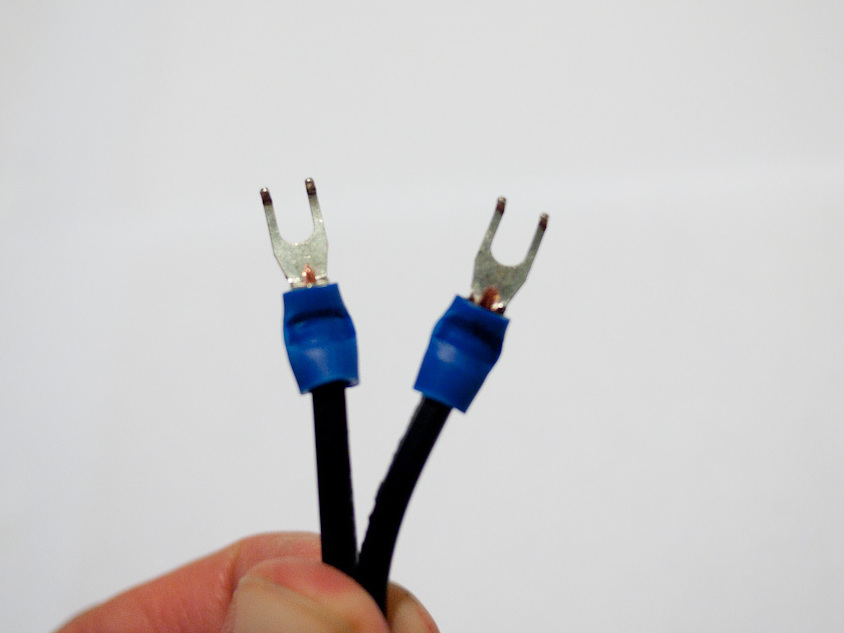

- The heating element and plug cable is made up of two wires. On both cables, separate these wires on the ends and strip them about 1/2″.
