Take a Hidden Picture
Create invisible paintings human eyes can't see. Digital cameras will reveal their hidden images.
Take a picture is a fine-art project by artists Brad Blucher and Kyle Clements. In the exhibit, the human eye see is only able to see blank surfaces (in our case, blank canvases). People walk up to the show space and see blank canvases hanging on the wall. They see absolutely nothing, then make some nasty comments: "Those lazy, pretentious artists, thinking they can get away with doing absolutely nothing."

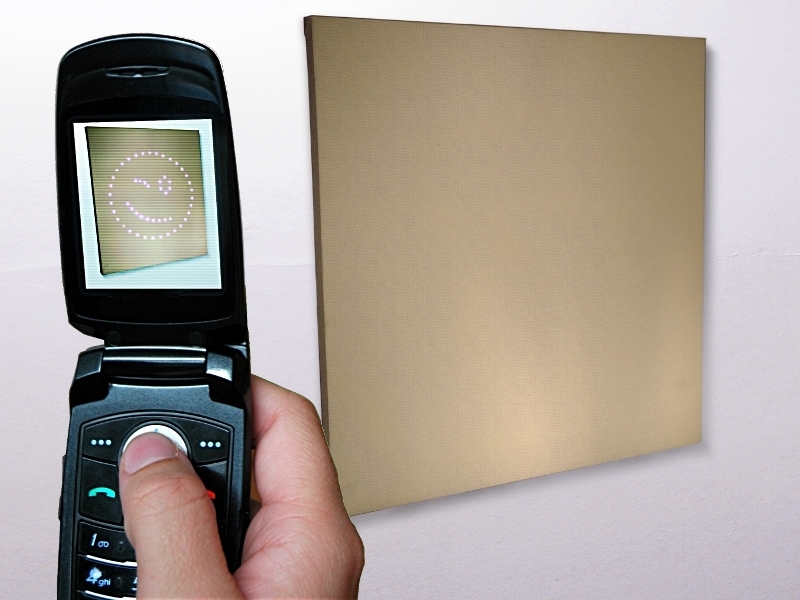

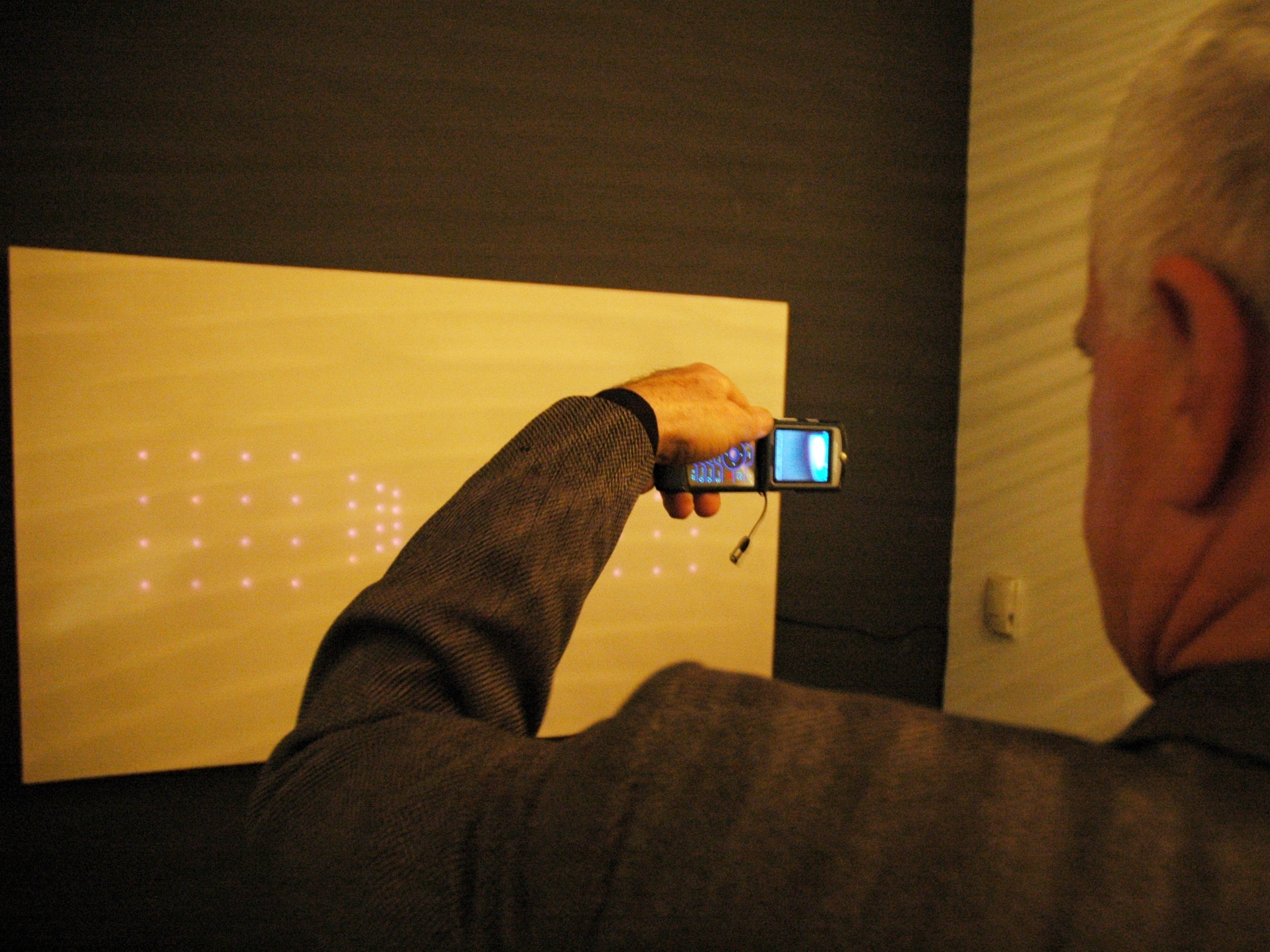

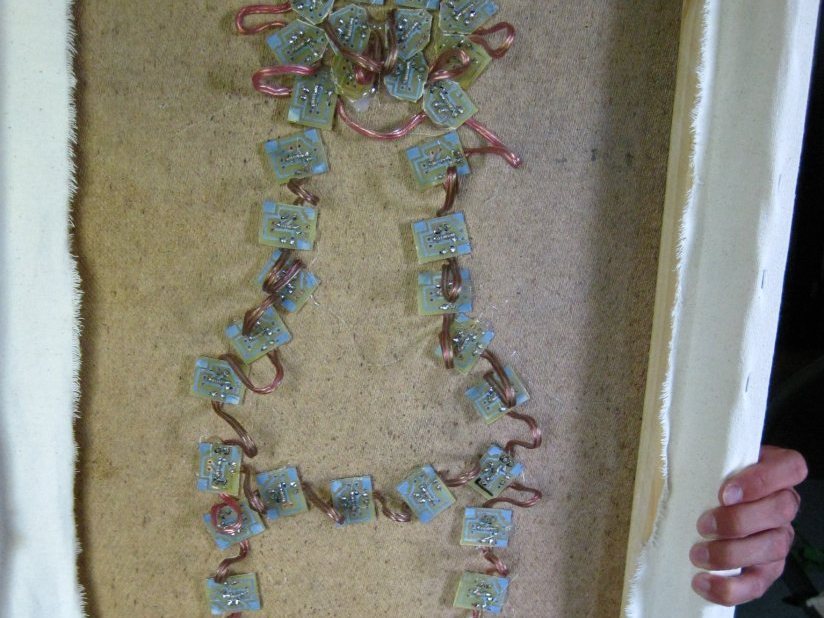

What the audience is unable to see is the hidden maze of wires and circuits. IR LEDs behind the canvas are emitting light that their eyes can’t see, but a digital camera can. Holding a digital camera up to these seemingly blank canvases will reveal hidden images.
This project revolves around one single, extremely simple principle: IR light is visible to digital camera sensors, but invisible to the human eye.
This guide assumes that you are already familiar with woodworking, stretching canvas, designing and etching your own circuit boards, and working with basic electronics. Nothing in this guide is particularly difficult, but it does require a diverse skill set. It’s very good for the jack-of-all-trades-master-of-none type of person.
Steps
Step #1:
Next
- Make sure you know enough people with digital cameras to make doing this project worthwhile.
- Gather up several 1"X 1" and 1"X 3" pieces of wood (I used clear white pine), and a large piece of Masonite.

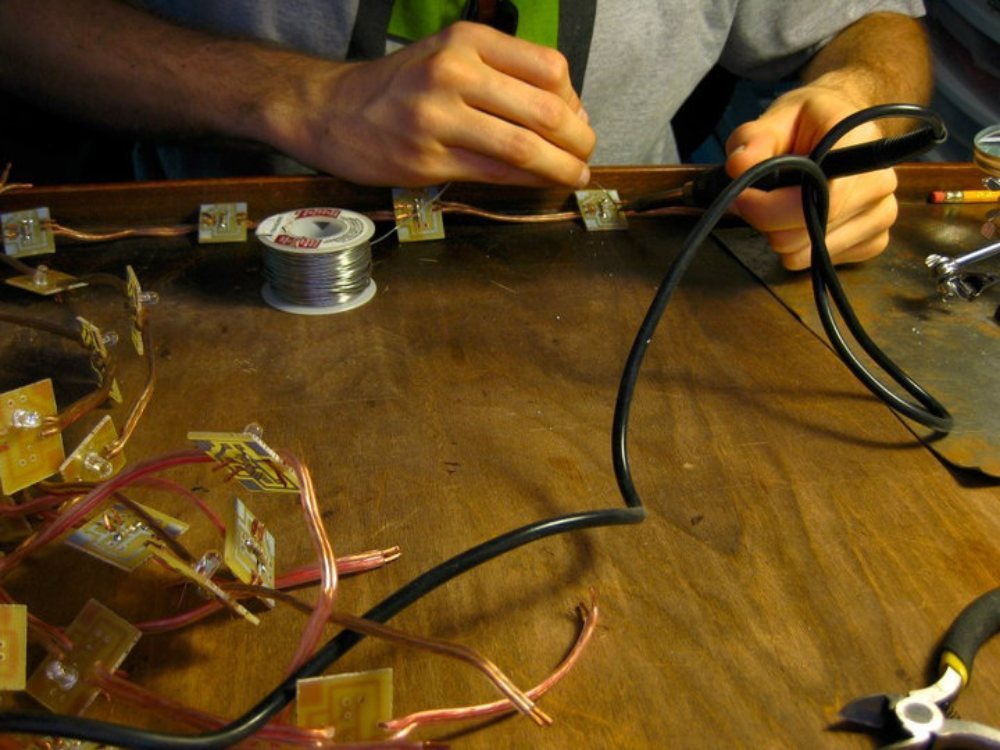

- Gather up your soldering stuff (soldering station, side cutters, wire strippers, solder, reverse tweezers, shrink tubing, etc.).

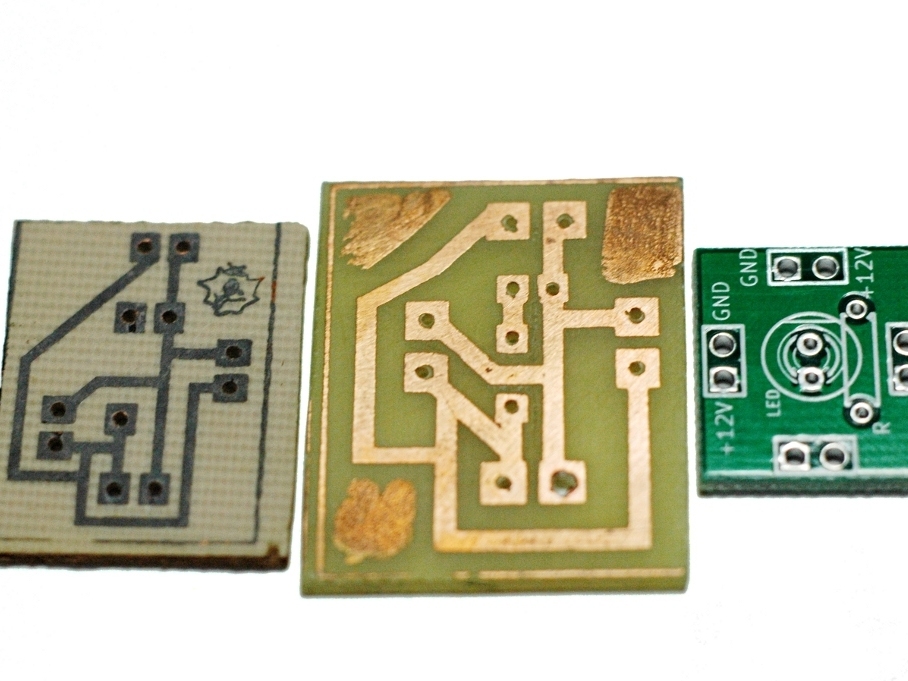

- Get your do-it-yourself circuit board etching stuff (large glass trays, ferric chloride acid, gloves, copper etching board, goggles, laser printer, photo-paper, rotary tool, 1/16" and 1/32" drill bits, hacksaw, knife).
- Get your wood working stuff out (a mitre saw, a staple gun, a drill, a roll of 20-gauge speaker wire, clamps).
- Pick up a bunch of IR LEDs and resistors. The exact number depends on the complexity of your design.
Conclusion
This project requires you to know a little bit about a lot of different skills. It's the result of combining some very simple things into something entirely unique.
It requires some basic wordworking, but nothing too advanced or difficult. It requires some basic electronics, but nothing too technical. It requires etching skills (OK; this part can be a bit tricky or dangerous). And lastly, it requires some art/design skills.
Good luck!







































Hmm, that is an interesting idea. All sorts of fun could be had. Thanks!
We tried using an IR laser to project images onto surfaces from a distance, but finding the right laser was a challenge. It was either too dull to see, or powerful enough to burn things.
