The “Discreet Companion” Ladies’ Raygun
A pocket butane raygun for steampunky cosplay.
Torch lighters are handy, cheap, and easy to find. They come in a wide variety of shapes and styles, so there’s room for customizing to your personal taste.
I normally modify mine with antique parts, but here I chose parts that you can get in most hardware and home stores. The finished raygun works well as a prop; simply pull the “trigger,” and an inch or so of fire shoots out the barrel!
This project uses a $10 Dodo brand lighter. If you use a different lighter, you may need to change the size of the pattern to accommodate it. You need to use a lighter that, when installed into the barrel of the raygun, will shoot forward.
Some point in other directions — obviously, avoid these, unless you specifically want a booby-trapped gun!

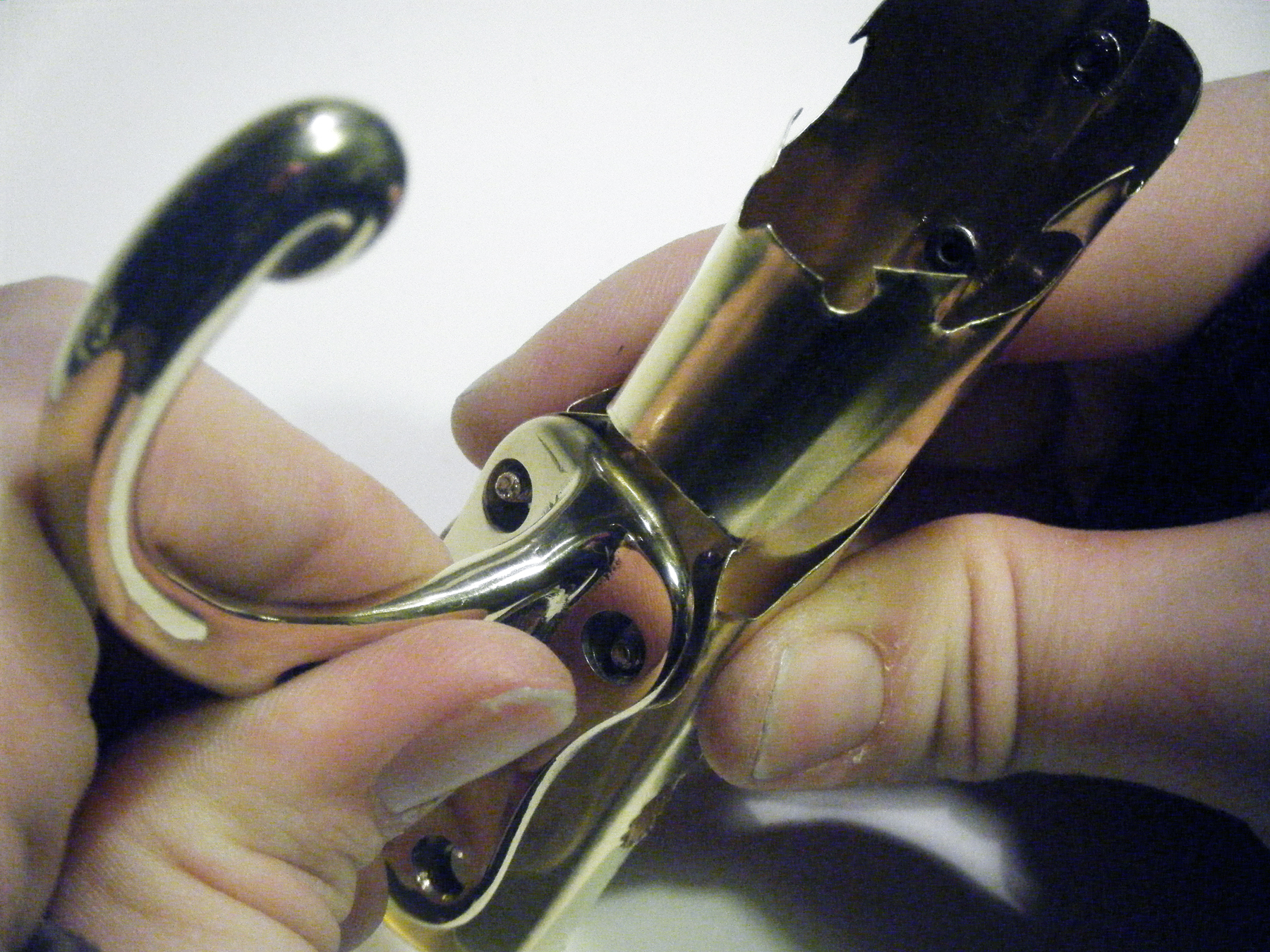

You might try a different ornate coat hook for a different-looking handle. The handle can also be mounted forward or backward.

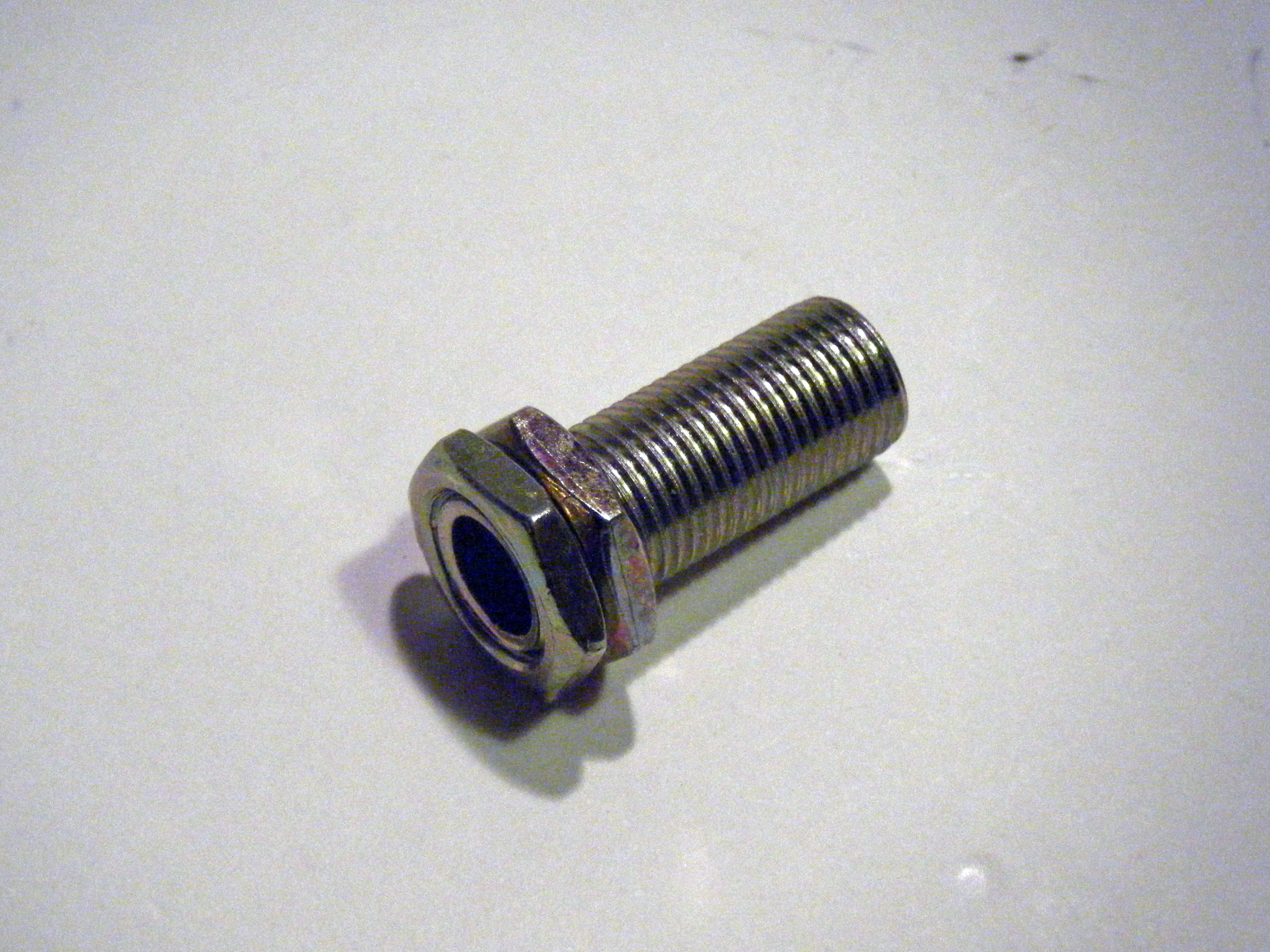

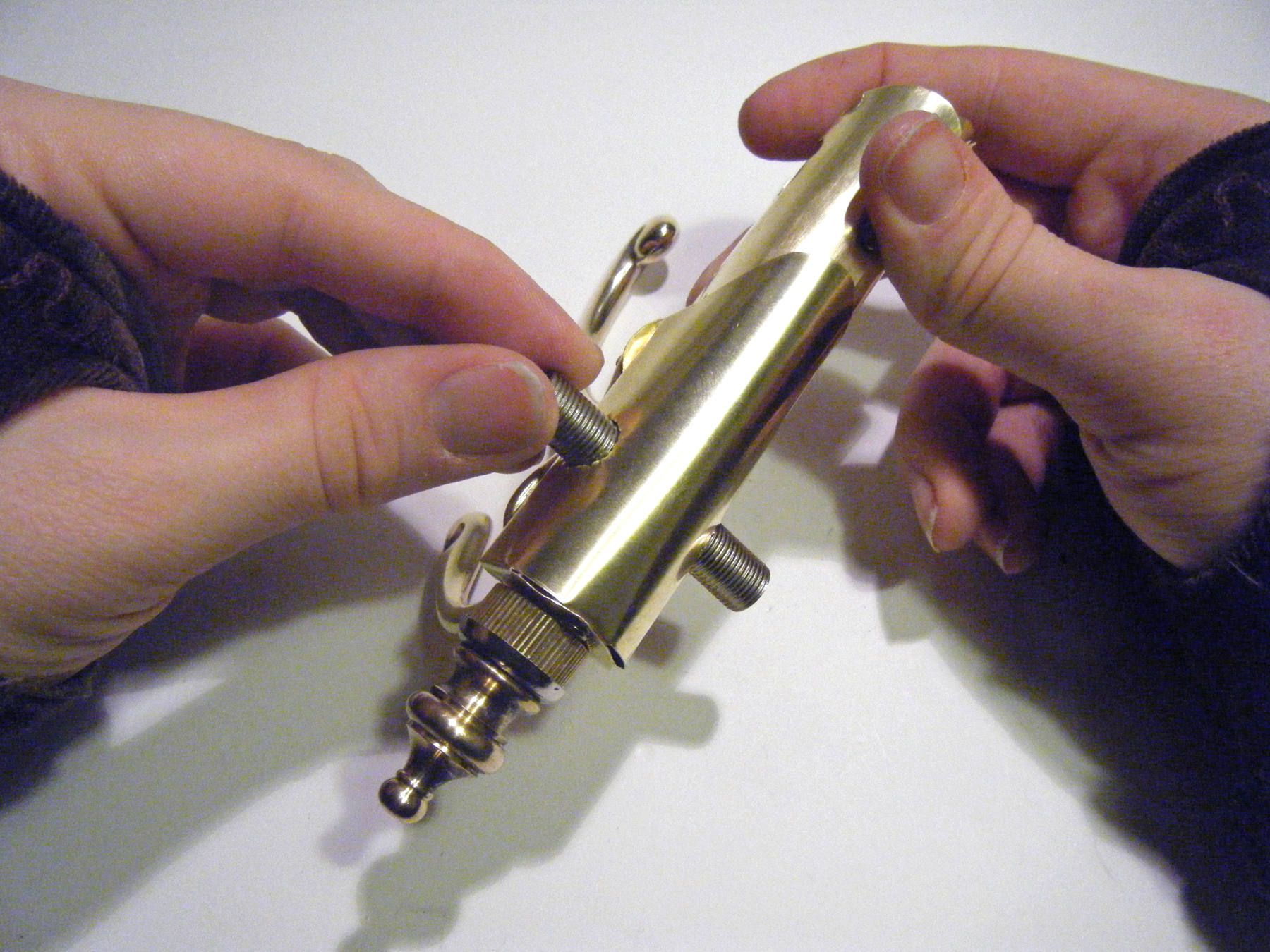

The lamp parts are easy to customize — you can change the look just by using different finials and other decorative elements — and the design on the front of the barrel can be almost any shape you want.
This project is fairly easy to do, takes a few hours, and costs about $30–$40 in parts (less if you have some stuff already on hand).
Steps

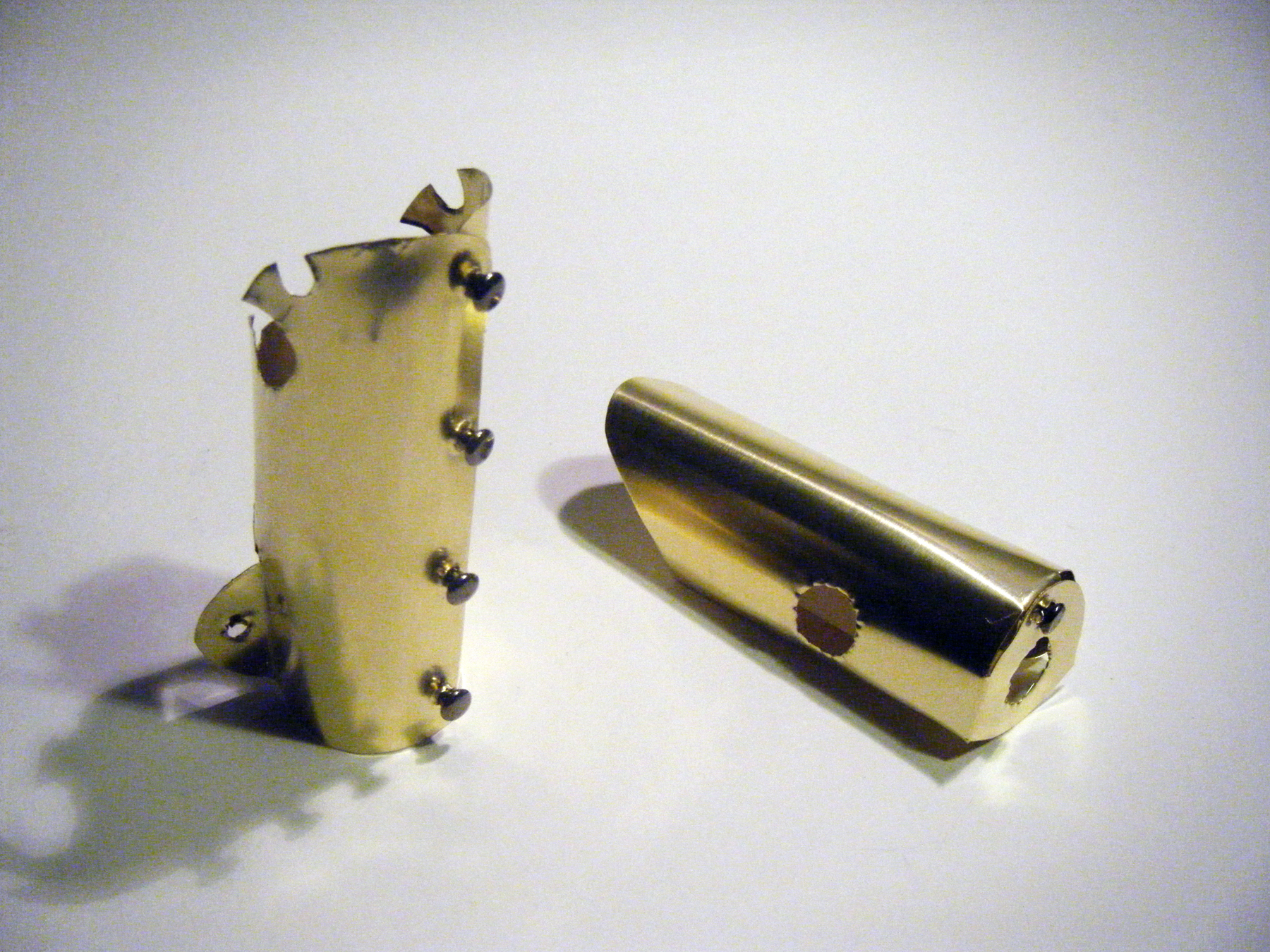

Step #1: Build the body.
Next

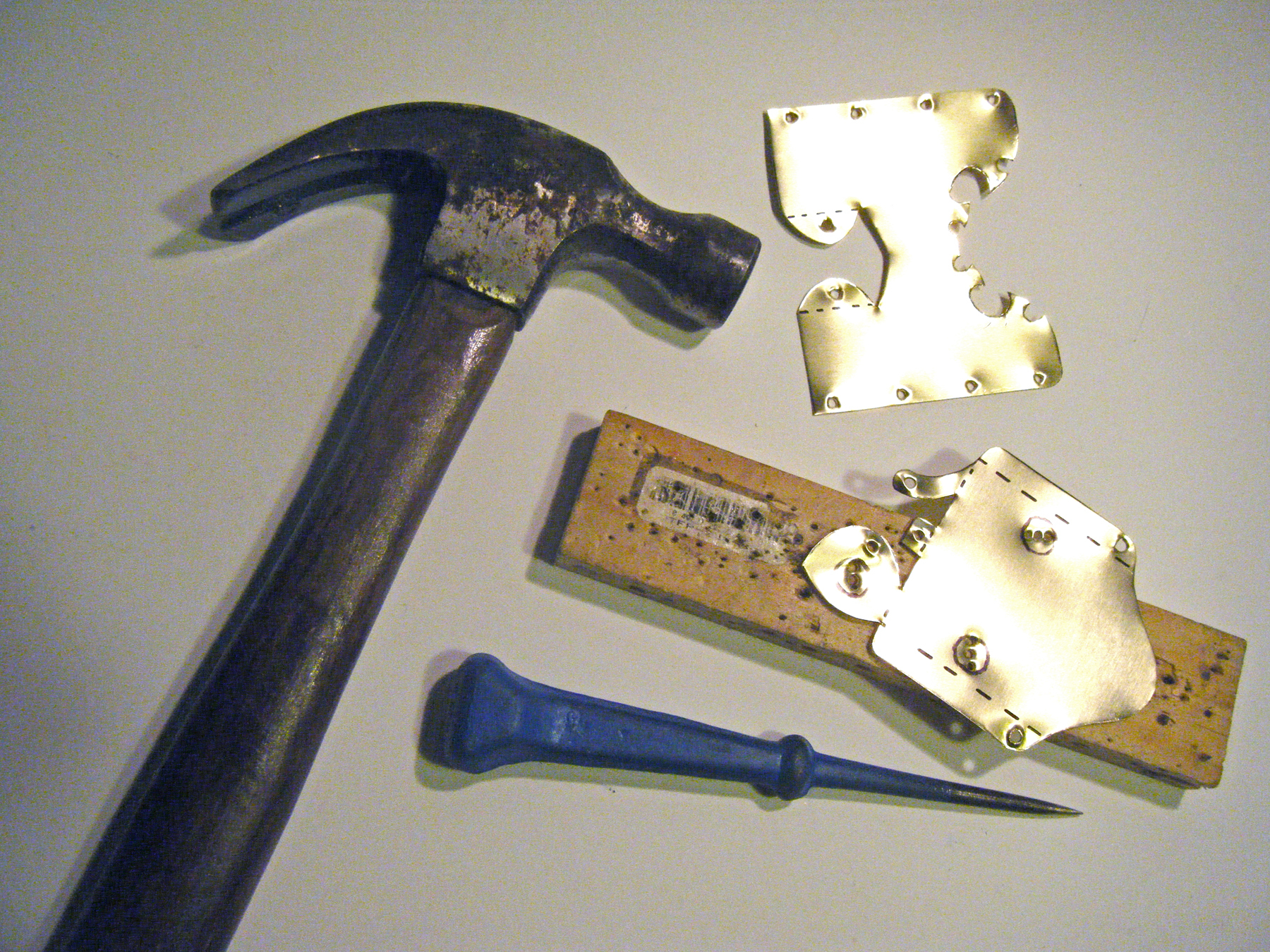

- Print the 2 patterns, cut them out, and trace them onto the brass sheet with a marker. Be sure to mark carefully the dashed lines (where the metal folds) and all holes.
- Use a pair of metal snips to cut out the shapes. Take your time. Don’t worry if the edges bend a little; this is normal. When you’re done cutting, use your pliers to flatten the edges out again.
- Be careful not to cut yourself when cutting and bending sheet metal. I never use gloves, and my poor fingers hate me for it. Don’t be like me!
Conclusion
This project originally appeared in Make Volume 17, page 76.
