The Trip-Cam

The Trip-Cam is a trip-wire triggered spy- and security camera. Sweet!

  • By Jack Brunning
  • Category: Electronics
  • Time Required: 30 minutes to 1 hour
  • Difficulty: Moderate
The Trip-Cam

In this project we are going to take an ordinary camera and turn it into a trip-wire or magnetic reed-switch triggered spy and security camera!

  • Digital camera
  • Lighter
  • Screwdriver

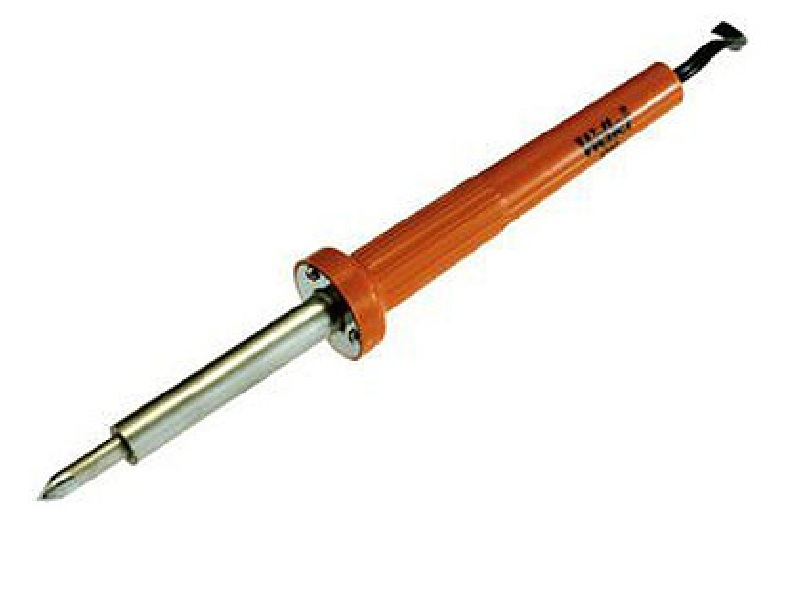

  • Soldering iron

Steps

Step #1:

NextThe Trip-Cam

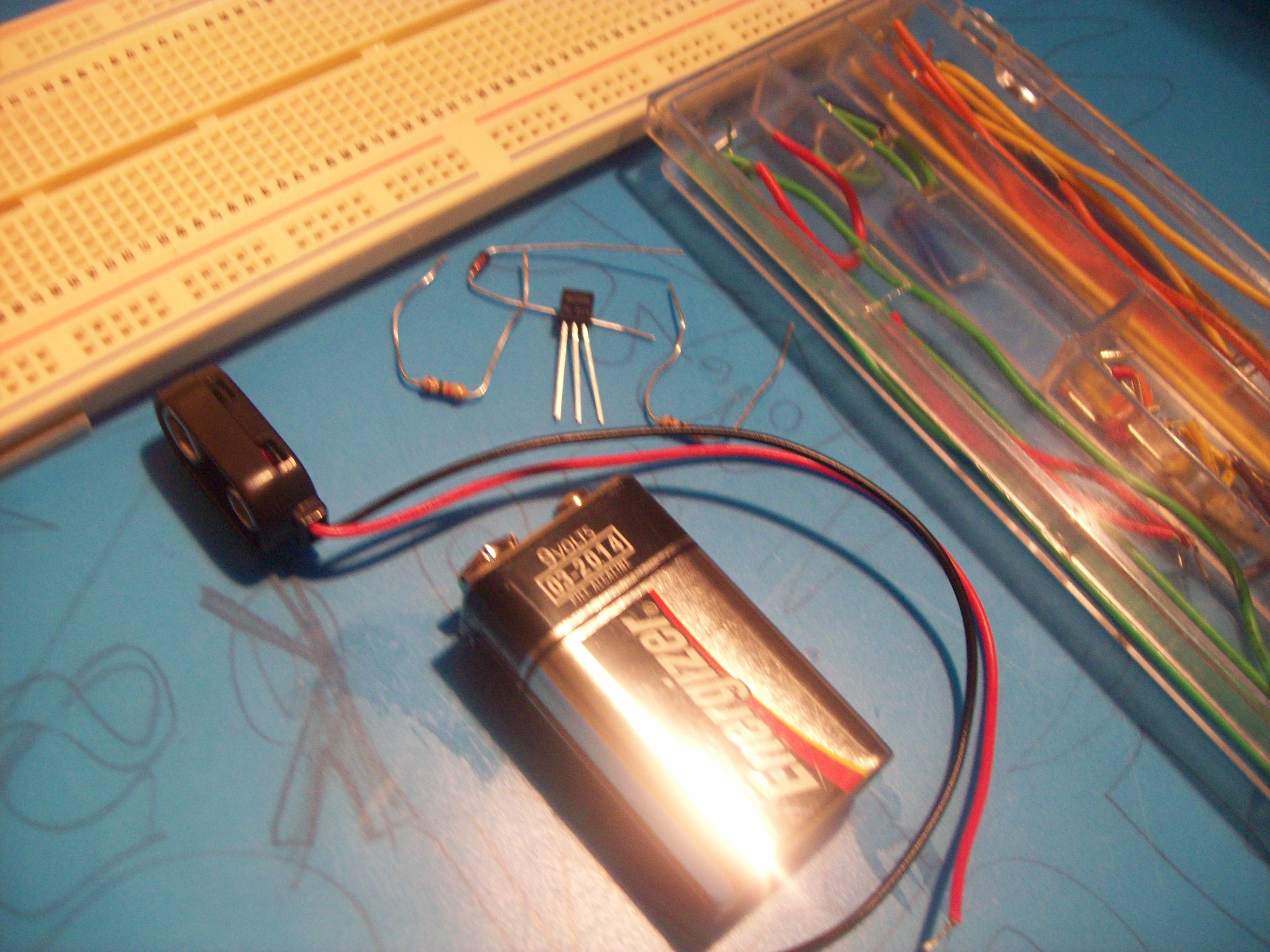

  • Lay out your components on your workbench.
  • I couldn't use a camera because I have only got one.

Step #2:

NextThe Trip-CamThe Trip-CamThe Trip-CamThe Trip-Cam

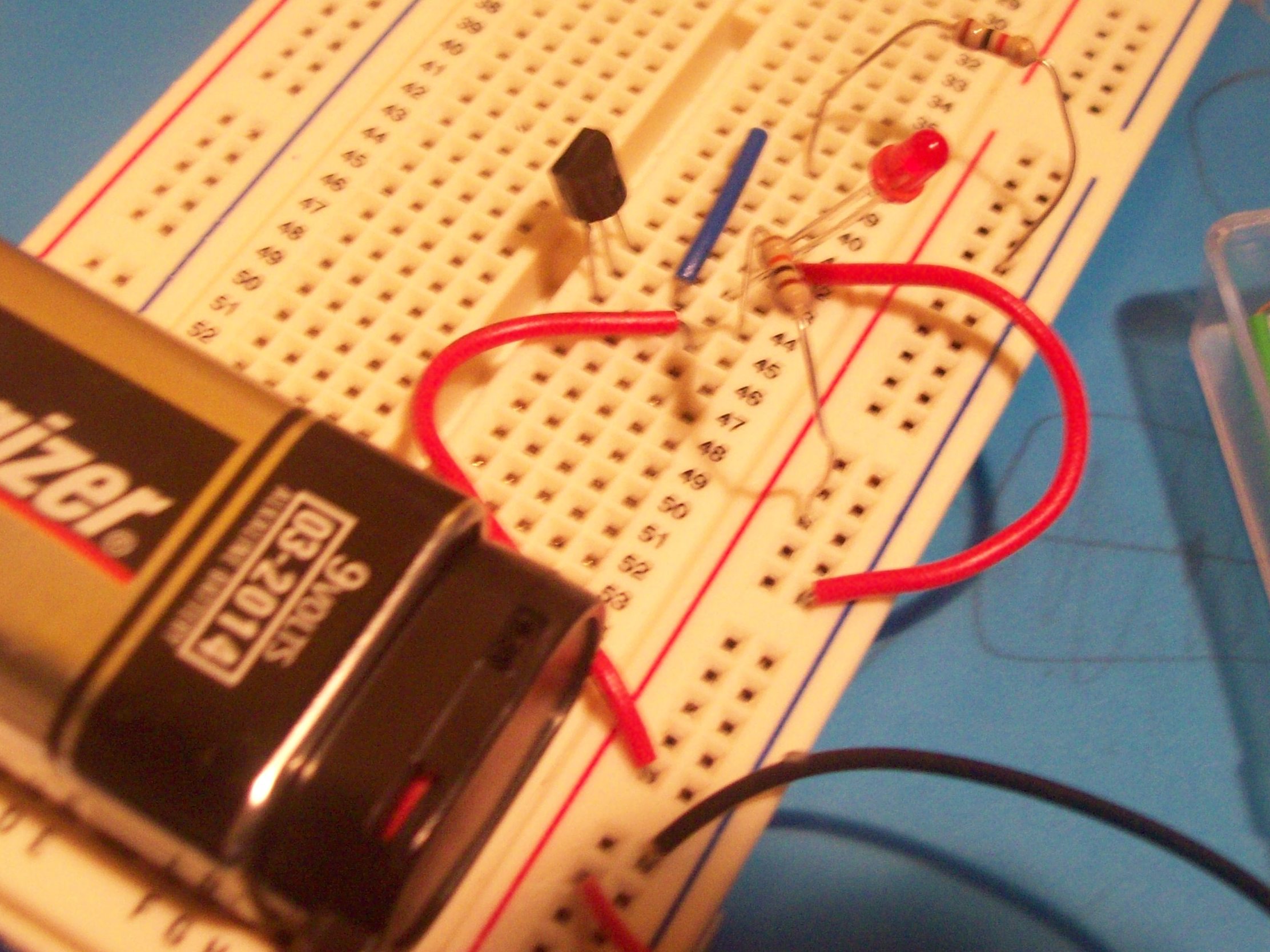

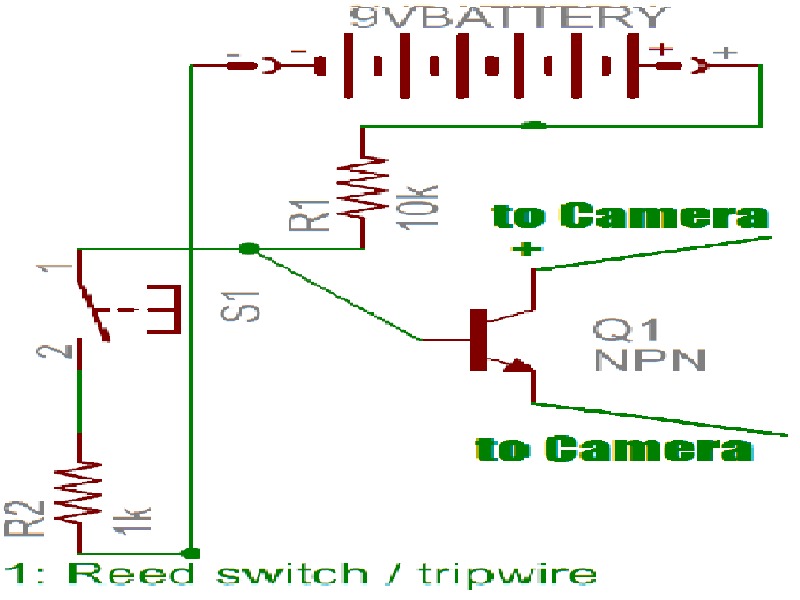

  • Put your components into the breadboard according to this schematic.

Step #3:

Next
  • Open your camera.

Step #4:

NextThe Trip-Cam

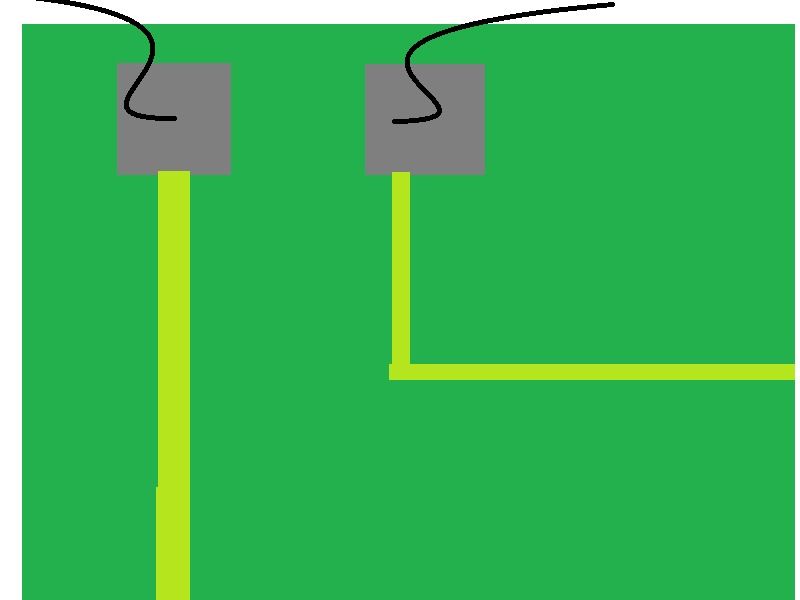

  • Locate the trigger button terminals and solder two wires to them.
  • Feed the wires through the trigger button hole.

Step #5:

NextThe Trip-Cam
  • Make all necessary jumpers and final connections on the breadboard.
  • Note: The LED and red jumpers represent the camera wires.
  • The blue wire represents the switch or trip wire.

Step #6:

NextThe Trip-Cam

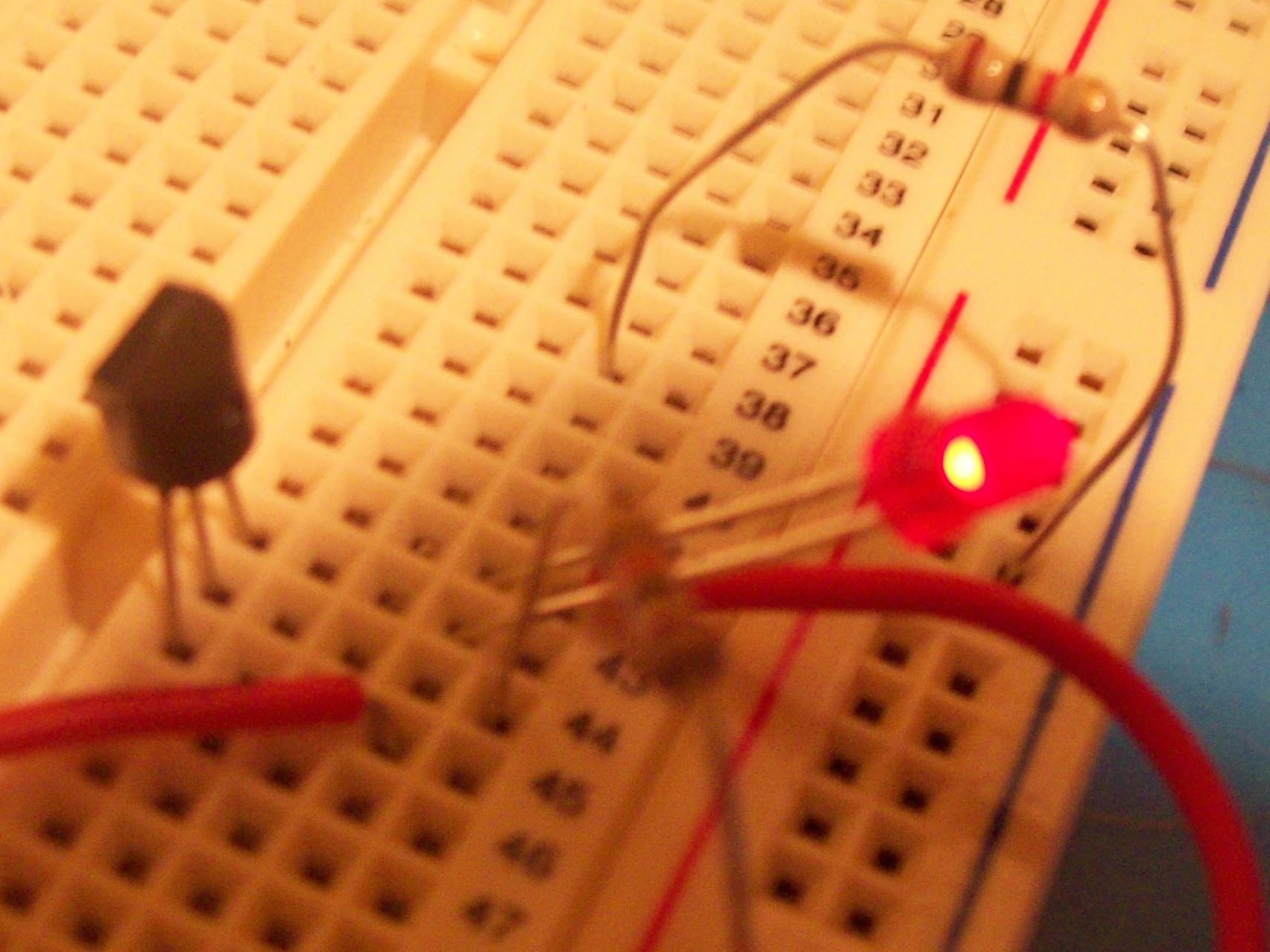

  • Test the breadboard circuit.

Step #7:

NextThe Trip-Cam
  • Solder all the connections together either barebone or on perfboard.

Step #8:

NextThe Trip-Cam
  • Now just wait for someone to come.

Step #9: Enhancments

  • LED strobe light by adding a lot of LEDs across the transistor's collector and emitter.
  • Make two: one for power, one for trigger.
  • Add lasers instead of a trip wire or switches. Use a photocell to pick up the laser light.

Conclusion

This project is an easy and fun project to make whether you need to guard your room or just spy on people! So let's get into it!
