Adding CdS photocell sensors to your Tiny Wanderer robot allows it to see a spectrum of light that is similar to what humans perceive. With two sensors, the robot can monitor two directions for light level differences and be programmed to either turn to or to avoid high light levels.
In this guide I will show how to add the CdS photocells to the Tiny Wanderer and provide a program for “moth” or “anti-moth” behavior. From this point it is a short step to experiment with making the classic Braitenberg vehicles.
Step #1: Build the Chassis.Next

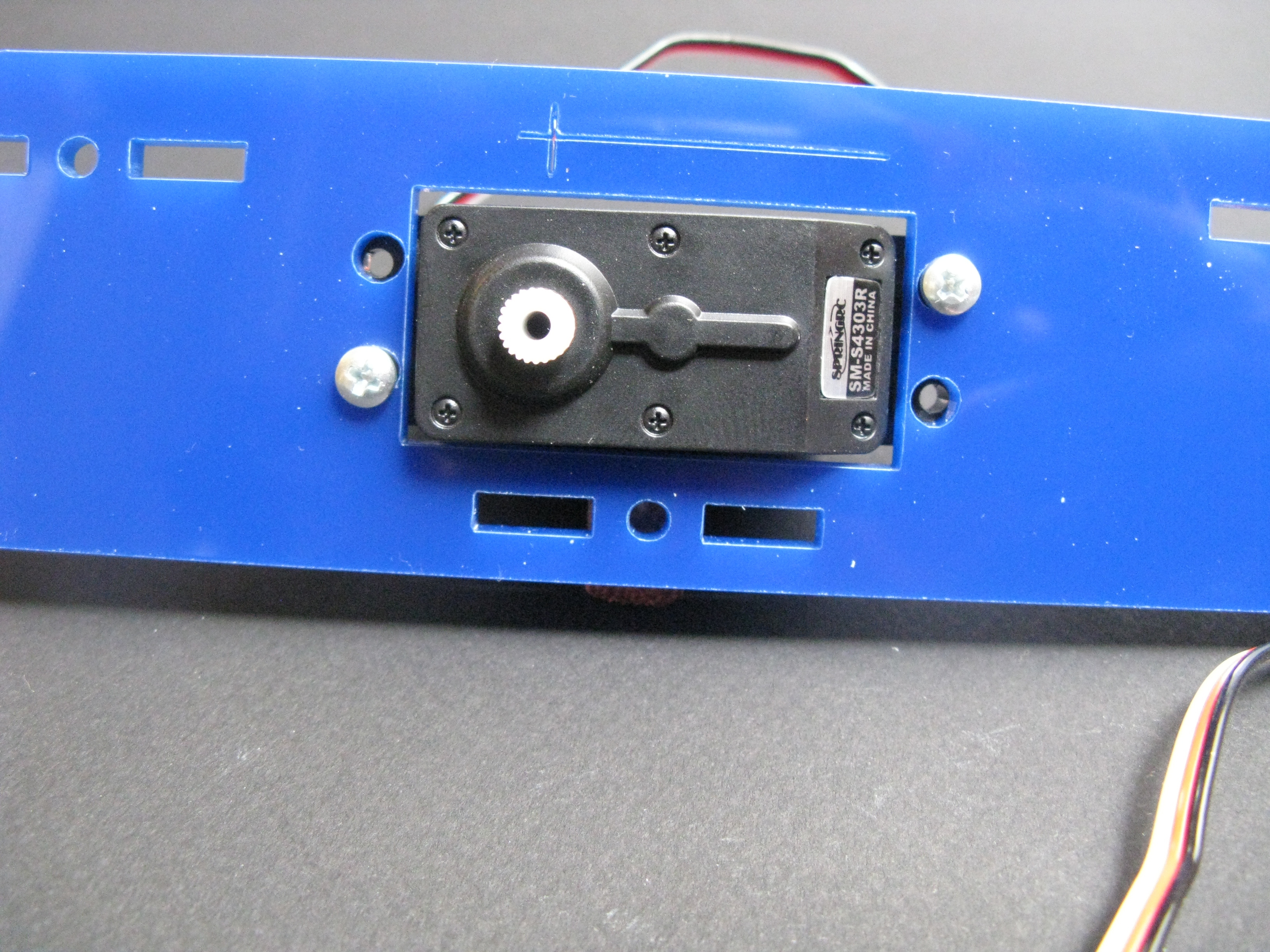

- Peel the protective plastic off all acrylic parts. Insert the rubber grommets packaged with the servos into the 4 servo mounting holes. Use four #4×3/8" screws to attach each servo to one of the 2 acrylic side pieces, with the shaft aligned with and on the same side as the etched guideline. With the motors installed, align the side pieces next to each other and make sure they match up.
- See http://makeprojects.com/v/29 for more photos identifying all the acrylic kit pieces.
- Fit the 2 acrylic axle holders into the bottom of the truck piece. Anchor each one with a nut in its cross-shaped cutout, screwed onto a #4 screw threaded through a washer from the top of the truck.
Step #2: Next

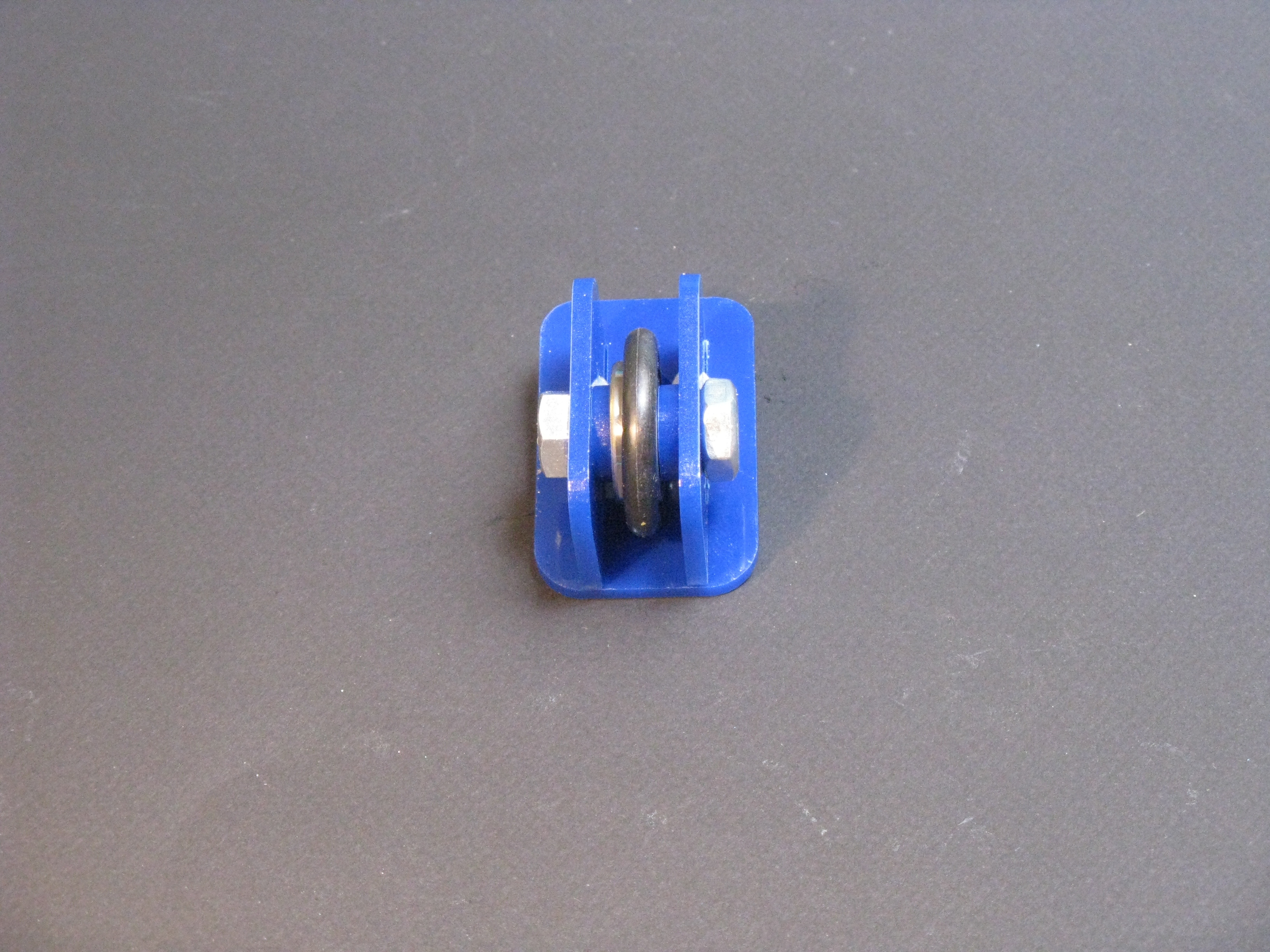

- Fit the O-ring around one of the skateboard bearings. This will be the rear caster’s wheel. Mount it between the axle holders, with a large acrylic washer on either side, on a 5/16"×1" bolt secured with a matching nut.
- For the caster’s swivel mount, run four #4 screws through 4 small metal washers, then through the 4 mounting holes around the rear caster hole in the large acrylic base piece. Drop the bearing holder (the acrylic square with the larger center hole) over the 4 screws. Drop the bearing into the holder, then drop 4 small acrylic washers onto the screws. Finally, drop the bearing retainer (the square with the smaller hole) onto the screws and over the bearing. Secure with nuts.
- The metal washers provide clearance; without them, the caster will hit the screws.

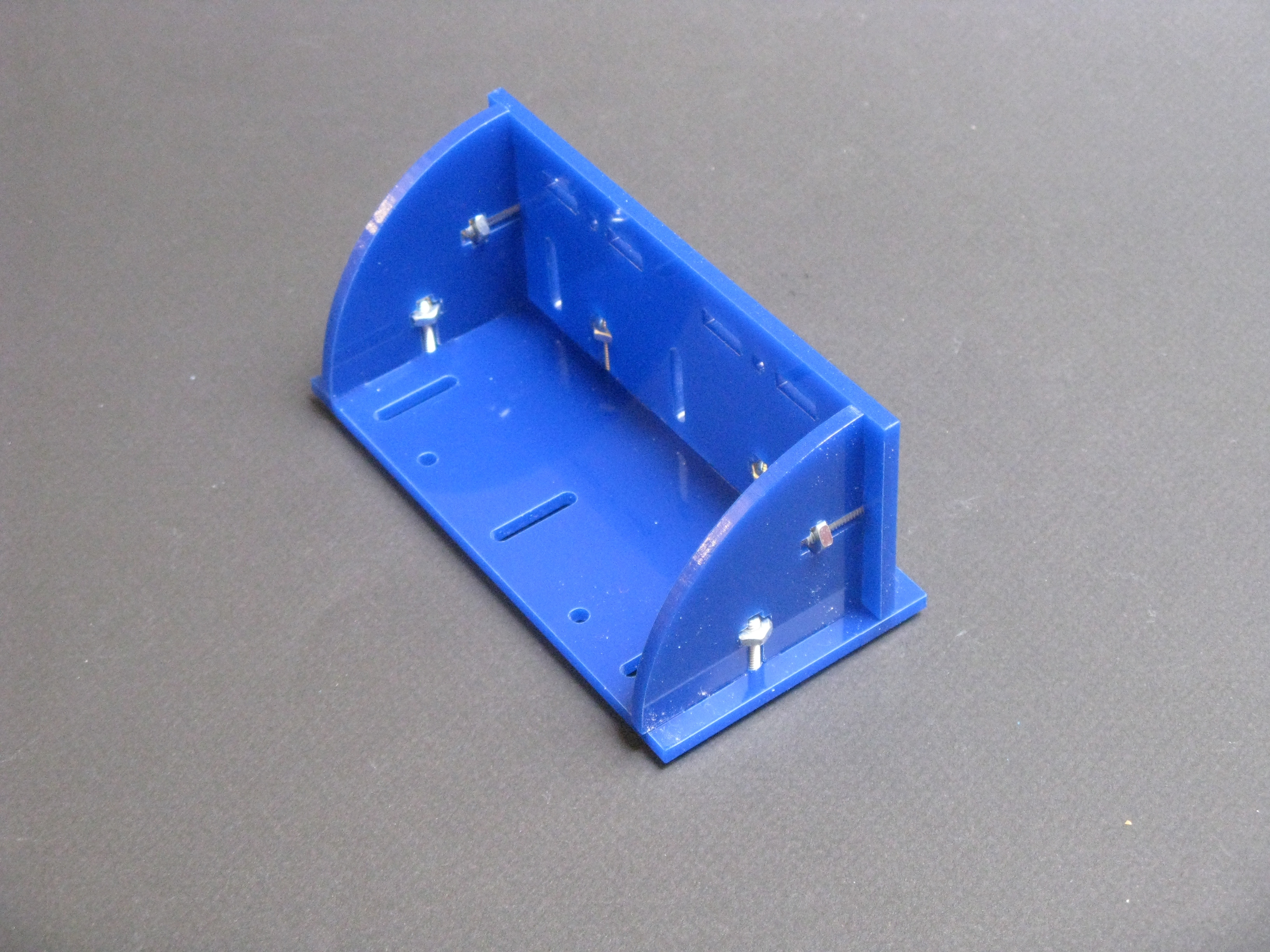

- Attach the side pieces to the top of the base by fitting 4 nut/bolt pairs into its cross-slots, as in Step 1. Use 2 more nuts and bolts to join the tops of the side pieces to the crossbar piece.
- Tweezers help to hold the nut in place while you start the screw.
Step #3: Next
- Assemble the sensor tray from the sensor shelf, sensor shelf riser, 2 sensor shelf brackets, and 6 nut, screw, and washer sets. As with the other acrylic pieces, fit the tabs into the slots and secure by twisting the nuts down on the bolts in their cross-slots. The sensor shelf will act as a base for attaching the robot’s sensors.
- Attach the sensor tray to the front of the chassis with 2 screws.
Step #4: Next

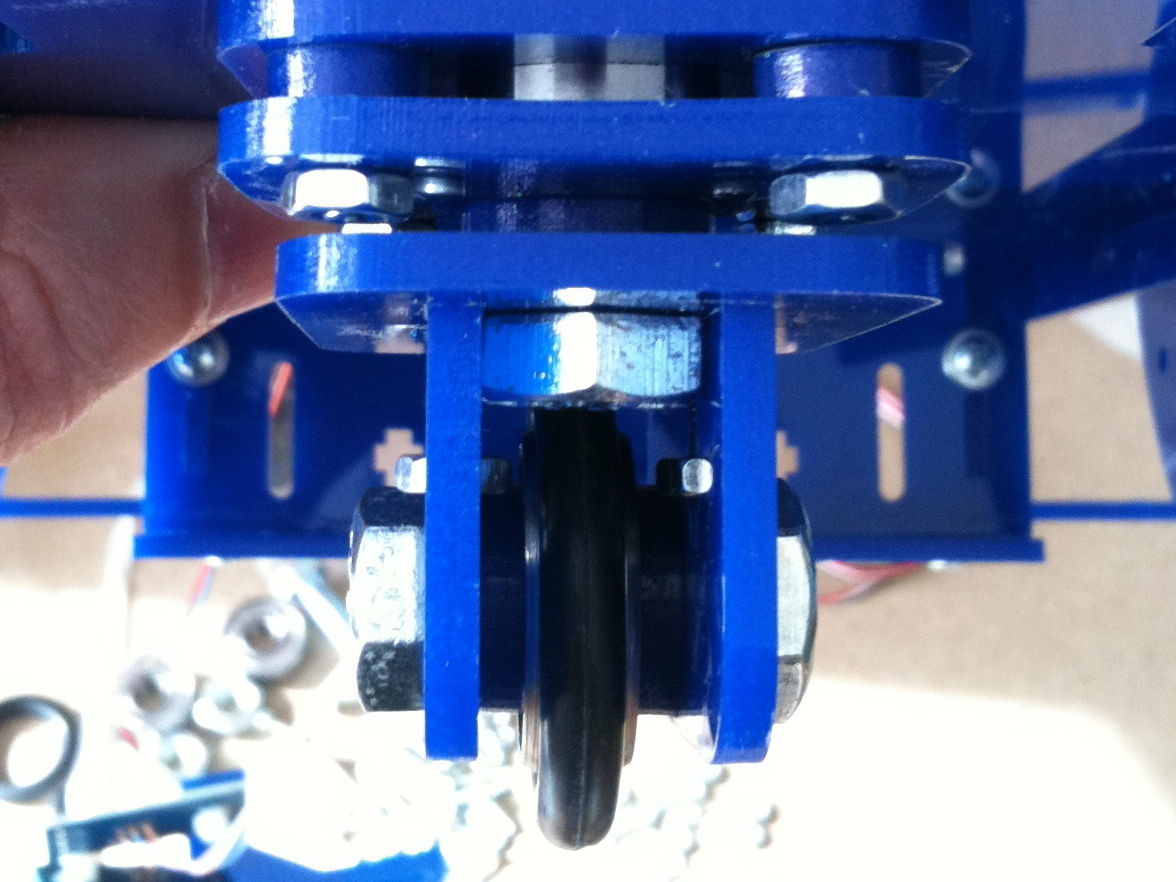

- Attach the caster holder to the caster swivel mount with the remaining 5/16" bolt and matching nut. Fit 2 large acrylic washers over the bolt between the underside of the swivel mount and the top of the caster holder, so the caster can turn without mounting hardware getting in the way. The inner race of the horizontal bearing should be clamped between the large bolt head and the 2 acrylic washers.
- You may have to temporarily loosen the screws to get the bolt to fit through the caster assembly so that the bolt’s head is captured by the wheel supports.
Step #5: Fit the tires and hub.Next

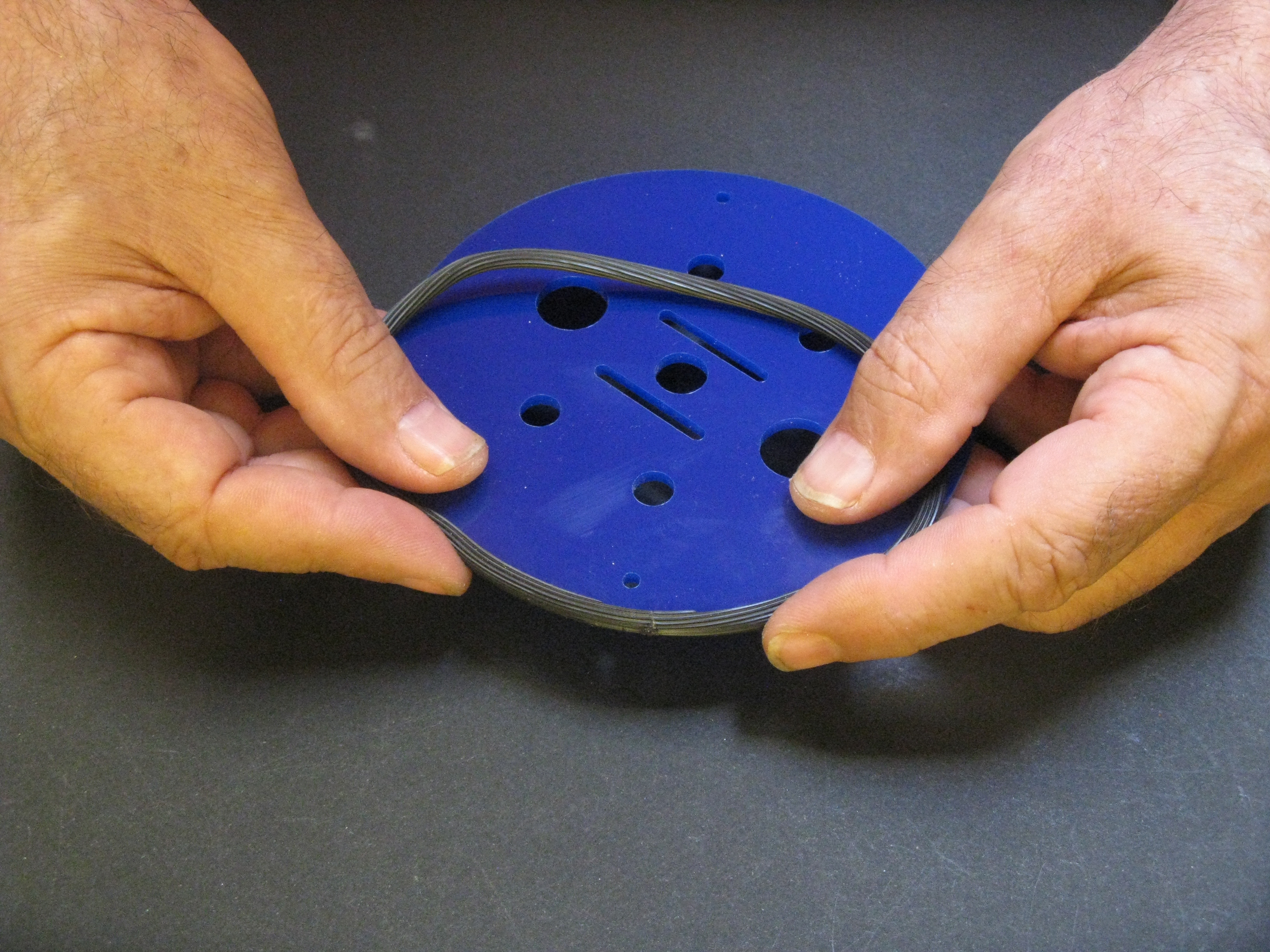

- For each of the 2 tires, cut a 12¾" length of window screen spline. Use a seam ripper to puncture each piece about ¼" from one end. Slit the spline along one edge, going almost its entire length, but stopping when the seam ripper point shows at the other end.
- Drop a dot of super glue onto a piece of thick paper. Run your finger down the slit to make sure it’s not twisted, then align the 2 ends and dip them into the super glue. Hold the ends together for 20 seconds; they should stick together. Put the tire aside for at least 15 minutes.
Step #6: Next
- Use the seam ripper to slit the joint area, making the slit continuous. Starting with the joint, place the tire onto the wheel, working it around the rim a little bit at a time.
- Place a pencil through the center of the wheel and roll it on a table to seat the tire. Use fine sandpaper to lightly sand the glue joint. Be careful — you only want to remove excess glue.
Step #7: Next
- With each circular servo horn, center it under a wheel with the horn hub protruding through. Rotate the horn until you see 2 of its 4 injection-mold marks through each of the wheel’s slots. Mark the horn through the 2 slots with a sharp pencil. Drill two 7/64" holes into the horn where the mold marks intercept your lines.
- Use two #4 screws and nuts to attach a horn to each wheel, and mount the wheels on the servo axles using the small screw that comes with the servos.
Step #8: Next

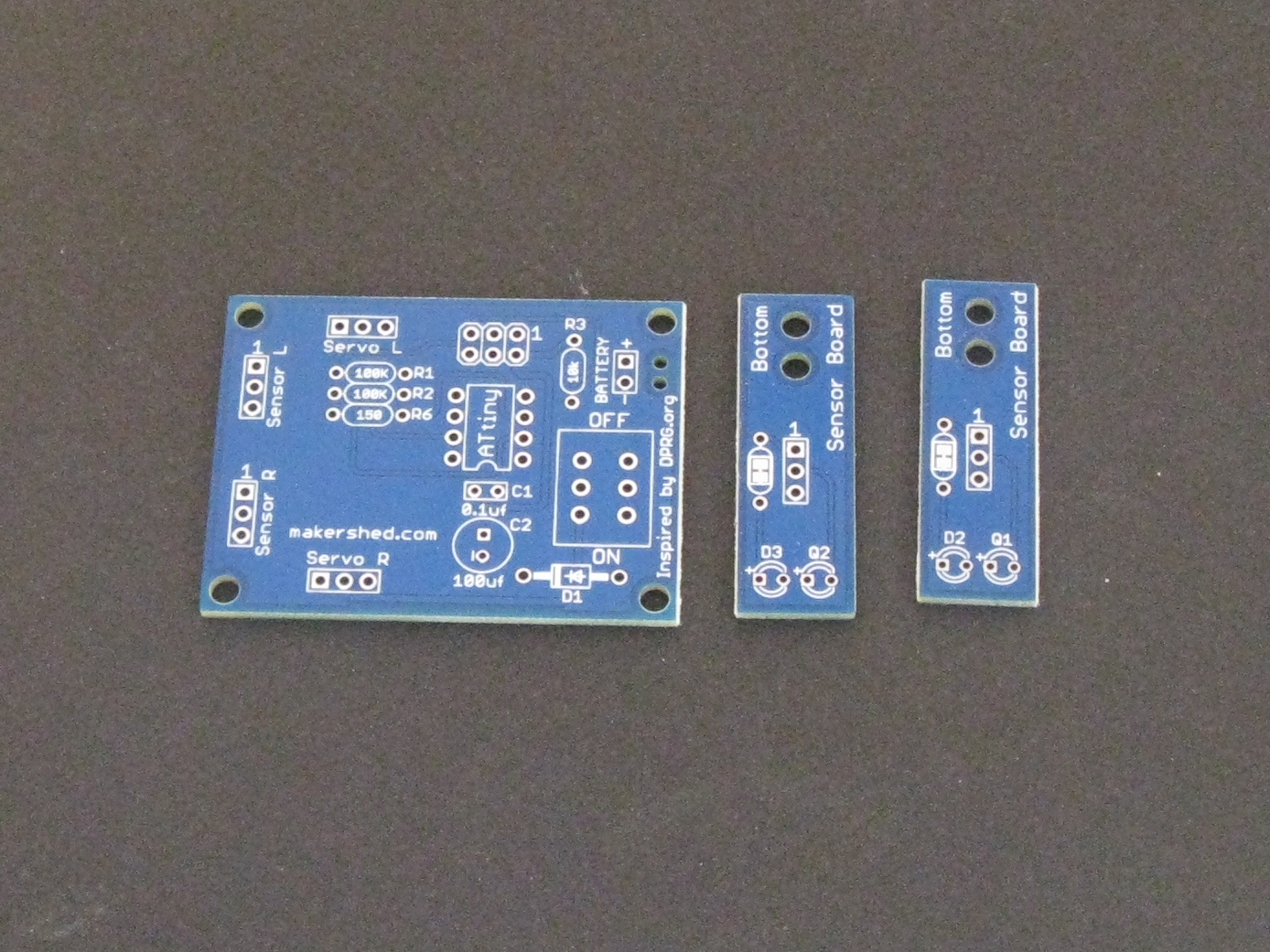

- Separate the PCB into 3 boards — the controller board and 2 sensor boards — by splitting it along its 2 scribe lines. You may need to deepen the scribe line between boards with a utility knife before separating them.
- Cut the 8-pin female header into two 3-pin headers by cutting through the fourth and fifth pins. Sand the cut edges smooth.
- Populate the board with the components as marked, starting with the shortest ones (resistors and diode) and working up to the tallest. Route the battery holder’s leads through the strain relief holes before attaching. Make sure the large capacitor’s polarity is correct, with the lead near the band marked with negative signs (–) opposite the hole marked (+). The female headers go into the locations marked “Sensor R” and “Sensor L.” Do not place the chip into the socket yet.
- Use a multimeter to check all connections, following the wiring-check tables at http://makeprojects.com/v/29. If everything checks out, plug in the chip with its pin 1 near the switch, and its notch next to capacitor C1.
- The wiring tables list all the pairs of points on the board that should have continuity or a specified resistance.
- After any work on the circuit board, perform the checks again before you plug in the chip. Before checking, disconnect the servos and sensors from the controller board and turn the power switch off.
Step #9: Assemble the sensor boards.Next

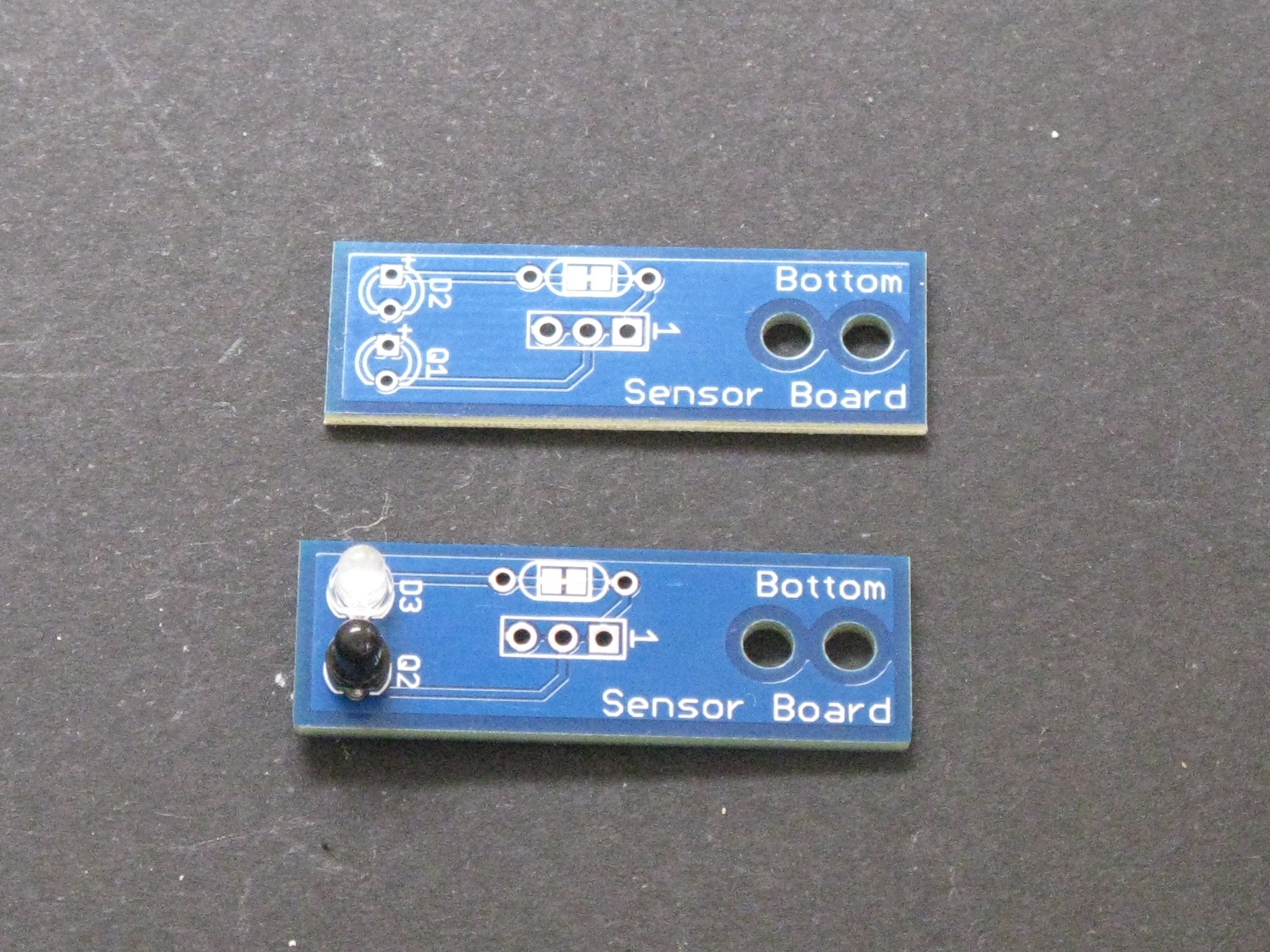

- Plug a phototransistor and an LED into each sensor board, orienting the small flat on the side of the plastic lens (the LED’s cathode or transistor’s collector) as indicated on the board. “D” marks the LED’s position and “Q” marks the phototransistor.
- Fit the 1" length of heat-shrink tubing over a phototransistor so that its edge touches the board, then cut it off just above the plastic lens. Similarly fit and trim a piece over the other phototransistor. Do not heat the tubing.
Step #10: Next

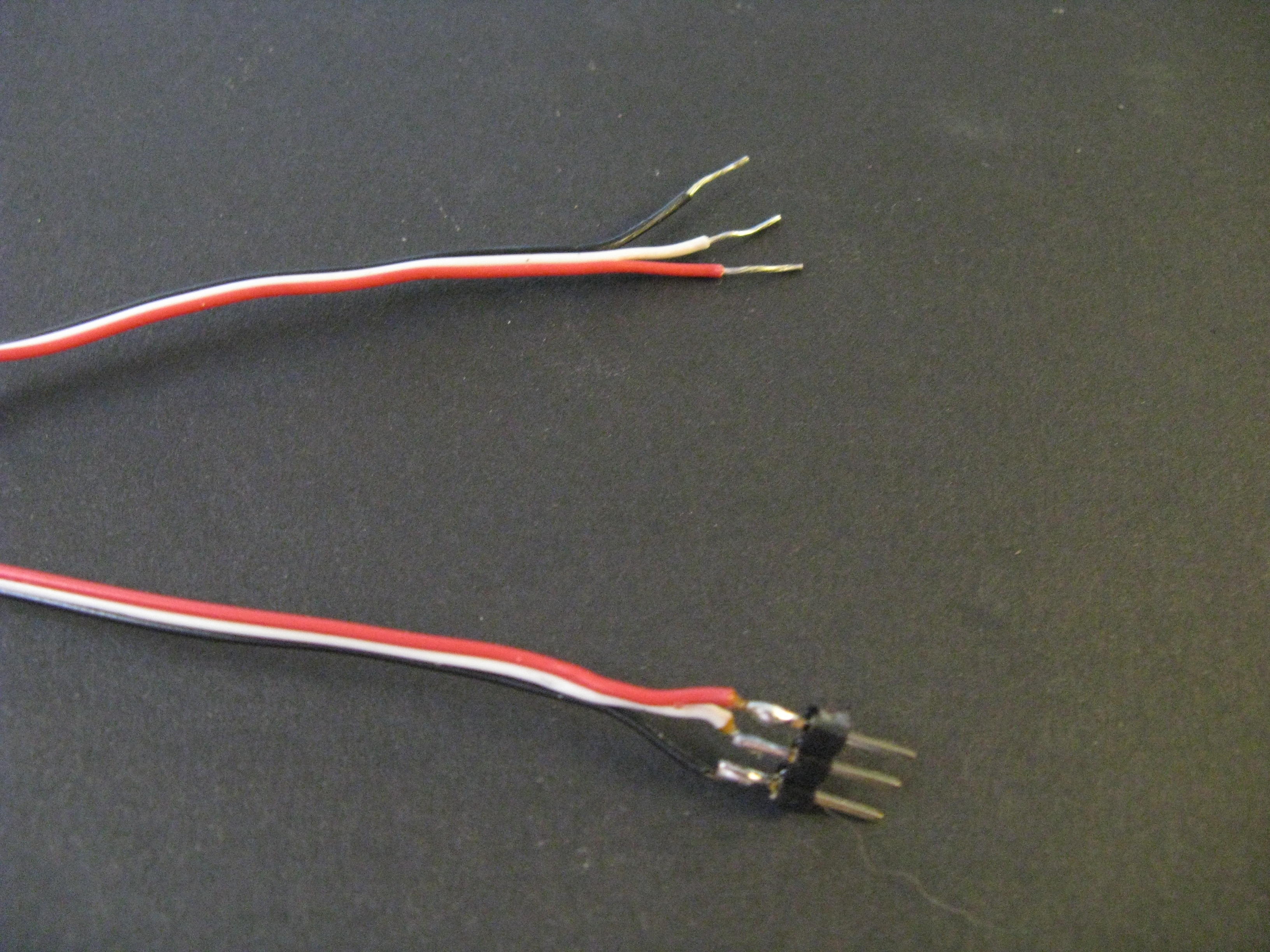

- Cut the 3-wire ribbon cable in half. Strip and tin all ends of both pieces. For each, solder one end to a 3-pin male header and the other to a sensor board, with the red wire in the location marked “1.”
- Plug the cables into the female sockets on the controller board, connecting the red wire to the sides marked “1.”
Step #11: Make the sensor arms.Next
- The 2 sets of Tiny Wanderer sensor arms work with 2 different behavior programs: cliff-sensing (for wandering an empty tabletop) and object avoidance. See http://makeprojects.com/v/29 for a third sensor arm design, for line-following behavior.

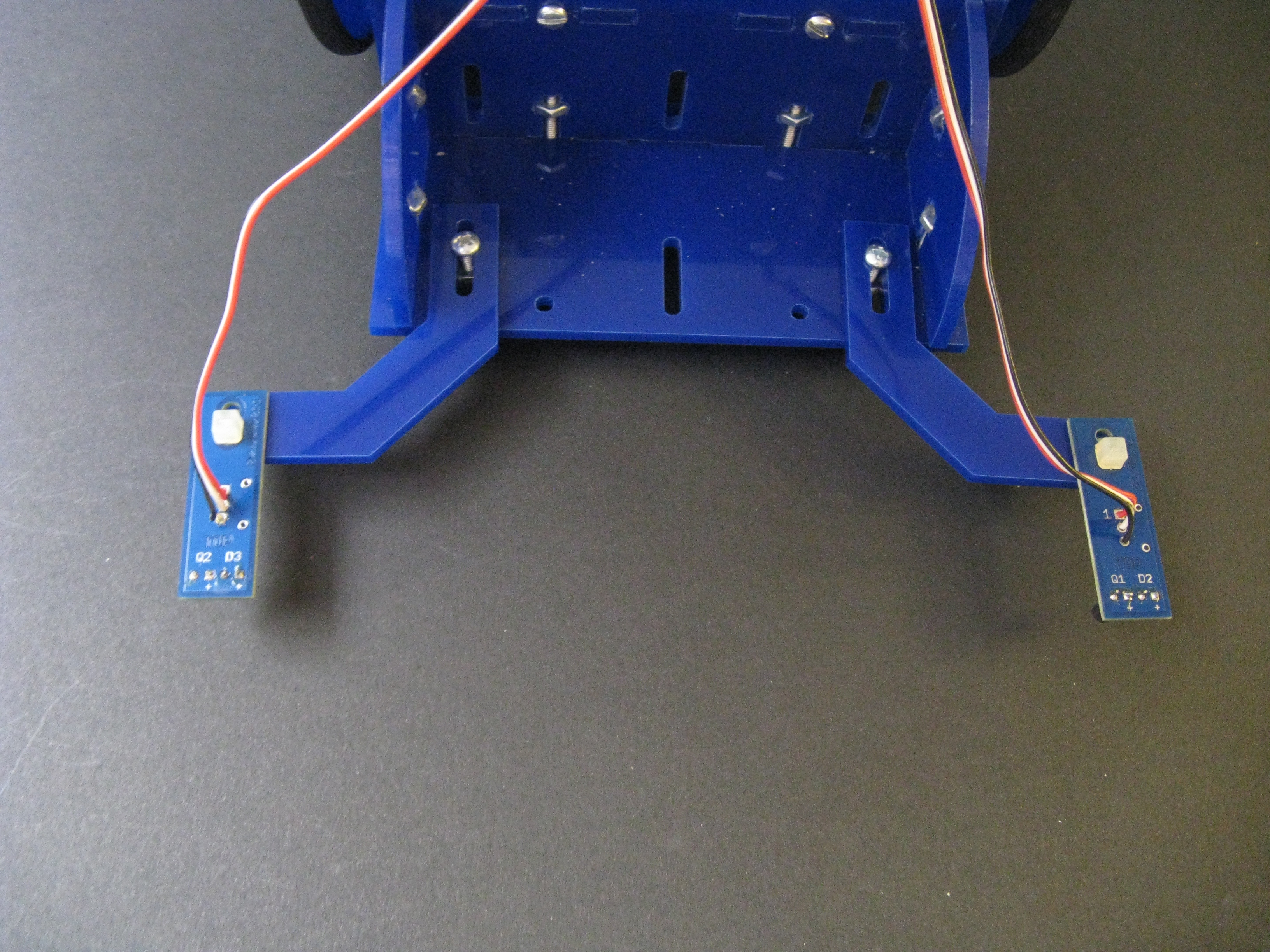

- For the cliff-sensing configuration, use zip ties to attach the sensor boards to the shorter of the 2 pairs of acrylic sensor supports, and bolt the arms to the sensor tray with the phototransistors and LEDs pointing downward.

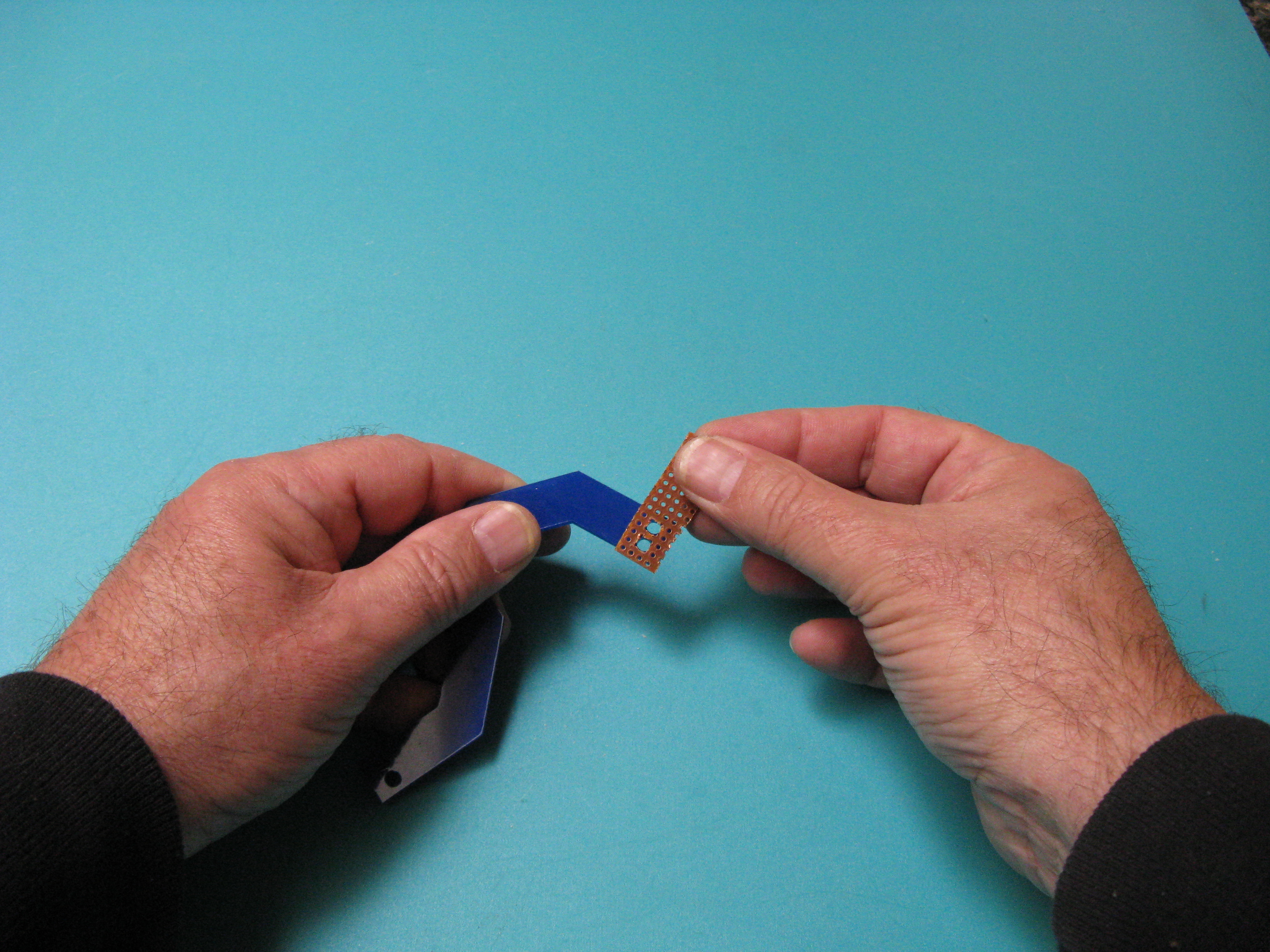

- For the object-avoidance arms, first make a bending guide by cutting a 100° corner on a scrap of wood. Mark each of the longer acrylic sensor supports 1¾" from its long end, warm it with a heat gun or by holding the heating element of a soldering iron near (but not touching), and then bend it over the guide.
- Zip-tie the sensor boards to the object avoidance arms, then bolt the arms to the tray, angled slightly inward to avoid a blind spot in the center.
Step #12: Program the ATtiny85.Next

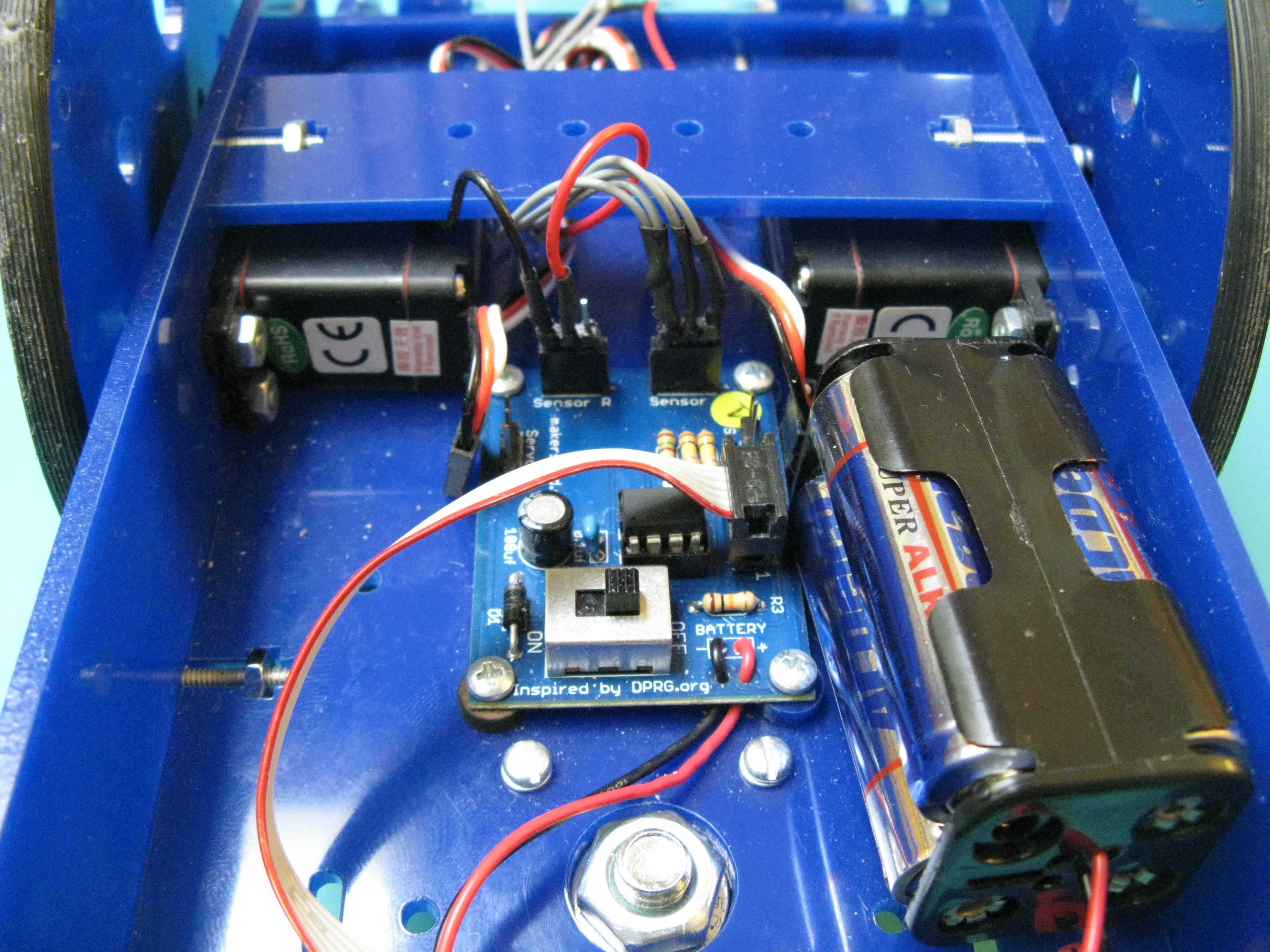

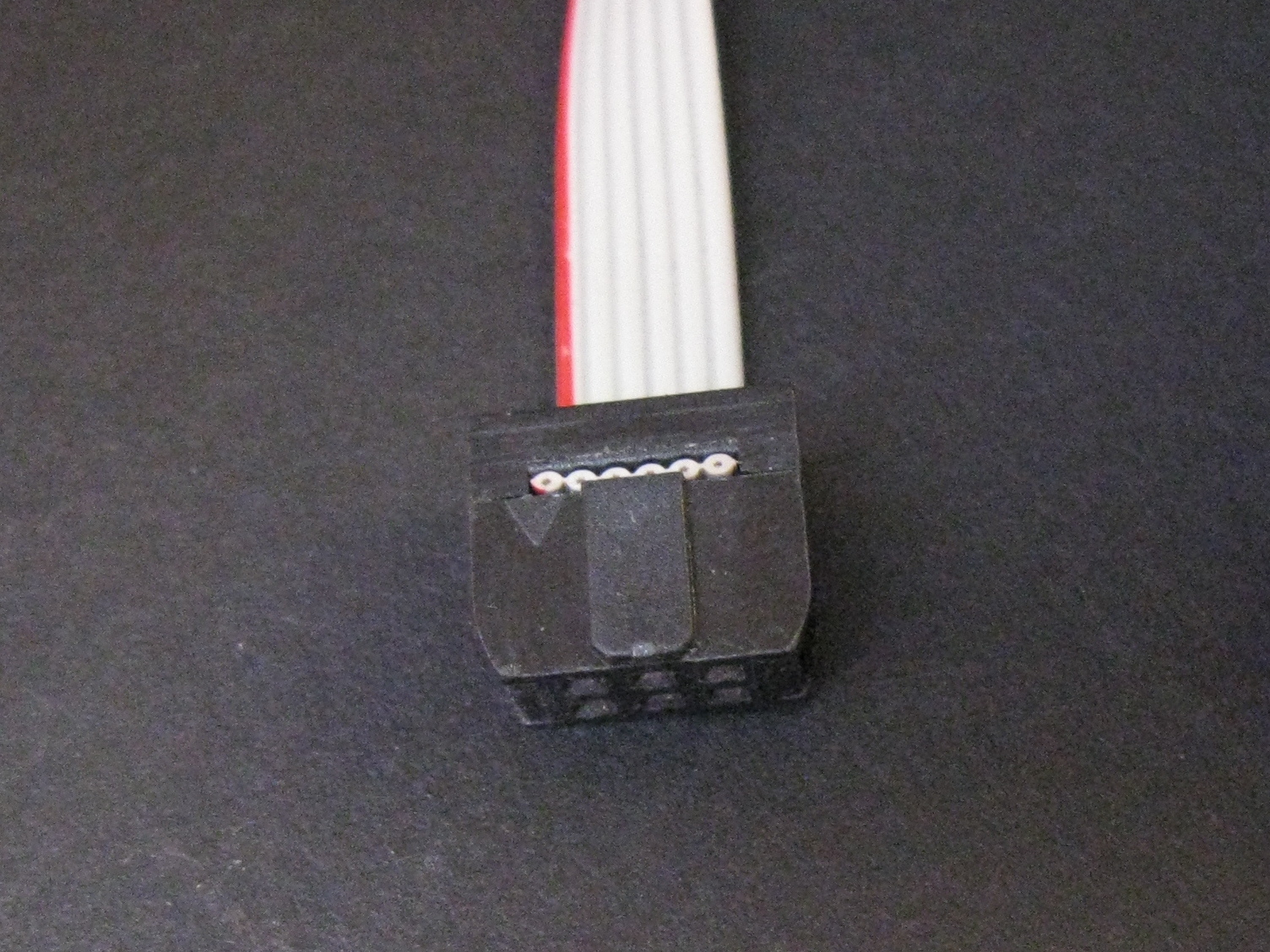

- Disconnect the servos from the PCB; you can leave the sensors connected. Plug your AVR ISP programmer between your computer and the onboard 2 x 3 header, with the pin marked “1” connected to pin 1 of the cable (marked with a triangle on the plug and a red wire).
- When the two LEDs on the AVRISP mkII programmer turn green, the programmer is ready for use.
Step #13: Next
- There are several tool chain options for programming AVR chips, but a good choice for beginners is to combine Atmel’s AVR Studio 4 with the open-source WinAVR.

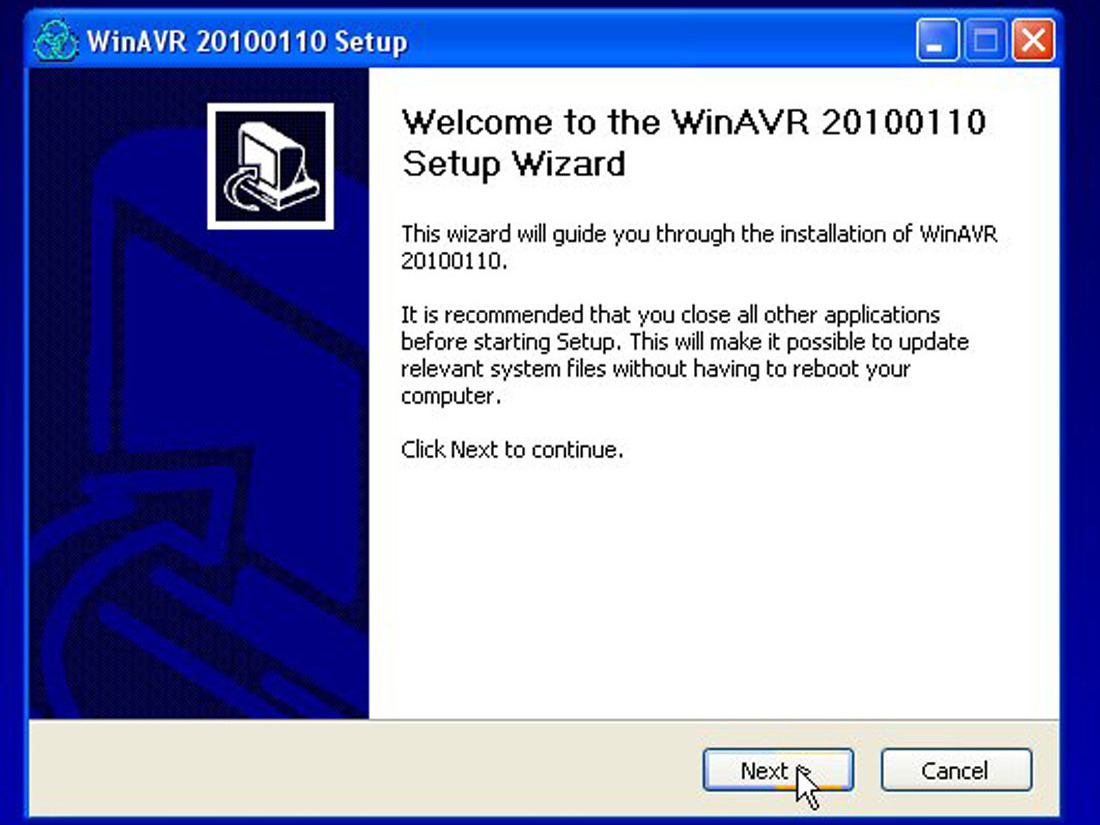

- Download and install WinAVR and AVR Studio 4 (search “AVR Studio 4” at http://www2.atmel.com/) and install with all defaults. You will need to register on the Atmel website before downloading the AVR Studio 4 installer.
- Some have reported an issue of AVR Studio 4 installer freezing after selecting “Install”. A proposed work-around is to open Task Manager and end the task “Rundll32.exe.” The author has not experienced this issue.
- Atmel now recommends their newer AVR Studio 5, which has some nice features, but is larger and more complex than version 4.
Step #14: Next

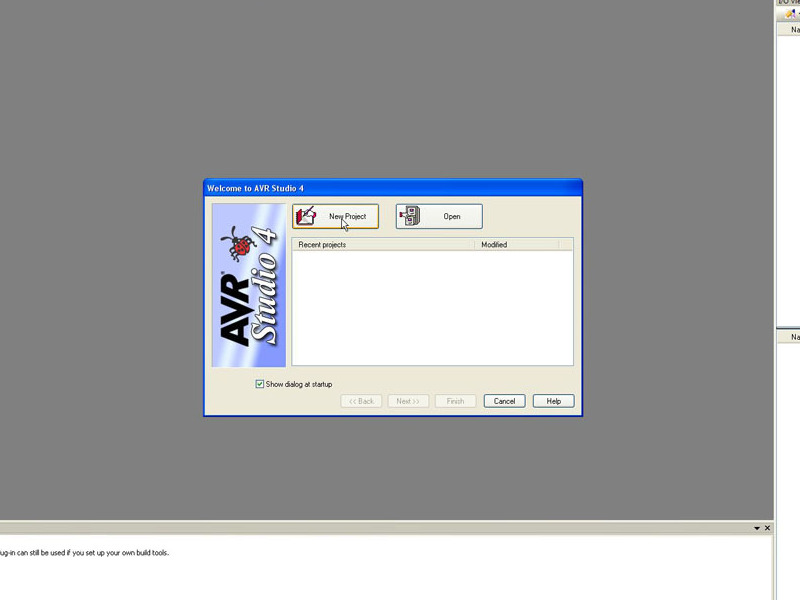

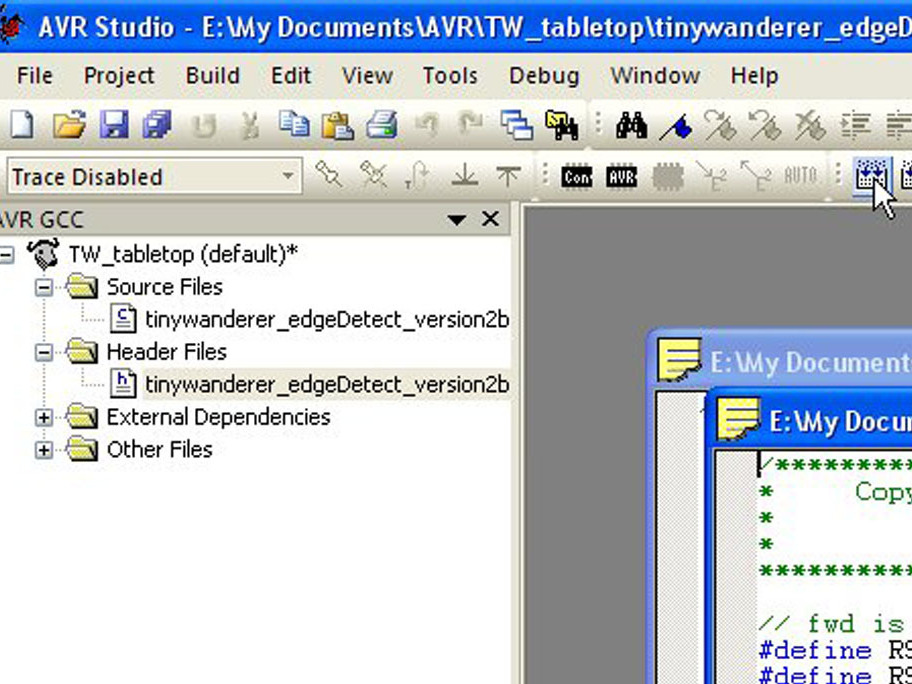

- Launch AVR Studio 4. Click the “New Project” button at the top of the Welcome screen, then select “AVR GCC” for the Project Type, to specify the gcc compiler, for project code written in C. Give the project a name (“TW_tabletop” here), then uncheck “Create initial file” and check “Create folder.”
- Create a new folder named “AVR” in My Documents, select that location, and click “Next.” In the next popup, select “AVR Simulator 2” as the Debug platform and ATtiny85 as the Device. Click Finish.
- Download the Tiny Wanderer code examples from http://makeprojects.com/v/29, or else use your own code. Each program will consist of a .c and .h file, for the C source and headers. Copy or move these files to the project directory created in step 7c. For example use tinywanderer_edgeDetect_version2b.c and tinywanderer_edgeDetect_version2b.h, for the tabletop edge detection program.
- Each project that you program into the Tiny Wanderer will have different .c and .h files. Be sure to use the appropriate .c and .h files for your project.
Step #15: Next

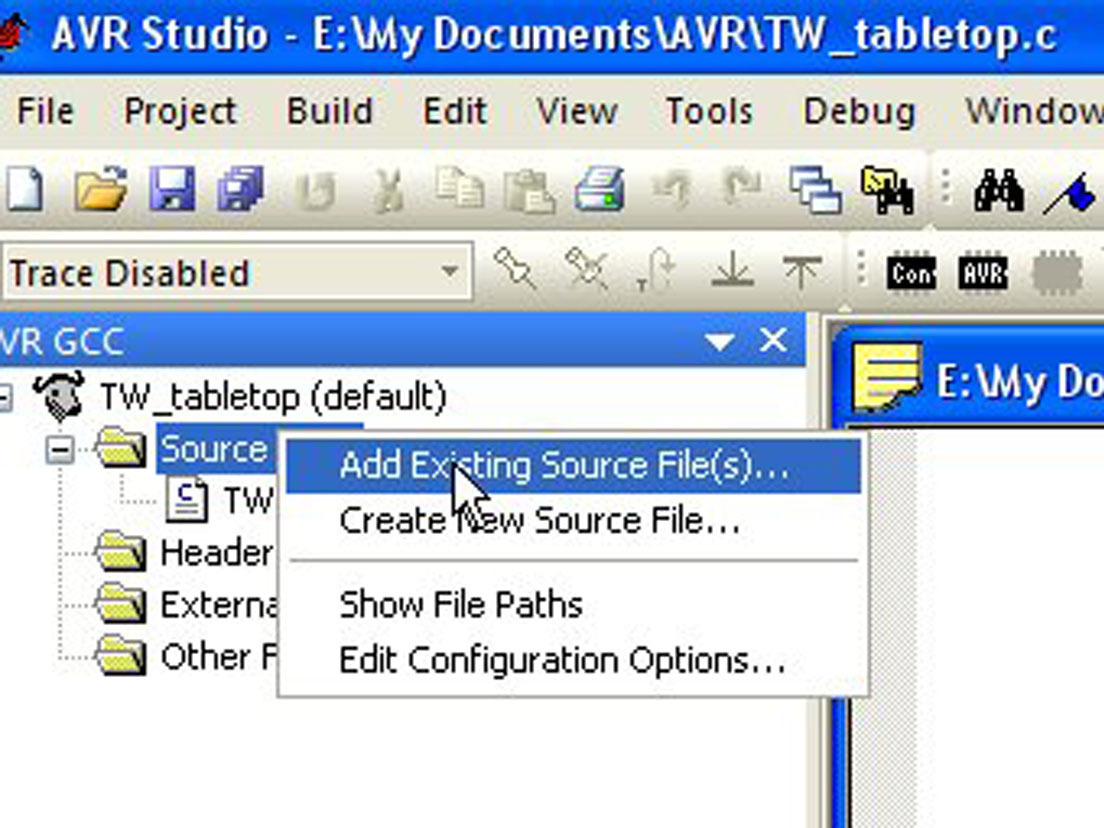

- Open the project AVR GCC pane, right-click the “Source Files” folder, select “Add Existing Source File(s)” and specify the project’s .c file. Do the same for the project’s .h file after right-clicking on the “Header Files” folder.
- Double-click both project files in the AVR GCC pane to open them up in the editor. Right-click Project → Configuration options menu item, select “Custom Options” at the left of the popup, In the Custom Options pane, uncheck “Use AVR Toolchain” box and add the locations for avr-gcc.exe and make.exe. The default locations for these will be C:WinAVR-20101001bin and C:WinAVR-20101001utilsbin, respectively. Click “OK”.
- This is where you connect AVR Studio 4 to WinAVR, installed earlier. These instructions apply to AVR Studio 4.19 (build 760). This final version differs from previous versions of AVR Studio 4.
Step #16: Next
- Now you can edit your program. To build the project for uploading to the ATTiny85 chip, select the “Build Active Configuration” icon on the tool bar or push F7. You will either see a successful build message or a list of errors for debugging.
- After a successful build, connect your programmer to the Tiny Wanderer PCB board and click the “Display the Connect Dialog” icon on the toolbar. Turn the power switch on and make sure the robot has batteries. Select your programmer and click “Connect…”
- Click the small “Connect to the Selected AVR Programmer” icon in AVR Studio’s toolbar. Click “Read Signature” in the resulting popup and wait for the “Leaving Programming Mode” message at the bottom.
- Click the Program tab at the top, and wait for the path of the compiled HEX file to appear under the “Flash” subheading. Once it appears, click “Program” to upload it to the ATTiny.
- If you change projects, the HEX file path will not change. You must change this path to the new project’s file.
- Turn off the power to the board, unplug the programmer, and re-plug the servos.
- Congratulations! You have reprogrammed your AVR microprocessor.
Step #17: Make the finishing touches.Next

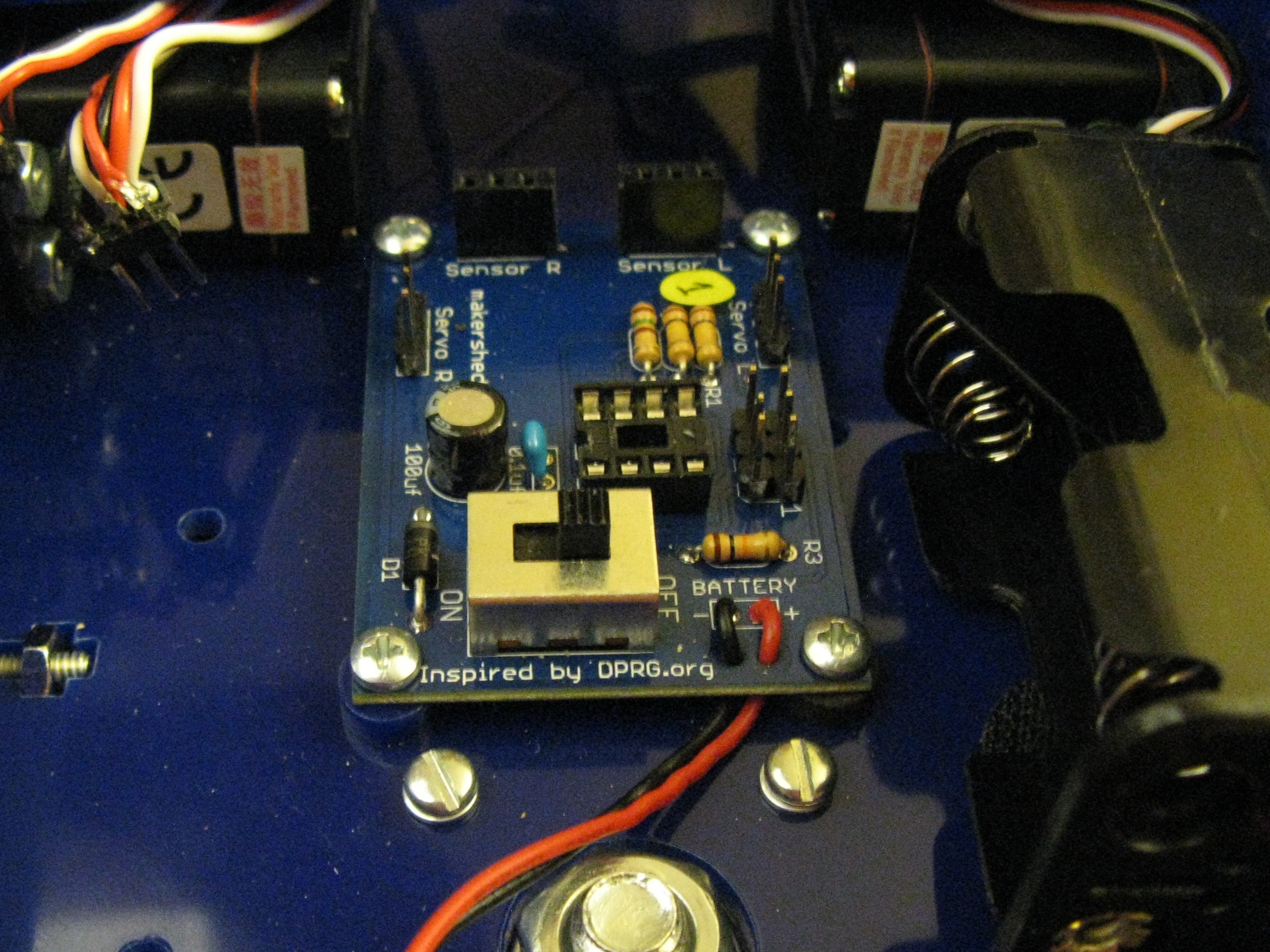

- Bolt the controller to the chassis with the battery wires pointing rearward. Use small acrylic washers as standoffs under the board. Add velcro for holding the battery case onto the rear of the base.
- Plug the servos into the board. If you sourced your own servos, you may need to adjust the speed settings in the .h file, due to differences in servos.
- Left and Right as marked on the board are defined with respect to looking at the robot from the front, not as the robot’s own left and right.
- To test, hold both sensors over a table and alternately move each off the edge. With both sensors over the table, the wheels should run forward, and with one off the edge, they should run backward at different speeds.
- To calibrate the servos, hold the robot in midair and adjust the potentiometers until both wheels sit still. Then turn the power off for a few minutes to let the large capacitor discharge. Your Tiny Wanderer is ready to roll!
Step #18: Next
- Pick two CdS photocells that appear similar. For best results you want both sensors to have similar characteristics.
- You can obtain your CdS photocells from several sources. If you purchase yours from Radio Shack, pick a package that has pairs of similar sensors. In the package to the left, there are two pairs of sensors that appear to be the same type.
Step #19: Next

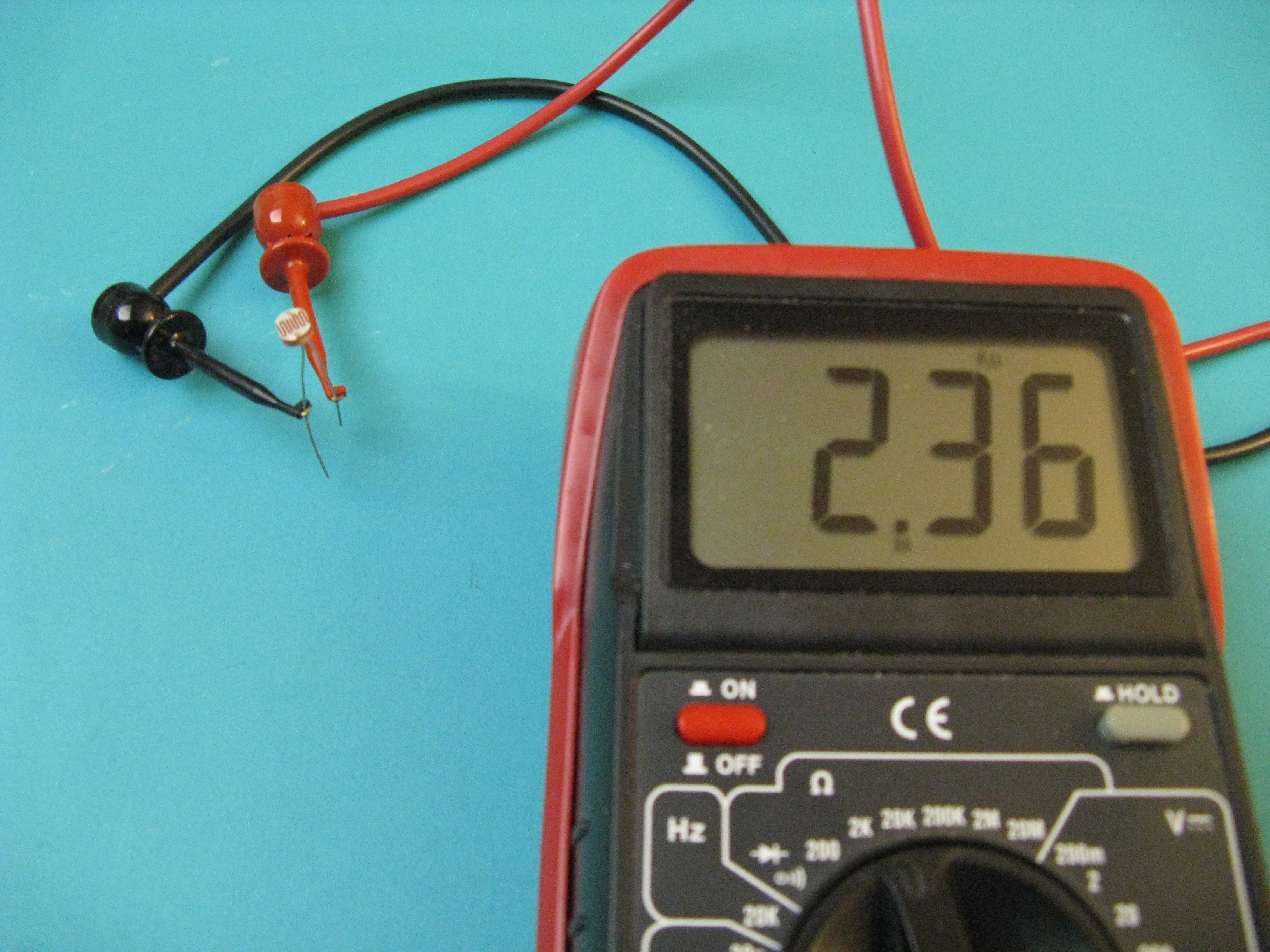

- Measure the resistance of your sensors with an ohmmeter at approximately the maximum light level at which you expect to operate the robot.
- Next, measure the reistance of your sensors with a box over them. This will give you the sensor's minimum-light-level resistance value.
- Use sensors that have similar maximum and minimum light level resistance values.
- The pair of sensors that I used had values of ~6K ohms in the light and over 1M ohms in the dark.
Step #20: Next

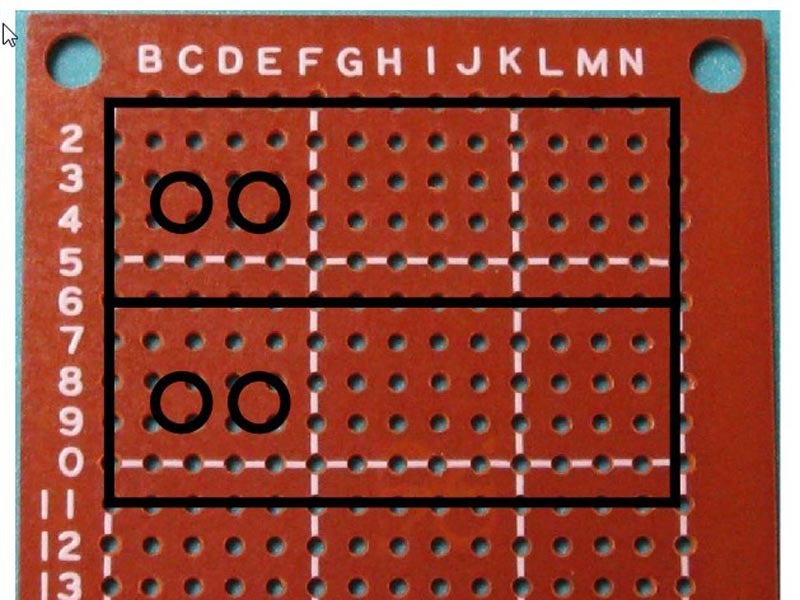

- Lay out the breadboards for your sensor as shown to the left and mark with a fine-tip felt marker.
Step #21: Next

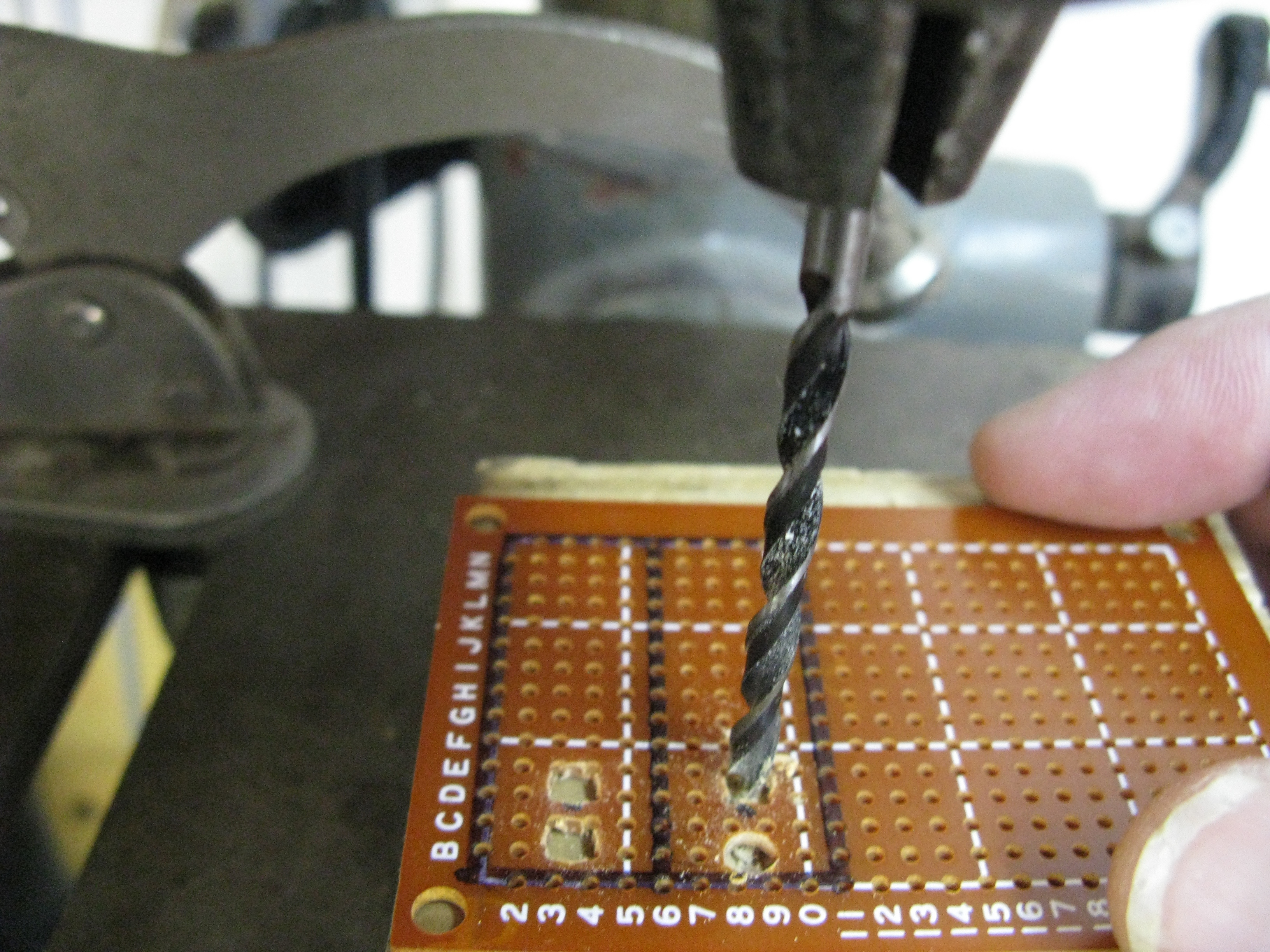

- Drill holes at the marked locations using a 9/64-inch drill bit. Make sure that the holes are separated by about the amount of material between two sets of holes in the breadboard.
- A brad-point drill bit will make a slightly nicer hole.
Step #22: Next

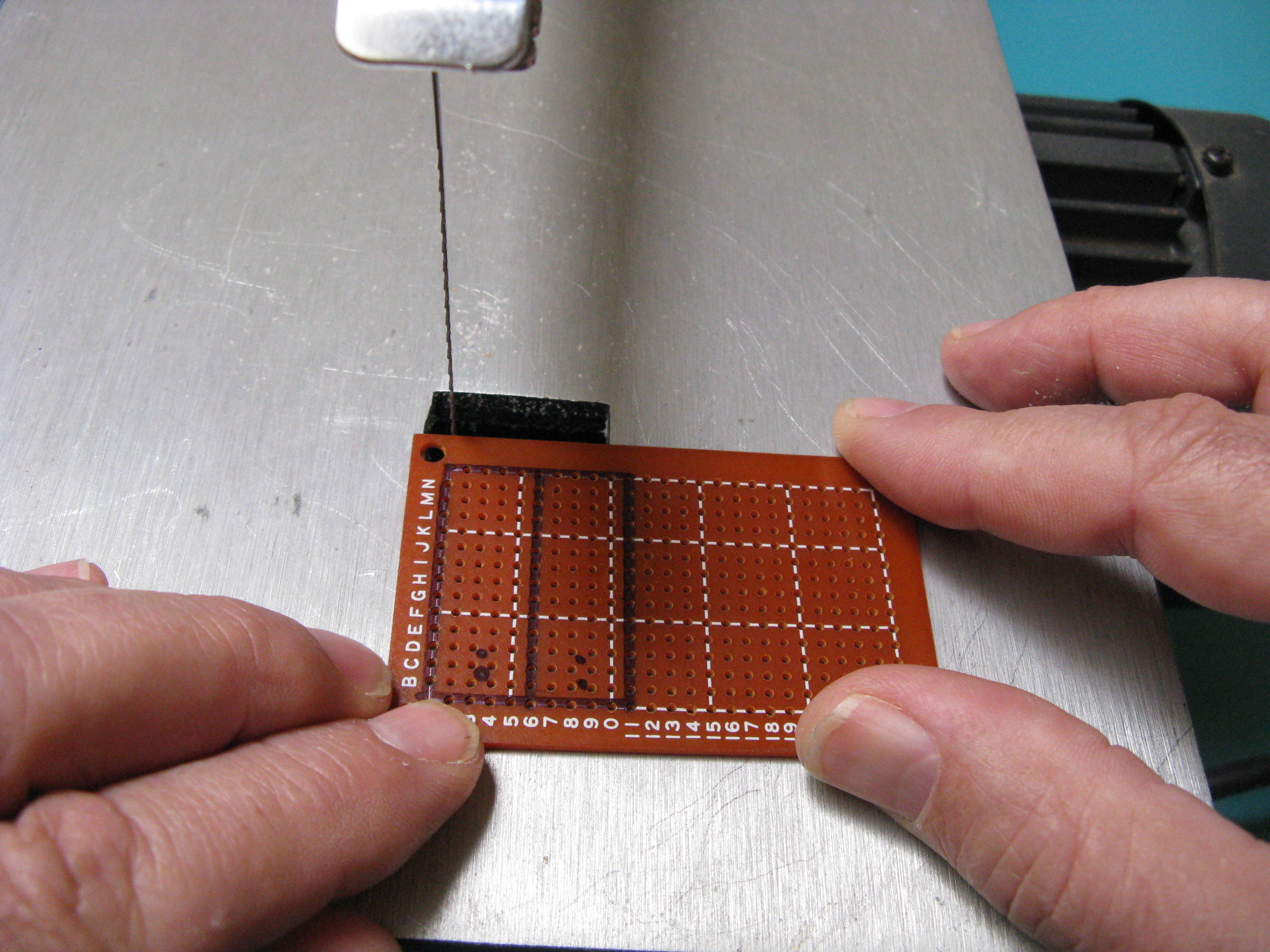

- Cut out the drilled sensor breadboards. Leave a little extra material on the end with your holes.
Step #23: Next
- The holes in your breadboards should align with the holes in the larger sensor arms that came with the robot kit.
Step #24: Next

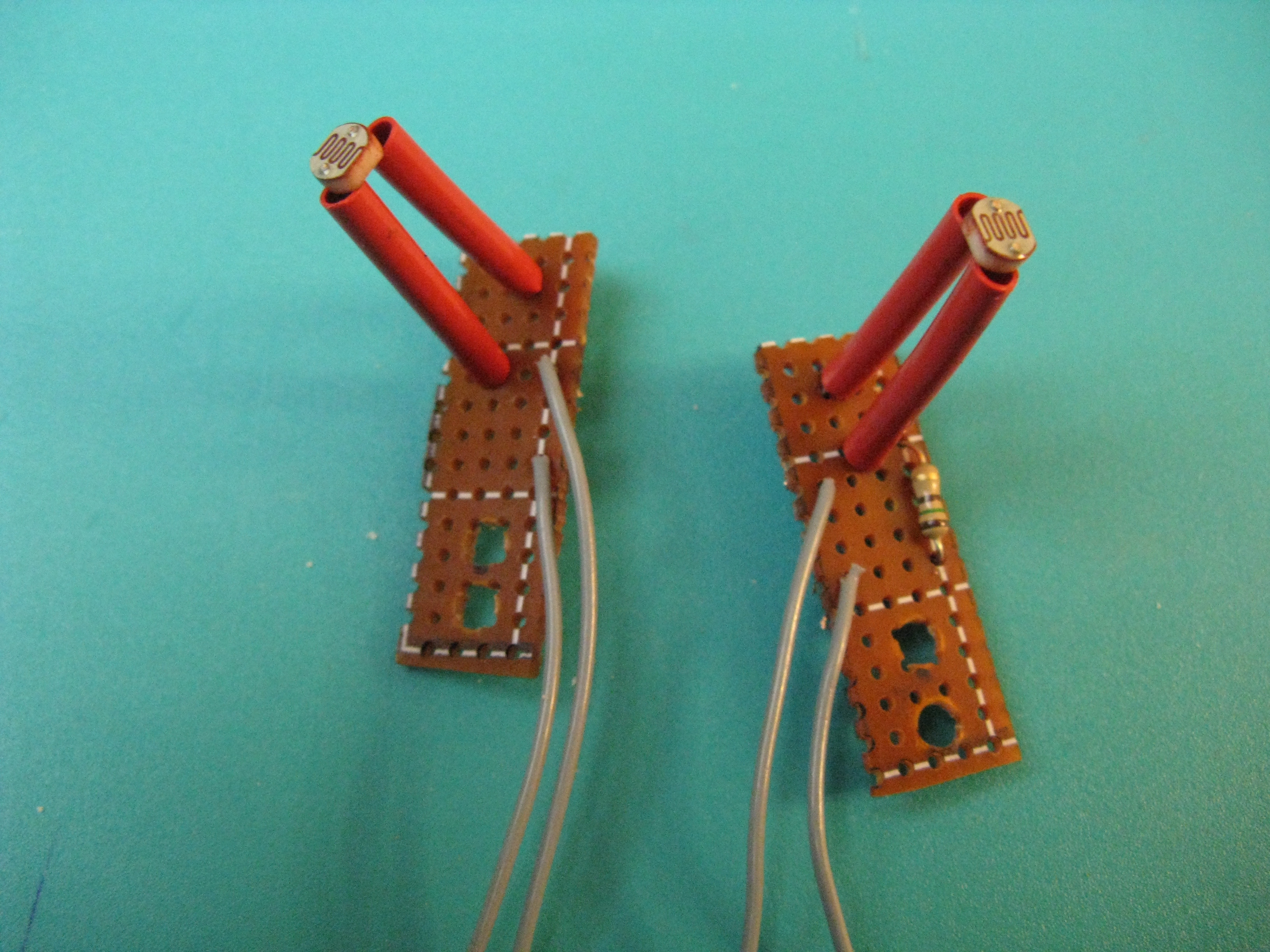

- Wire the two sensor breadboards as shown on the left. Note that one breadboard has a 150-ohm resistor wired in series with the CdS photocell. This resistor is not absolutely necessary, but makes the two circuits seen at the microcontroller's input pins more similar.
- Use heat-shrink tubing to protect the legs of the CdS photocells. Do not heat the tubing.
Step #25: Next

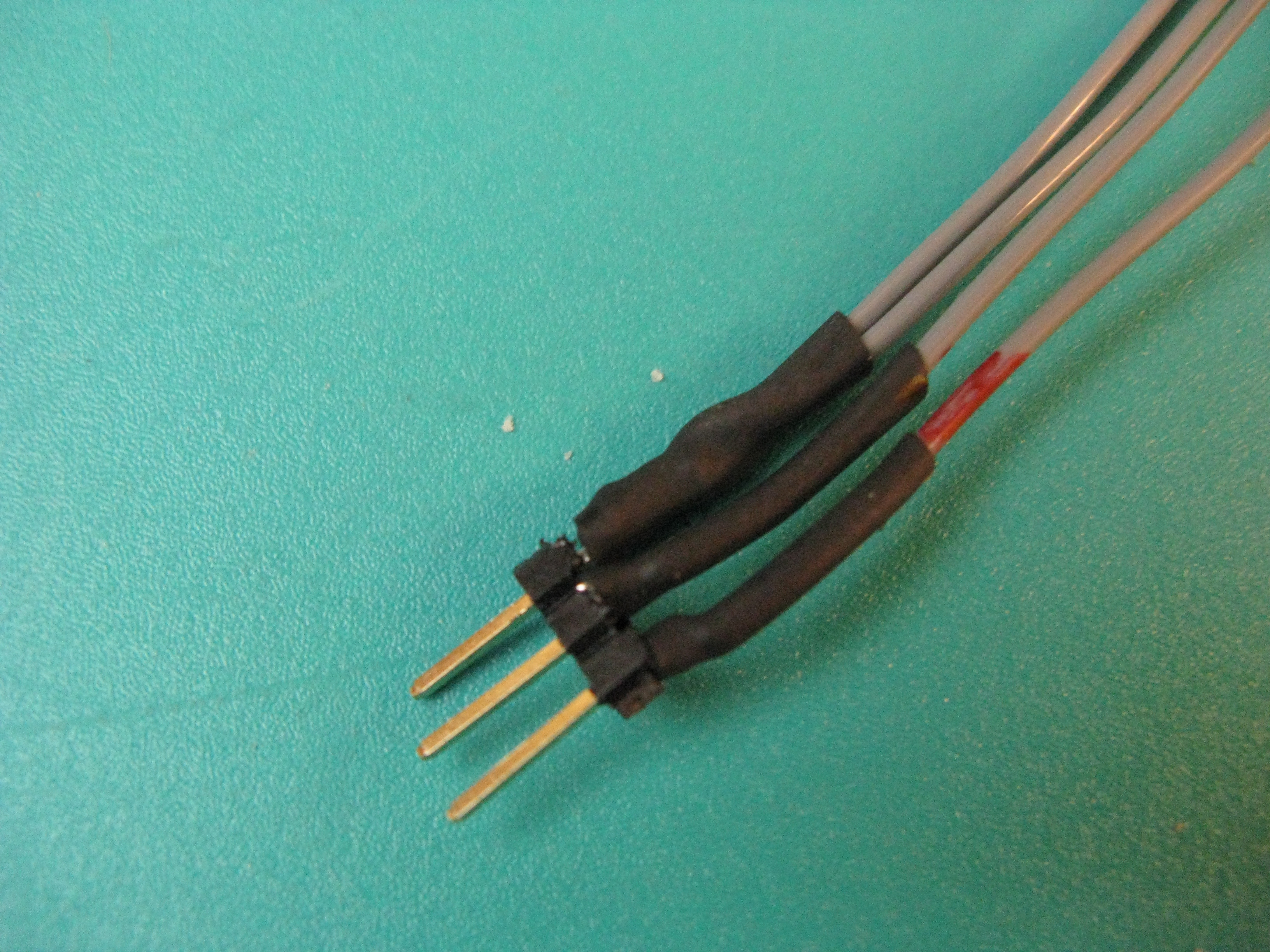

- Take the wires that come from the sensor breadboard location that is farthest from the end with the mounting holes. Both wires should be connected directly to a pin of a CdS photocell. Slide a piece of heat-shrink tubing over both of the wires. The heatshrink will need to have a diameter large enough to slip over two wires. Join the wires and solder both of them to an end pin of 3-pin male pin connector.
- Take the remaining wire from the sensor breadboard that has the resistor and slip a piece of heat-shrink tubing over it. Then solder the wire to the middle pin of the 3-pin male pin connector.
- Slide a piece of heat-shrink tubing over the end of the last wire, which should be connected to one end of the CdS photocell on the sensor board without a resistor. Solder this wire to the other end pin of the connector.
- Pull the heat-shrink tubing over the solder joints and apply heat to shrink the tubing in place.
- Finally, mark the wire on the end connector pin that has only one wire attached to it with a red felt-tip marker to indicate pin #1 of the connector.
Step #26: Next
- Mount the long sensor arms that come with the Tiny Wanderer kit vertically using the slots that are located in the back piece of the sensor tray.
Step #27: Next

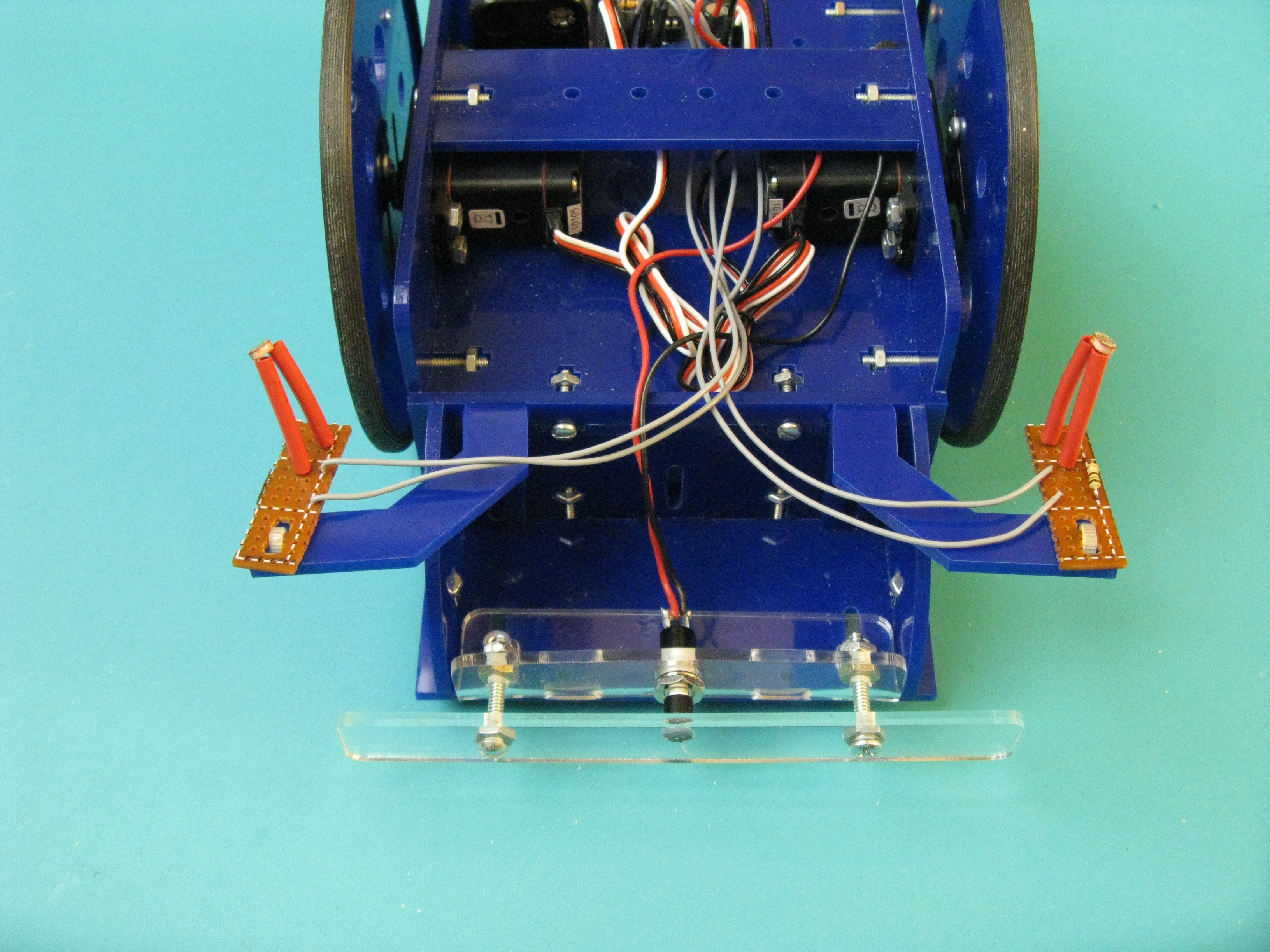

- Use small tie wraps to connect the sensor breadboards to the sensor arms. The CdS photocells should be located towards the back of the robot. The sensor board with the resistor should be on right when facing the front of the robot.
- Each sensor should be pointed out slightly from the side of the robot.
Step #28: Next

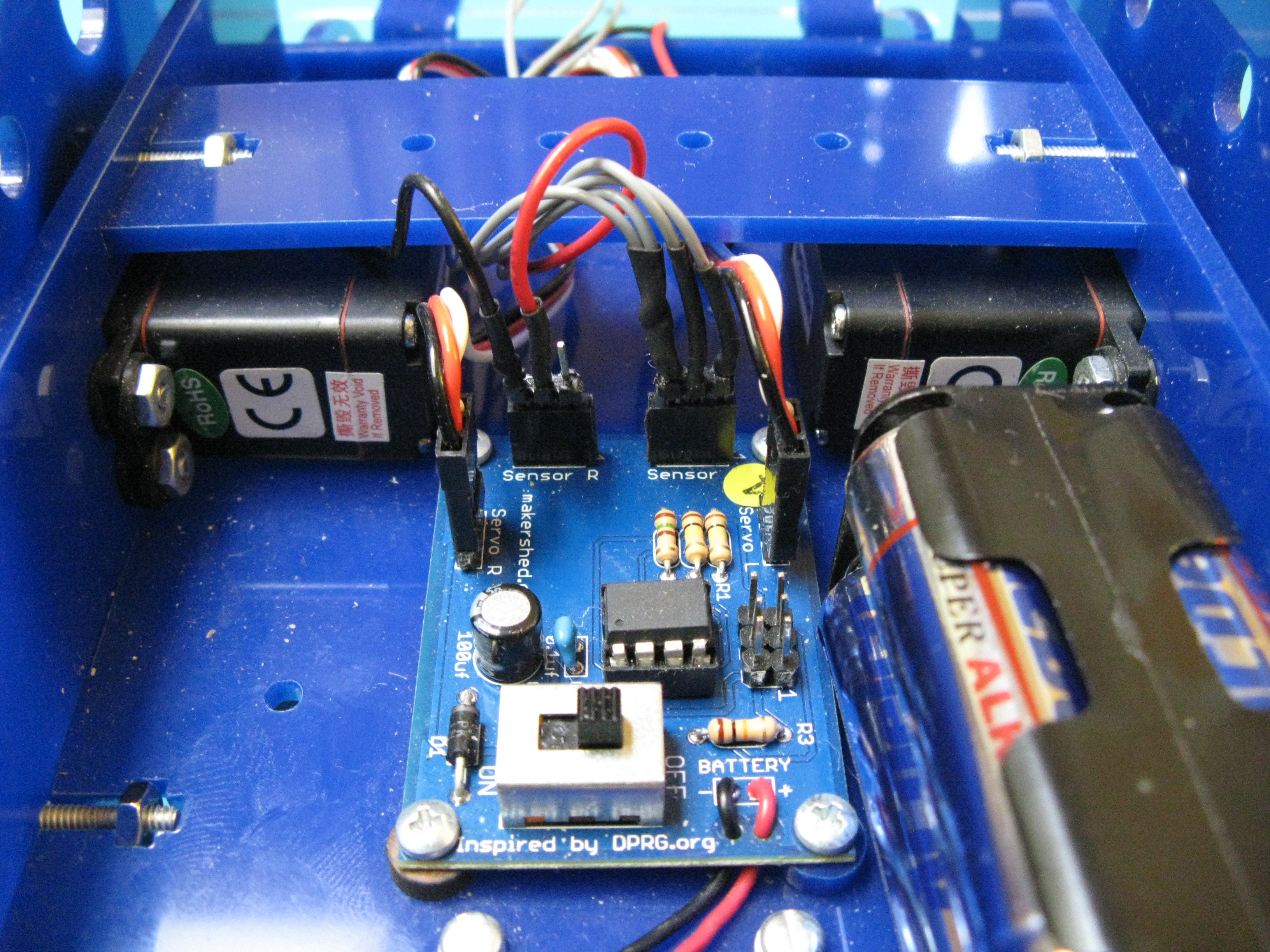

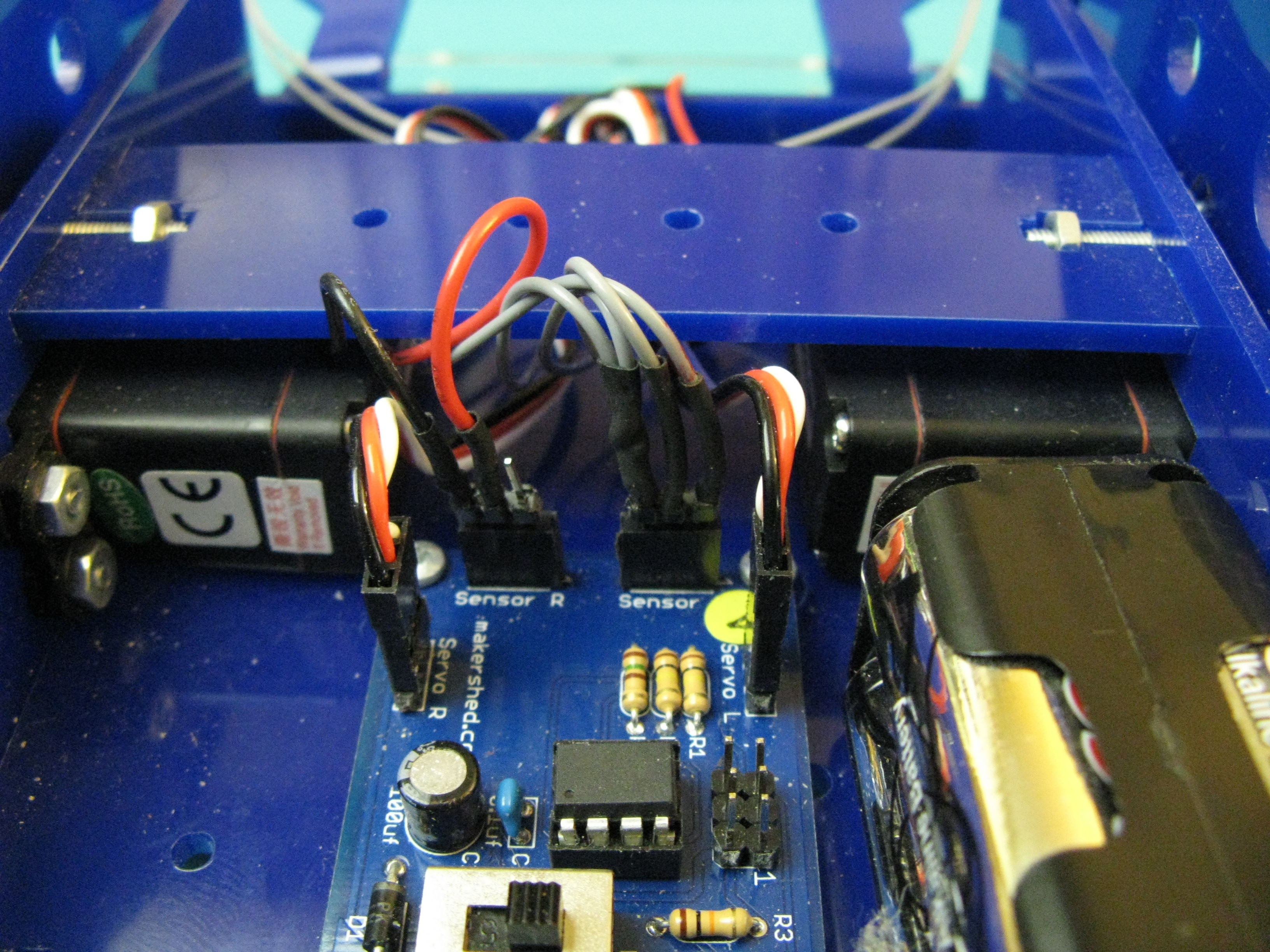

- Insert the 3-pin male pin connector into the female pin connector marked "Sensor L" on Tiny Wanderer's controller board.

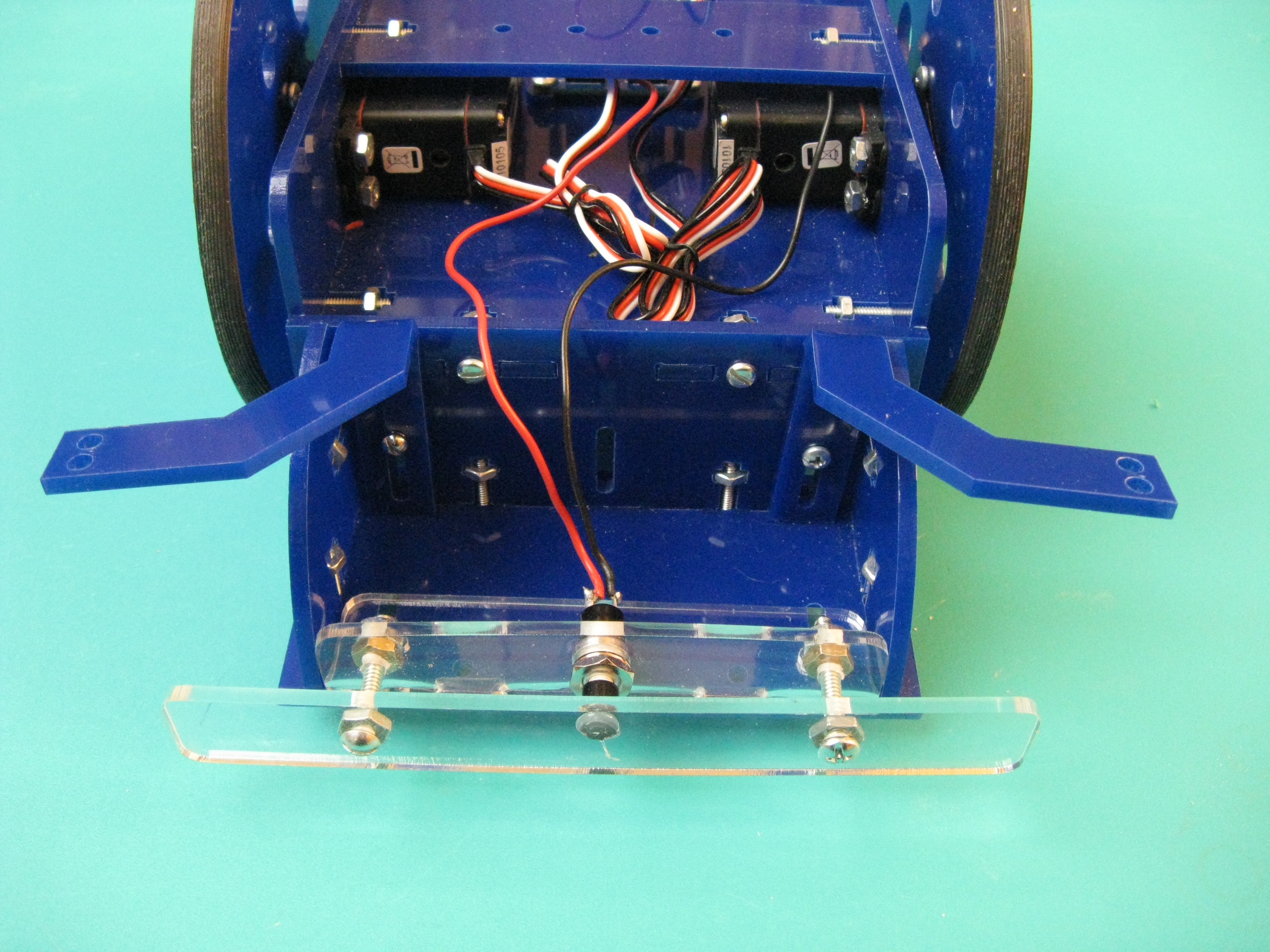

- The picture shows the connector for the optional bump sensor (see Bump Sensor for the Tiny Wanderer) inserted into the female pin connector marked "Sensor R".
Step #29: Next
- Disconnect the servos and program the robot.
- You may have to change the threshold value located in the .h file. Increasing the value requires the difference between sensor values to be larger before the robot will turn. It adjusts both for sensitivity and for some sensor mismatch.
- After programming the robot, reconnect the servo leads.
- Play with your robot.
The "tw_moth_anti-moth" program has a routine to allow you to zero your servos. By depressing the bumper switch within the first 2 seconds after robot start-up, the robot sends a continuous zero signal (1.5 ms pulse) to the servos. To leave the mode turn off the robot and restart.
You can also change the robot behavior from moth to anti-moth by changing a variable in the .c program file.
My experience is that the robot works best in lighting conditions that are not extreme. For example a moderately lit room during daytime with a light on. This situation provides for subtle shadows and interesting runs. A room flooded with light (night time with bright overhead lights) can saturate the sensors and cause the robot to just travel straight, since it can not sense enough difference between the directions.
